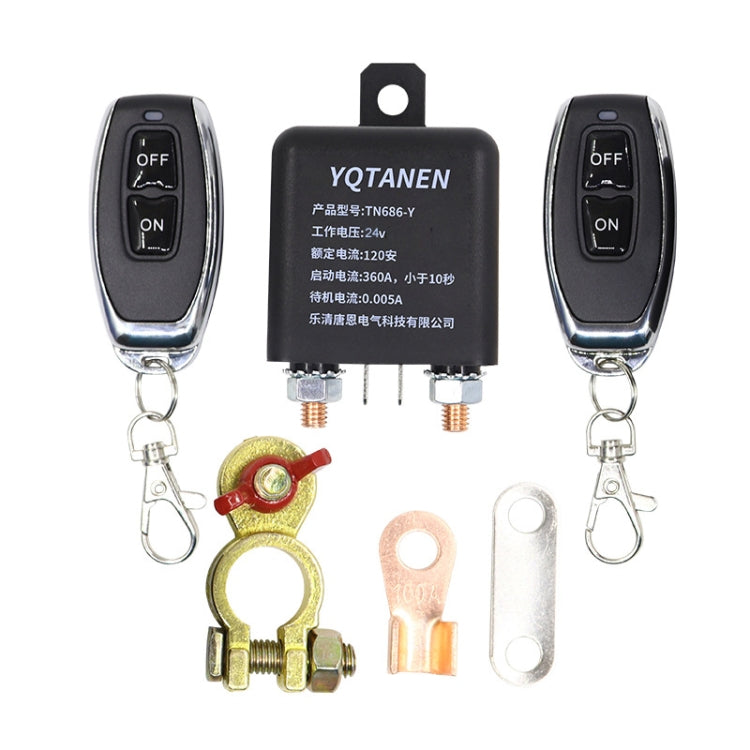

YQTANEN Car Battery Leakage Protection Remote Control Power Off Relay, Voltage: 24V 120A

• Product type: Relays
• Compatibility: 24V car battery
• Material: Silver contacts
• Key feature: Remote control operation
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Replacement Parts

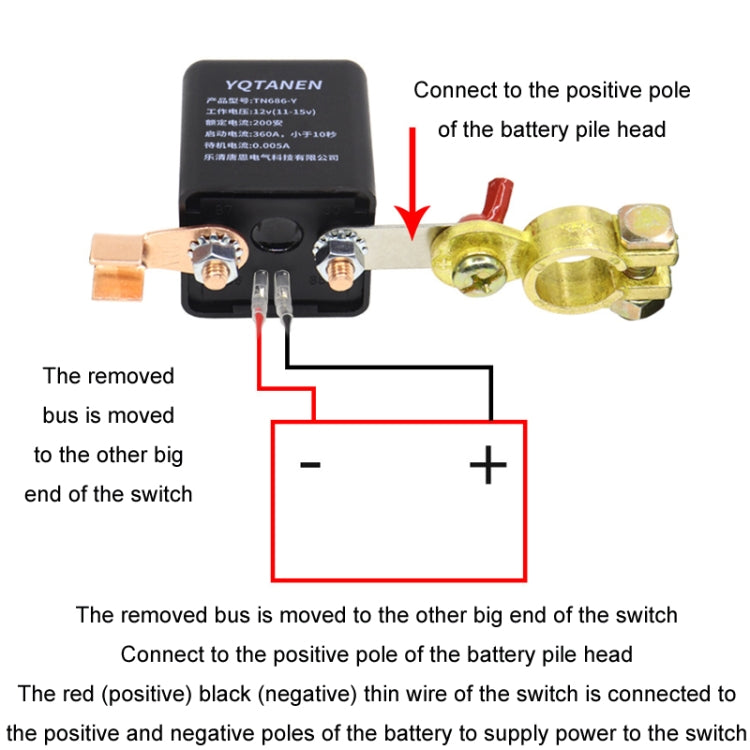

1. Move the removed bus to the other big end of the switch, connect it to the positive pole of the battery, and connect the red (positive) and black (negative) thin wires of the switch to the positive and negative poles of the battery to supply power to the switch.
2. With silver contacts, stronger contact performance, high current impact resistance, stronger conductivity and oxidation resistance.
3. Can be directly installed on the battery pile head.
4. Remote control operation, small size and high current.
5. Working voltage: DC11-15V.
6. Rated current: 200 amps.
7. Starting current: 360 amps, less than 10 seconds.

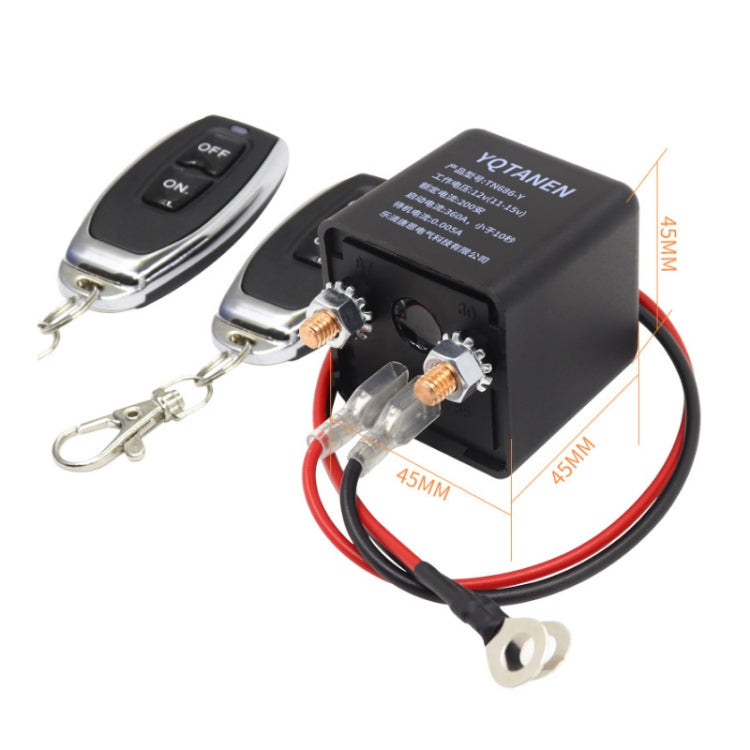

8. Switch size: 45x45x45mm.
9. Weight: 107.2 grams.
