Description
Relay module designed for time delay control with a micro USB interface. It is suitable for various applications, including automation projects and timing control in electronic devices.
- Product Type: Relay Module
- Compatibility: Micro USB Timer Switch
- Material: Industrial-grade circuit board
- Key Feature: LCD display for clear visibility
- Working Voltage: 6-30V, supports micro USB 5.0V power supply
- Trigger Signal Source: High level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control (passive switch)

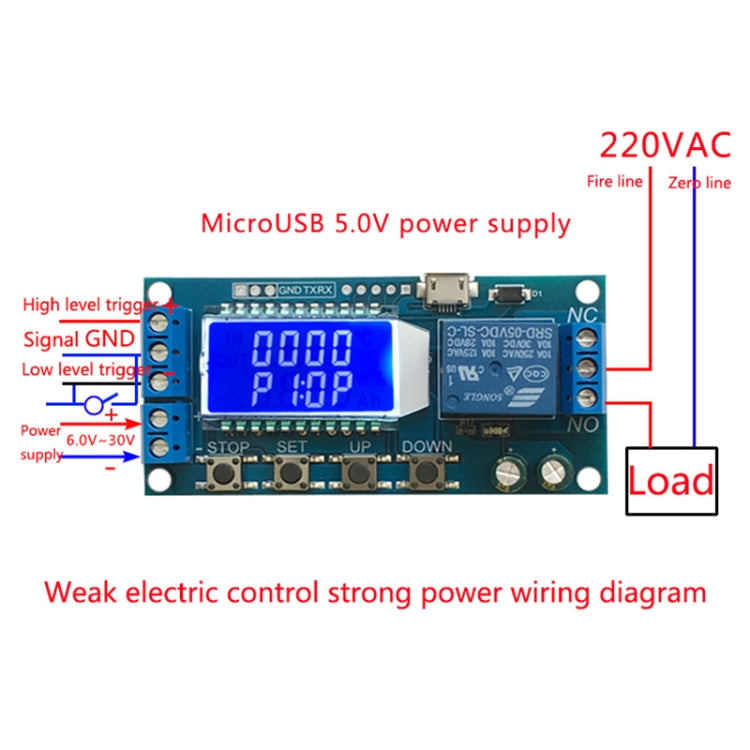

- Output Capability: Controls equipment within DC 30V 5A or AC 220V 5A
- Quiescent Current: 15mA
- Working Current: 50mA
- Working Temperature: -40 to 85 degrees Celsius
- Features: Optocoupler isolation for enhanced anti-interference, parameters saved after power off

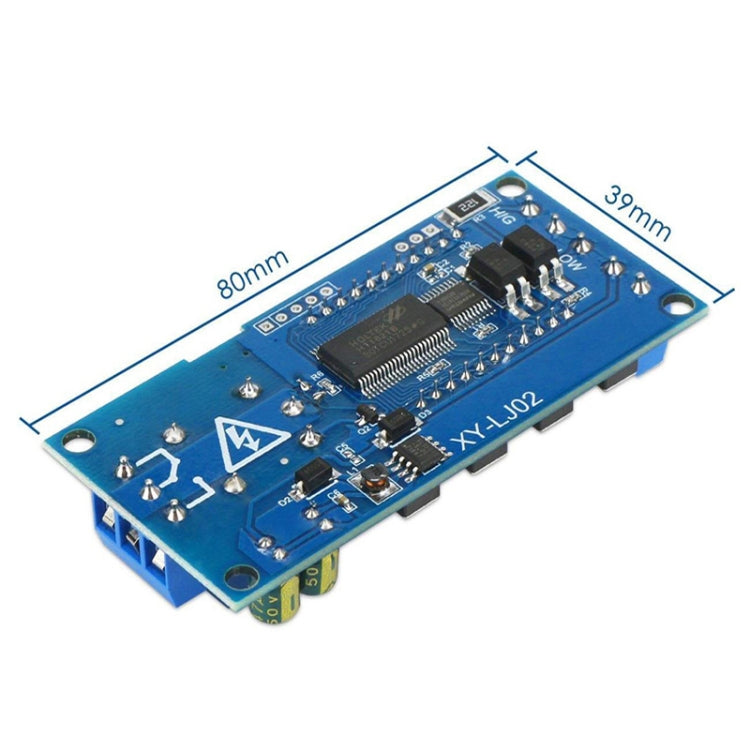

- Size: 8.0 x 3.8 x 1.9 cm
- Weight: Approximately 36g
- Additional Features: Key emergency stop function, sleep mode with automatic LCD backlight off
- Parameter Settings: Independent OP, CL, LOP parameters, saved separately
