XL6019 5A High Power Current DC-DC Boost Power Module Boost Converter

• Product type: Other Accessories
• Compatibility: XL6019
• Material: Not specified
• Key feature: Adjustable output voltage
• Color/Variant: Not specified
• Intended use: Boosting applications
• Category: Consumer Electronics

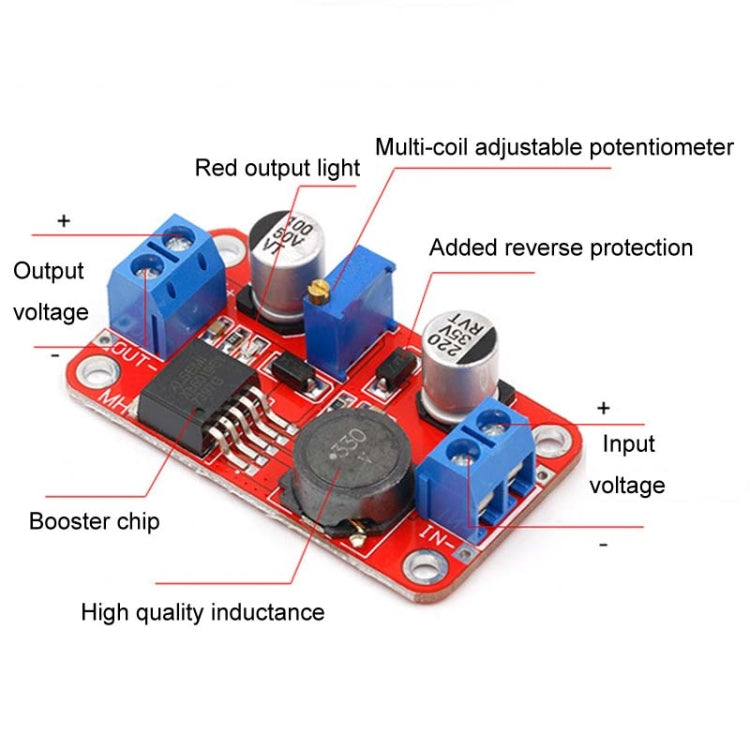

1. Conventional BOOST fully integrated constant voltage output program, internal integration of MOSFET, less peripheral devices, low system cost
2. Wide voltage range input, input voltage up to 35V
3. Adjustable output voltage, high support 40V
4. Built-in over-temperature protection, over-current protection, a full set of reliability protection circuit, high reliability
5. System conversion efficiency can reach more than 90 percent, convenient for thermal design
6. Standard package, suitable for boosting applications within 30W

Attention:
1. Vehicle voltage regulator, only need to connect the input of this module to the power supply, you can adjust the potentiometer, the output voltage can be adjusted arbitrarily in the 5V-30V, for your cell phone, MP3, MP4, PSP charging, and many other devices powered
2. Long time work is recommended to use the current within 2.5A, plus heat sink (10W or more output); because it is a boost module, in order to ensure stable output, please keep a small 1.5V differential pressure
3. To electronic equipment power supply, when the equipment needs 5V-35V power supply and the corresponding voltage power supply in hand, with this module you can easily adjust the voltage to the required voltage, to solve the trouble
4. System operating voltage test, do the project can use this module to debug a variety of voltage test system operating voltage range
