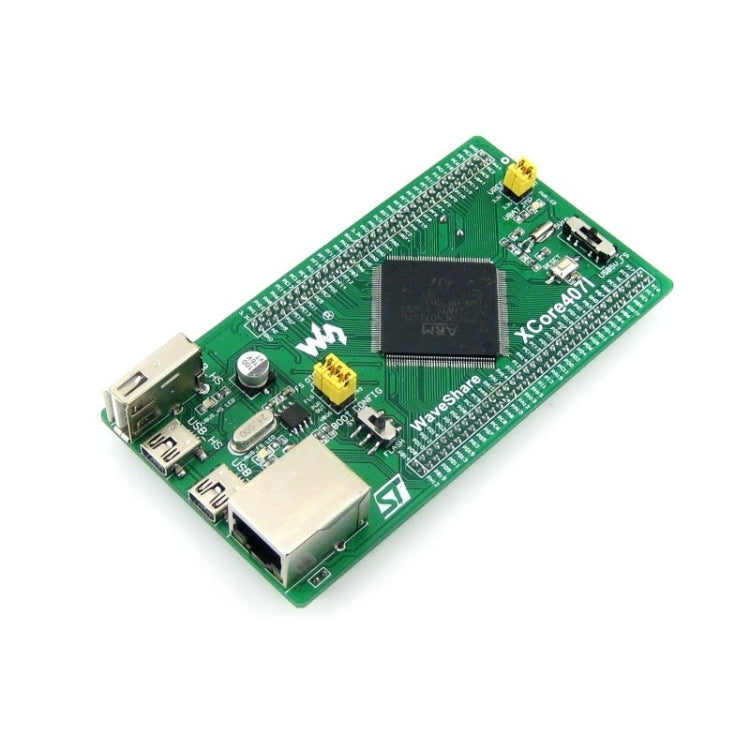

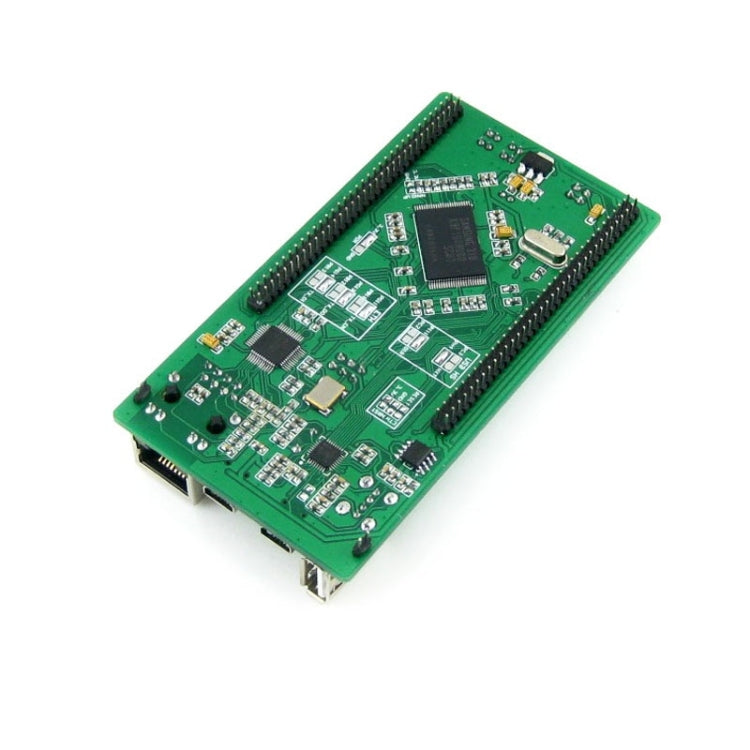

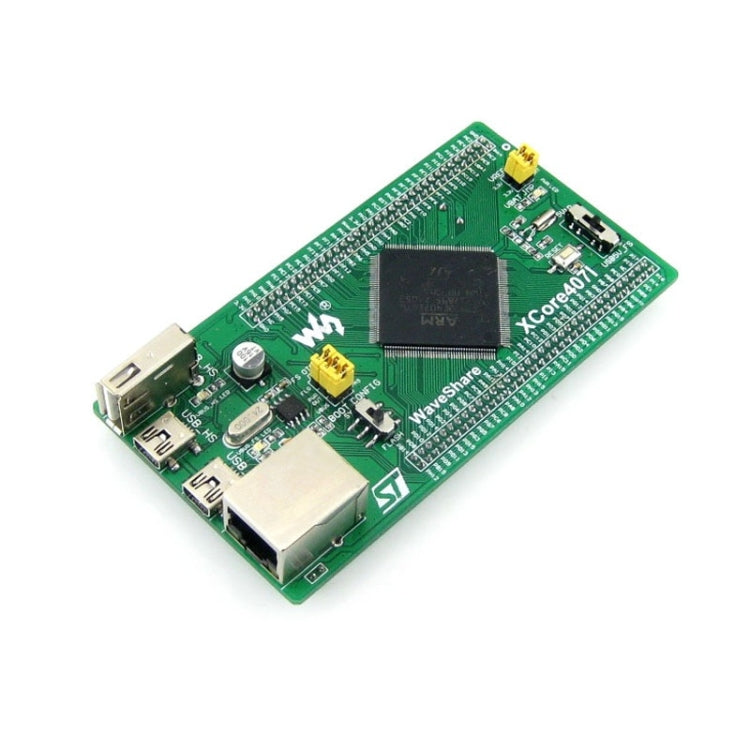

Waveshare XCore407I, STM32F4 Core Board

• Product type: MCU Tools
• Brand: Waveshare
• Compatibility: STM32F4 Core Board
• Material: Not specified
• Key feature: Onboard STM32F407IGT6 MCU
• Color/Variant: Not specified
• Intended use: Development applications
• Category: Electronics Module

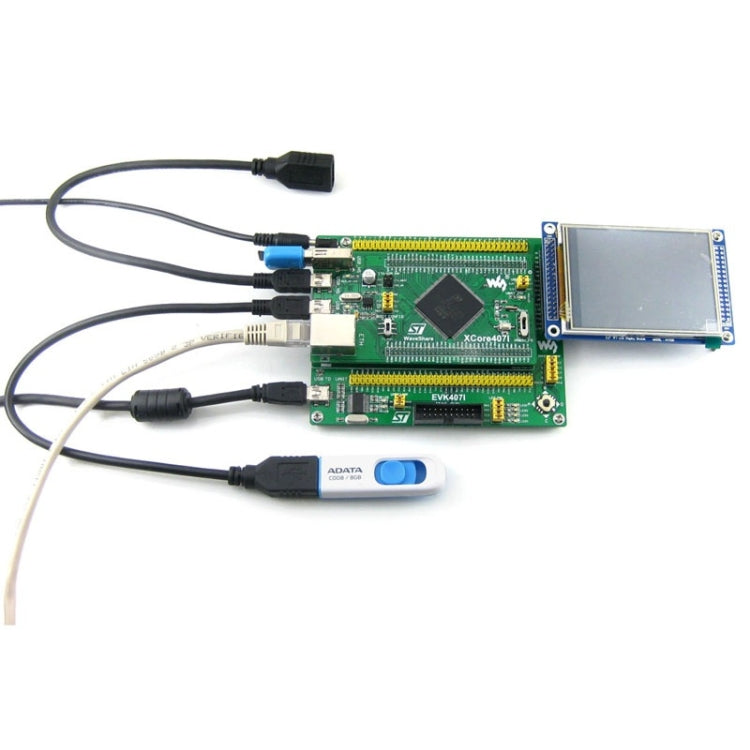

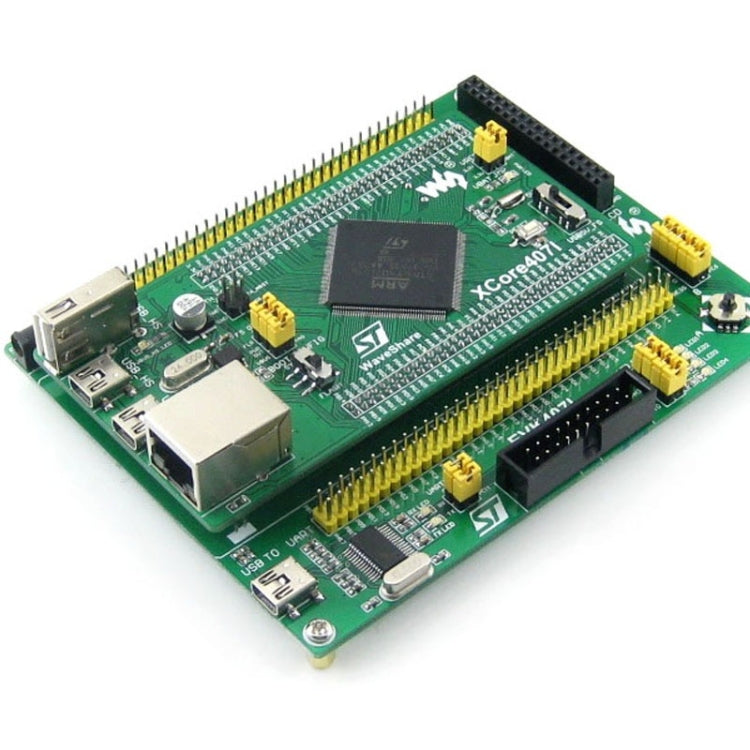

Overview1. XCore407I is an STM32 MCU core board that features the STM32F407IGT6 on board.2. Clock circuit, USB power management3. Onboard devices: USB HS PHY, Ethernet PHY, 1G Bit NandFlash4. Connectors：USB HS (mini / type A), USB FS (mini), Ethernet (RJ45)5. All the idle I/O ports are accessible on the pin headers6. 2.0mm pin header pitch, smaller size, easier to integrate into user system7. Note : please consider the EVK407I, which supports easily programing/debugging.What is On BoardSTM32F407IGT6 development board on board resource1. STM32F407IGT6: The high performance STM32 MCU which features:- Core: Cortex-M4 32-bit RISC- Feature: a full set of single-cycle DSP instructions- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz- Operating Voltage: 1.8V-3.6V- Package: LQFP176- Memories: 1024kB Flash, 192+4kB SRAM- MCU communication Interfaces:-- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C-- 1 x FSMC, 1 x SDIO, 2 x CAN-- 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY-- 1 x 10/100 Ethernet MAC-- 1 x 8 to 14-bit parallel camera interface- AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP2. MIC2075-2, onboard USB FS power management device3. AMS1117-3.3, 3.3V voltage regulator4. K9F1G08U0E, 1G Bit NandFlash5. DP83848, Ethernet PHY6. MIC2075-1, onboard USB HS power management device7. USB3300, USB HS PHY8. Power supply switch, powered from 5Vin or USB connection9. Boot mode switch, for configuring BOOT0 pin10. Power indicator11. USB FS LED12. USB HS LED13. Reset button14. 8M crystal, MCU clock, enables the MCU run at higher speed by frequency multiplication15. 24M crystal, USB3300 clock16. 50M crystal, DP83848 clock17. 32.768K crystal, for internal RTC with calibration18. Ethernet connector19. USB FS mini connector20. USB HS mini connector21. USB HS type A connector22. MCU pins expander, VCC, GND and all the idle I/O ports are accessible on expansion connectors for further expansion23. USB OTG/HOST jumper24. VREF/VBAT jumper25. Ethernet I/O selection solder joint26. USB HS I/O selection solder joint27. PDR selection solder joint: 1.8-3.6V, -40～105℃ OR 1.7-3.6V, 0～70℃Package Contents1. XCore407I development board x 12. USB type A to Mini-B cable x 13. Software CD x 1
