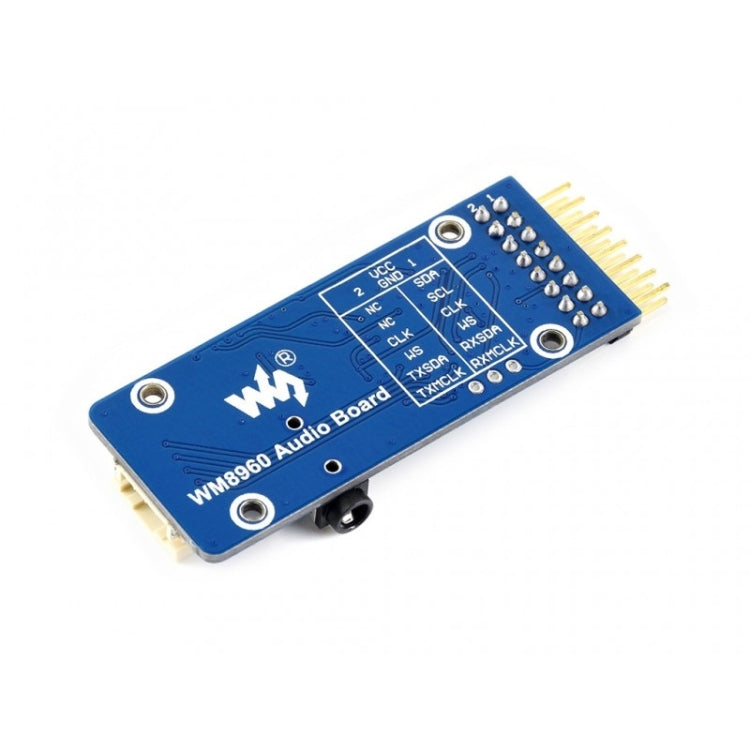

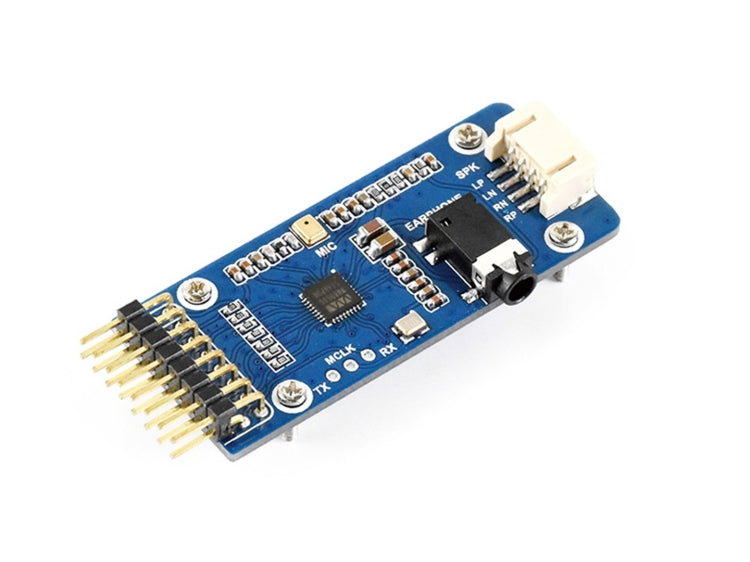

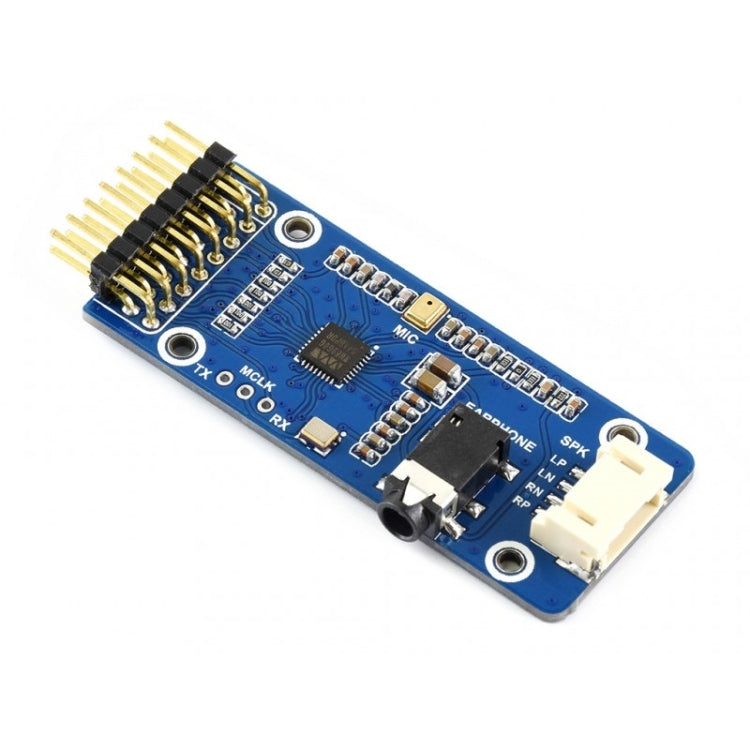

Waveshare WM8960 Stereo CODEC Audio Module, Play/Record

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: WM8960
• Material: Electronic components
• Key feature: Supports stereo encoding/decoding
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module

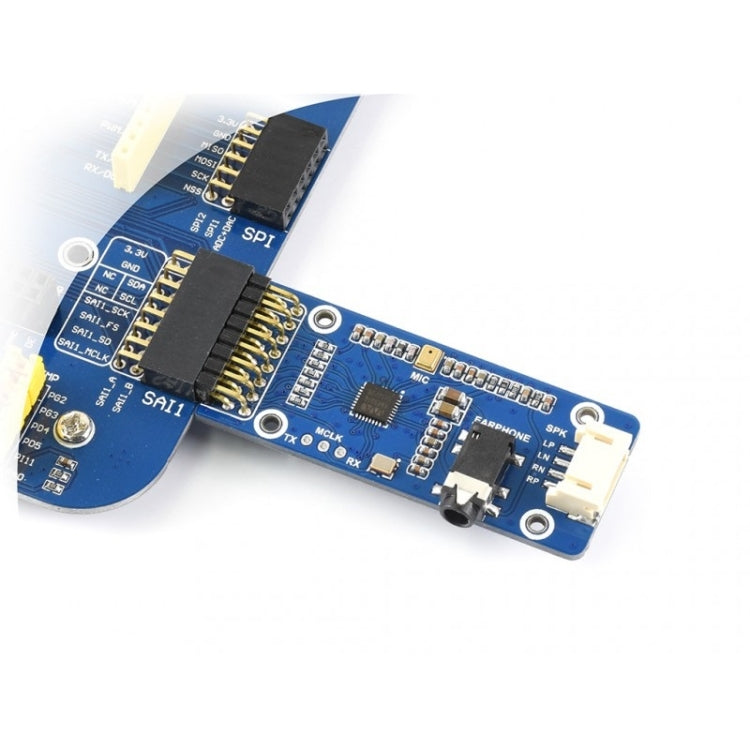

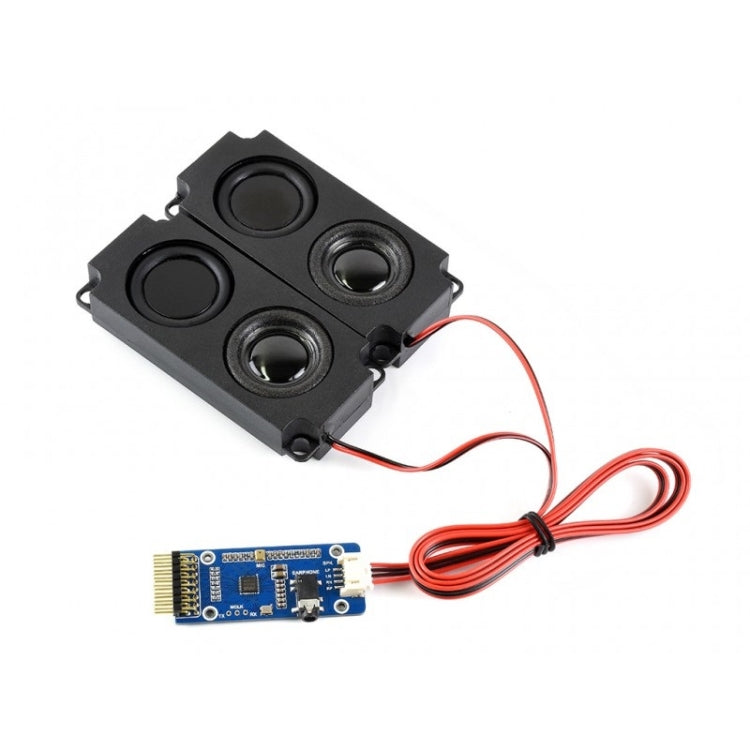

OverviewThis low power audio module is based on WM8960, supports stereo encoding/decoding, supports sound recording, whats more, it can directly drive speakers to play music.Features1. Integrates high-quality MEMS silicon Mic, supports sound recording2. Onboard standard 3.5mm 4-segment earphone jack, allows sound recording via external earphones with Mic3. Onboard dual-channel speaker interface, directly drives speakers4. Supports common audio sampling rates such as 8/11.025/22.05/44.1/48KHz, etc.5. Supports sound effects such as stereo, 3D surrounding, etc.6. Comes with development resources and manual (STM32 examples for playing, recording)Specifications1. CODEC: WM89602. Operating voltage: 3.3V3. Control interface: I2C4. Audio interface: I2S5. Audio format: WAV6. DAC signal-noise ratio: 98dB7. ADC signal-noise ratio: 94dB8. Earphone driver: 40mW (16Ω@3.3V)9. Speaker driver: 1W per channel (8Ω BTL)
