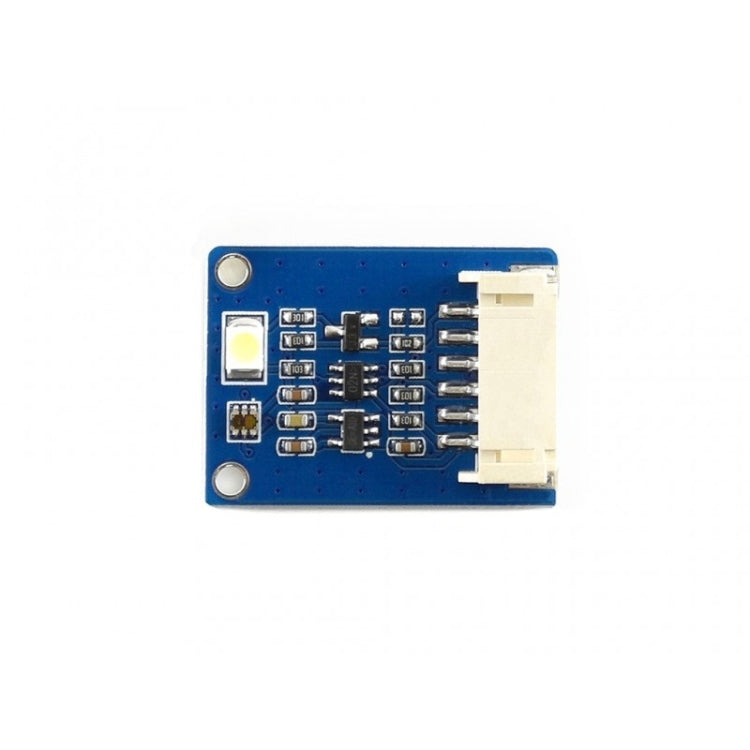

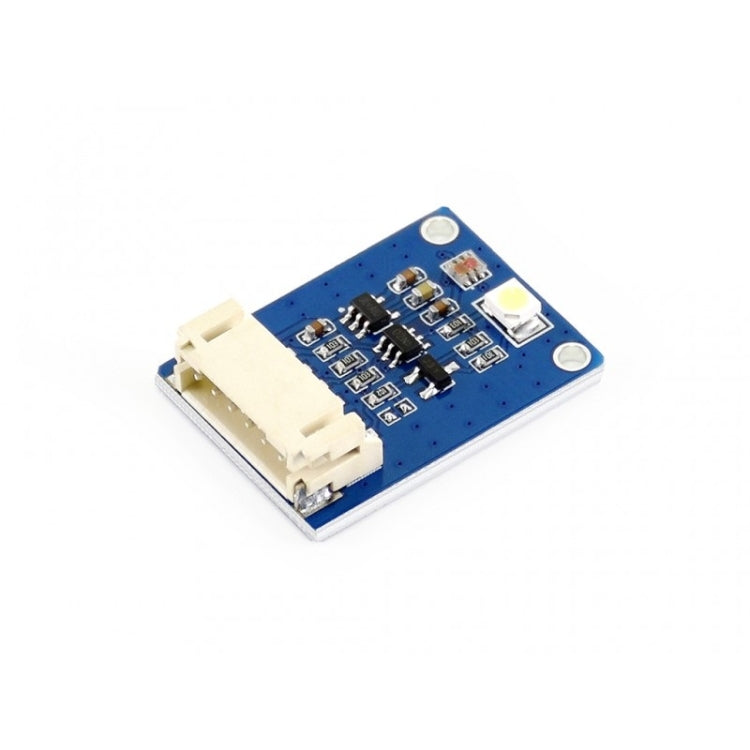

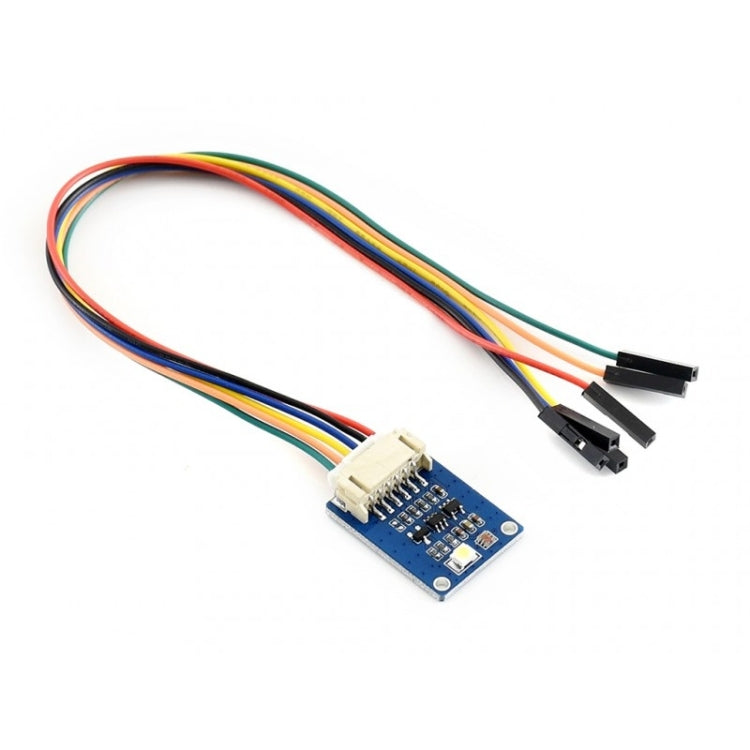

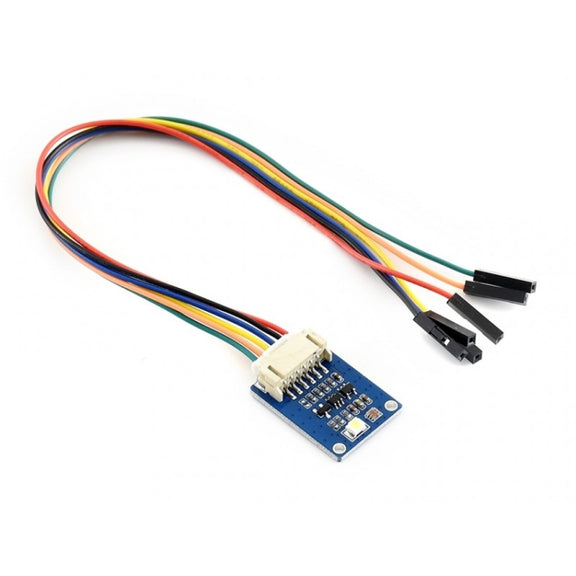

Waveshare TCS34725 Color Sensor Module, High Sensitivity, I2C interface

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: TCS34725
• Material: Not specified
• Key feature: High sensitivity, I2C interface
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

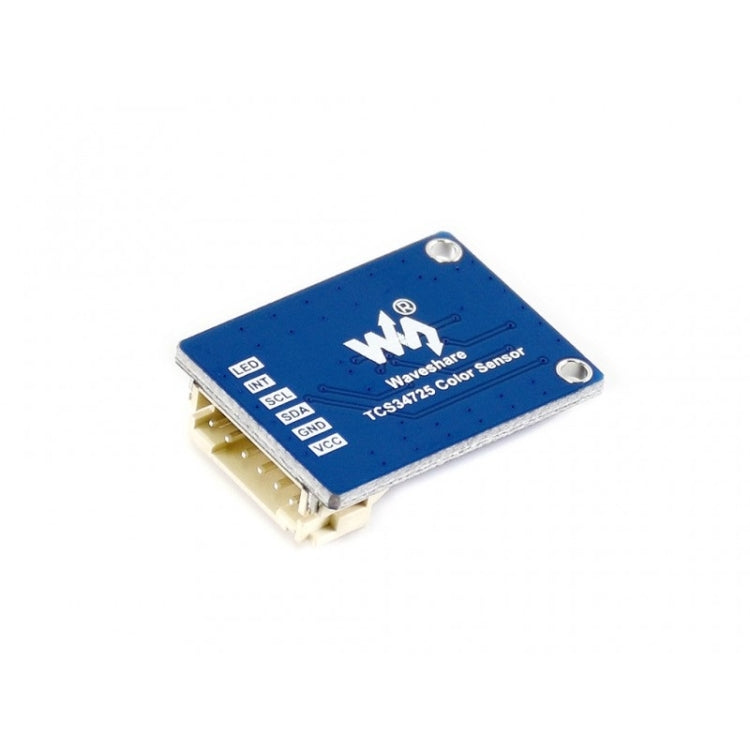

OverviewThis is a color sensor module based on TCS34725, will output RGB data and light intensity through the I2C interface. Its advantages include high sensitivity, wide dynamic range, accurate measuring, etc.Features1. Onboard TCS34725FN, embedded ADC, high sensitivity, wide dynamic range2. I2C communication, uses a few pins3. Integrates IR blocking filter, minimizes the IR spectral component of the incoming light4. Outputs RGB data without white balance5. Outputs light intensity, feels the light like human eyes6. Supports light intensity interrupt output, programmable upper and lower thresholds7. Supports fill-light by onboard LED, adjustable brightness by PWM8. Onboard voltage level translator, compatible with 3.3V/5V operating voltage9. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Sensor: TCS34725FN2. Communication interface: I2C3. Operating voltage: 3.3V/5V4. Dimension: 27mm × 20mm5. Resolution: 4-ch RGBC, 16-bit per ch6. Recommended measuring distance: 2mmApplications1. Sorting by color2. Ambient light sensing and calibration3. Products color identification and classificationPinouts1. VCC: 3.3V/5V power input2. GND: ground3. SDA: I2C data input4. SCL: I2C clock input5. INT: Interrupt output (open drain output)6. LED: Light emitting diodePackage Contents1. TCS34725 Color Sensor x12. PH2.0 6PIN wire 20cm x1
