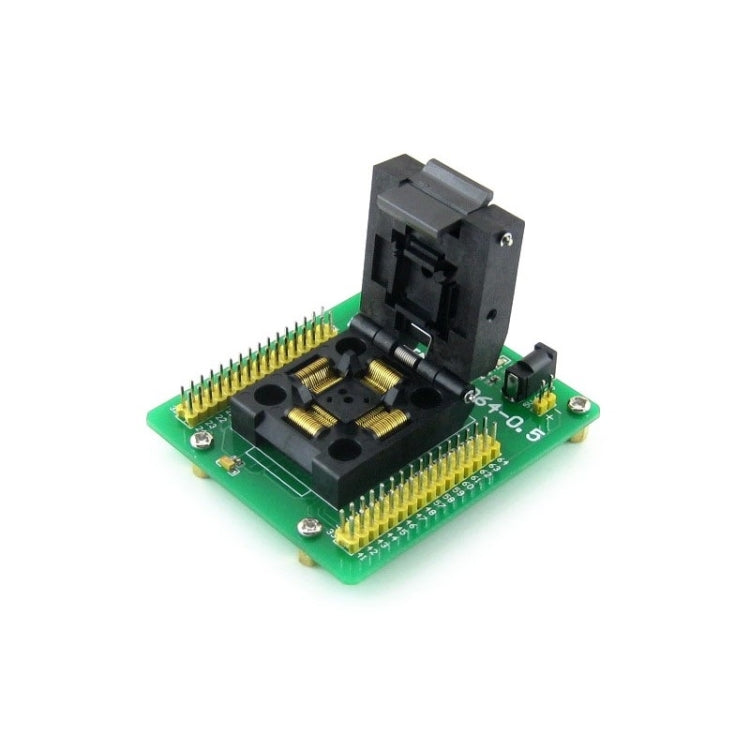

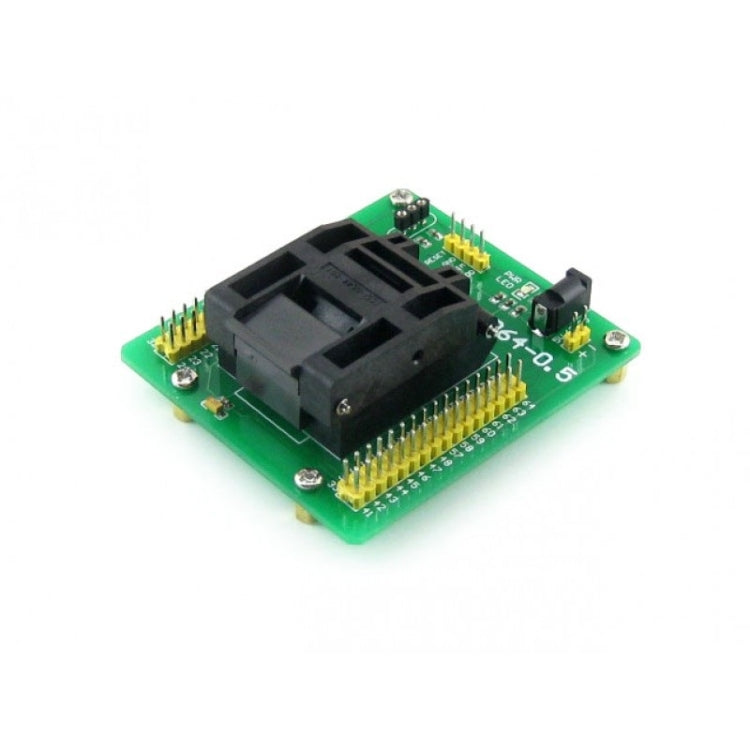

Waveshare STM8-QFP64-0.5, Programmer Adapter

• Product type: MCU Tools
• Brand: Waveshare
• Compatibility: STM8 microcontrollers in QFP64(0.5mm pitch) package
• Material: Not specified
• Key feature: 4-pin SWIM Port for programming
• Color/Variant: Not specified
• Intended use: Programming and testing
• Category: Electronics Module

Features
1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors
Supported Devices
STM8 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts- STM8S207RxTx / STM8S208RxTx- STM8Ax51x9T / STM8Ax52x9T / STM8Ax61x9T / STM8Ax62x9T

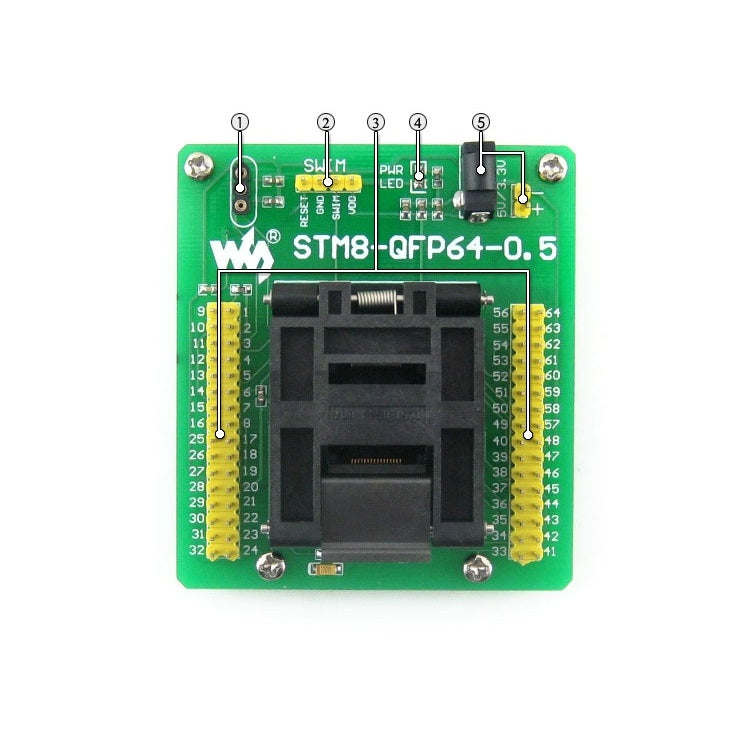

Photos
1. External crystal socket- Insert crystal to the holes on two sides, regardless of the middle hole

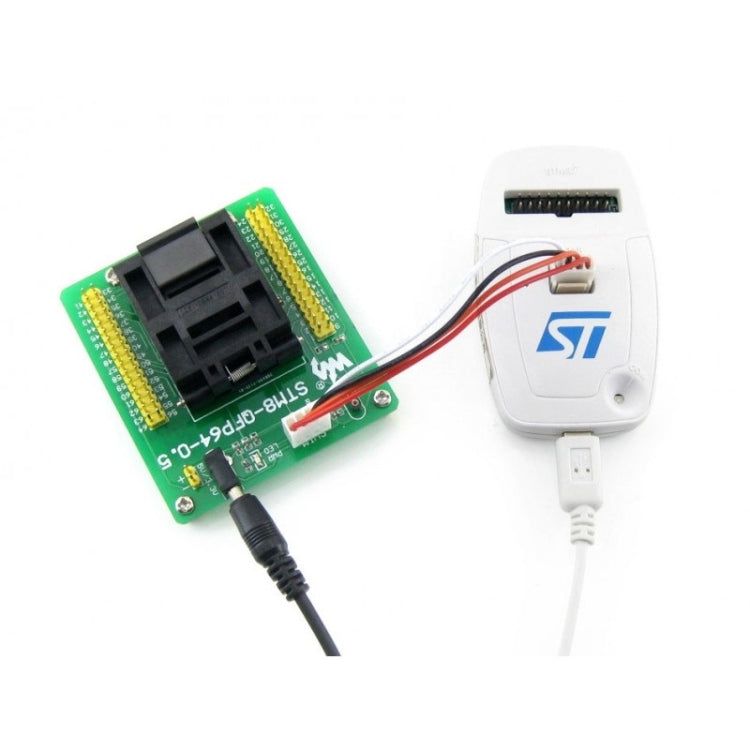

2. SWIM port- For programming/debugging/testing- Compatible with ST-LINK, ST-LINK/V2, etc.
3. Pin headers connected to MCU pins- Clearly labeled with onboard marks- Easy for testing and further expansion
4. Power indicator
5. Power input- DC5V/3.3V
Package Contents
1. STM8-QFP64-0.5 × 1
2. USB power cable × 1
