Description

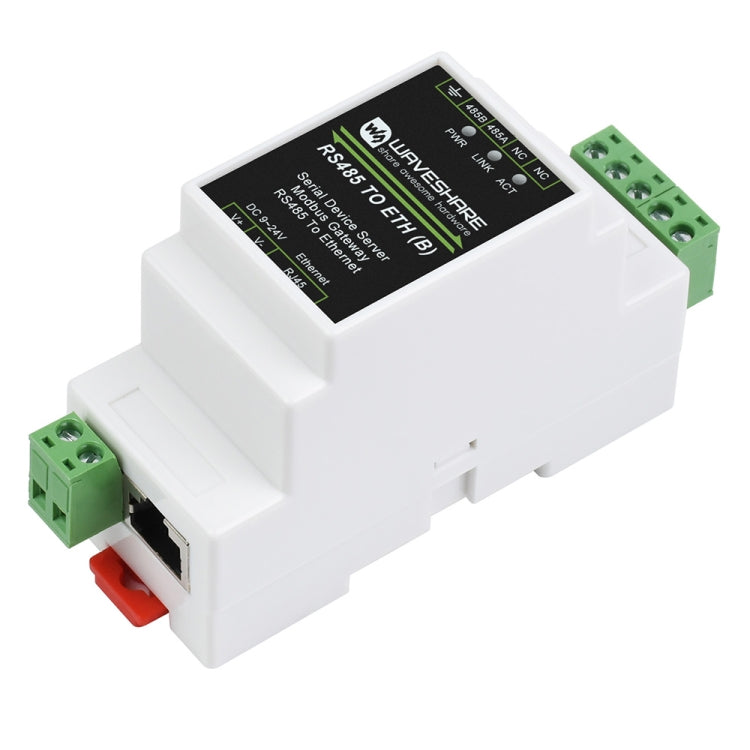

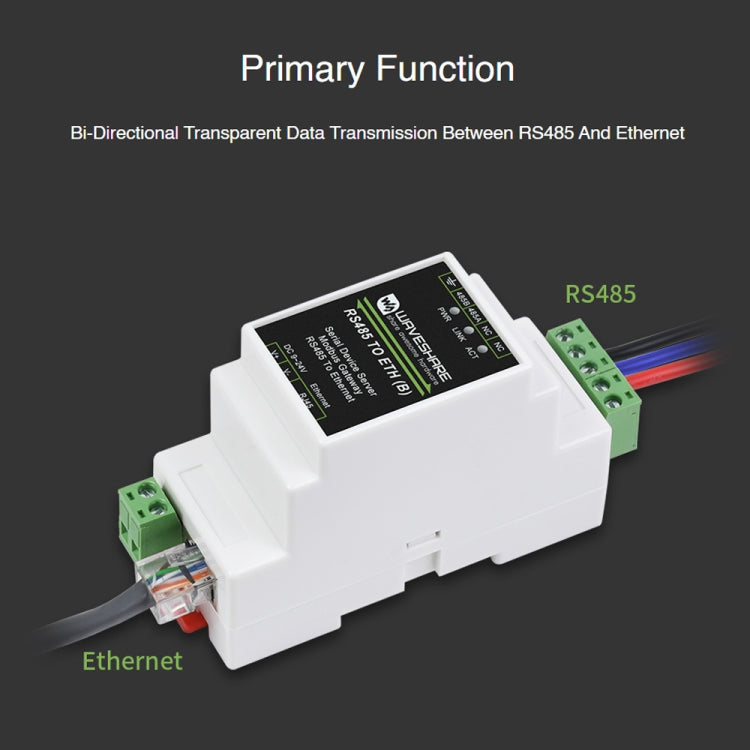

The Waveshare RS485 to RJ45 Module is a TCP/IP to Serial Converter designed for industrial applications. It enables data acquisition and IoT gateway functionalities in environments requiring reliable communication.
- Product Type: Other Accessories
- Compatibility: RS485 devices
- Material: Flame-retardant case
- Key Feature: Multi-functional IoT gateway
- Intended Use: Industrial applications

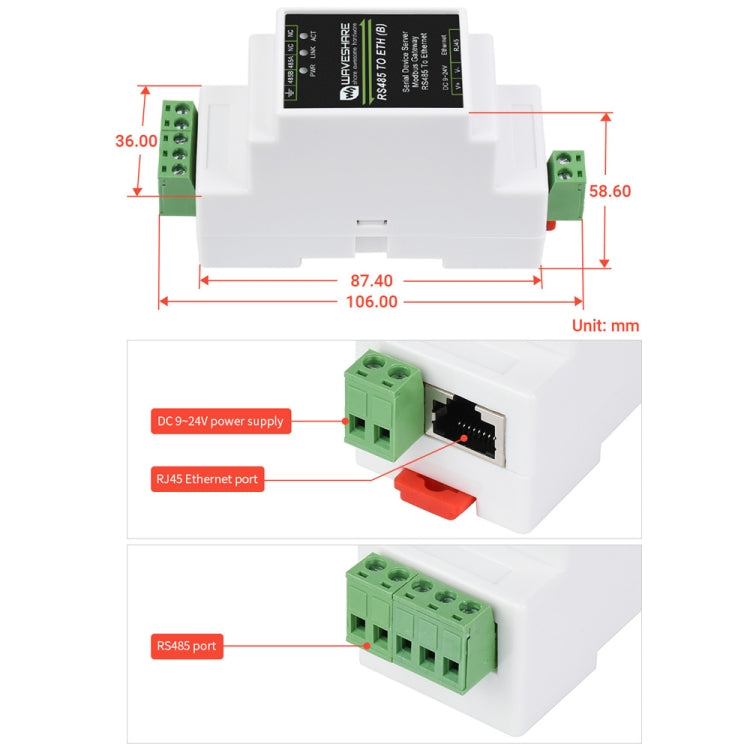

- Dimensions (L x W x H): 87 x 36 x 59 mm
- Power Supply: 9 ~ 24V DC, screw terminal
- Communication Interface: RS485, screw terminal, supports 32x slave devices
- Ethernet: 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
- Serial Port: RS485 - RXD, TXD, GND
- Baudrate: 300 ~ 115200 bps
- Parity Bit: None, odd, even, mark, space
- Data Bit: 5 ~ 9 bits
- Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration: Host, web browser, device management functions library
- Communication Method: TCP/IP direct communication, VCOM

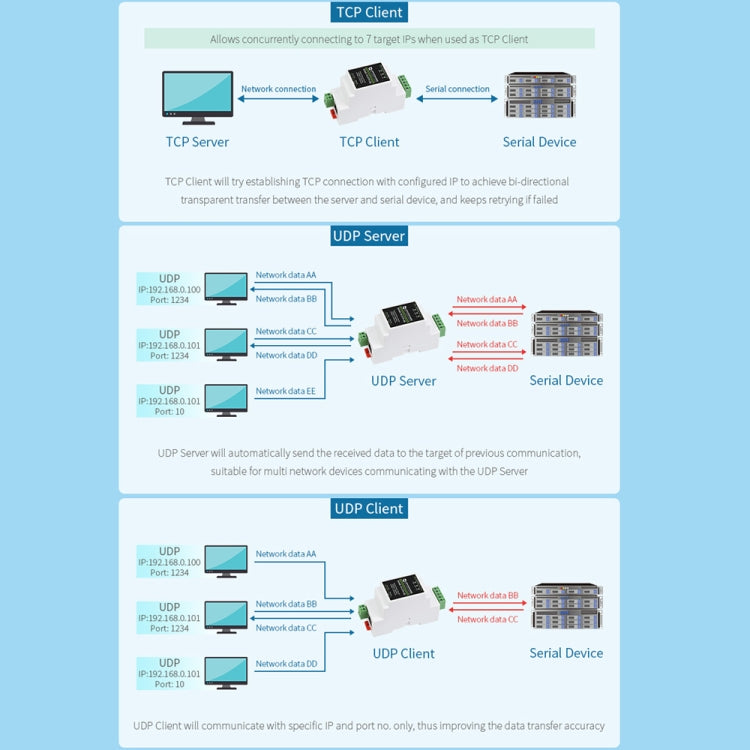

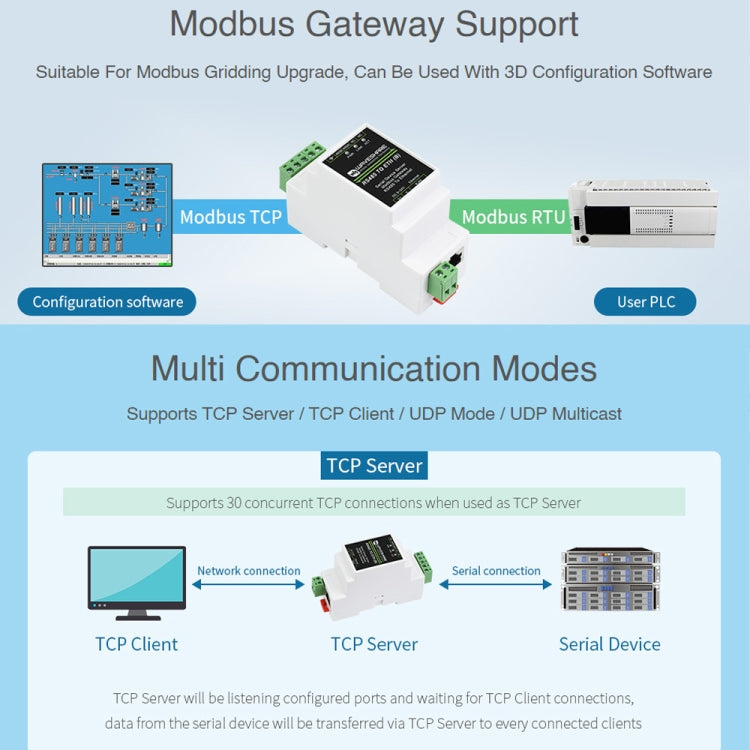

- Operating Mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
- Operating Temperature: -40°C ~ 85°C
- Storage Temperature: -45°C ~ 165°C
- Humidity Range: 5% ~ 95% relative humidity
