Waveshare Adapter Board for Arduino & Raspberry Pi

• Product type: Arduino Nucleo Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi 1 Model A+, Raspberry Pi 1 Model B+, Raspberry Pi 2 Model B, Raspberry Pi 3 Model B, Raspberry Pi 3 Model B+
• Material: Not specified
• Key feature: Supports Arduino shields and XBee modules
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

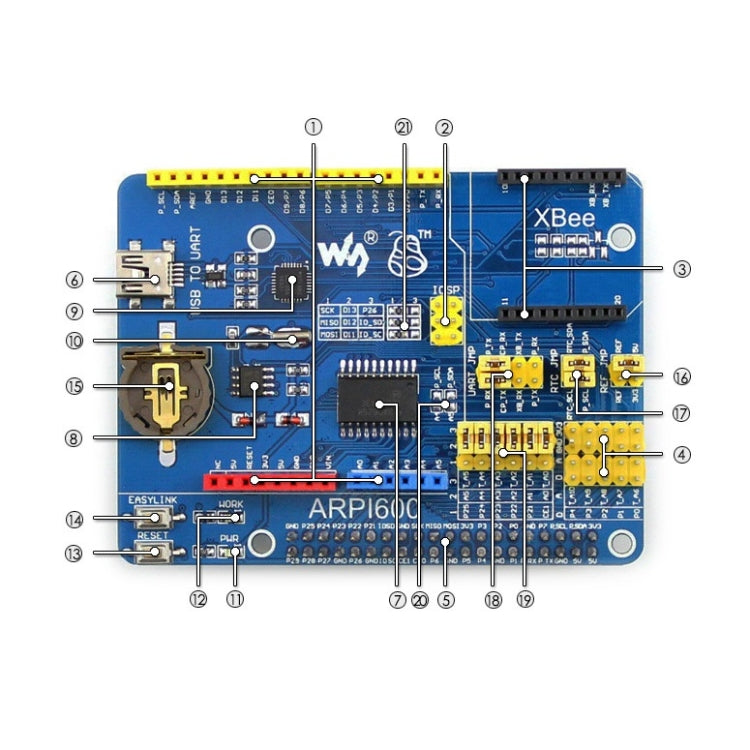

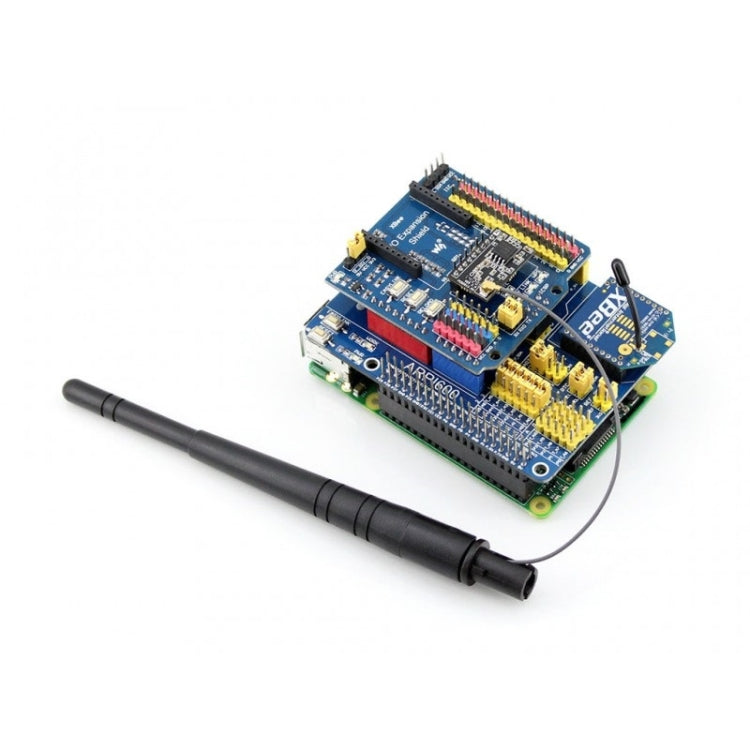

OverviewArduino is a massive ecosystem, if there is a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.What is more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.Supported Pi1. Raspberry Pi 1 Model A+2. Raspberry Pi 1 Model B+3. Raspberry Pi 2 Model B4. Raspberry Pi 3 Model B5. Raspberry Pi 3 Model B+ARPI600 Features1. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields2. XBee connector for connecting various XBee modules3. Sensor interface for connecting various sensors4. Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter5. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)6. Onboard RTCWhat is on the ARPI6001. Arduino connector: For connecting Arduino shields2. ICSP interface: Arduino ICSP3. XBee connector: For connecting XBee communication modules4. Sensor interface: For connecting sensors5. Raspberry Pi connector: For connecting Raspberry Pi6. USB TO UART7. TLC1543: AD converter8. PCF8563: RTC9. CP210210. 32.768KHz crystal: For RTC11. Power indicator12. XBee state LED13. XBee and Arduino interface RESET button14. XBee EASYLINK button15. RTC battery holder: For CR1220 button battery16. TLC1543 reference voltage configuration jumper17. RTC jumper18. UART jumper- When connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port- When connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port- When connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port19. Arduino AD selection jumper- Short 2 and 3: Arduino A0-A5 as AD input- Short 1 and 2: Arduino A0-A5 as digital control20. Arduino I2C selection jumper- Short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)21. Arduino SPI selection jumper- Short 1 and 2: Arduino D11-D13 as SPI control (default)- Short 2 and 3: Arduino D11-D13 as digital controlPackage Contents1. ARPI600 x 12. USB type A plug to mini-B plug cable x 13. RPi screws pack (2pcs) x 1
