Waveshare 7.5 inch 640x384 E-Ink Display HAT for Raspberry Pi, Three-color, SPI Interface

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi 2B/3B/3B+/Zero/Zero W
• Material: Electronic components
• Key feature: Three-color display
• Color/Variant: Red, black, white
• Intended use: Shelf label, industrial instrument
• Category: Electronics Module

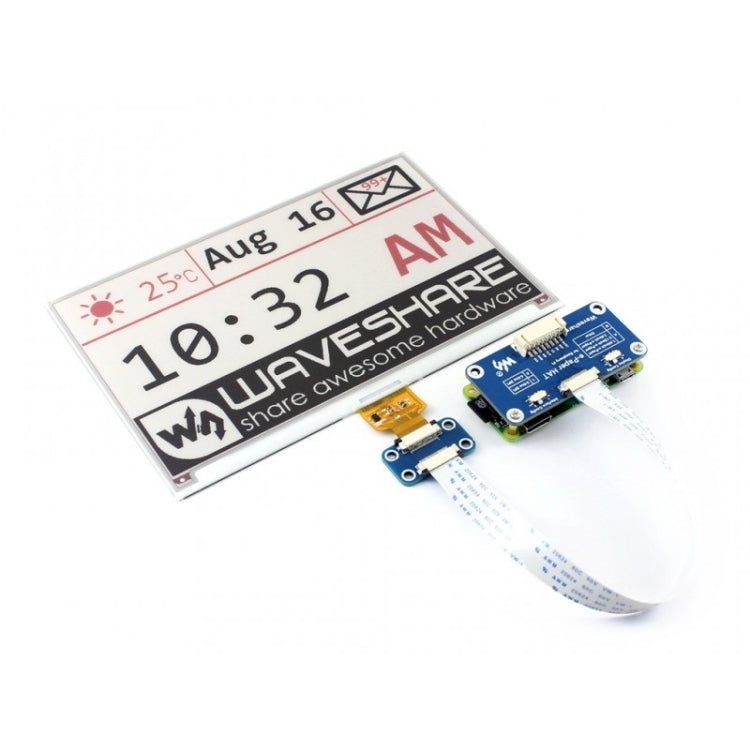

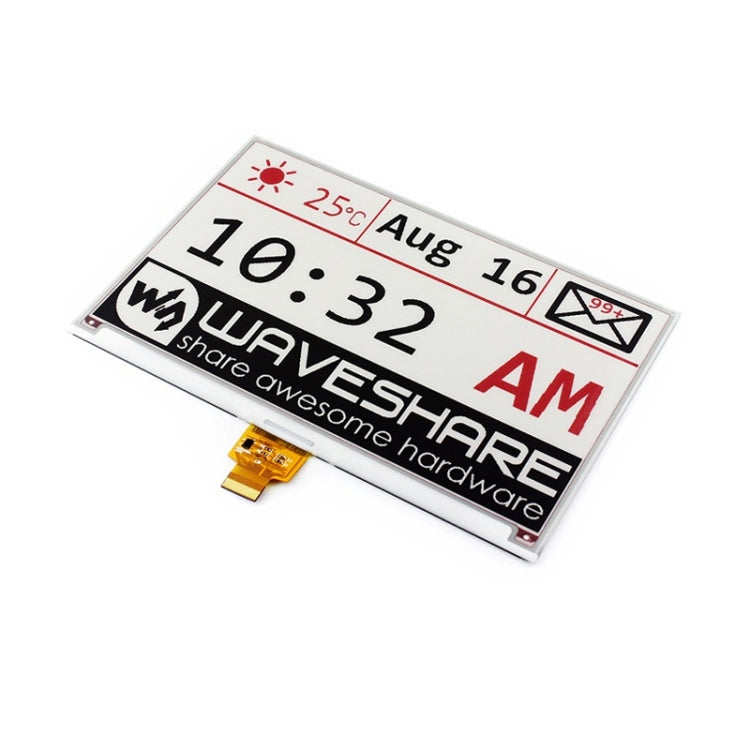

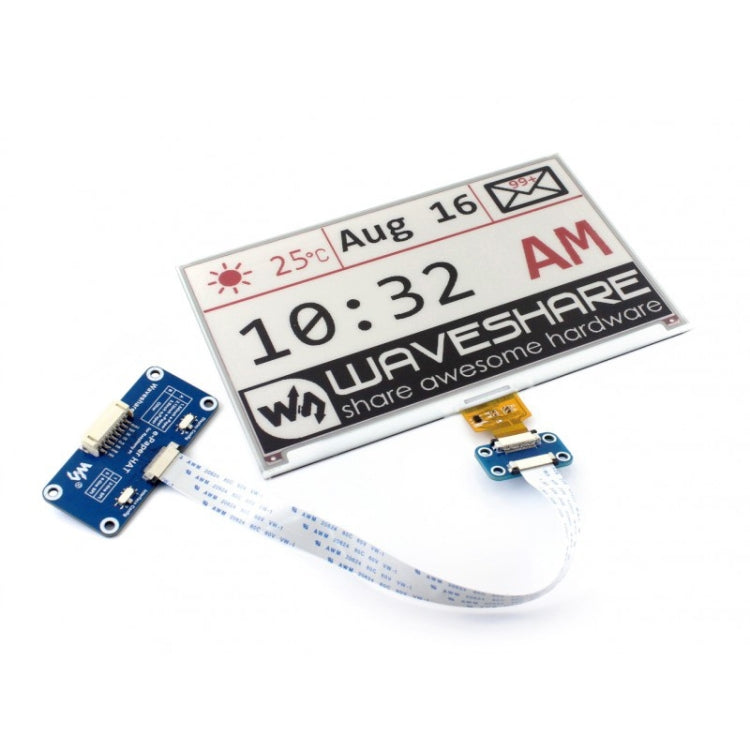

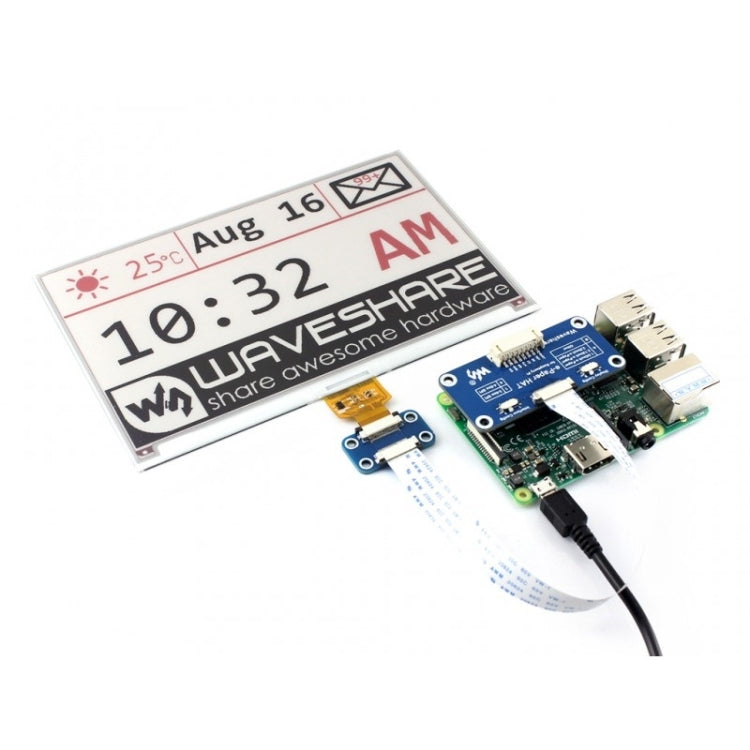

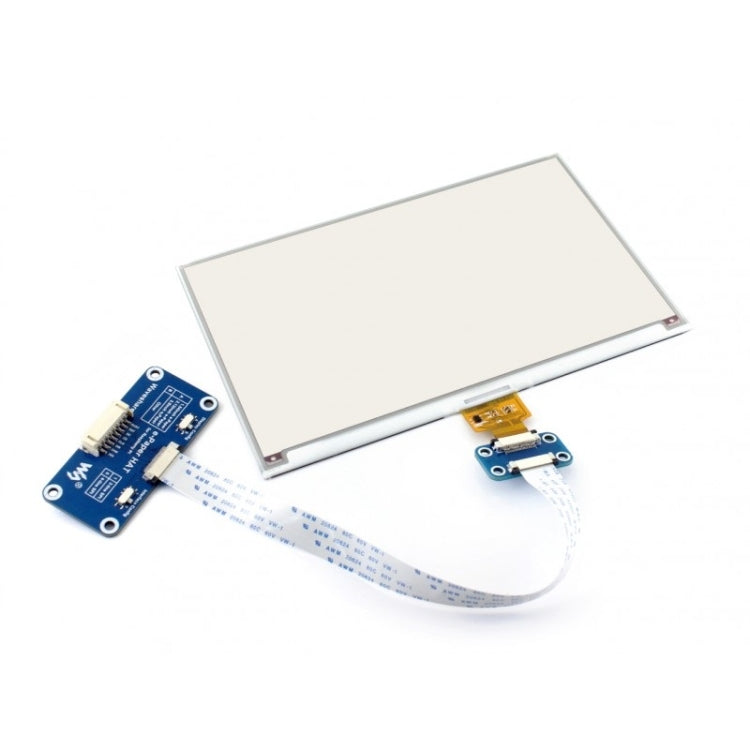

Overview1. This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.Features1. No backlight, keeps displaying last content for a long time even when power down2. Ultra low power consumption, basically power is only required for refreshing3. Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.5. Onboard voltage translator, compatible with 3.3V/5V MCUs6. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Operating voltage: 3.3V~5V2. Interface: SPI3. Outline dimension: 170.2mm x 111.2mm4. Display size: 163.2mm x 97.92mm5. Dot pitch: 0.255 x 0.2556. Resolution: 640 x 3847. Display color: red, black, white8. Grey level: 29. Full refresh time: 16s10. Refresh power: 38mW(typ.)11. Standby power: <0.017mW12. Viewing angle: >170 degree13. Weight: 0.065 kgPackage Contents1. 7.5 inch e-Paper (B) x12. e-Paper Driver HAT x13. RPi screws pack (2pcs) x14. PH2.0 20cm 8Pin x1
