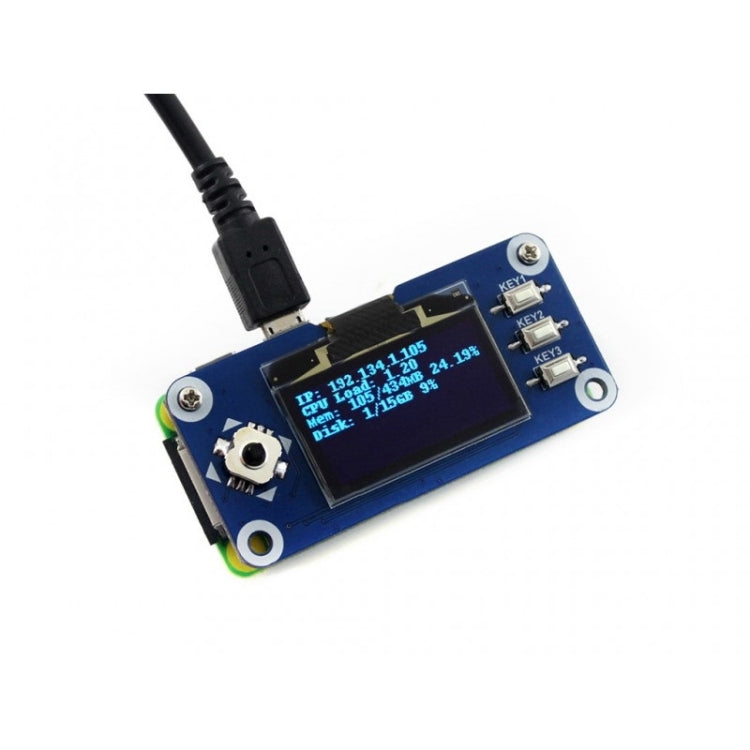

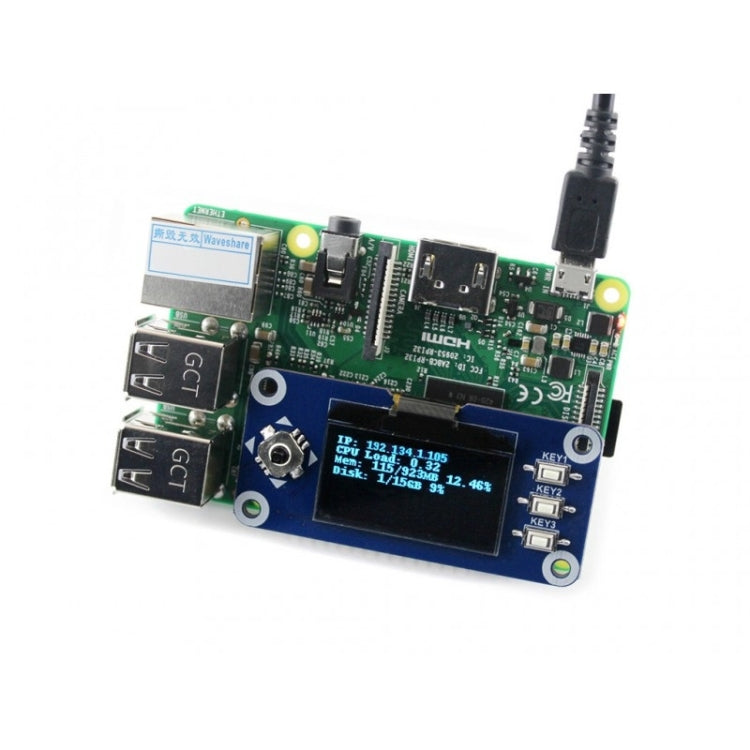

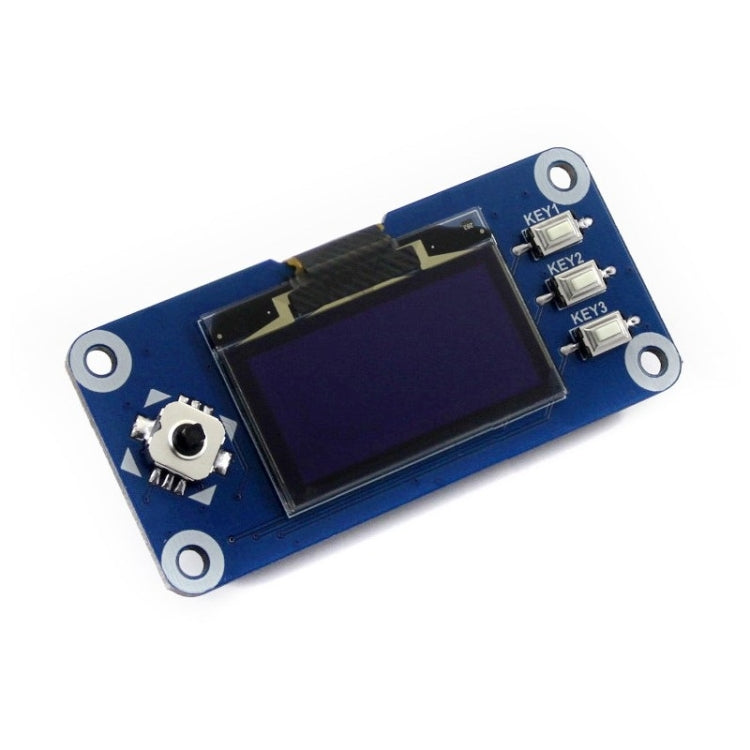

Waveshare 1.3 inch 128x64 Pixels SPI/I2C Interface OLED Display HAT for Raspberry Pi

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi 2B/3B/3B+/Zero/Zero W
• Material: Not specified

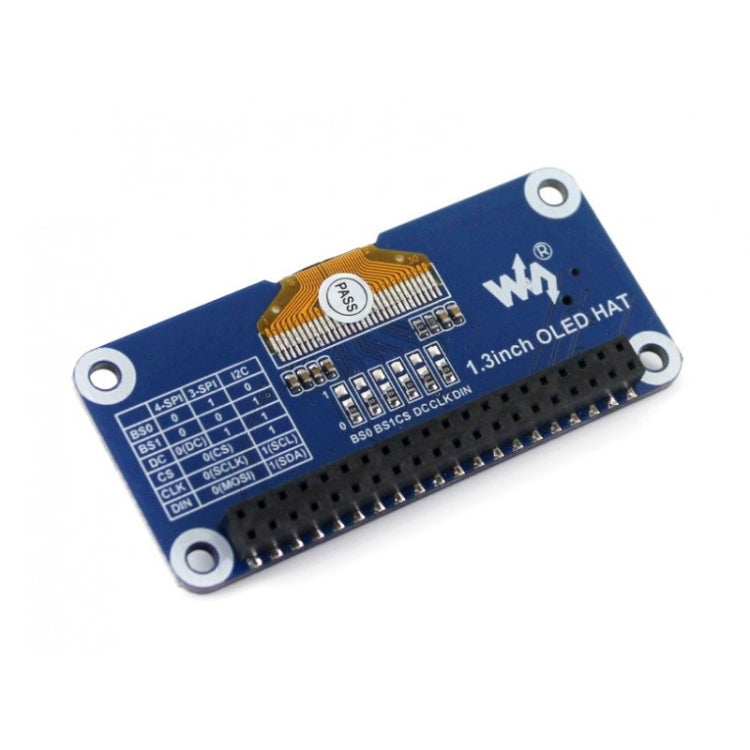

• Key feature: SPI/I2C interface
• Color/Variant: Blue
• Intended use: Everyday use
• Category: Electronics Module

OverviewThis is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.Trying to add a control interface for your Pi? This compact display would be the ideal choice.Features1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor3. 1x joystick (5-position), 3x pushbuttons, handy and useful4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SH11062. Interface: 4-wire SPI, 3-wire SPI, I2C3. Display color: blue4. Resolution: 128x645. Operating voltage: 3.3V
