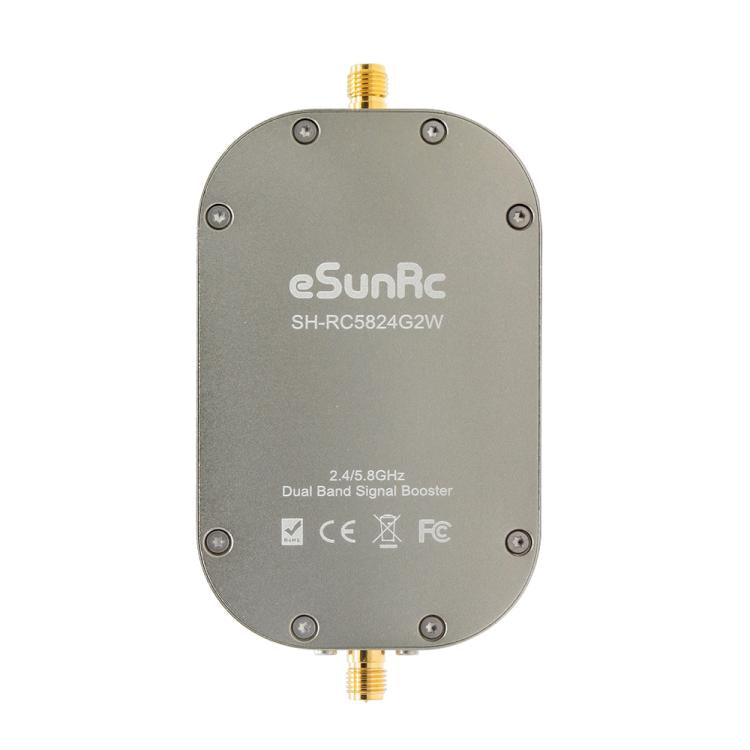

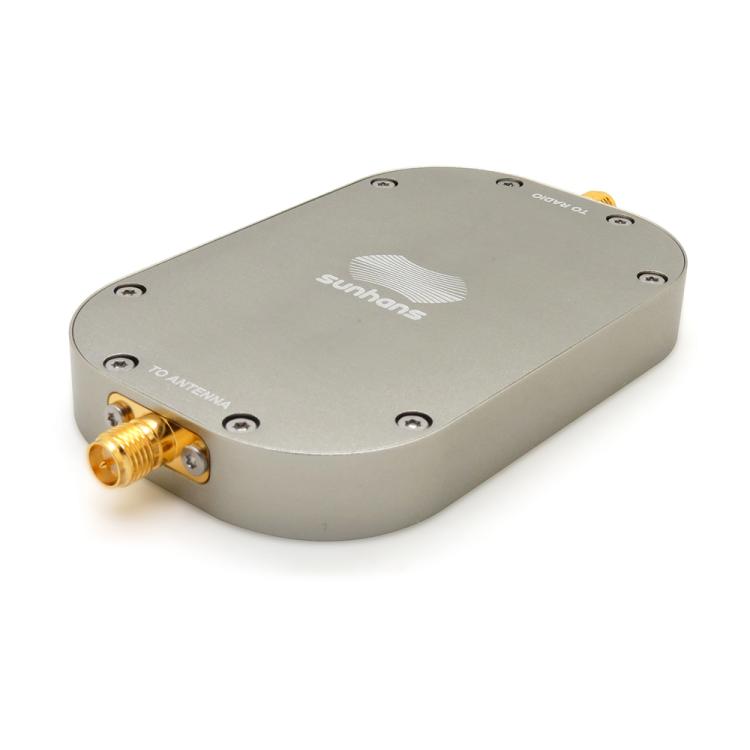

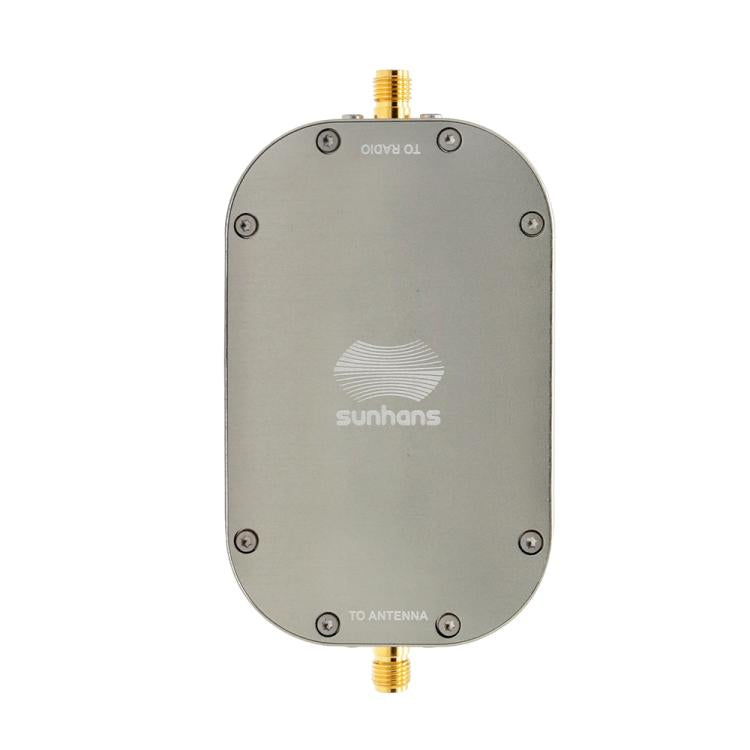

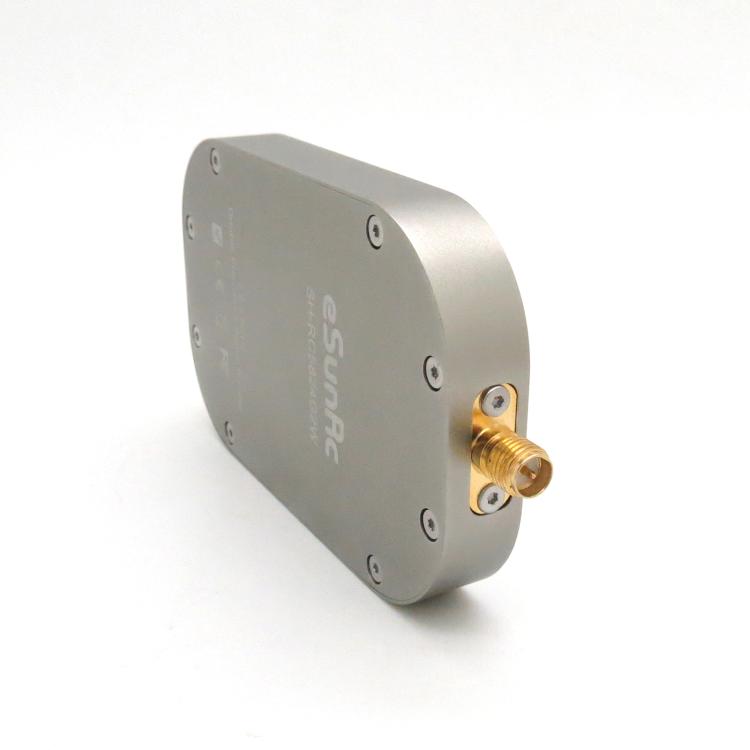

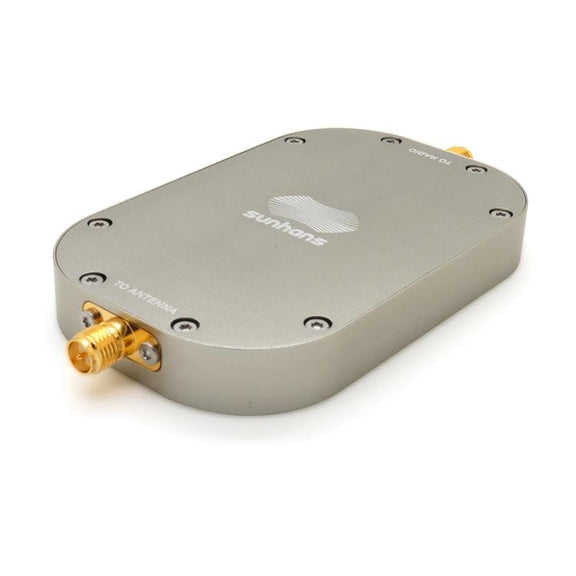

Sunhans eSunRC 2000mW 2.4GHz&5.8GHz Dual Band WiFi Booster

• Product type: Broadband Amplifiers
• Compatibility: Dual Band WiFi
• Material: Cast aluminum
• Key feature: Lightweight and compact
• Intended use: Designed for drones and remote control devices
• Category: Networking Accessories

1. Material: cast aluminum
2. Booster model: SH-RC5824G2W
3. Operating frequency: 2.4-2.5 GHz, 5.0-5.875 GHz
4. Working mode: bidirectional, half-duplex, time division duplex, can sense radio frequency, carrier from transmitter, and automatically switch between receiving and transmitting modes.
5. Interface type: SMA socket 50ohm
6. Connect to radio: SMA female (inner hole)
7. Connect to antenna: RP-SMA female (inner pin)
8. Input power: 0-20 dBm
9. Transmitting gain: 15-18dB
10. Output power: 2000mW (33dBm)
11. Receiving gain: about 12 dB
12. Noise figure: about 3.5 dB (typical value)
13. Frequency response: ±1dB within the working range
14. Support voltage: 5V~16V/2A DC
15. Working temperature: -20 degrees Celsius to 70 degrees Celsius
16. Working humidity: up to 75% relative humidity
17. 2.4G and 5.8G dual-band, automatic frequency switching
18. Maximum 2000mW actual output power, support different power supplies
19. Aluminum alloy shell, CNC Fine processing, anti-interference
20. Lightweight and compact, can be easily installed on DJI drones, XIRO drones and remote controllers
21. Plug and play, no software installation required
22. Designed for drones, unmanned aircraft and remote control devices
23. Suitable for routers, IP cameras, remote control helicopters, remote control racing boats, Bluetooth, walkie-talkies
