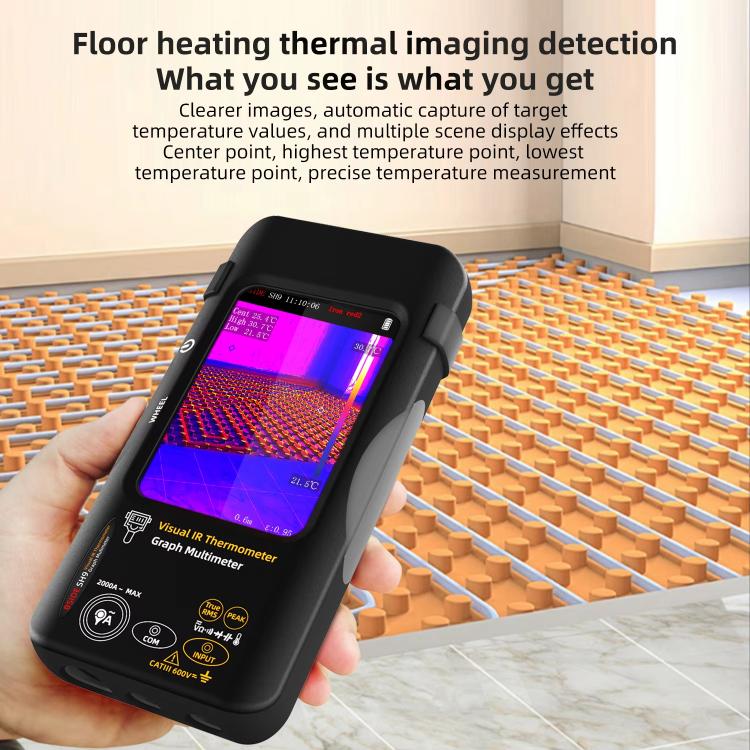

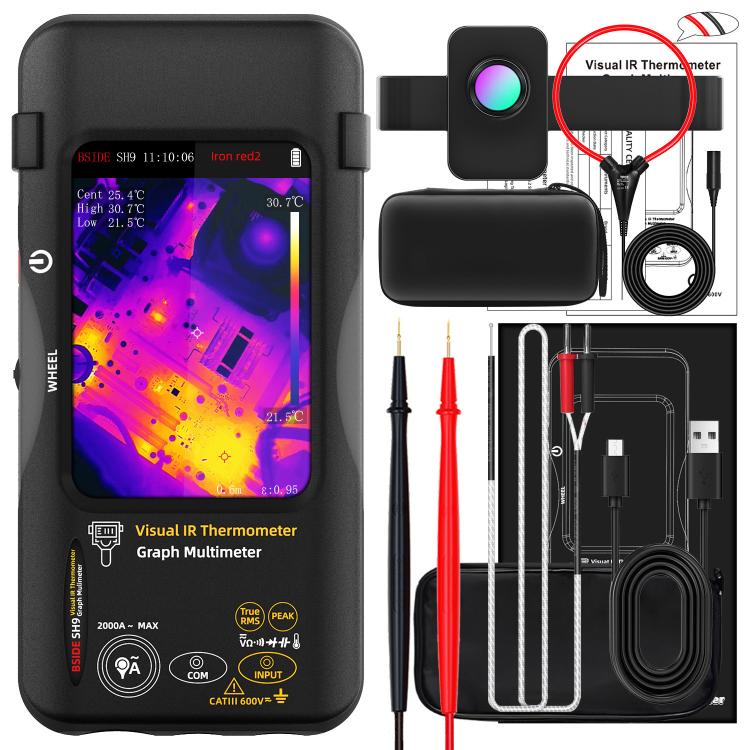

Standard+Macro Lens+Flexible Coil BSIDE SH9 Infrared Thermal Imaging Multimeter Touchscreen High-Definition Thermal Imaging Thermometer Electrical Floor Heating Inspection

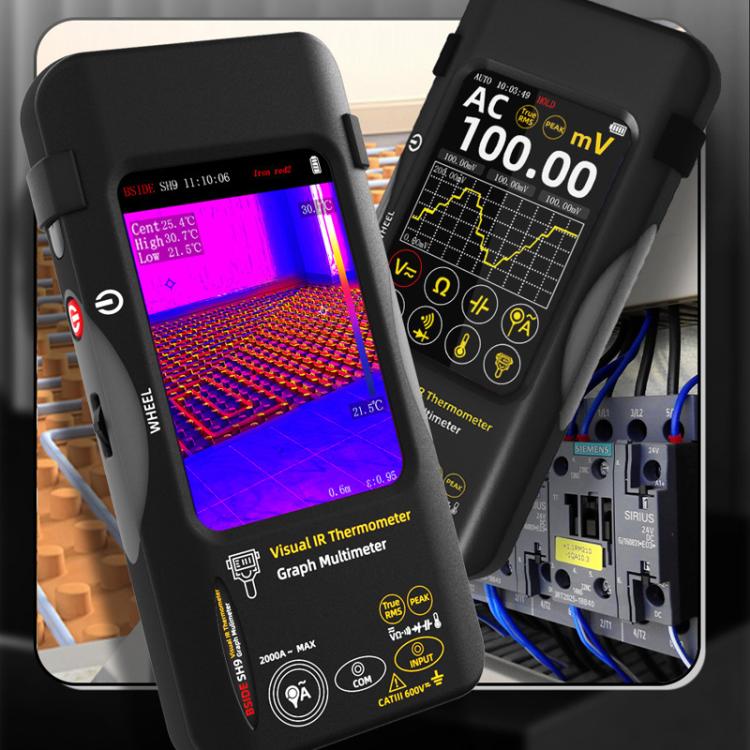

The Standard+Macro Lens+Flexible Coil BSIDE SH9 Infrared Thermal Imaging Multimeter is a multifunctional device that combines thermal imaging and multimeter capabilities. It is suitable for applications in various fields such as electrical inspections, HVAC maintenance, and building diagnostics.

• Sensor type: Vanadium oxide (VOx) microbolometer
• Response band: 8-14um
• Thermal image resolution: 320 x 428 pixels
• Noise equivalent temperature difference (NETD): ≤ 50 mK (@25°C, F 1.0)
• Field of view (FOV): 50.0° (H) x 37.2° (V) 163.6° (D)
• Spatial resolution (IFOV): 8.89 mrad
• Frame rate: 25Hz

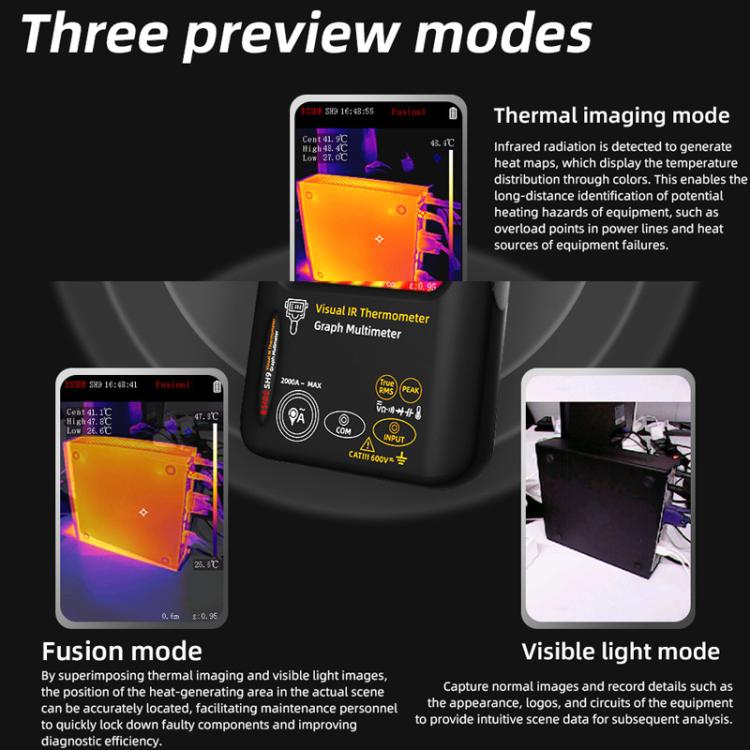

• Preview modes: thermal imaging, fusion, visible light
• Temperature measurement focal length: 0.3m - 3m adjustable
• Temperature measurement range: -20°C to 550°C
• Temperature measurement accuracy: ±2°C or ±2% of reading (whichever is larger)
• Temperature measurement unit: Celsius, Fahrenheit, Kelvin
• Temperature measurement resolution: 0.1°C

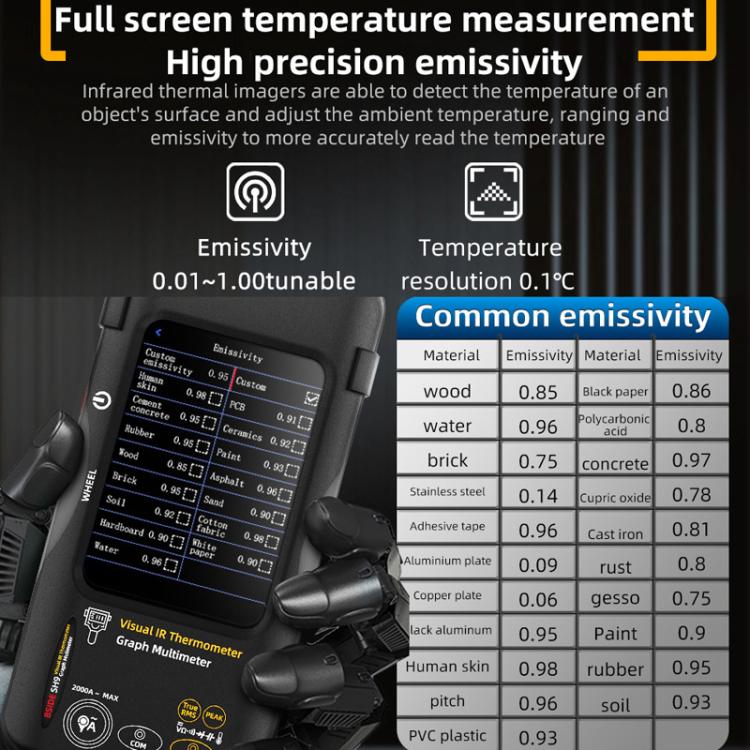

• Emissivity: 0.01 - 1.00 adjustable
• Temperature measurement display: center point temperature measurement, high and low temperature tracking
• Temperature alarm: screen font color alarm

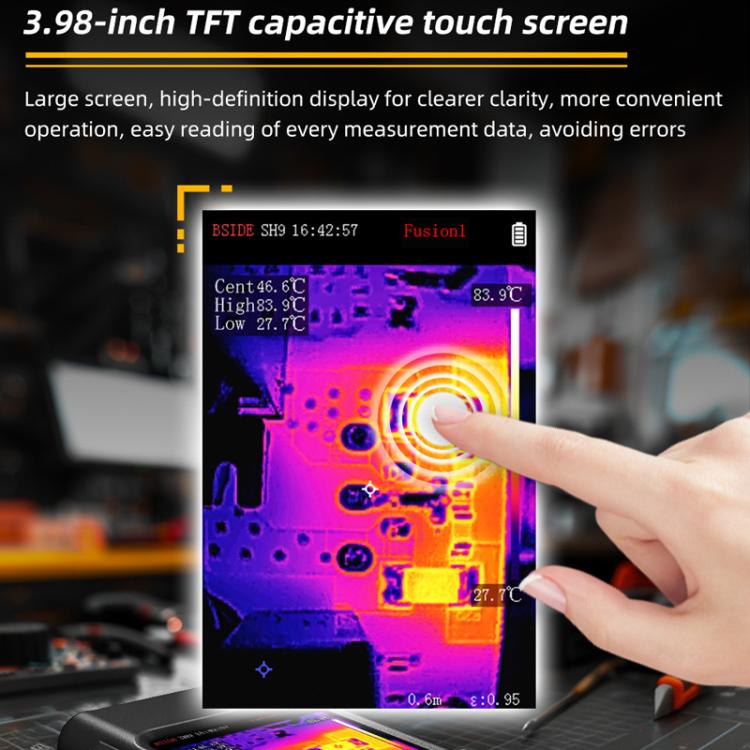

• Display: 3.98 inch TFT capacitive touch screen
• Display resolution: 320 x 480
• Color palette: multiple options including Iron Red, Black Hot, Fusion, Rainbow

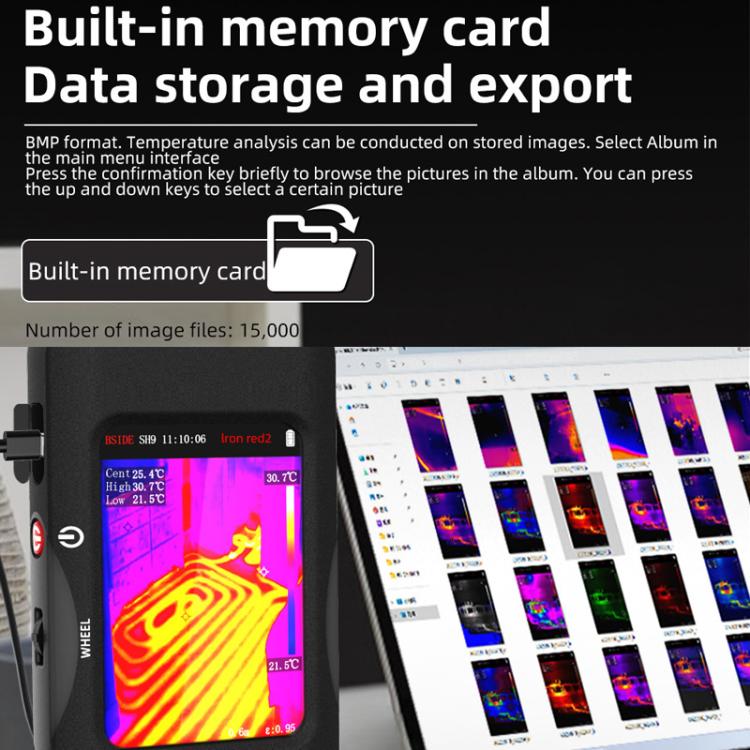

• Image storage: built-in memory card
• Number of image files: 15,000
• Image format: BMP
• Shock/Vibration: GB/T2423.5-2019, GB/T2423.10-2008
• Electromagnetic Compatibility (EMC): GBIT17799.2, GB17799.3-2012
• Focusing mode: Focus-free

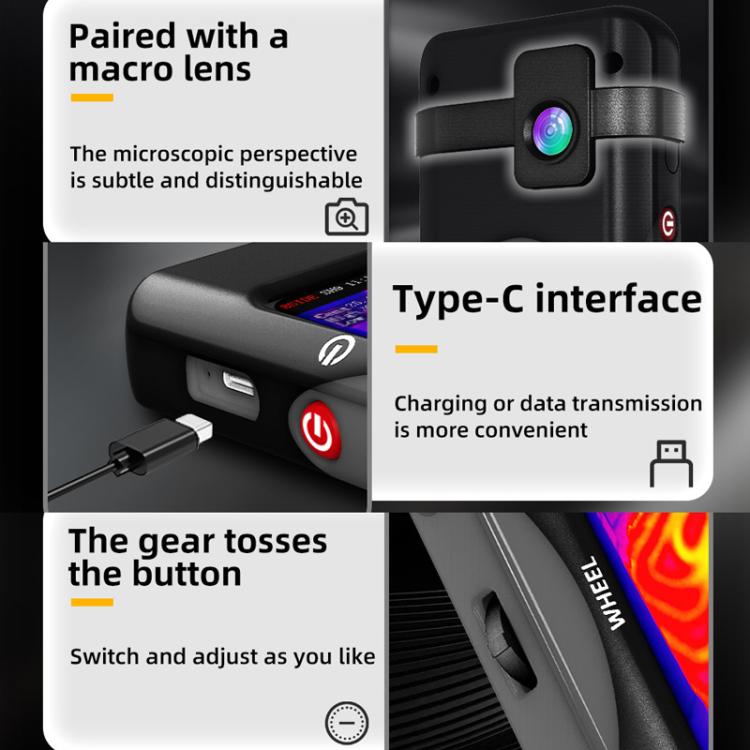

• Hardware interface: Type-C
• Battery type: Rechargeable lithium battery (3.7V/2500mAh)
• Battery working time: > 5 hours @ 25°C
• Charging time: < 3 hours @ 25°C
• Boot speed: ~3 seconds
• Automatic shutdown: options for 10, 20, 30, 40, 50, 60 minutes, or off
• Working temperature: -20°C to 50°C
• Storage temperature: -40°C to 70°C
• Storage humidity: 25%-40% RH (non-condensing)
• Operating humidity: < 85% RH (non-condensing)
• Dimensions: 16.9 x 8.1 x 2.68 cm
• Weight: 274.3 g

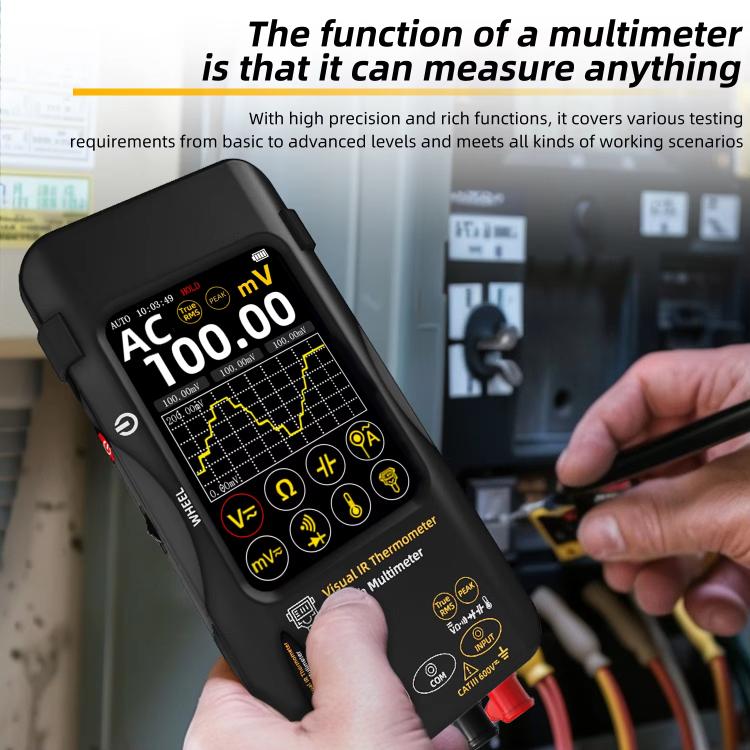

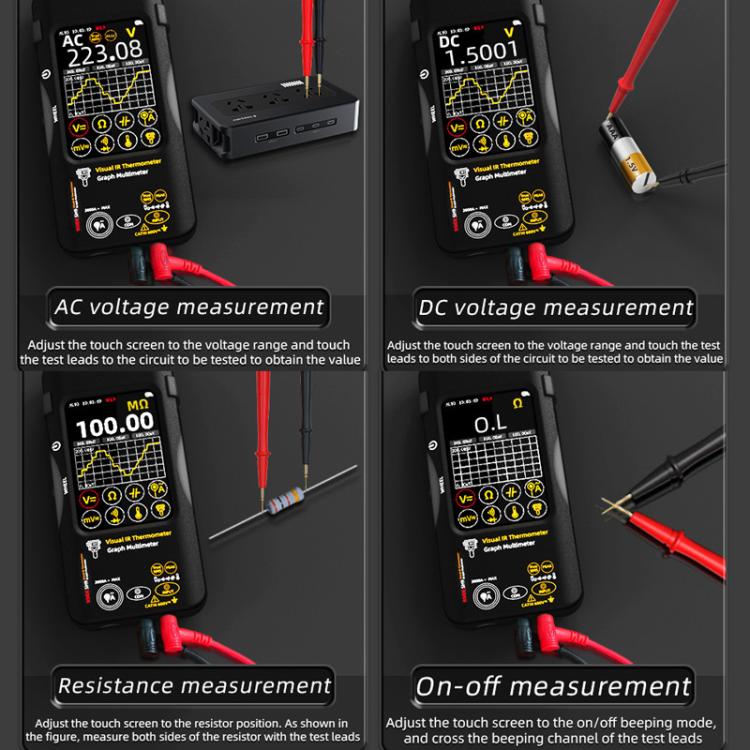

• DC voltage range/resolution: 2.0000V/0.0001V to 1000V/0.1V
• AC voltage range/resolution: 2.0000V/0.0001V to 750V/0.1V

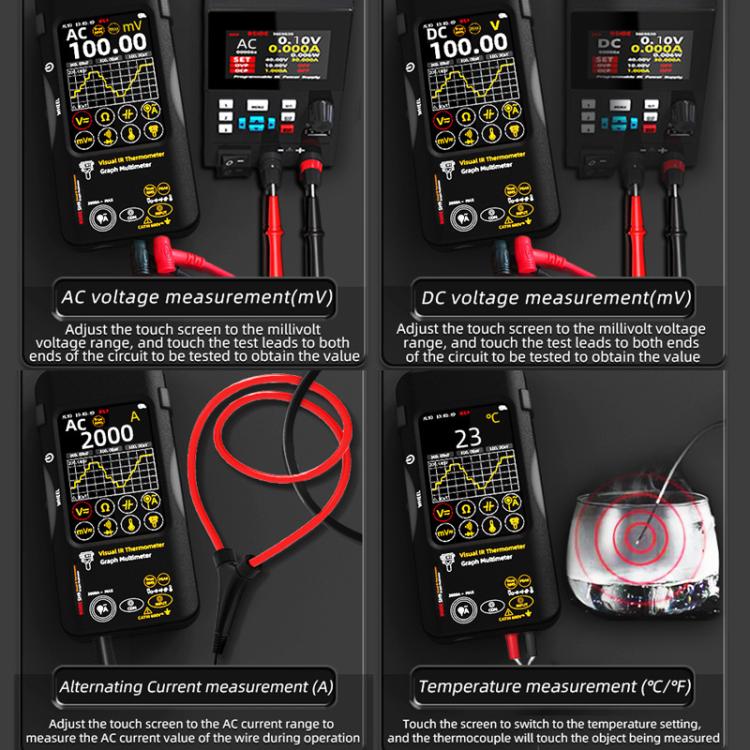

• DC/AC voltage (mV) range/resolution: 20.000mV/0.001mV to 200.00mV/0.01mV
• Resistance range/resolution: 200.00Ω/0.01Ω to 200.00MΩ/0.01MΩ
• Capacitance range/resolution: 999.99nF/0.01nF to 99.999mF/0.001mF
• Flexible current clamp range/resolution: 200.0A/0.1A
• AC current range/resolution: 2000A/1A
• Temperature range/resolution: -20°C to 1300°C/1°C, -4°F to 2372°F/1°F
• Functions: diode, on/off
• Applications: suitable for medical, firefighting, archaeology, transportation, agriculture, geology, energy, electronic manufacturing
• Standard
