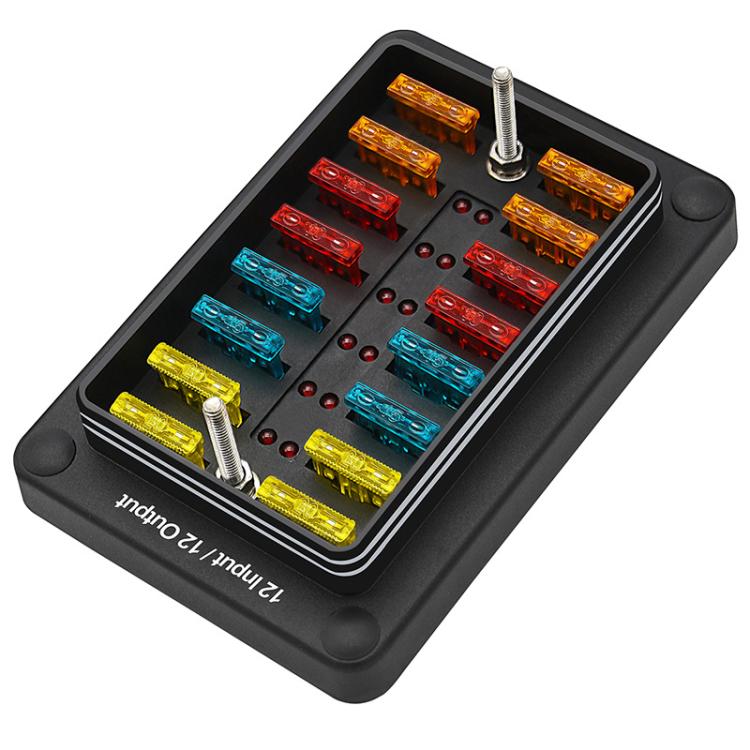

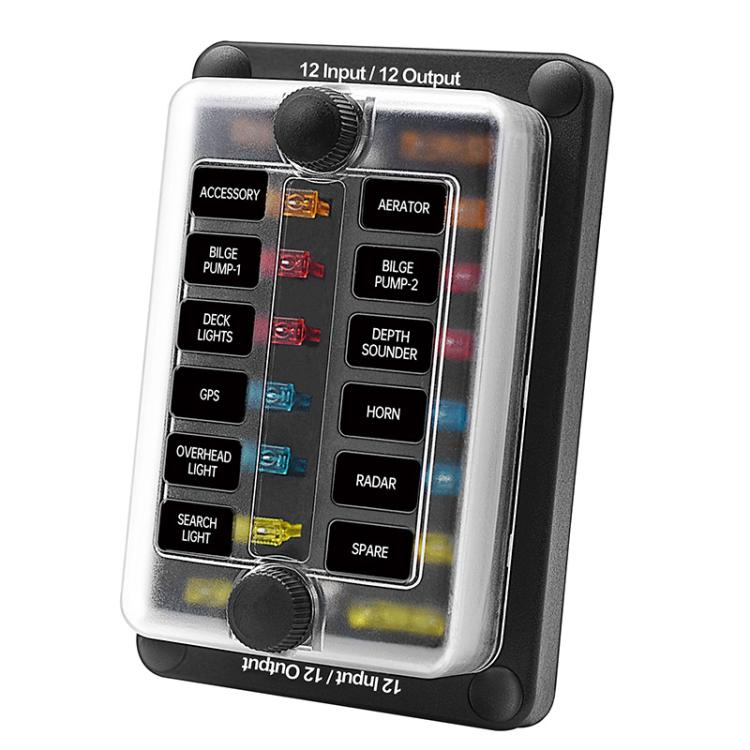

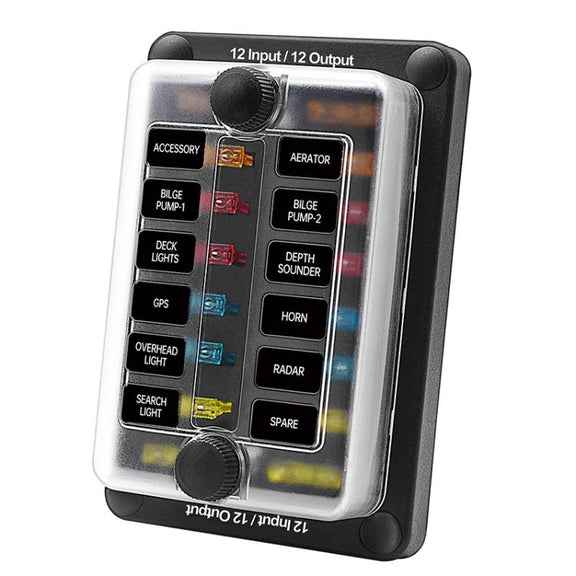

One In And One Out 12-Way Fuse Box LED Indicator With Sticker(ZH-1704B2)
One In And One Out 12-Way Fuse Box LED Indicator With Sticker(ZH-1704B2)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R225.03/mo 3 months
- R113.79/mo 6 months
- R60.05/mo 12 months
- From R225.03/month over 3 months, or as low as R60.05/month over 12. Total repayable over 12 months: R720.6. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

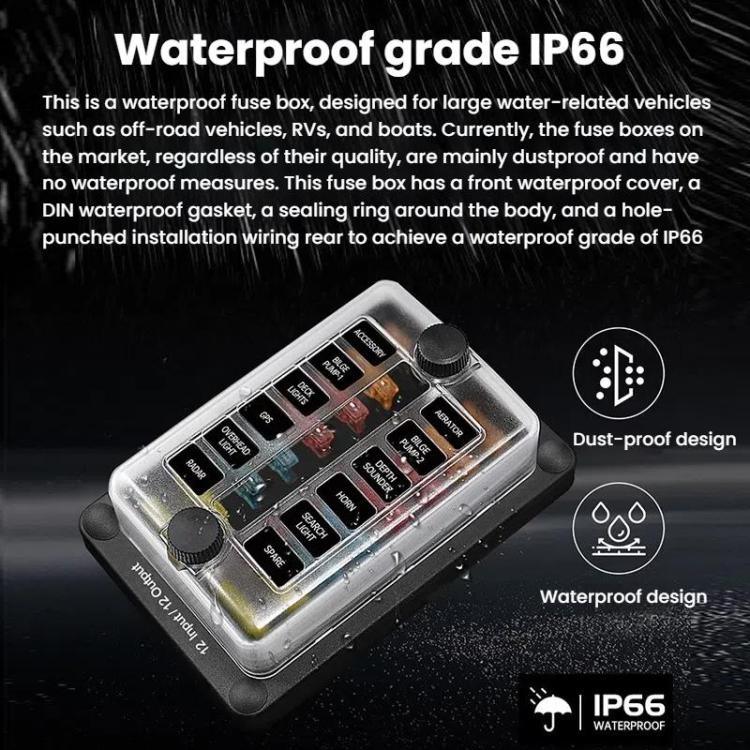

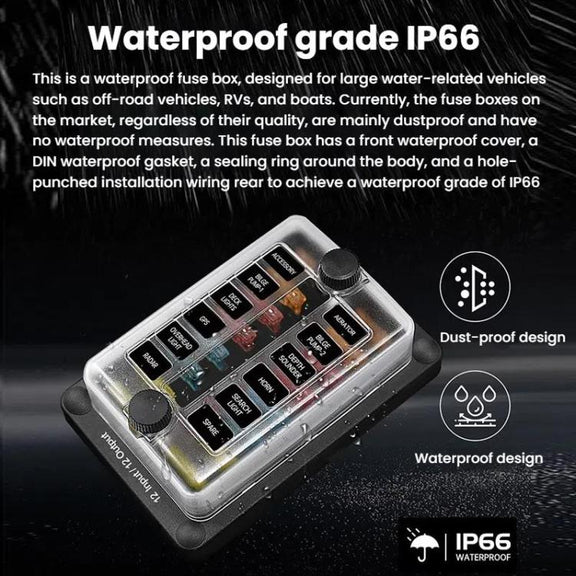

1. Material: PA66 base, PC dust cover, nickel-plated copper terminal block, stainless steel screws, butyl 2. Rubber waterproof gasket, PP×70 sticker, silicone seal
3. Input rated voltage: 32V
4. Input rated current: 50A
5. Output current: 20A per circuit (MAX)

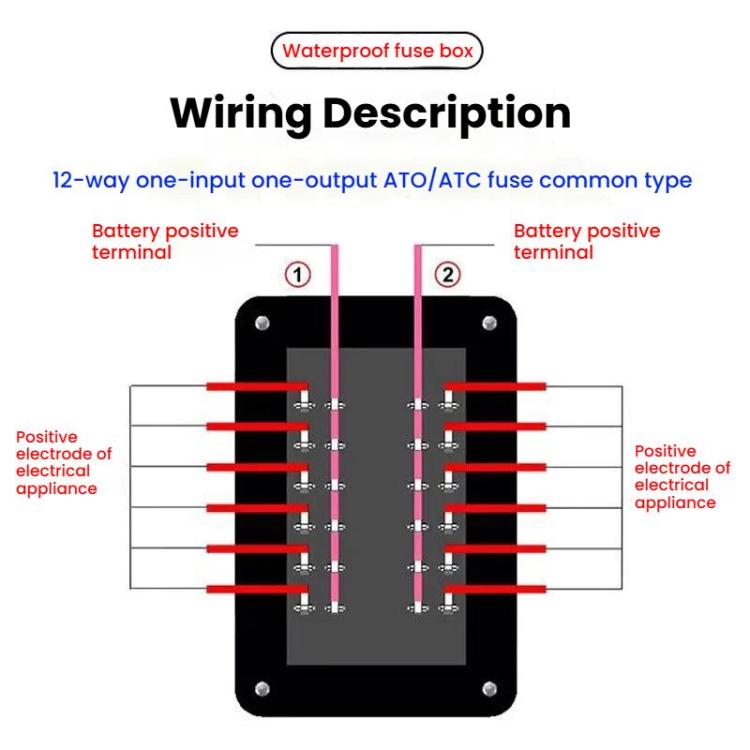

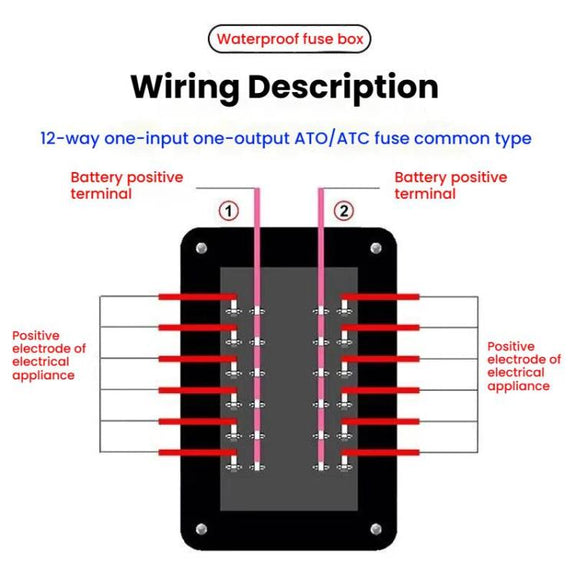

6. Main line terminal: 1015/12# (50A 32V DC.max)
7. Single-line terminal: copper/nickel-plated 1/4" (6.3mm) (20A 32V DC MAX)
8. Single-line wire diameter: #12-16AWG

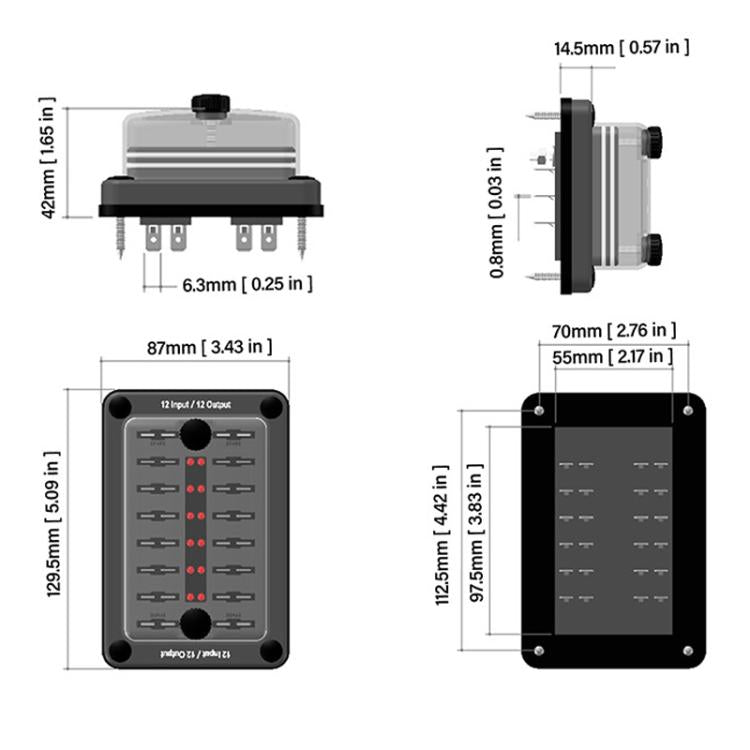

9. Opening size: 55x97.5mm
10. Installation range: Can be installed on cars, off-road vehicles, RVs, buses, yachts, boats, etc.

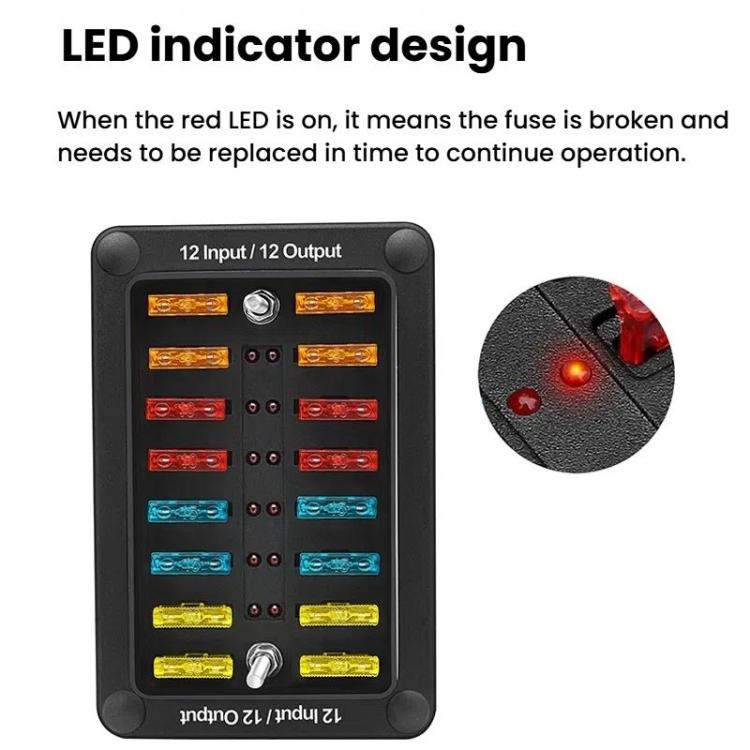

11. Indicator light function: When the red LED light is on, it means that the fuse has been disconnected and needs to be replaced in time to continue operation
12. Scope of use: It can be directly connected to the circuit of any electrical appliance in the car/boat, such as: roof lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
13. Function: When a circuit fails or is abnormal, the current continues to increase, and the increased current may damage some important or valuable components in the circuit, and may also burn the circuit or even cause a fire. Fuses protect electronic equipment from overcurrent damage and can also avoid serious damage to electronic equipment caused by internal faults. Therefore, each fuse has a rated specification, and the fuse will melt when the current exceeds the rated specification. If the fuse is correctly placed in the circuit, then when the current abnormally rises to a certain height and a certain temperature, the fuse will melt and cut off the current, thereby protecting the safe operation of the circuit
14. PA66 flame retardant and high and low temperature resistant material is used. The fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy.
15. All fastening accessories are made of stainless steel. The overall installation of the fuse box is relatively simple, and the fuse box is fixed with self-tapping screws, which is more convenient and safer to install.

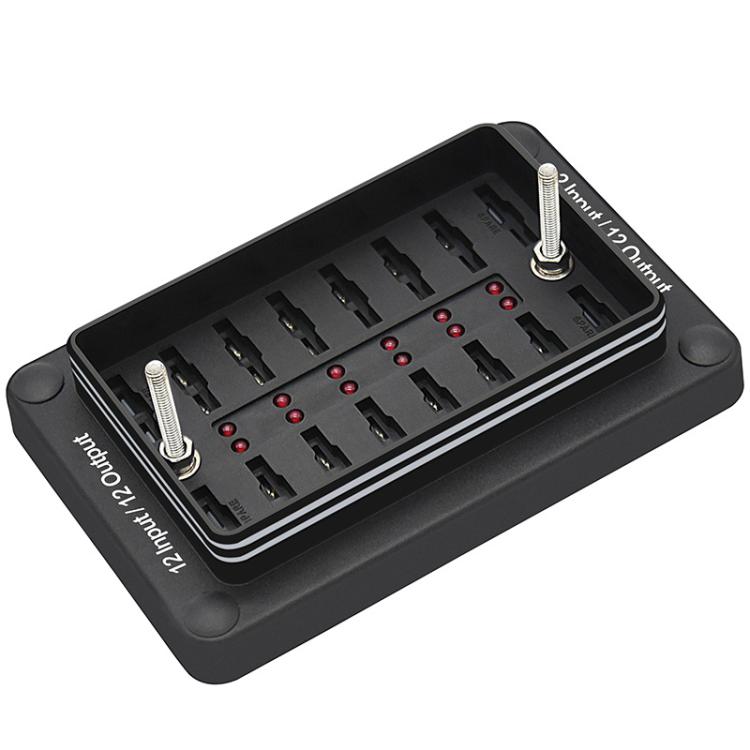

16. The product has a red LED indicator design. When the circuit is short-circuited, the red light will light up, and you can immediately know which fuse fragment is broken, which is convenient to timely determine which circuit has a problem.

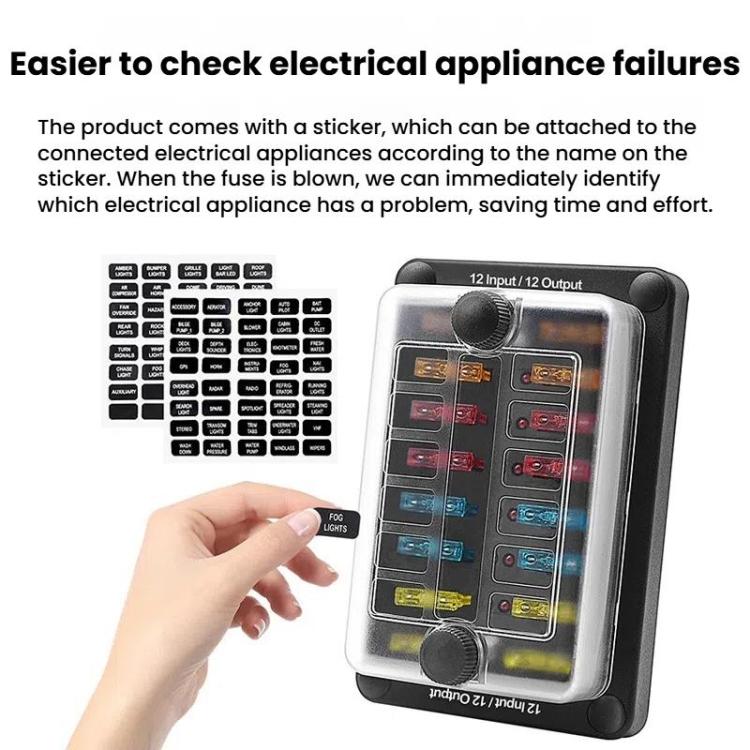

17. Free stickers can be attached to the circuit cover of the connected electrical appliance according to the name on the sticker. When the red light of the circuit short-circuit lights up, we can quickly distinguish which electrical appliance has a problem.
18. Double four specifications of fuse pieces are delivered. If the fuse piece is short-circuited during use, it can be replaced immediately from the spare fuse piece, and the corresponding fuse piece can be selected according to the current electrical appliance.
19. Net weight: 289g
20. Size: 129.5x87x42mm

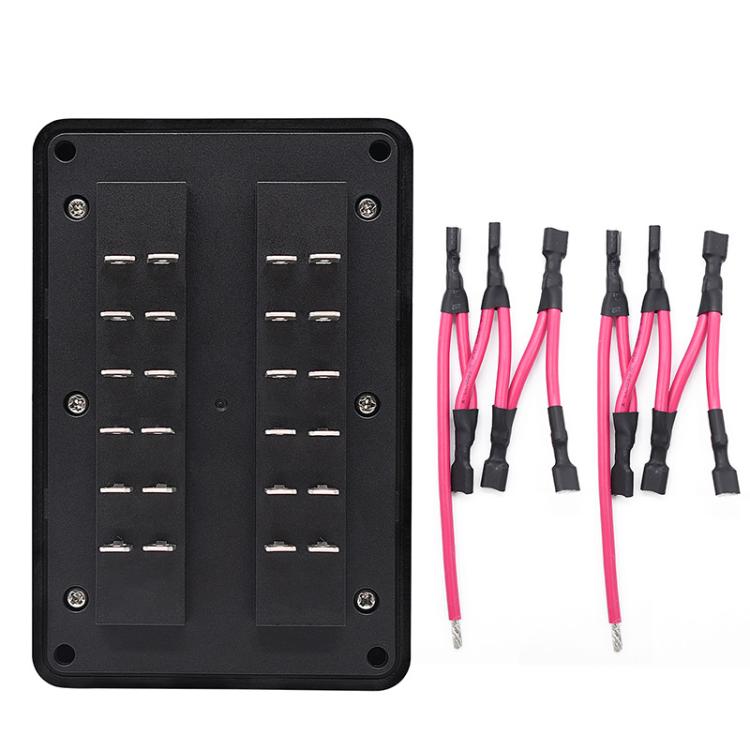

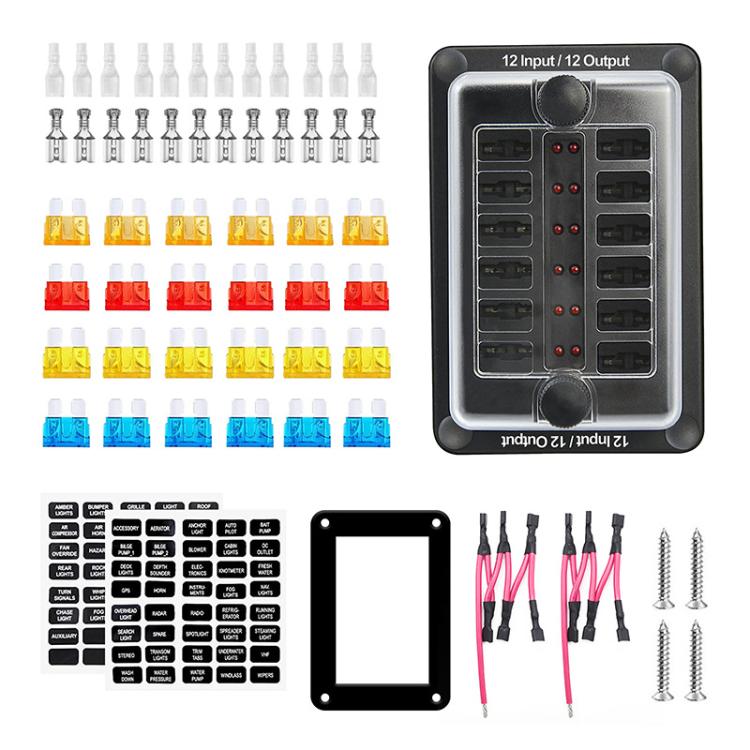

21. Product accessories: stickers x2; self-tapping screws x4; butyl waterproof gaskets x4; 20A fuses x6; 15A fuses x6; 10A fuses x6; 5A fuses x6; series long terminals x2; flat terminals with protective covers x6
