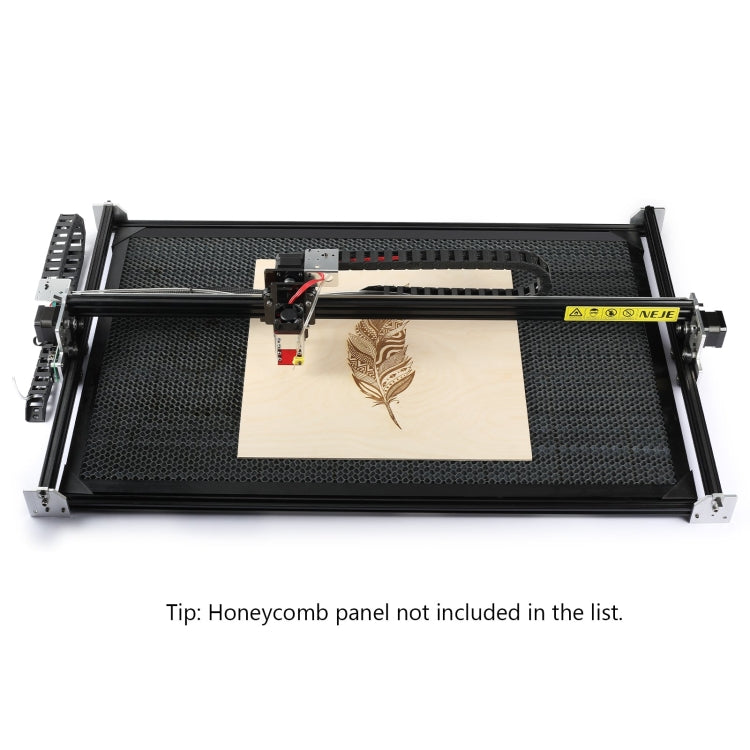

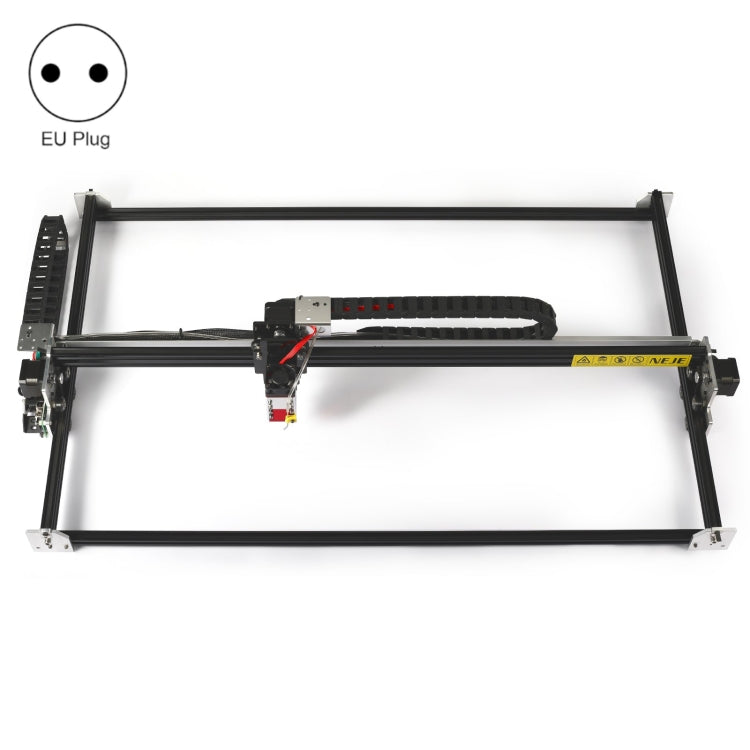

NEJE MASTER 3 MAX Laser Engraver with A40640 Dual Laser Beam Module(EU Plug)

• Product type: DIY Engraving Machines
• Brand: NEJE
• Compatibility: NEJE MASTER 3 MAX
• Material: All-aluminum alloy and PC
• Key feature: High precision
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

1. Frame Size (L - W -H): 590x980x160mm

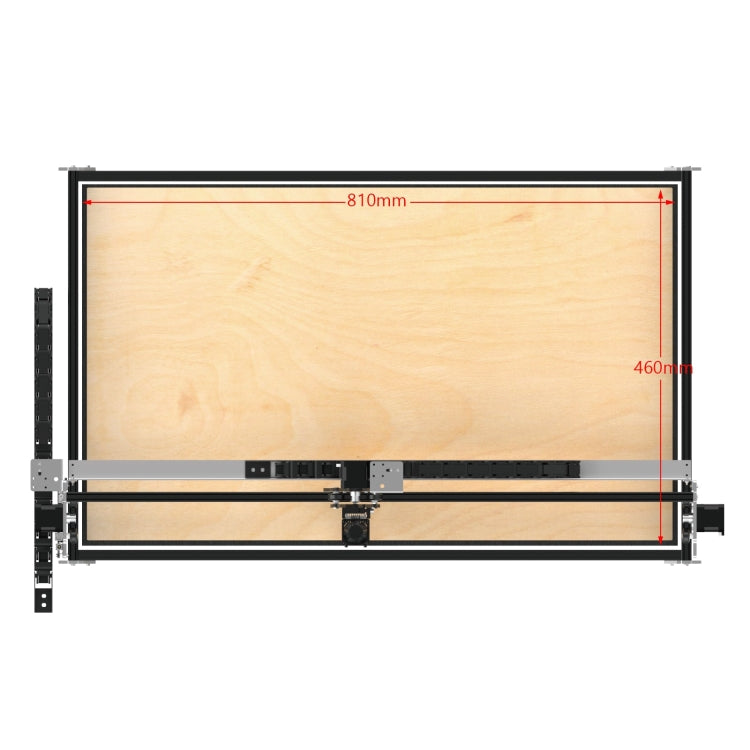

2. Working Size ( X - Y): 460 x 810mm, area extended design
3. Dot Pitch: 0.075mm
4. Pixel: 6133 x 10800 px
5. Frame Material: All-aluminum alloy and PC material hybrid frame
6. Structure: Y-axis fit adjustable design, X-axis stress fit assembly
7. Structure Feature: Fit, High precision, stabilize, smooth, no oil, easy maintenance, long life
8. Motor Drive Current: 0.9A
9. Max Move Speed: X:1000mm/s(with A40640 module 204g) Y:750mm/s
10. MCU: 32-bit MCU
11. Input: 12V 5A
12. Compatible Modules: All NEJE 12V 4pin Laser Module
13. You can safely and stably upgrade to the latest GRBL firmware through NEJE software, When using the device for the first time, please open the NEJE software to update to the latest firmware.
14. NEJE optimizes the low-light experience in GRBL mode for diode lasers, and the low-light settings can be adjusted through the laserGRBL software.

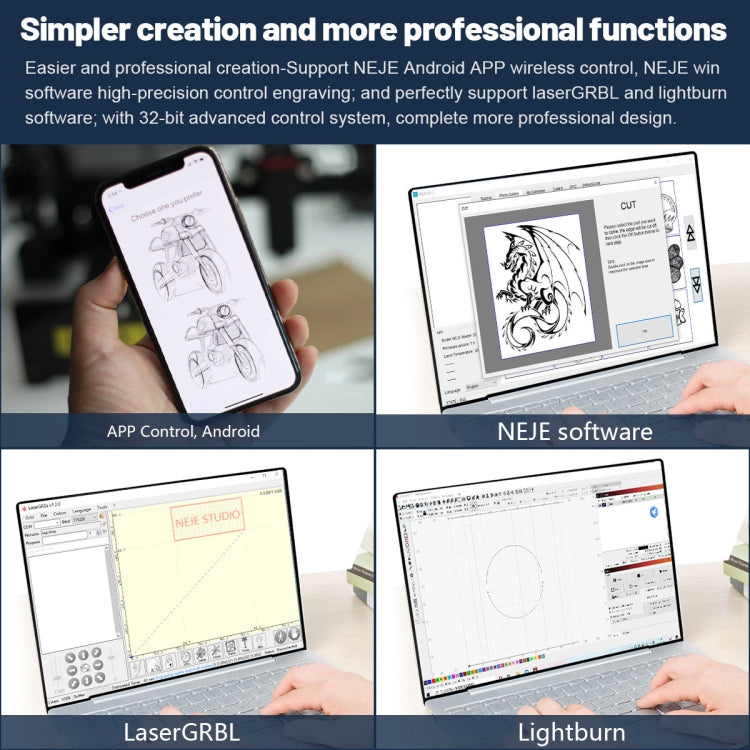

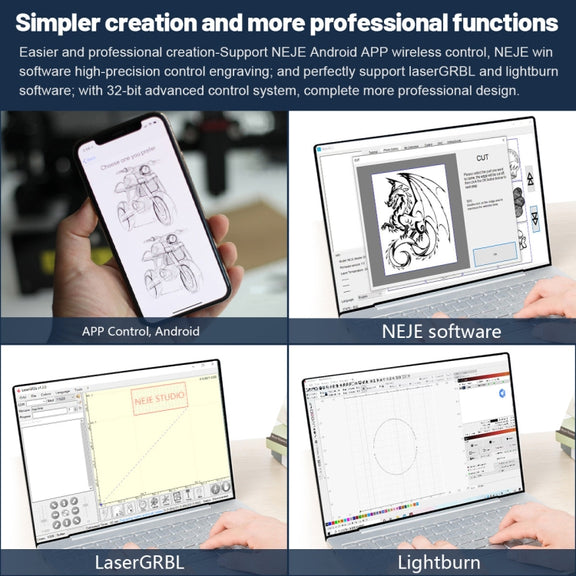

15. NEJE is compatible with M8, M7, Door functions, and automatically adapts to Lightburn, laserGRBL and NEJE software for better automation of processes.
16. The motor is automatically locked when power is turned on, and secondary processing can be performed when repeating the engraving work so that the position information will not be lost.

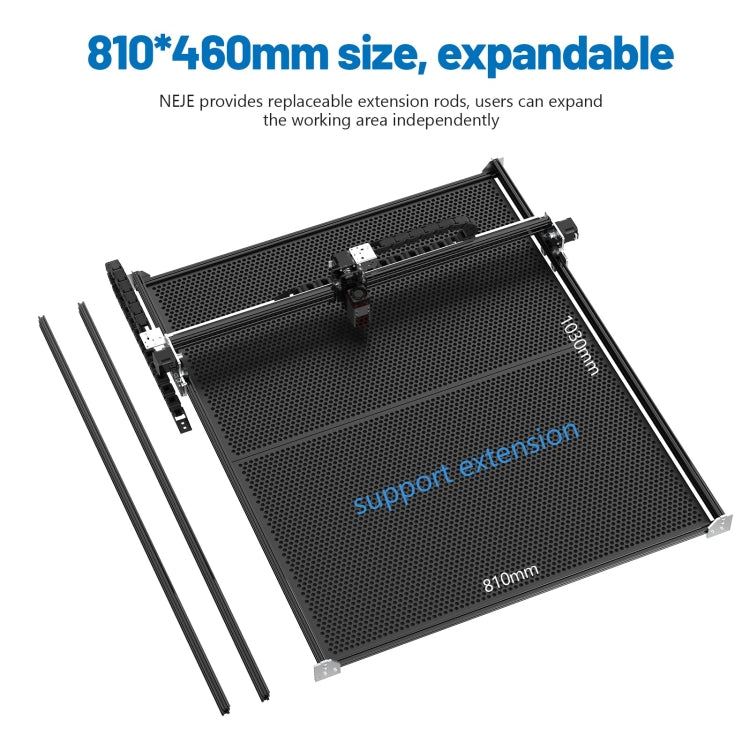

17. NEJE win software adds area customization settings, NEJE provides the function of expanding the orbits, both the Y-axis area and the X-axis area can be freely expanded, and the laser module also automatically engraves silently.

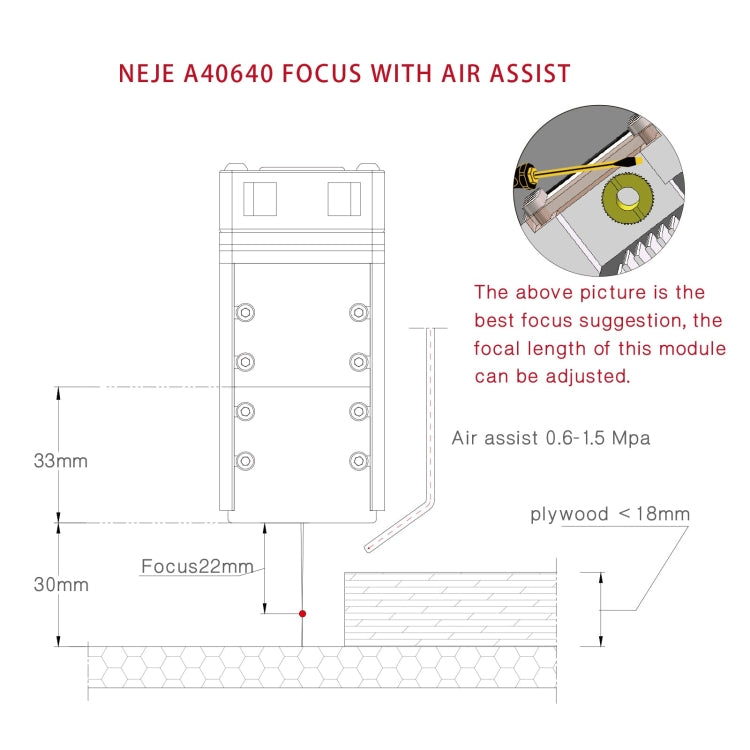

18. NEJE 3 comes standard with a high-pressure air assist kit.

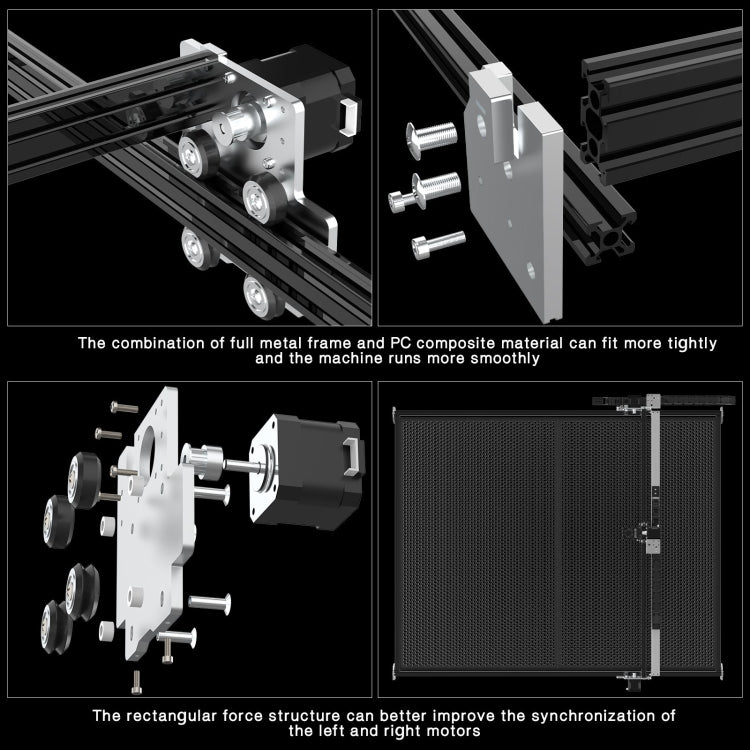

19. NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. It also adopts an easy maintenance driving structure.
20. NEJE 3 Max comes standard with M8 air valve kit for controlling air assist, M7 relay switch kit for controlling smoke exhaust system, and Door switch for emergency stop.
21. NEJE 3 Max is equipped with a towline as standard to organize air pipes and wires for easy installation into a closed box.
22. NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.

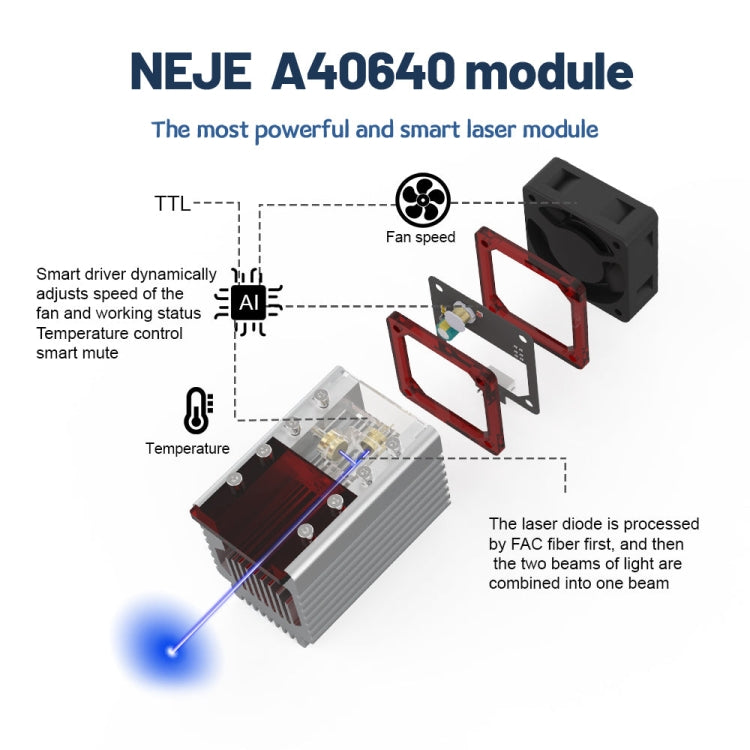

23. The new laser uses a high-temperature resistant window to protect the lens, which effectively improves the service life of the lens.
