MK00132 DC-DC 400W 15A Boost Converter Constant Current Power Supply LED Driver Voltage Charger Module

• Product type: Other Accessories
• Compatibility: DC-DC 400W 15A Boost Converter
• Material: Not specified
• Key feature: Non-isolated boost module
• Color/Variant: Not specified
• Intended use: Electrical applications
• Category: Consumer Electronics

1. Module nature: non-isolated boost module
2. Input voltage: DC8.5-50V
3. Input current: 15A (MAX) more than 8A please strengthen the heat dissipation
4. Static operating current: 10mA (12V to 20V, the higher the output voltage, the static current will increase)
5. Output voltage: 19V
6. Output current: 12A (MAX) over 7A, please strengthen the heat dissipation
7. Operating temperature: -40-85 degrees Celsius
8. Operating frequency: 150KHz
9. Conversion efficiency: 96 percent MAX
10. Overcurrent protection: yes (input more than 15A, automatically reduce the output voltage, there is a certain error range)
11. Input reverse connection protection: no
12. Constant current range: 0.2-12A
13. Installation mode: four 2.5mm screws
14. Output mode: wired output

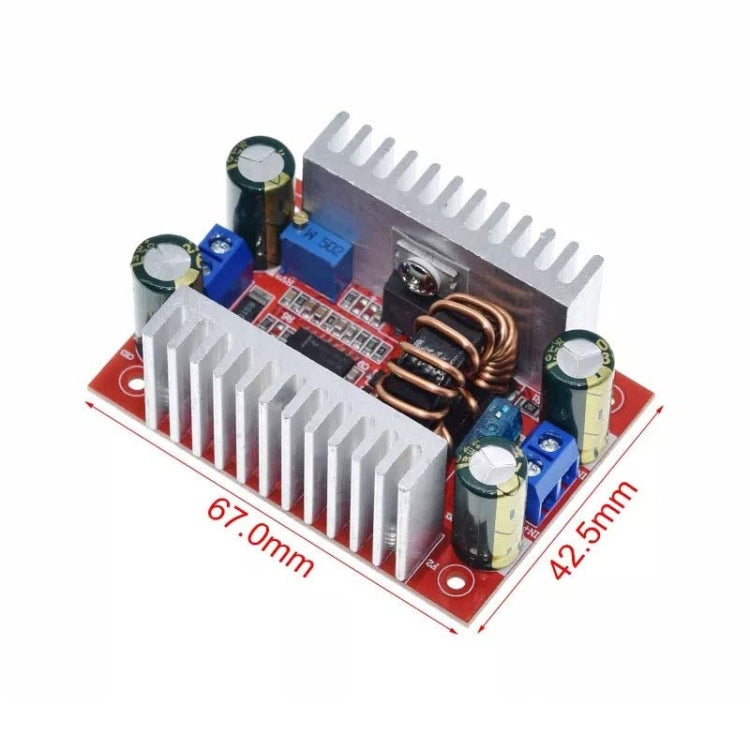

15. Size: 67 x 48 x 28mm
16. Weight: 60g
