Description

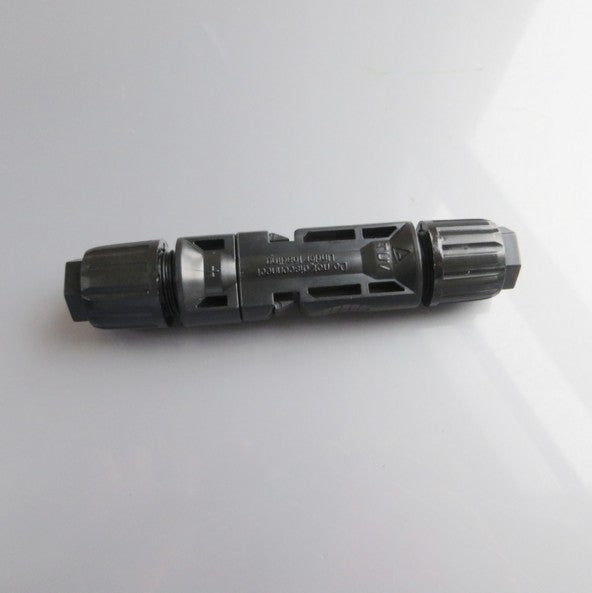

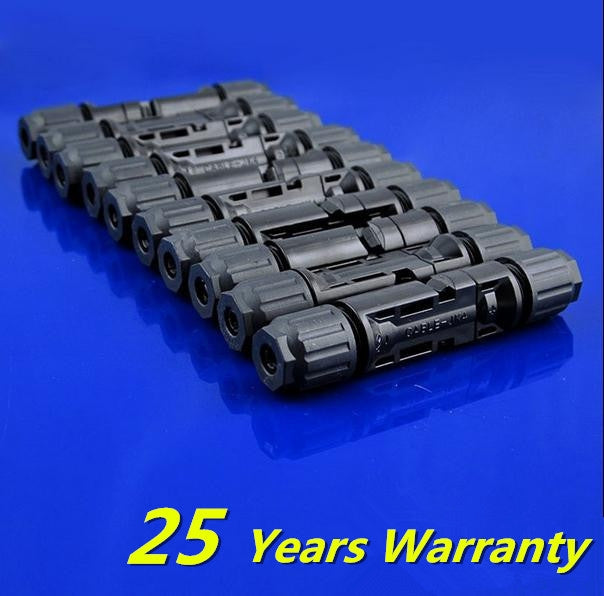

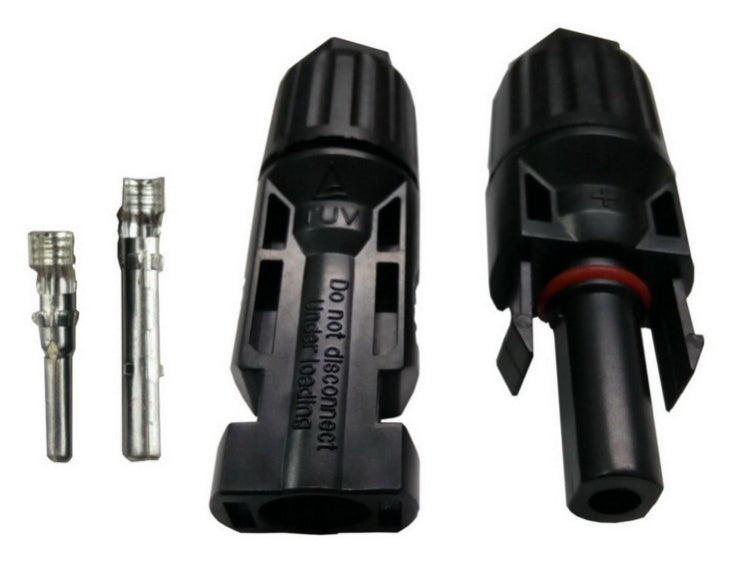

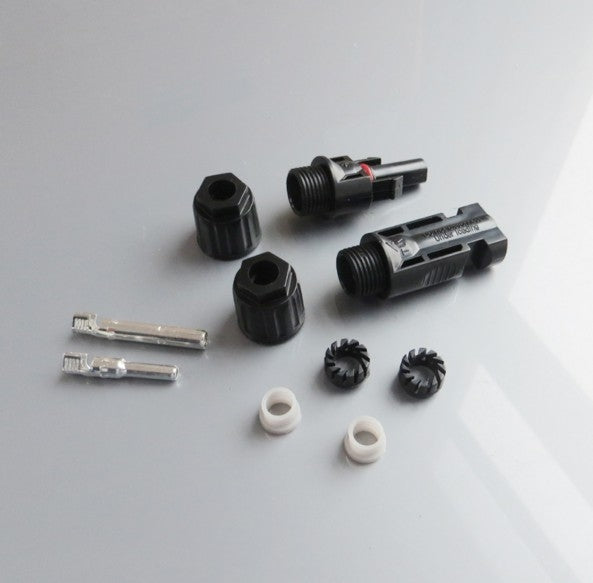

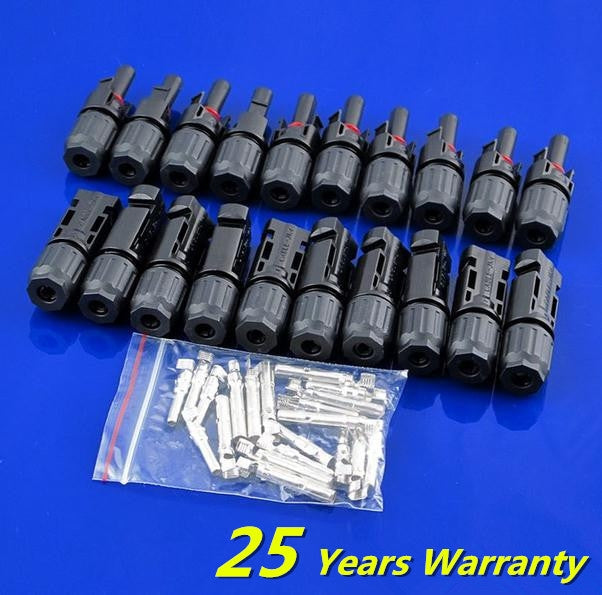

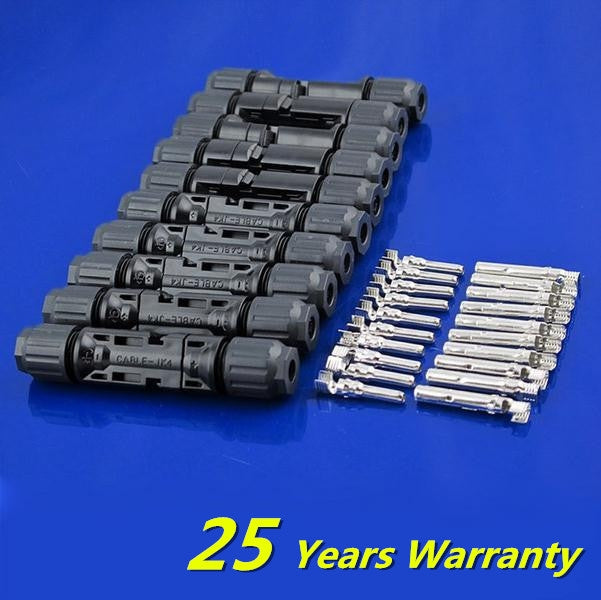

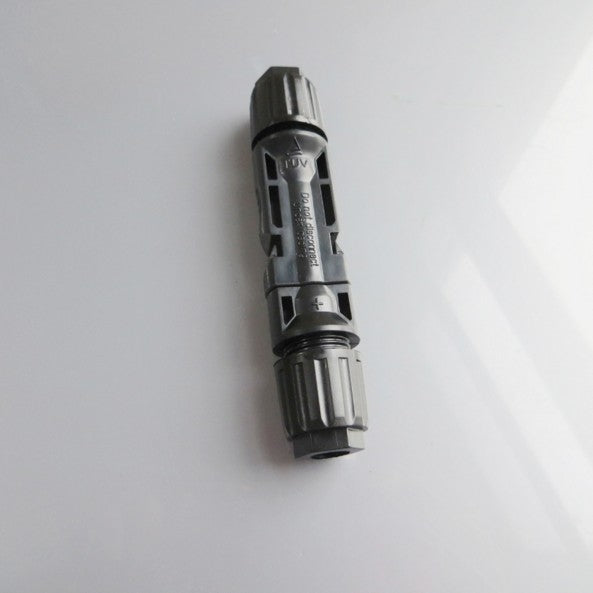

MC4 Connector male female is designed for connecting solar panels in a branch series configuration. It is suitable for everyday use in solar energy systems, ensuring reliable connections in various environmental conditions.
- Product Type: AC Adapters
- Compatibility: Solar panels
- Material: PPO
- Key Feature: IP67 protection
- Model Number: EU
- Connection: Plug In
- Output Type: DC
- Output Voltage: DC 1000V
- Usage: Solar
- Rated Voltage: TUV 1000V DC / UL 600V DC
- Rating Current: 20A-30A
- Suitable Cable Cross Sections: 2.5mm2-6.0mm2 / 14AWG-10AWG
- Pin Dimension: 4.0mm
- Proof Voltage: DC 8KV (1Min)
- Pollution Degree: 2
- Protection Class: Class II
- Contact Material: Copper, tin-plated
- Contact Resistance: 5mW
- Connector Material: PPO
- Degree of Protection: IP67 (IEC 60529)
- Withdrawal Force: 50N
- Insertion Force: 50N
- Temperature Range: -40 to +85 degrees Celsius
- Flame Class: UL94V - 0
