Description

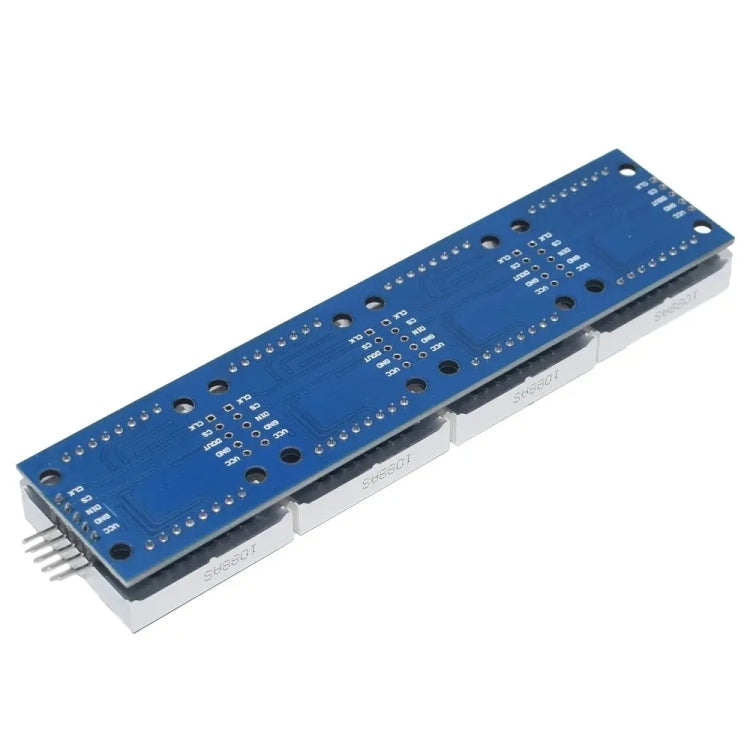

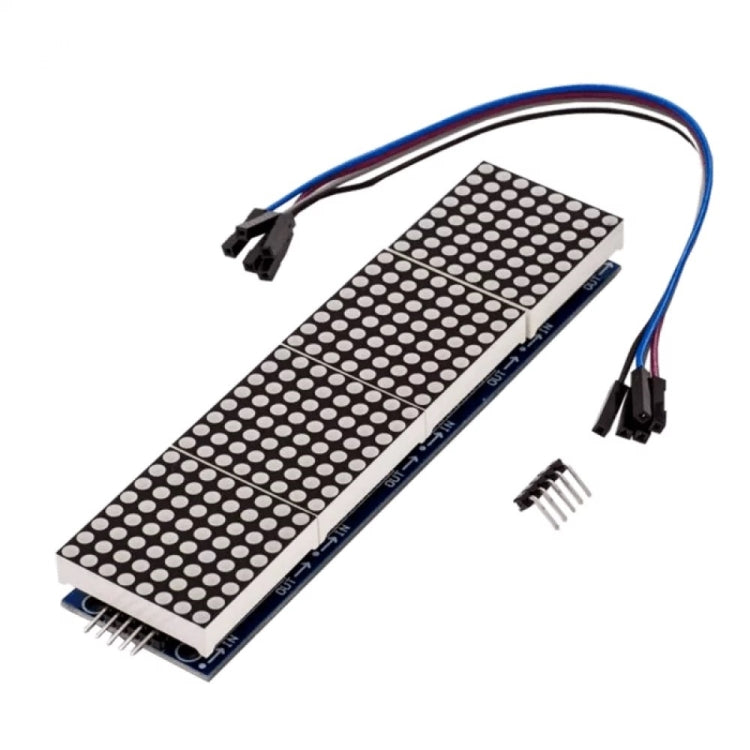

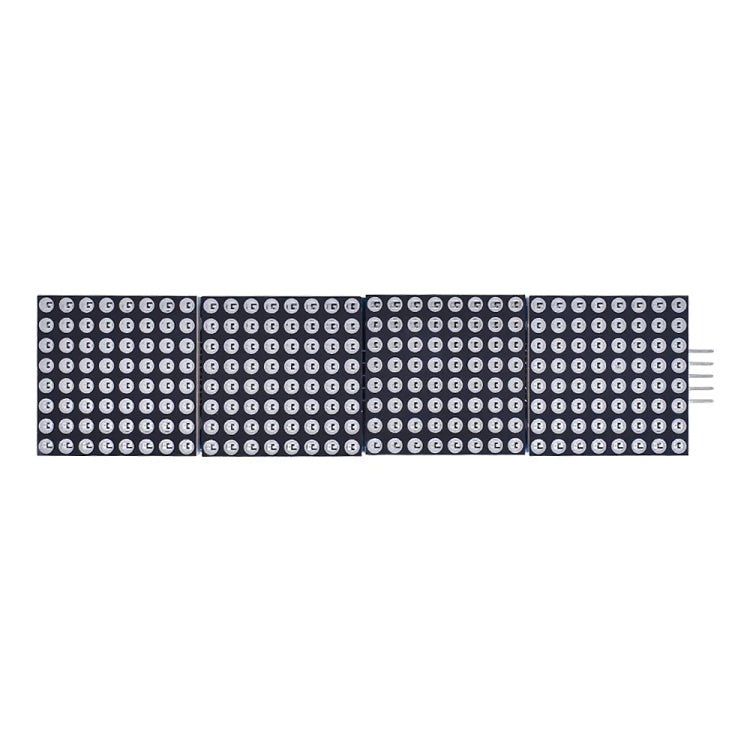

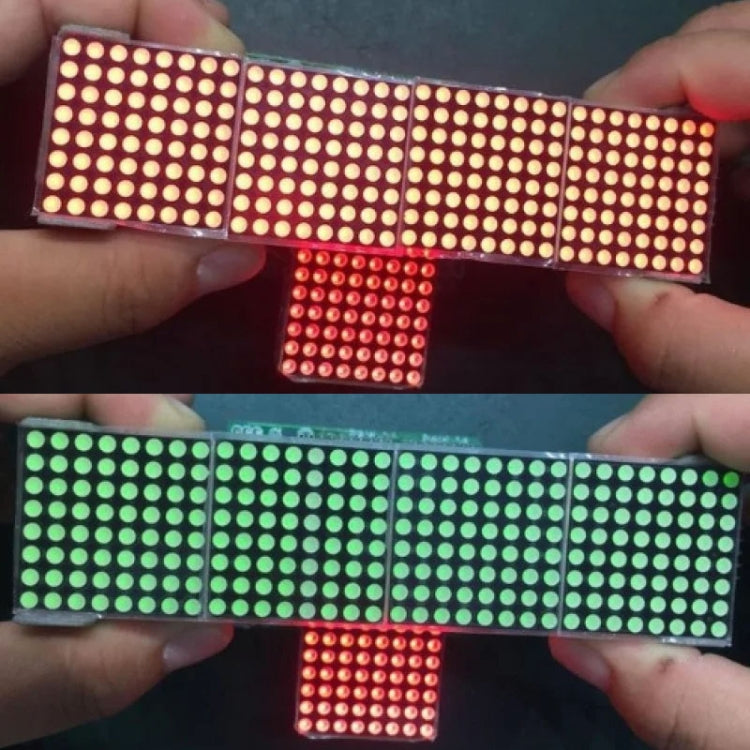

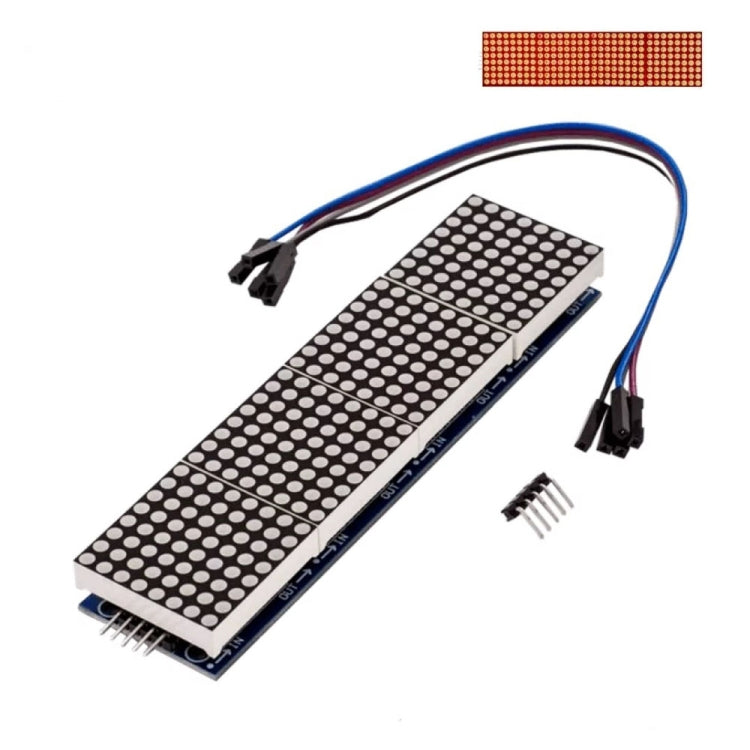

MAX7219 Point Battage Module LH Control is a single-chip display module designed for driving LED dot matrix displays. It is suitable for everyday use in various electronic projects requiring visual output.
- Product Type: LCD & LED Display Module
- Compatibility: MAX7219
- Color: Red Light
- Operating Voltage: 5V
- Dimensions: 12.8 x 3.2 x 1.3 cm
- Cable Length: Approximately 20 cm
- Weight: Approximately 45.2 g
- Features: Supports multiple modules cascade
- Display Capability: Drives an 8x8 common negative dot matrix
- Screw Holes: 64 fixed screw holes with a hole diameter of 3 mm
- Wiring Instructions:
- Left side is input port, right side is output port
- Single module connection: Input port to CPU
- Cascaded connection: First module input to CPU, output to second module input, and so on
- Example wiring for 51 microcontroller: VCC → 5V, GND → GND, DIN → P2.2, CS → P2.1, CLK → P2.0
