Description

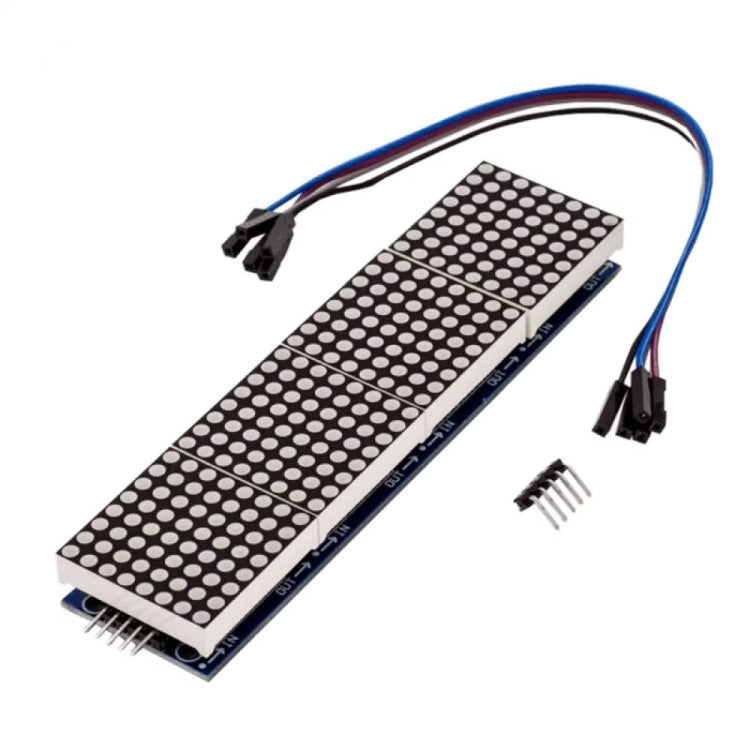

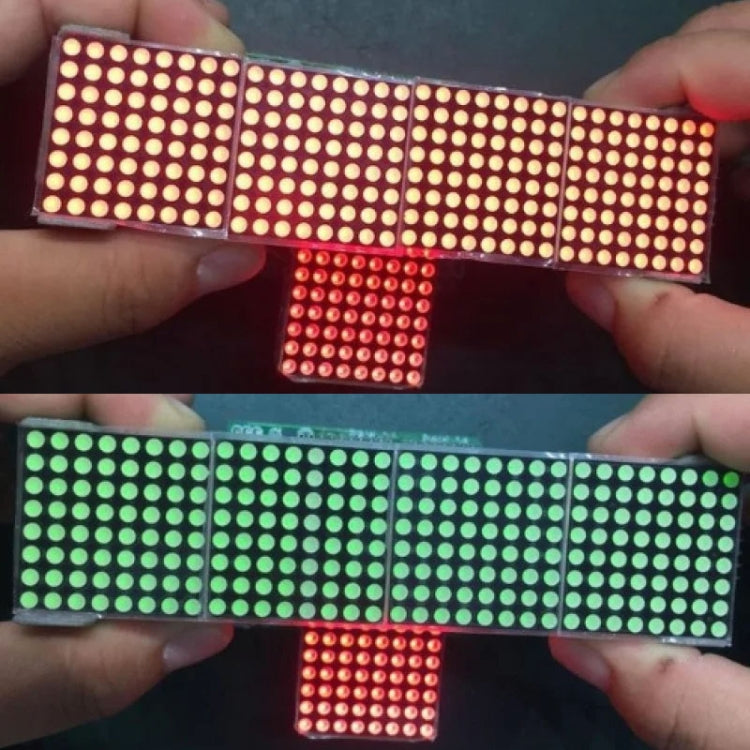

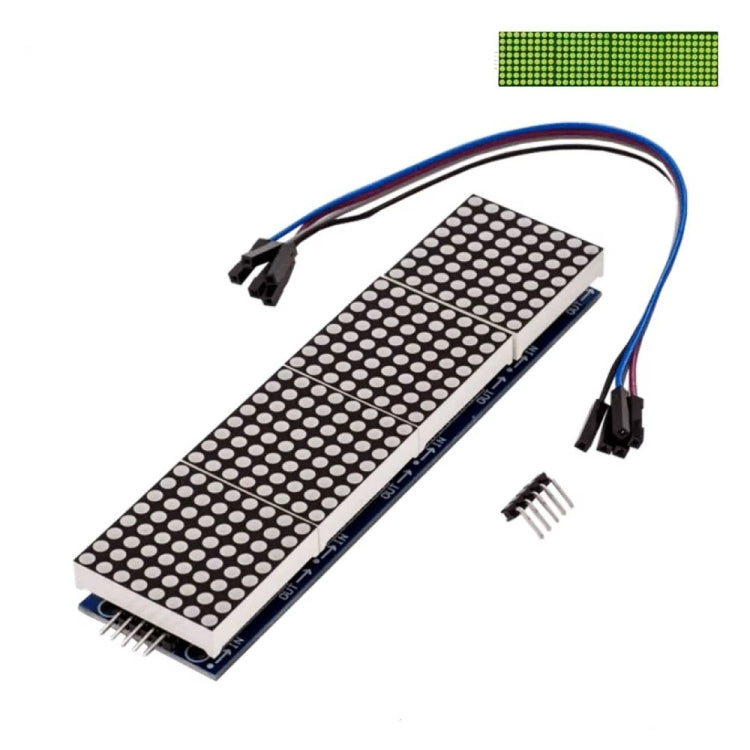

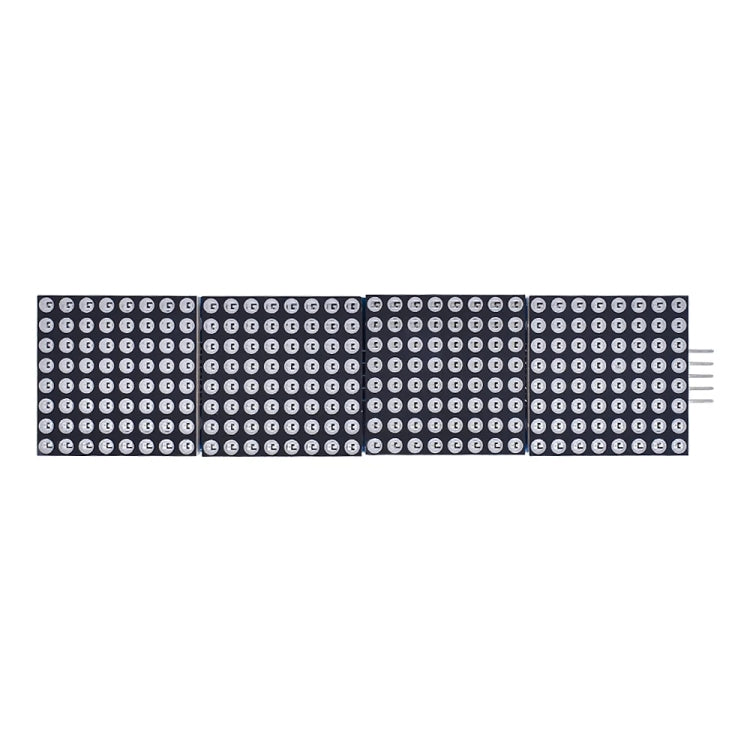

MAX7219 Point Battage Module LH Control is a single-chip display module designed for driving an 8x8 common negative dot matrix. It is suitable for everyday use in various electronic projects requiring visual output.
- Product Type: LCD & LED Display Module
- Compatibility: MAX7219
- Color: Green Light
- Operating Voltage: 5V
- Dimensions: 12.8 x 3.2 x 1.3 cm
- Cable Length: Approximately 20 cm
- Weight: Approximately 45.2 g
- Key Feature: Supports multiple modules cascade
- Fixed Screw Holes: 64, with a hole diameter of 3 mm
- Input/Output Interfaces: Yes, supports cascading of multiple modules
- IO Ports: 3, can drive 1 dot matrix without flicker

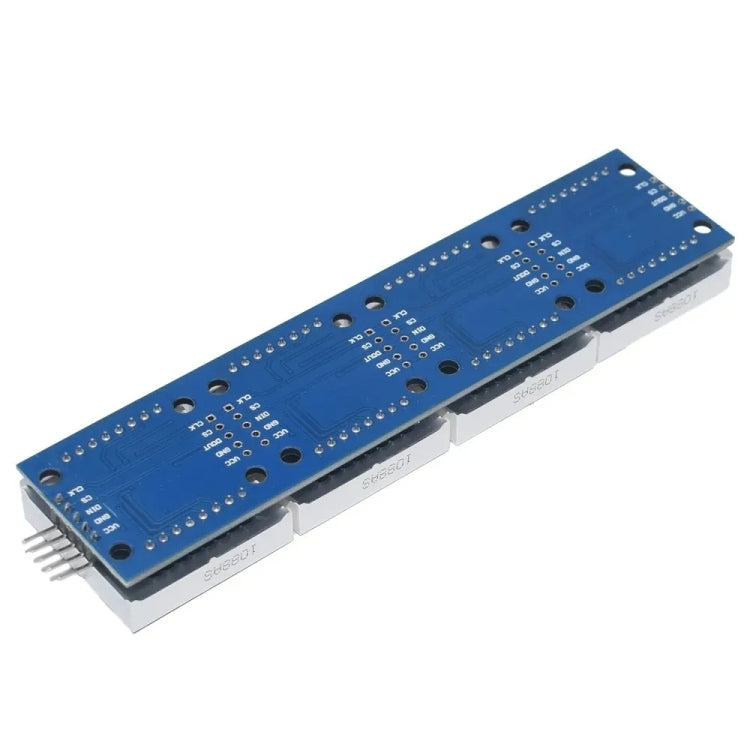

- Wiring Instructions: Left side is input port, right side is output port
- Example Wiring for 51 Microcontroller: VCC → 5V, GND → GND, DIN → P2.2, CS → P2.1, CLK → P2.0
