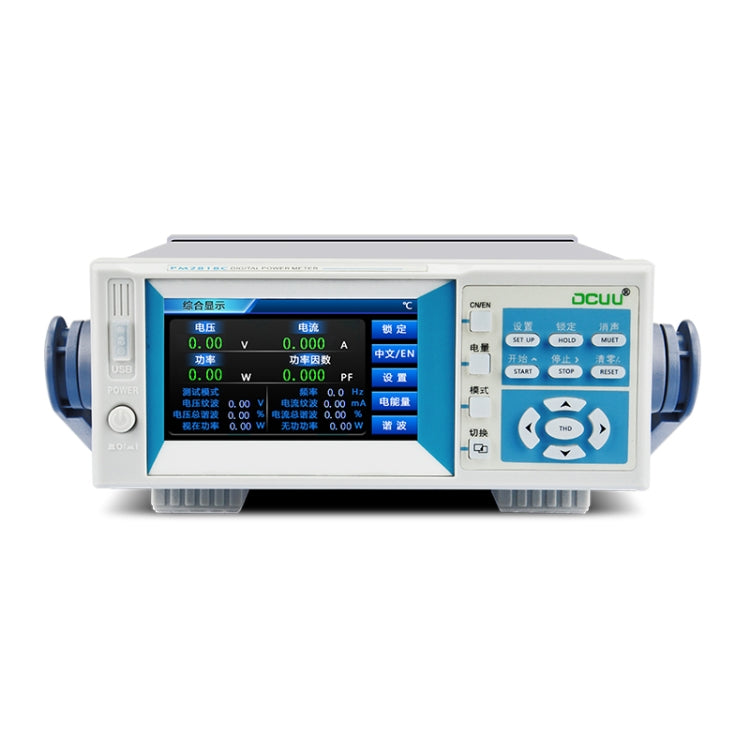

DCUU PM2818C AC / DC 40A Intelligent Electrical Parameters Measuring Instrument (US Plug)

• Product type: Current & Voltage Tester
• Compatibility: DCUU PM2818C
• Material: Not specified
• Key feature: Intelligent measurement of electrical parameters
• Color/Variant: Not specified
• Intended use: Electrical parameter measurement
• Category: Test Equipment

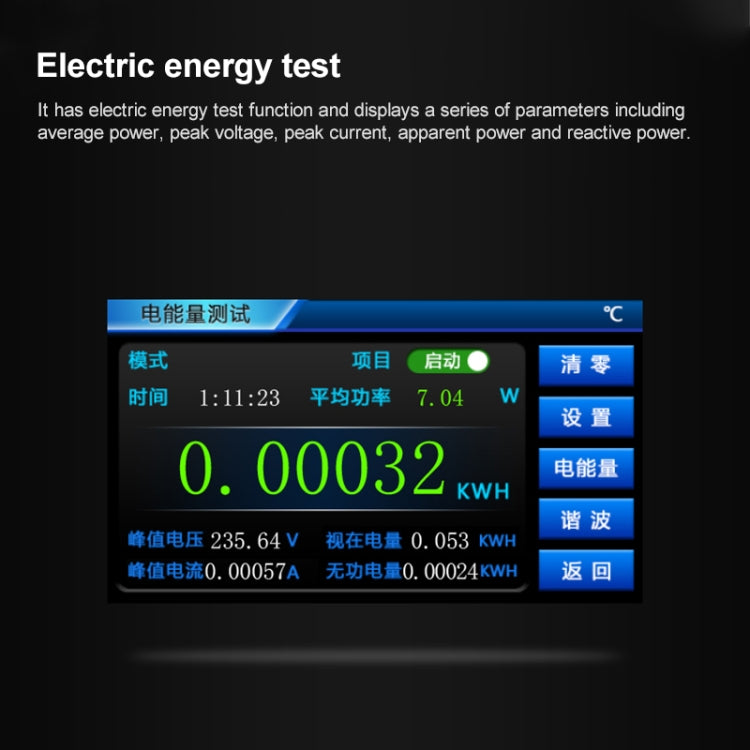

Specifications1. Display mode: 4.3-inch color liquid crystal display 2. Measurement data: voltage, current, power, power factor, frequency, harmonics, electric energy, voltage ripple, current ripple, apparent power, reactive power, peak voltage, peak current, apparent power, reactive power, average power 3. Input voltage: 3.0V~600V 4. Current range: 5mA~40A 5. Range switching: automatic 6. Measurement mode: AC+DC 7. Power factor: -1.000~1.000 8. Frequency range: AC: 45Hz~65Hz, bandwidth 5Khz 9. Electric energy: +/-0-999.999kWh 10. Harmonic analysis function: can display total harmonics and 2~50th harmonic components 11. Measurement accuracy: +/- (0.4% reading + 0.1% range + 1 word) 12. Upper and lower limit judgment function: With current and power upper and lower limit setting, judgment and alarm functions 13. Latch function: Use data fluctuations for easy reading 14. Measurement speed: 5 times/second 15. Volume/weight: Width x height x depth: 213 x 104 x 470mm; 3KGPackage List1. Host x 1 2. Power cord x 1 3. Product manual x 1 4. Product certificate x 1
