BSIDE SH7 Standard+Macro Lens Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer

• Product type: Thermostat & Thermometer
• Brand: BSIDE
• Compatibility: Thermal Imager
• Material: Silicone housing
• Key feature: High accuracy thermal imaging
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Test Equipment

1. Thermal image resolution: 240 x 240 pixels
2. Temperature alarm: screen font color alarm
3. Number of image files: 30,000
4. Save image format: BMP
5. Interface: Type-C
6. Imaging mode: thermal imaging
7. Image storage: built-in memory card
8. Battery capacity: 2500mAh
9. Charging time: about 3h
10. Use time: about 7h
11. Display resolution: 320 x 480
12. Temperature measurement focal length: about 0.3-3m adjustable
13. Temperature measurement range: -20 - 550 degrees Celsius
14. Emissivity: 0.01-1.00 adjustable
15. Temperature measurement resolution: 0.1 degrees Celsius
16. Temperature measurement unit: Celsius, Fahrenheit, Kelvin
17. Temperature measurement display: center point temperature measurement, high and low temperature tracking
18. Spatial resolution: 8.89 mrad
19. Frame rate: 25Hz
20. Imaging lens focal length: 1.35 mm
21. Field of view: 50 degrees
22. Display: 3.98-inch TFT LCD screen/with capacitive touch
23. Functions: data statistics, adjustable backlight brightness, low battery prompt, automatic shutdown

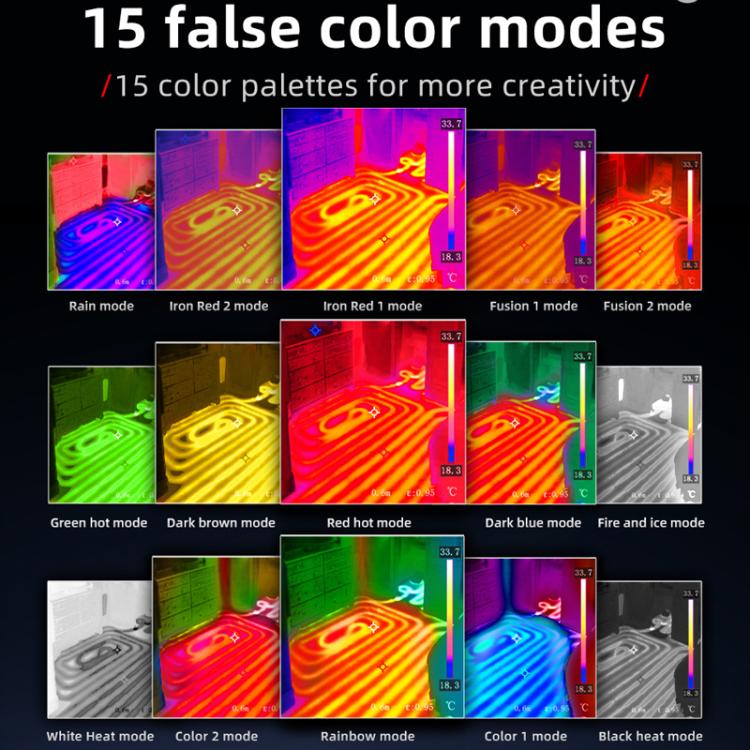

24. Color palette: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue

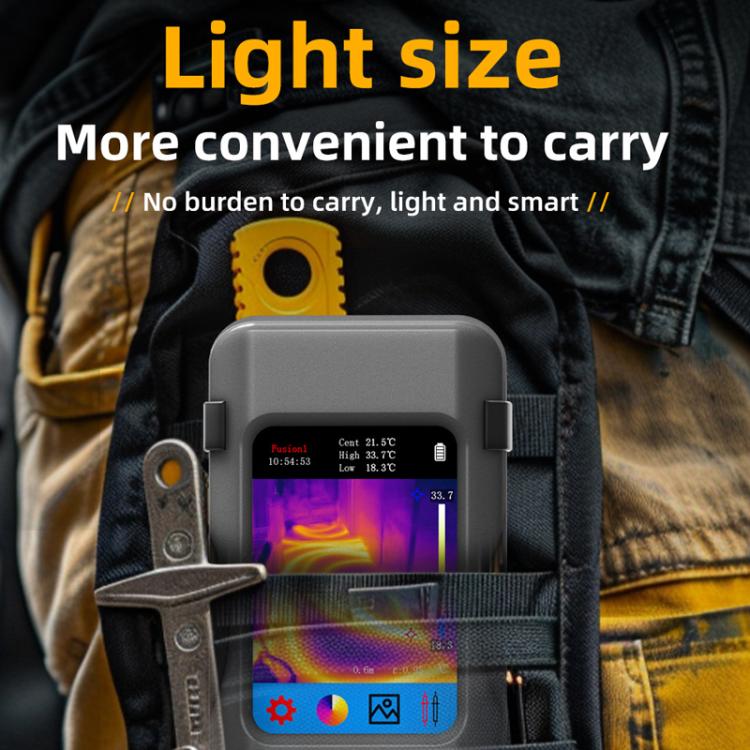

25. Size: about 16.9 x 8.1 x 2.68cm
26. Weight: about 270.7g
Features:

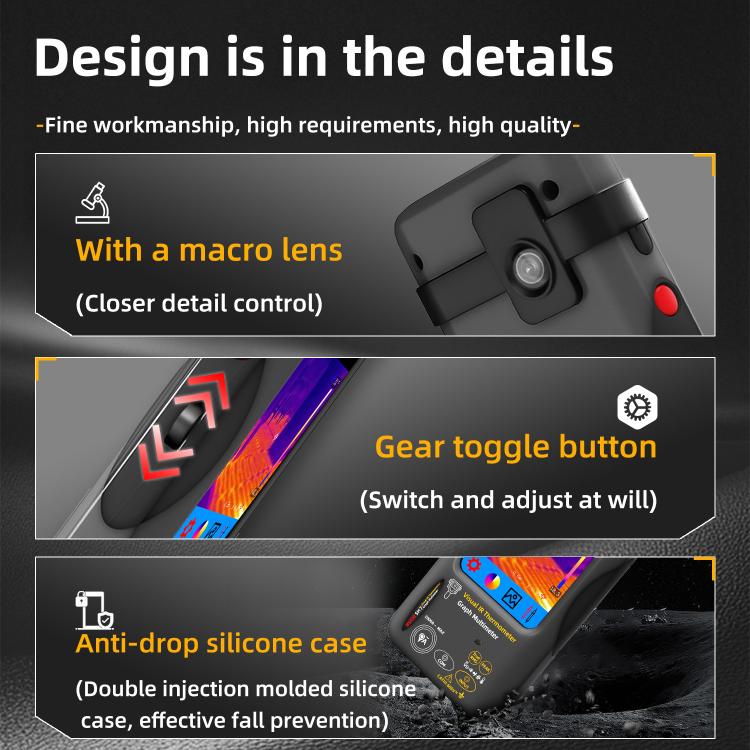

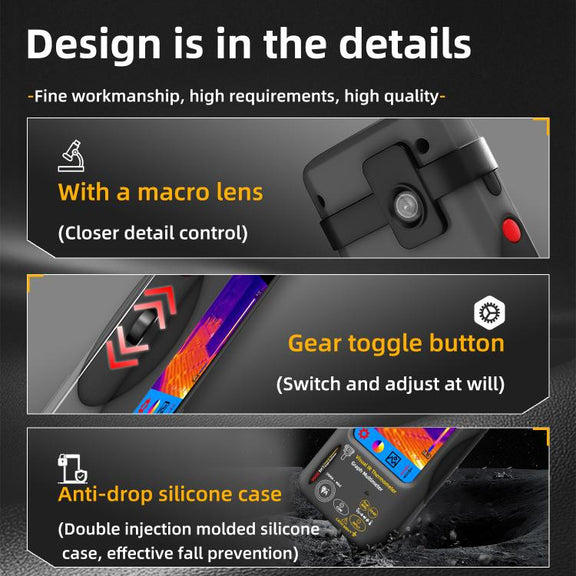

1. Gear toggle button, switch and adjust at will
2. Anti-fall double injection silicone housing, effective anti-fall

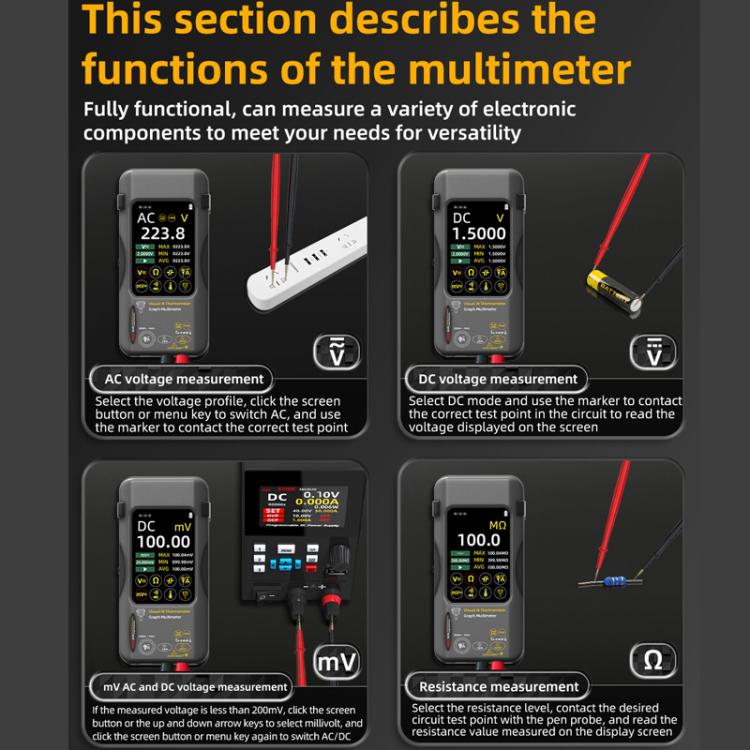

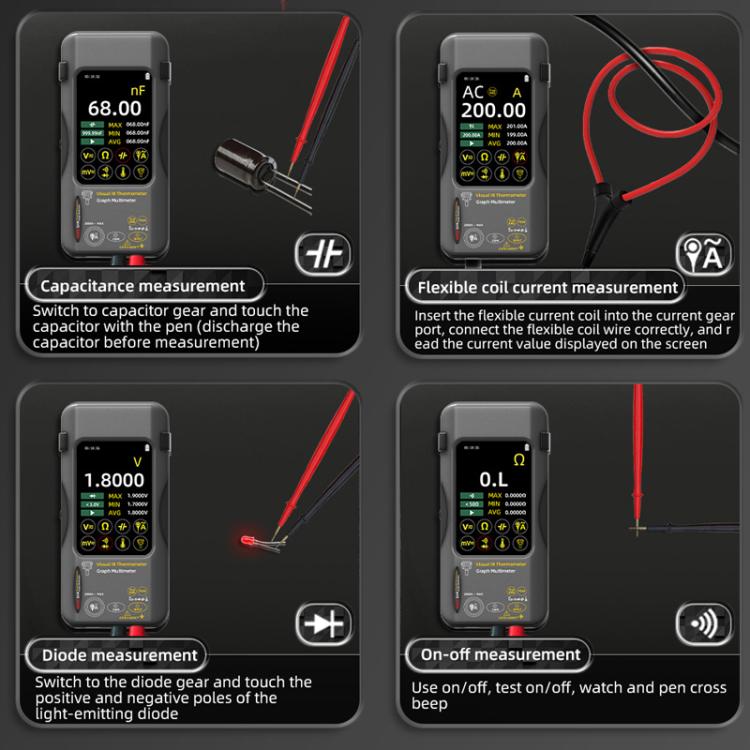

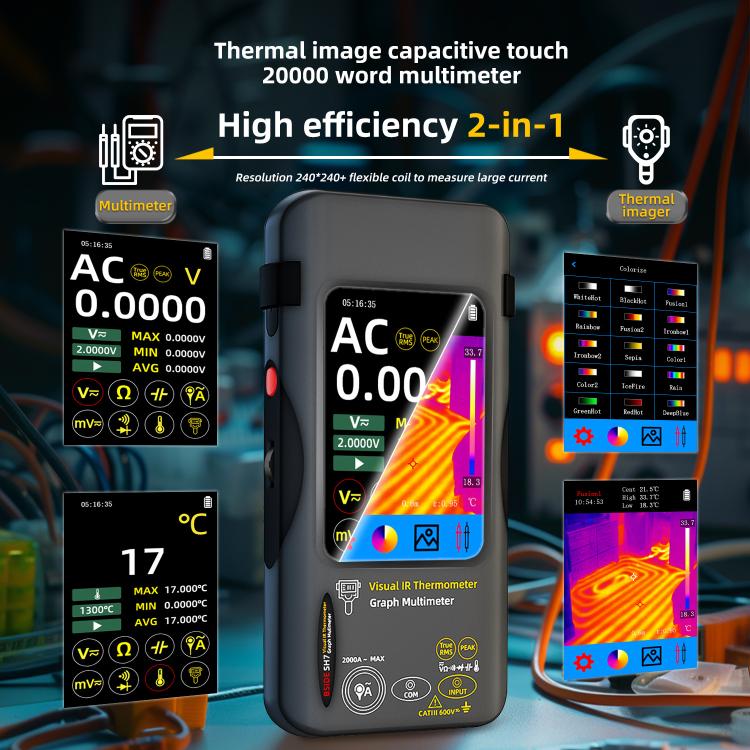

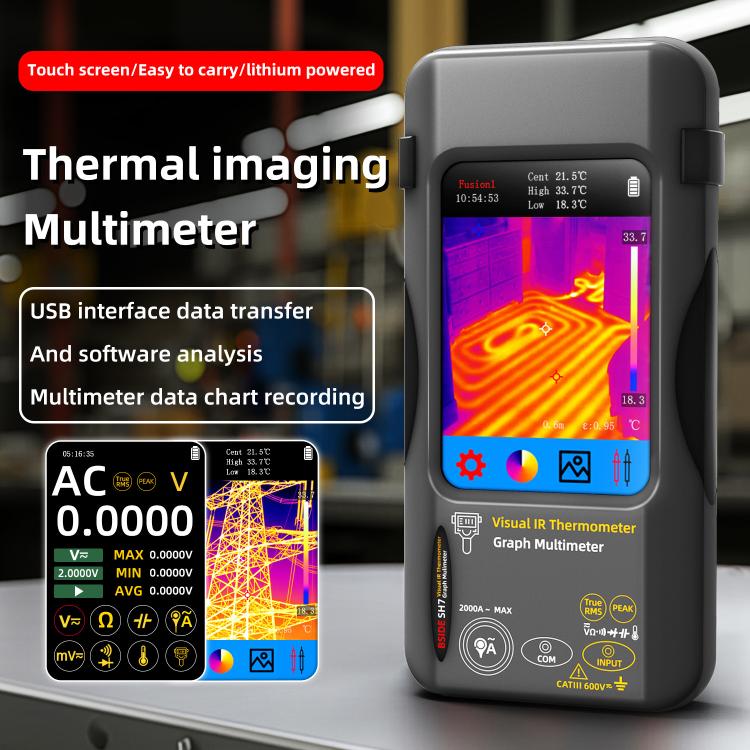

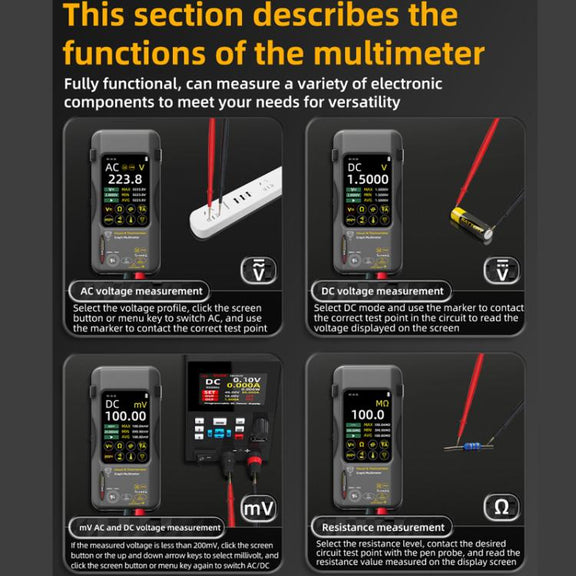

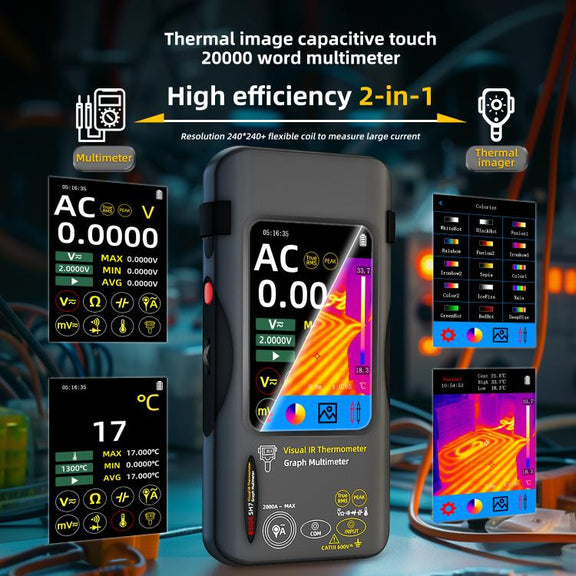

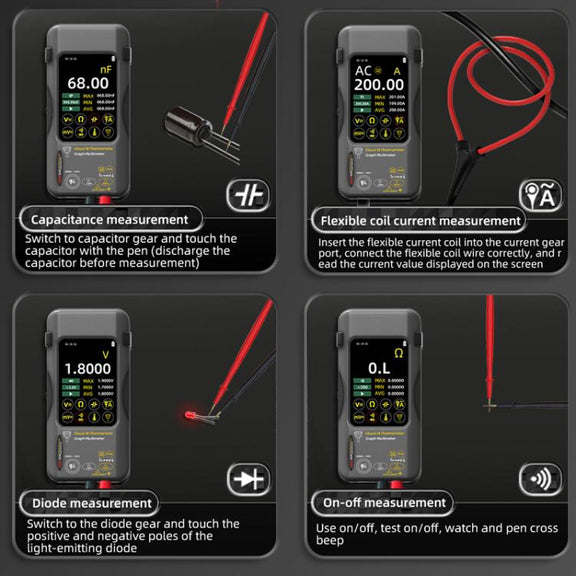

3. Thermal imaging capacitive touch, 20,000 word multimeter, efficient two-in-one

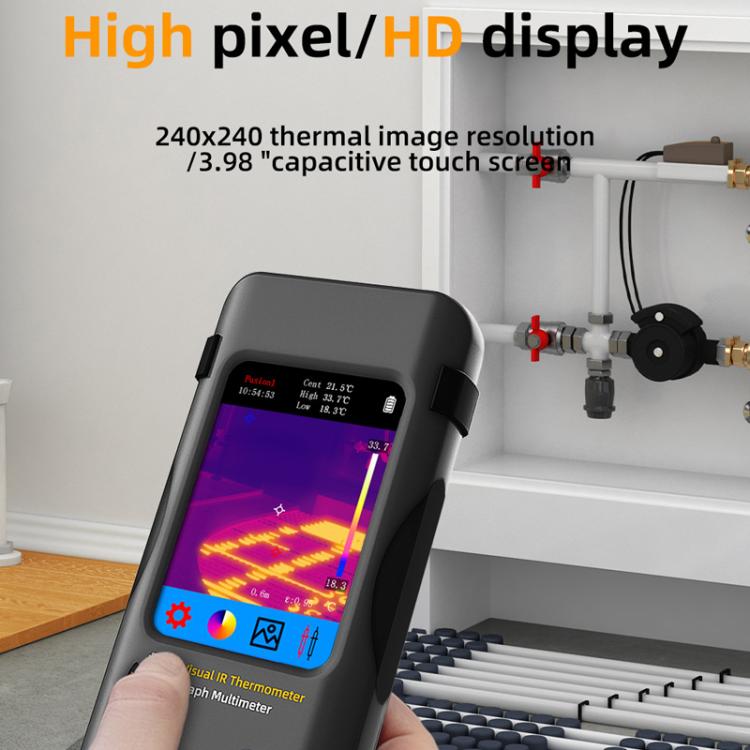

4. 3.98-inch capacitive touch screen, 240 x 240 thermal image resolution

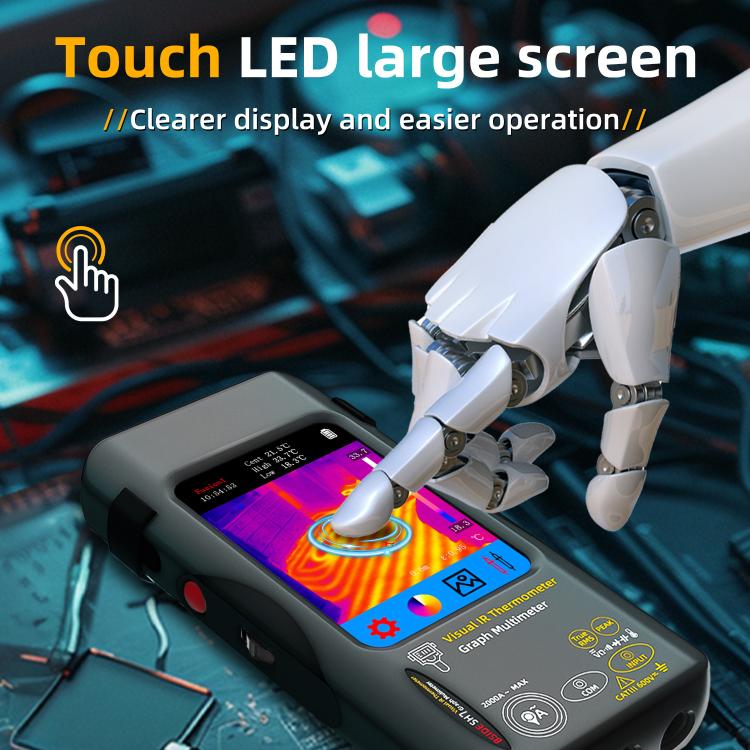

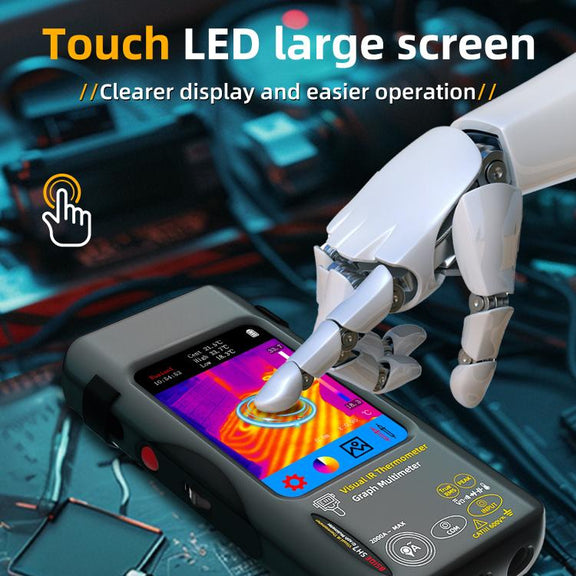

5. Touch LED large screen, clearer display, more convenient operation
6. High thermal sensitivity core vanadium oxide (Vox) microbolometer

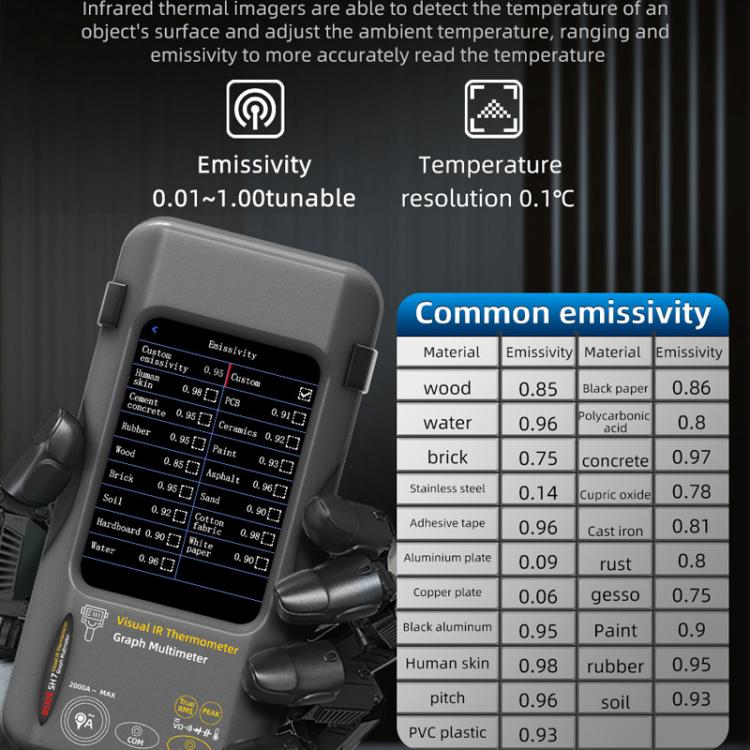

7. Able to detect the temperature of the surface of the object, adjust the ambient temperature, distance and emissivity to read the temperature more accurately
8. 15 pseudo-color modes

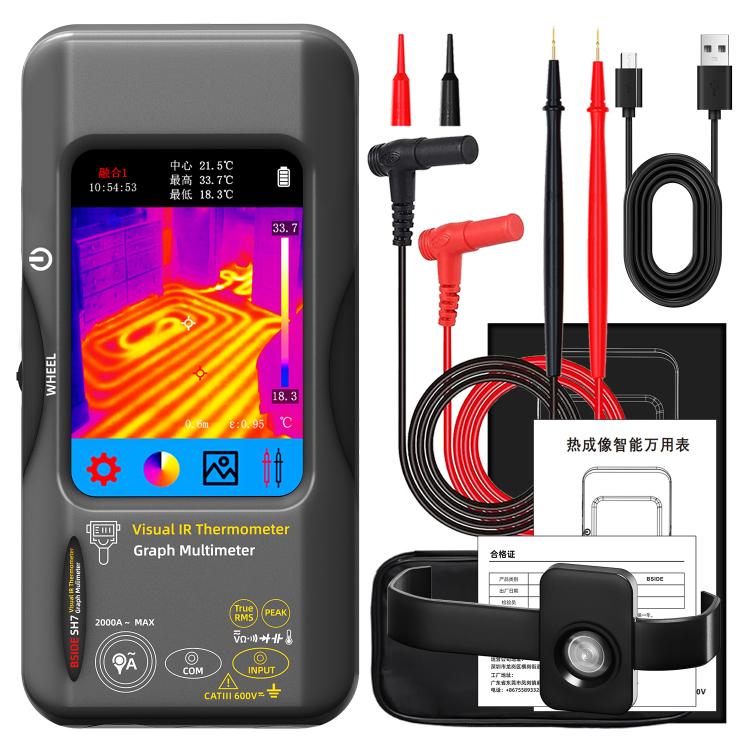

Standard packaging list:
- Multimeter x 1
- USB data cable x 1
- Manual x 1
- Packing box x 1
- Test pens x 2
- Pen caps x 2
