Description

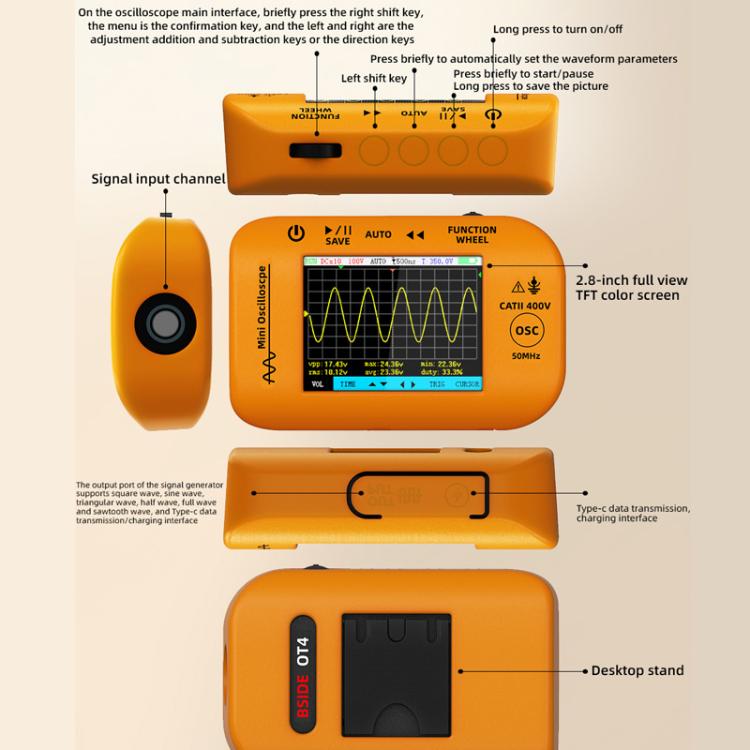

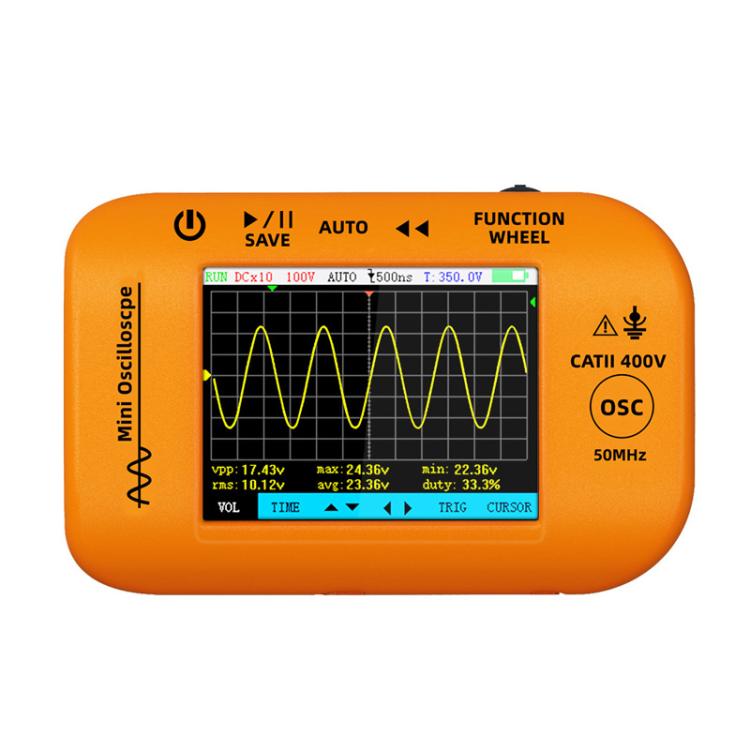

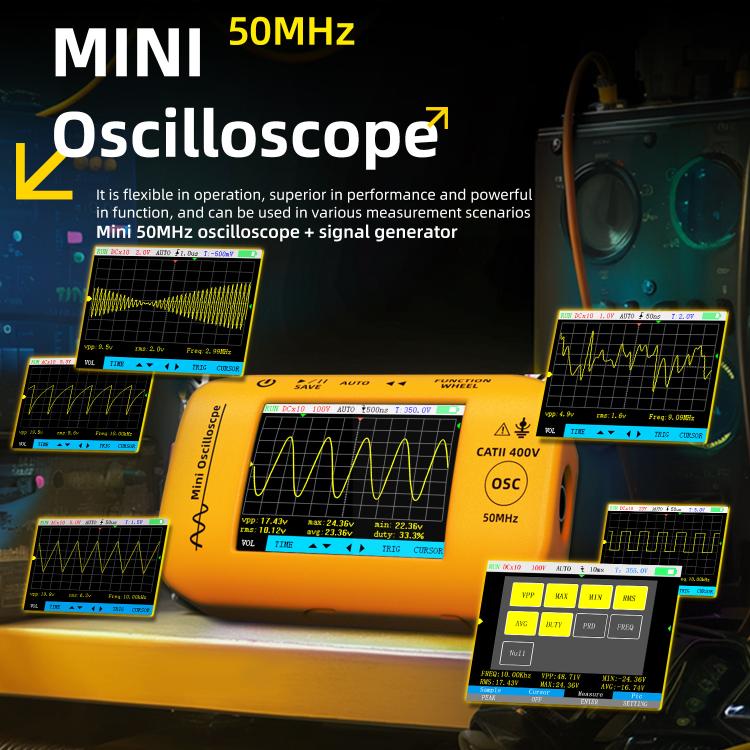

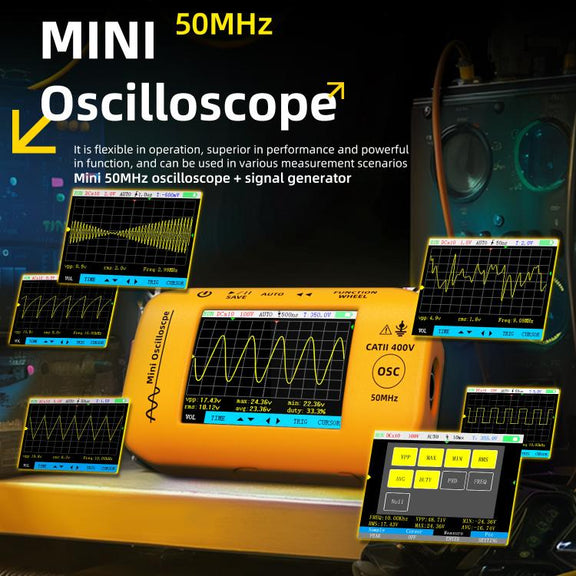

The BSIDE OT4 Miniature Oscilloscope is a handheld signal generator designed for testing and measurement applications. It is suitable for everyday use in various electronic testing scenarios, such as troubleshooting circuits or analyzing signal waveforms.
- Product Type: Other Tester Tool
- Compatibility: 50MHz Oscilloscope

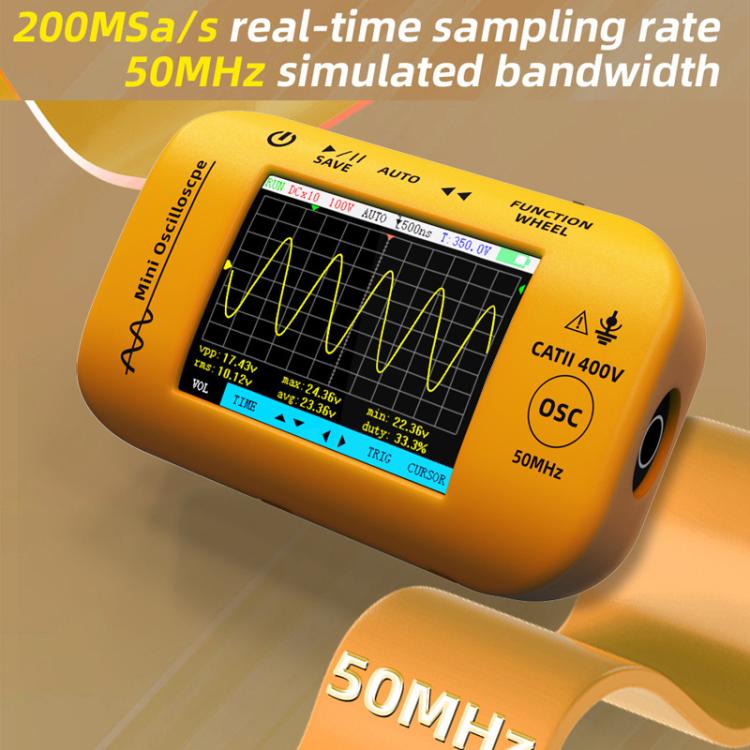

- Bandwidth: 50MHz single channel real-time sampling
- Sampling Mode: Real-time sampling
- Real-time Sampling Rate: 200MSa/s
- Number of Channels: 1 single channel DC, AC
- Input Coupling: DC, AC
- Input Impedance: 1 megohm@16pF
- Probe Attenuation: X1, X10

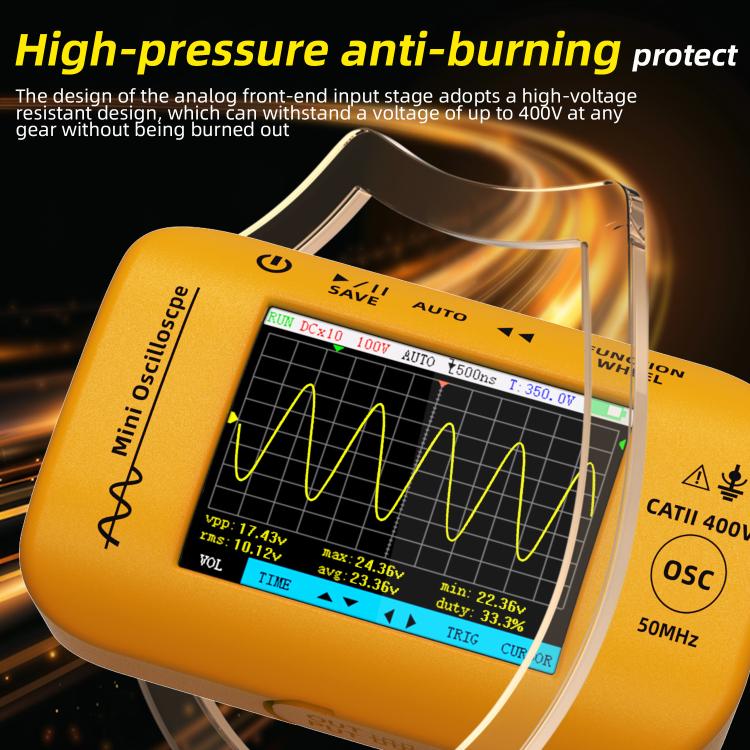

- Maximum Input Voltage: X1 range less than 150V, X10 range +/-300V (DC+AC peak)
- Sampling Rate Range: 1.5Sa/s-200MSa/s
- Waveform Interpolation: (sinx)x
- Sweep Speed Range: 10ns/Div-20s/Div
- Time Base Accuracy: 20ppm
- Memory Depth: Up to 128Kbyte
- Sensitivity: 20mV/Div-10V/Div
- Displacement Range: 4 grids (positive and negative)
- Low Frequency Response: Greater than 10HZ
- Rise Time: Less than 10ns
- DC Gain Accuracy: +/-3%
- Trigger Mode: Automatic, normal, single
- Trigger Edge: Rising edge, falling edge

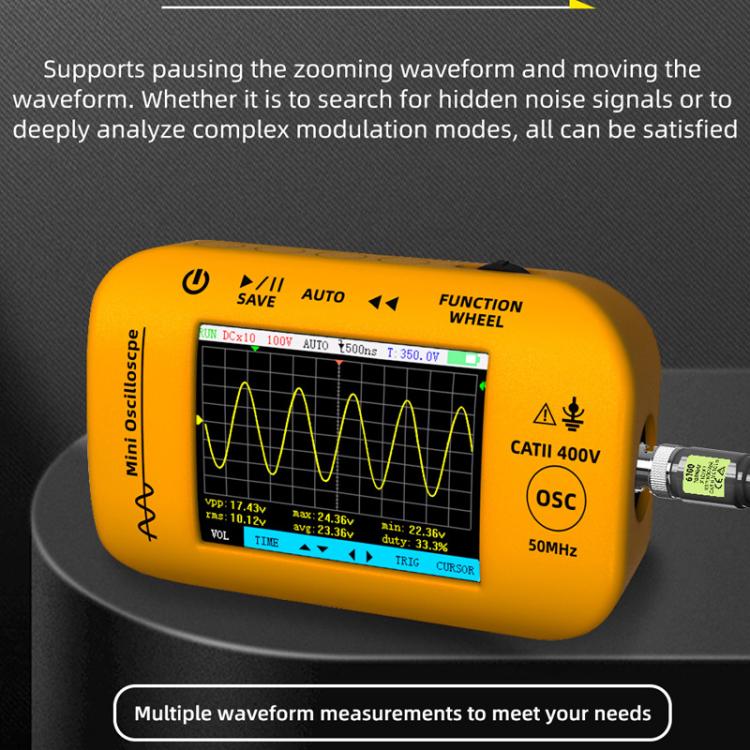

- Automatic Measurement: Period, frequency, peak-to-peak value, maximum value, minimum value, average value, duty cycle, root mean square
- Afterglow Time: Minimum, 500ms, 1S, 10S, infinite
- Standard Probe: P6100/60M probe

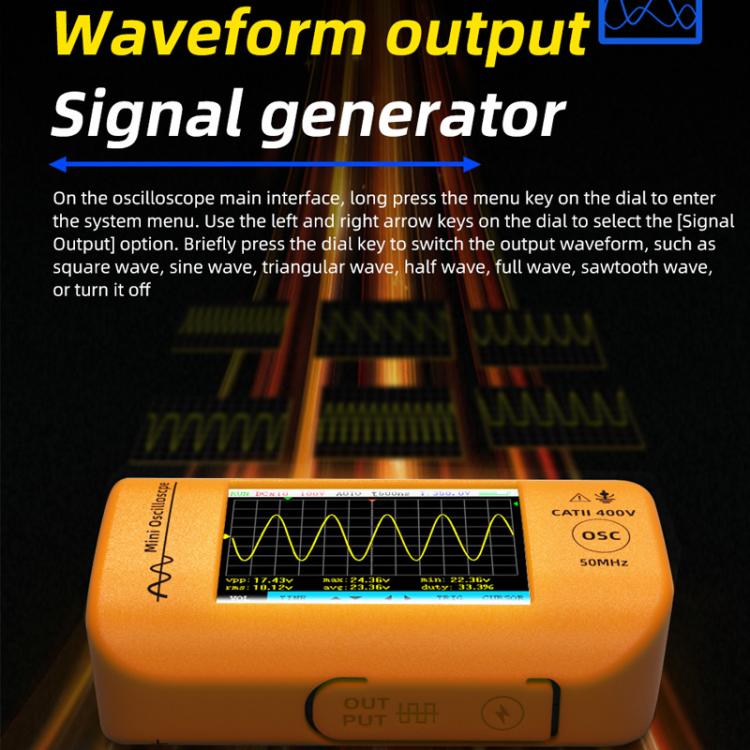

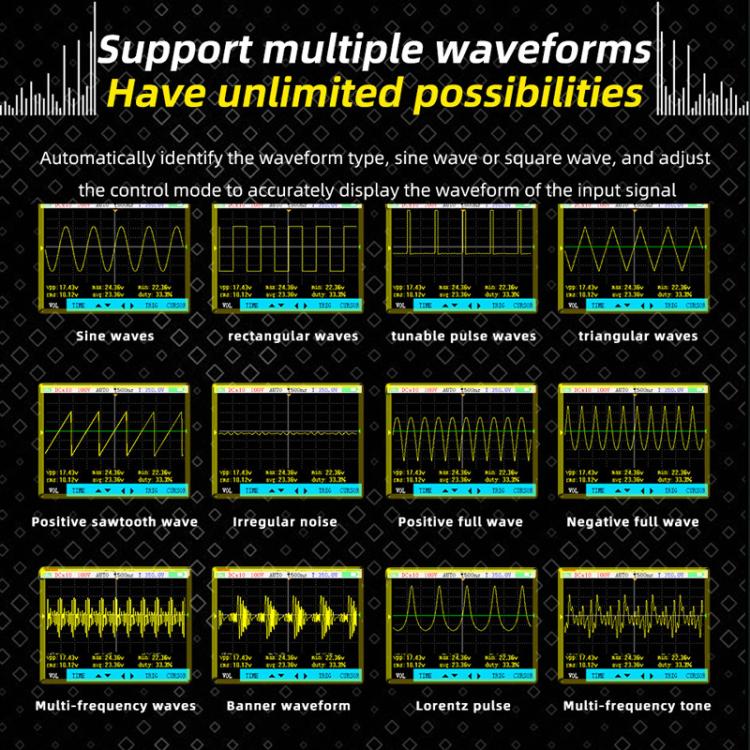

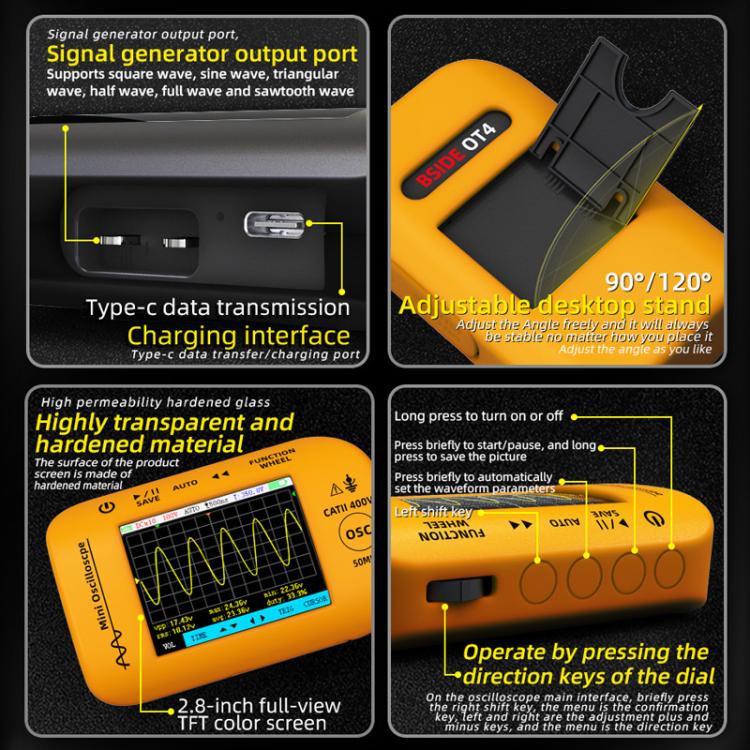

- Signal Generator: 1KHZ/square wave, sine wave, triangle wave half wave, full wave, sawtooth wave

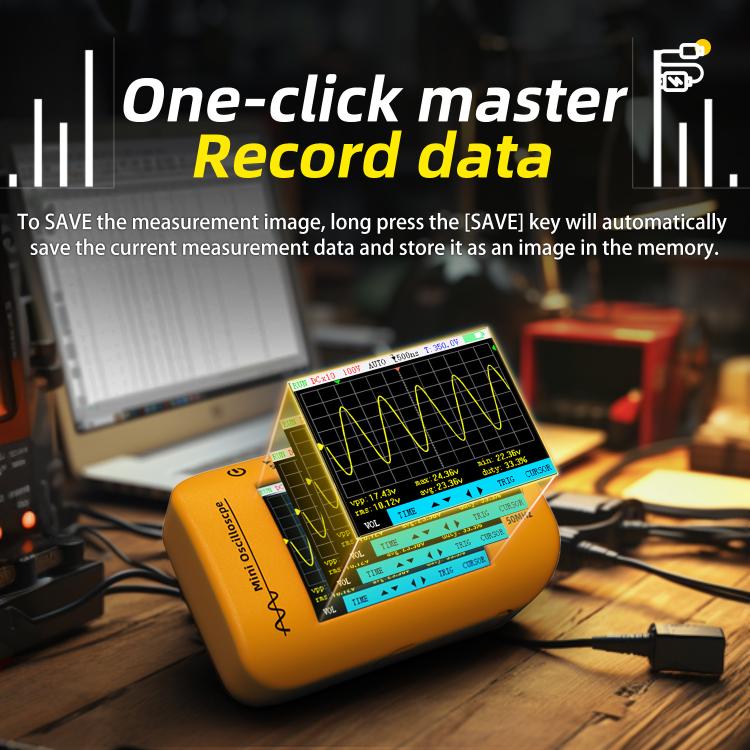

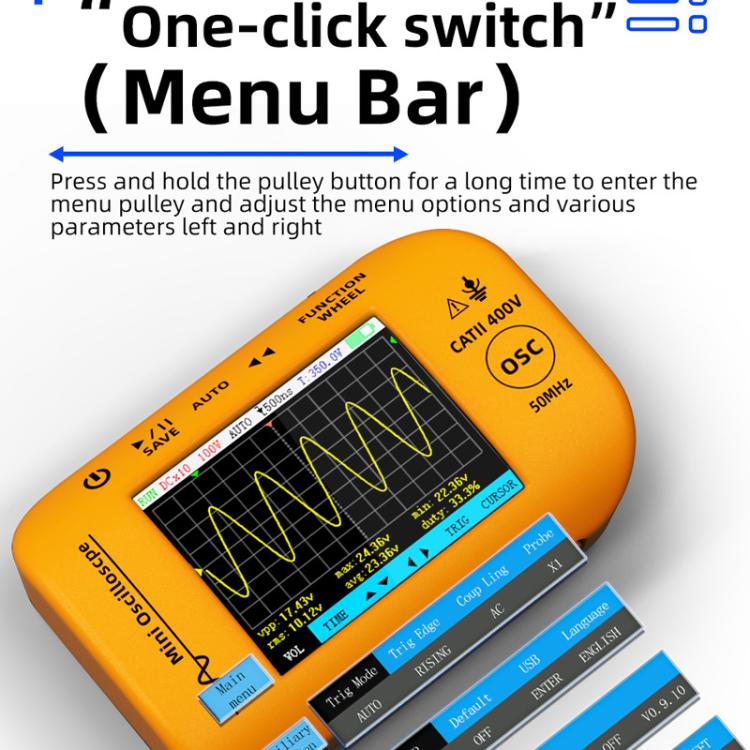

- Function: Data hold, pause, screen backlight, low battery prompt, automatic shutdown

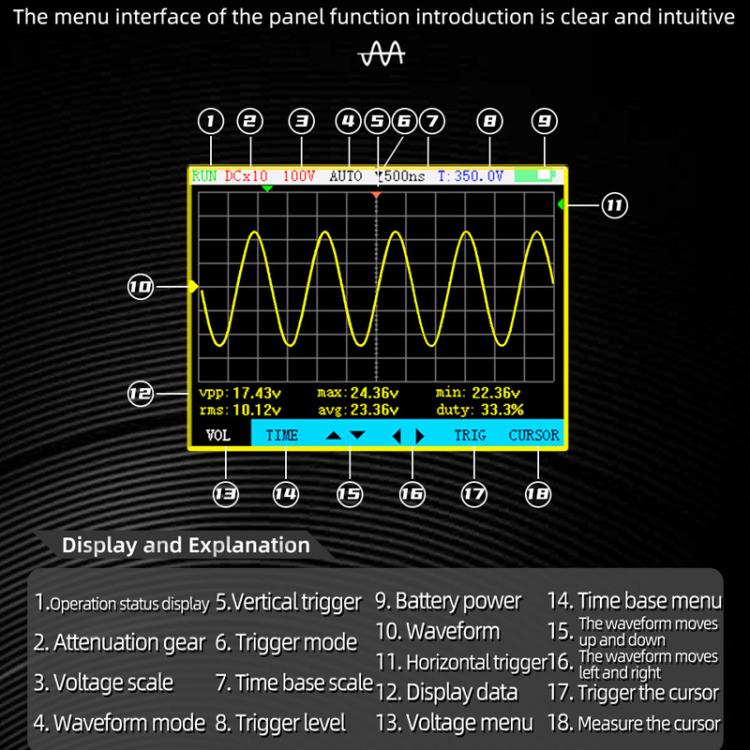

- Display: 2.8-inch TFT color screen
- Resolution: 320 x 240 pixels
- Battery Capacity: 1800mAh
- Working Temperature/Humidity: 0 - 40 degrees Celsius/less than 75%RH
- Storage Temperature/Humidity: -20 - 60 degrees Celsius/less than 80%RH
- Supported Languages: Chinese, English
- Size: About 10.8 x 6.95 x 3.3cm
- Weight: About 166g

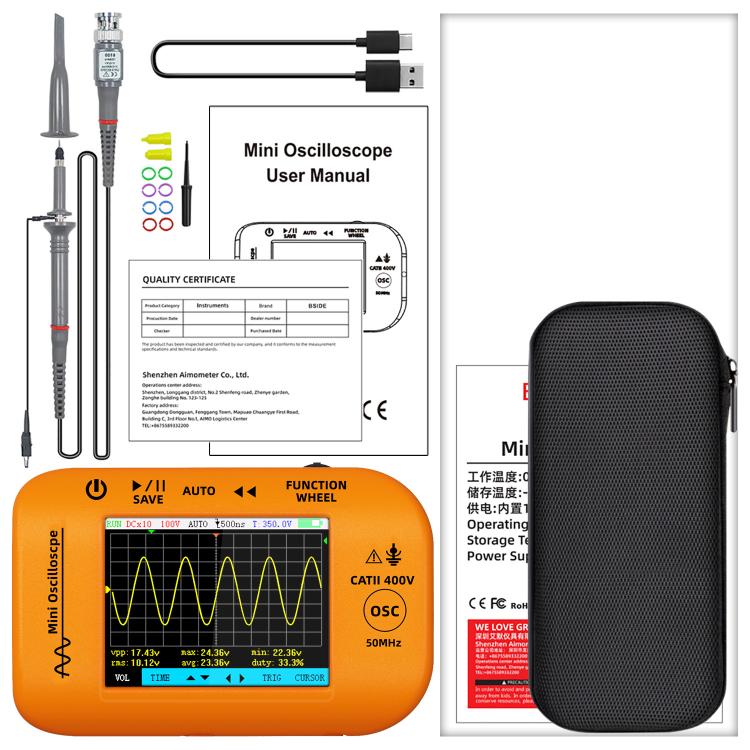

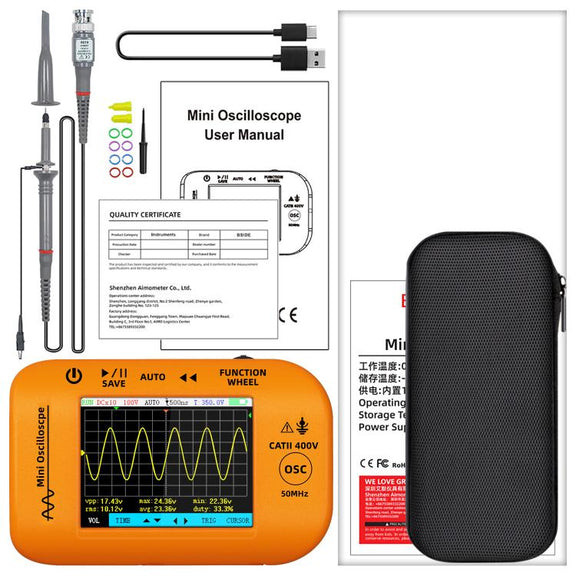

- Packing List: Oscilloscope x 1, Data cable x 1, Manual x 1, Storage bag x 1, Probe x 1
