8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8)(Black)
8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8)(Black)
Sale
Sold out
Pre-order
Regular price
R 1,169.00
Regular price
Sale price
R 1,169.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Video Balun
• Compatibility: CCTV systems
• Material: Durable construction
• Key feature: Surge protection
• Color/Variant: Black
• Intended use: Everyday use
• Category: Video Accessories

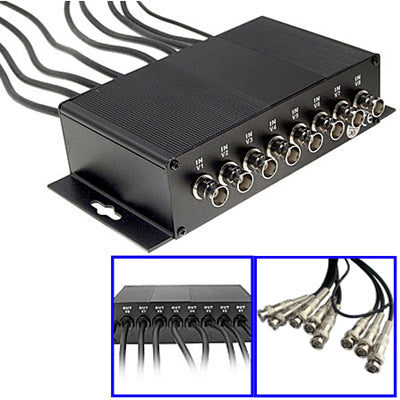

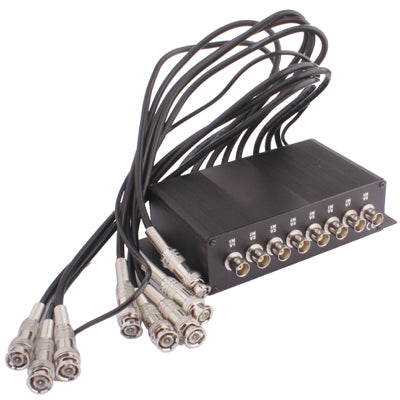

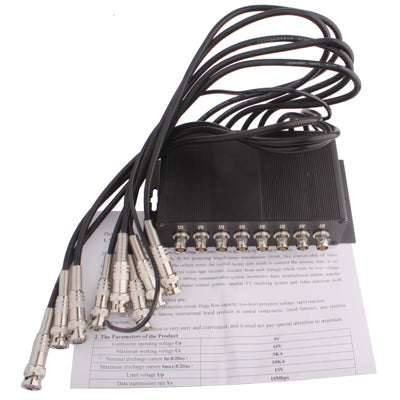

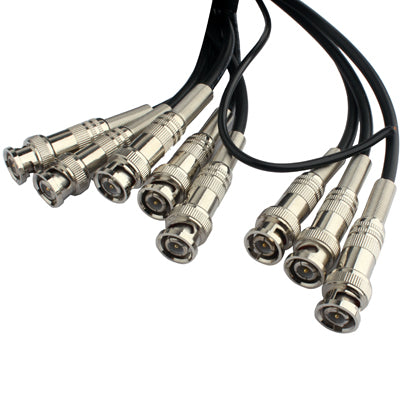

1. 8 Channel CCTV BNC Lightning Arrester Surge Protector Device. 2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female). 3. Suitable for coaxial communication equipment surge protection, such as cable TV, satellite TV receive, monitor system, etc. 4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage. 5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge. Specifications: 1. Working Voltage: 5V 2. Max Working Voltage: 10V 3. Nominal Discharge Current(8/20us): 5KA 4. Discharge Current(8/20us): 10KA 5. Voltage Limit: 15V 6. Data Transfer Rate: 100Mbps 7. Insertion Loss: 0.2db 8. Response Time: 1nS 9. Interface Type: BNC 10. Protection Method: Line to line, line to ground 11. Working Temperature: -25-/+65 degree C 12. Humidity: ~95% 25-30 degree C 13. Test Standard: IEC61643-21: 2000 14. Cable length: Approx. 400mm 15. Size: Approx.168x80x40mm
• Compatibility: CCTV systems
• Material: Durable construction
• Key feature: Surge protection
• Color/Variant: Black
• Intended use: Everyday use
• Category: Video Accessories
1. 8 Channel CCTV BNC Lightning Arrester Surge Protector Device. 2. CCTV Lightning Arrester adopt internal standard BNC interface(male to female). 3. Suitable for coaxial communication equipment surge protection, such as cable TV, satellite TV receive, monitor system, etc. 4. This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage. 5. CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge. Specifications: 1. Working Voltage: 5V 2. Max Working Voltage: 10V 3. Nominal Discharge Current(8/20us): 5KA 4. Discharge Current(8/20us): 10KA 5. Voltage Limit: 15V 6. Data Transfer Rate: 100Mbps 7. Insertion Loss: 0.2db 8. Response Time: 1nS 9. Interface Type: BNC 10. Protection Method: Line to line, line to ground 11. Working Temperature: -25-/+65 degree C 12. Humidity: ~95% 25-30 degree C 13. Test Standard: IEC61643-21: 2000 14. Cable length: Approx. 400mm 15. Size: Approx.168x80x40mm
