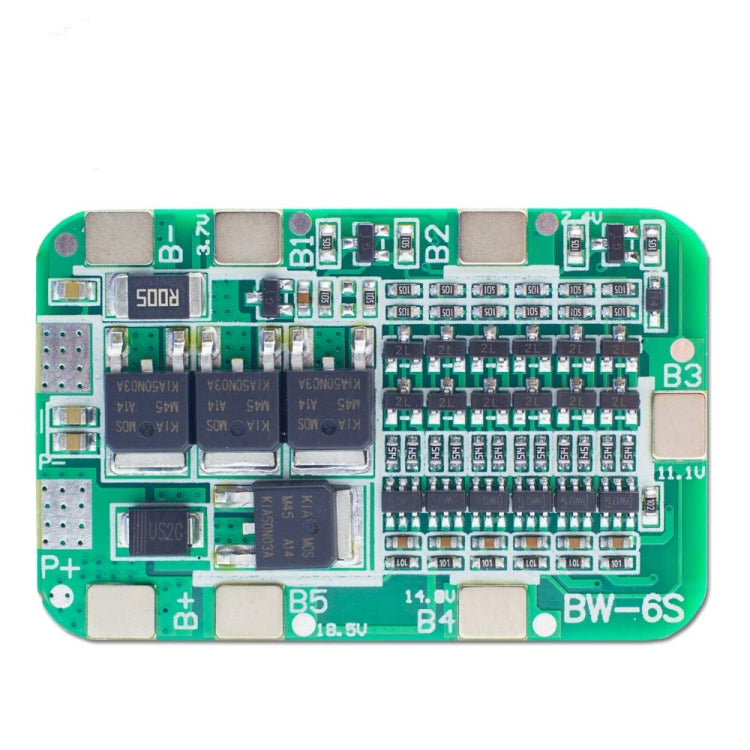

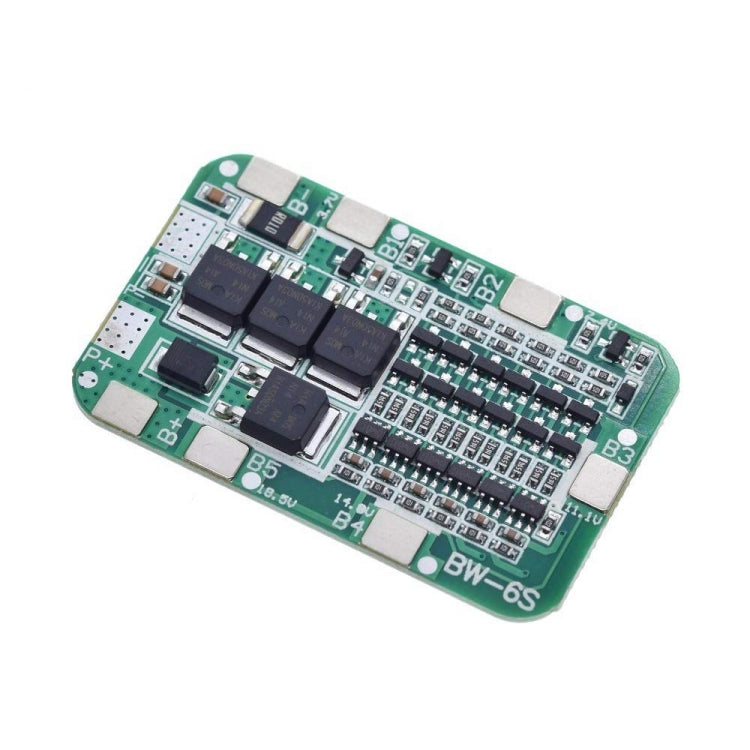

6 String 22/24V 18650 Lithium Battery Protection Board
6 String 22/24V 18650 Lithium Battery Protection Board
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R62.06/mo 3 months
- R31.38/mo 6 months
- R16.56/mo 12 months
- From R62.06/month over 3 months, or as low as R16.56/month over 12. Total repayable over 12 months: R198.72. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
6 String 22/24V 18650 Lithium Battery Protection Board is a sensor module designed to protect lithium batteries. It is suitable for everyday use in applications requiring battery management and safety.
- Product Type: Sensor Module
- Compatibility: 6 String 22/24V 18650 Lithium Battery
- Material: Integrated circuit
- Key Feature: Protection board
- Discharge Current: 15A (large discharge), 25A (instantaneous)
- Charging Voltage: 25.5V
- Charging Current: 15A
- Overcharge Protection: Detection Voltage: 4.28V; Delay Time: 0.1S; Release Voltage: 4.08V
- Over-discharge Protection: Detection Voltage: 2.55V; Detection Delay: 0.1S; Release Voltage: 2.9V
- Over-current Protection: Detection Voltage: 150mV; Detection Delay: 9MS; Current: 30A; Release Condition: Disconnect the load
- Short-circuit Protection: Detection Delay: 250uS; Release Condition: Disconnect the negative open
- Internal Resistance: ≤ 20 mOhm
- Self-consumption: Working Current: ≤ 30uA; Sleep Current: ≤ 10uA
- Operating Temperature Range: -30 to +80 degrees Celsius

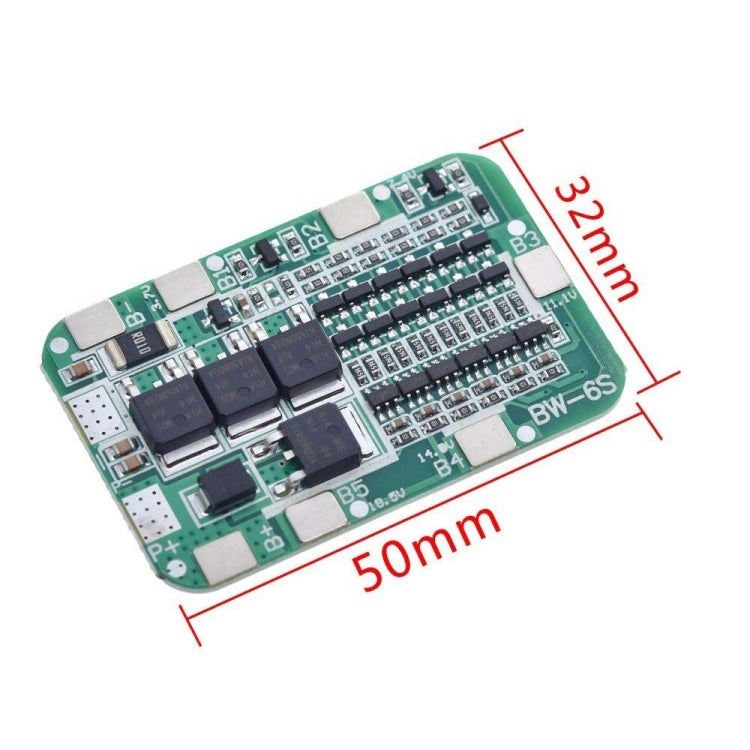

- Size: 50 x 32 x 3 mm
- Weight: 8 g
