Description

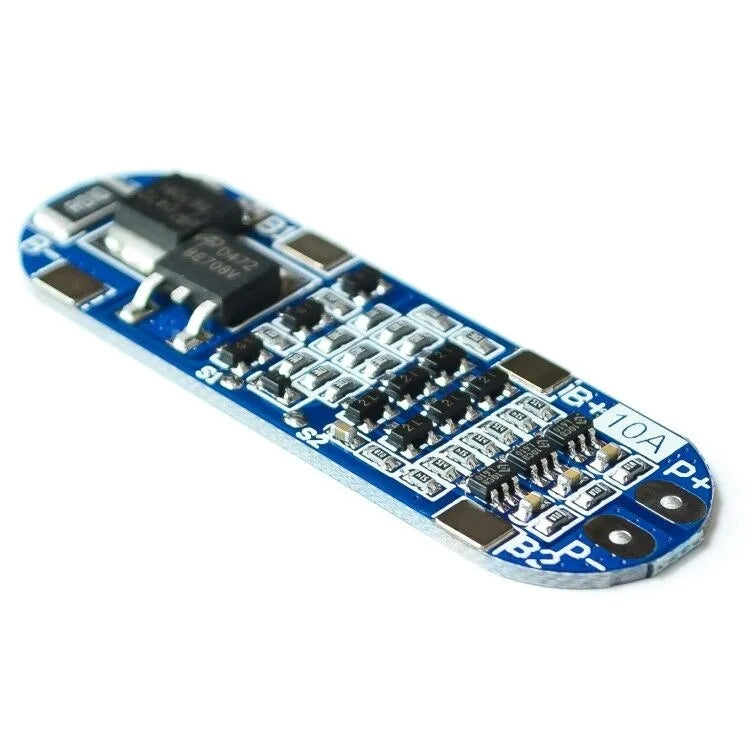

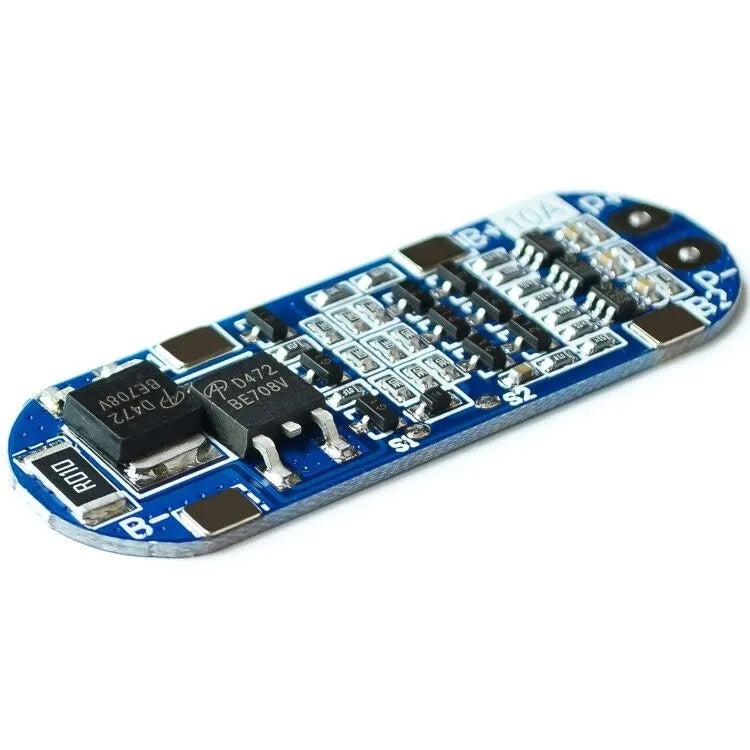

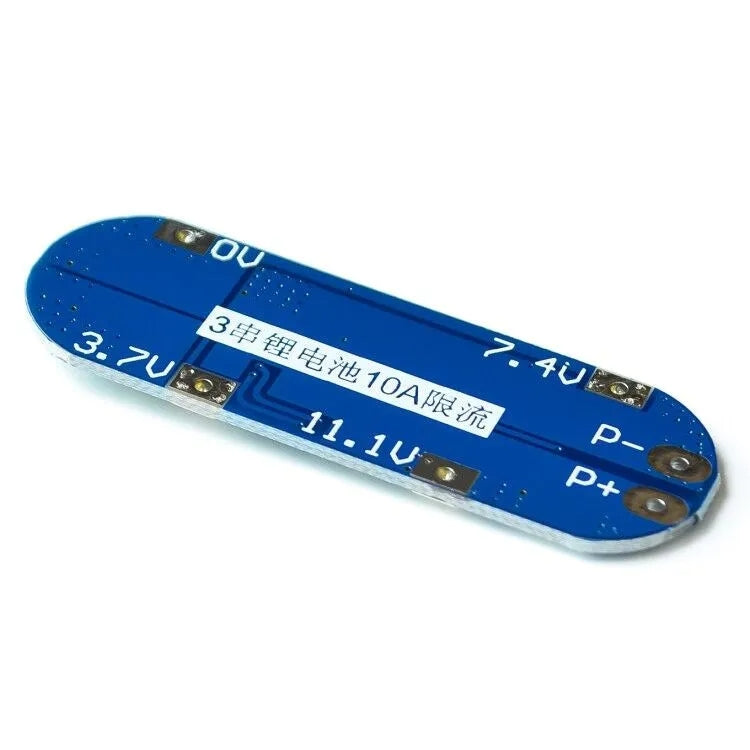

The 3S 10A 11.1V 12V 12.6V Li-Ion Battery Charging Protection Board is a sensor module designed for various battery applications. It provides short-circuit protection and is suitable for everyday use in battery management systems.
- Product Type: Sensor Module
- Compatibility: Various battery applications
- Charging Voltage: 12.6V-13V
- Static Current: Less than 30uA
- Over-Discharge Voltage Range: 2.3-3V
- Overcharge Voltage Range: 4.25-4.35V
- Upper Operating Current: 6-8A
- Upper Instantaneous Current: 10-13A
- Operating Temperature: -40 to 50 degrees Celsius
- Storage Conditions: -40 to 80 degrees Celsius
- Effective Life: More than 30,000 hours
- Internal Resistance: Less than 100mohm
- Weight: About 3.4 g

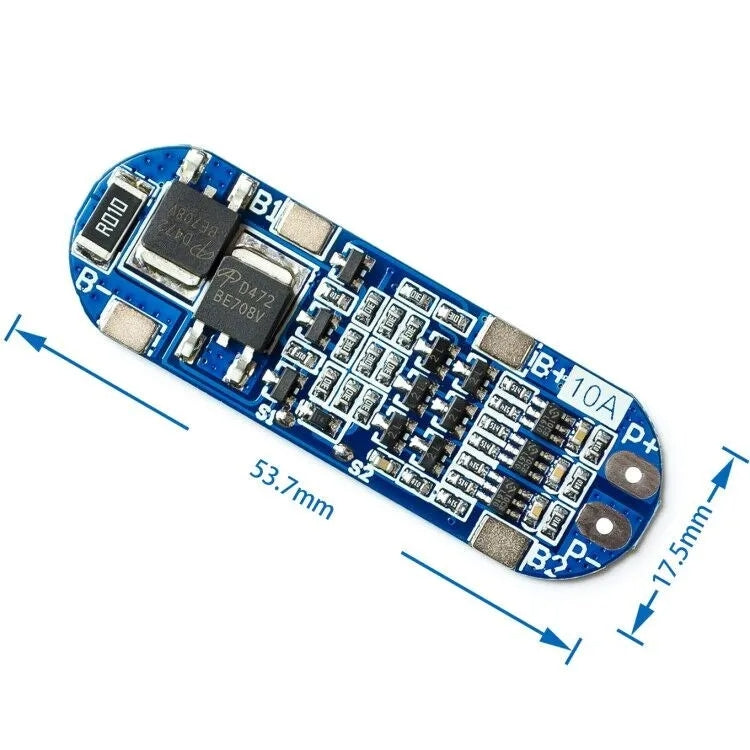

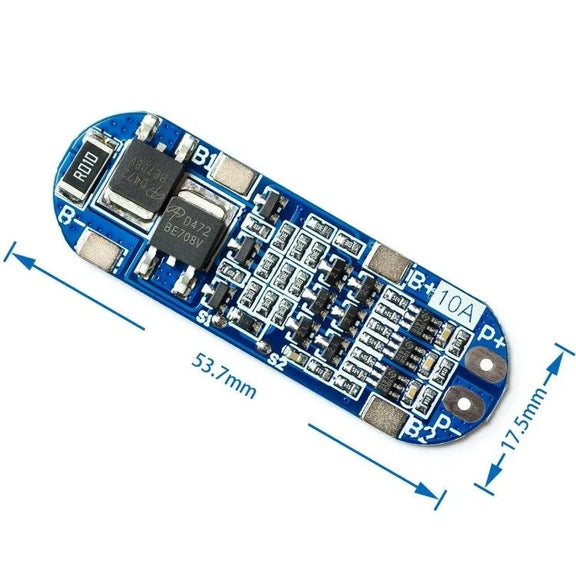

- Size: Approximately 53 x 17 x 4 mm
- Short-Circuit Protection: Delayed self-recovery, components include 2110-CB protection chip and AOD472 x 2 pcs
- Discharge Requirements: 3A current discharge products, battery discharge multiplier should be more than 3C
- Applicable Products: Massager battery pack, LED lamp backup power, 12V electronic products, solar street lamp battery pack, monitoring backup power

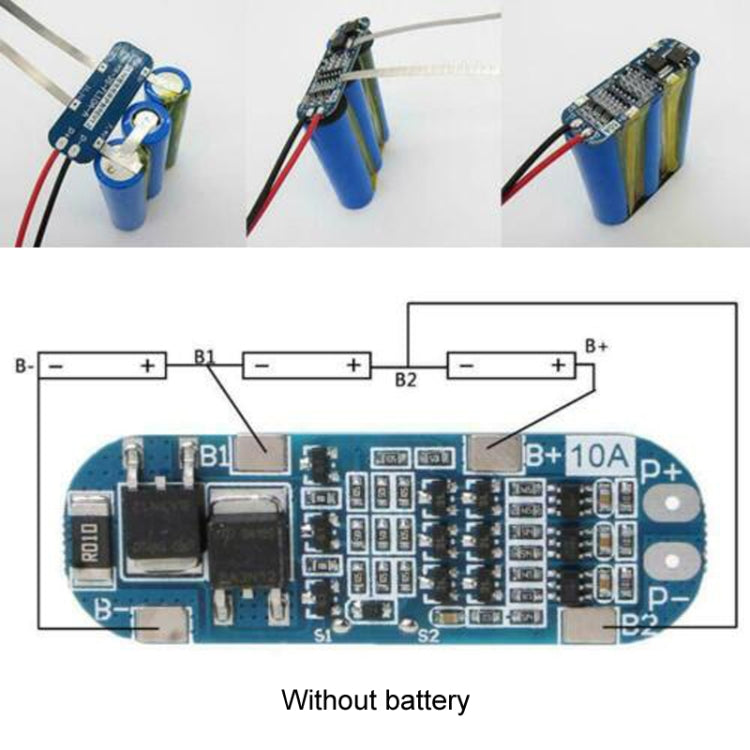

- Precautions: Follow wiring diagram, charge before output, ensure voltage uniformity in series connections, avoid mixing good and poor batteries
- Incompatibility: Not suitable for lithium iron phosphate batteries, hernia lamps, electrical drill battery packs, electrical fishing machine battery packs, electrical bicycle battery packs, children car batteries, 775 (4A) or more motors, 1W fisheye LED lamps
