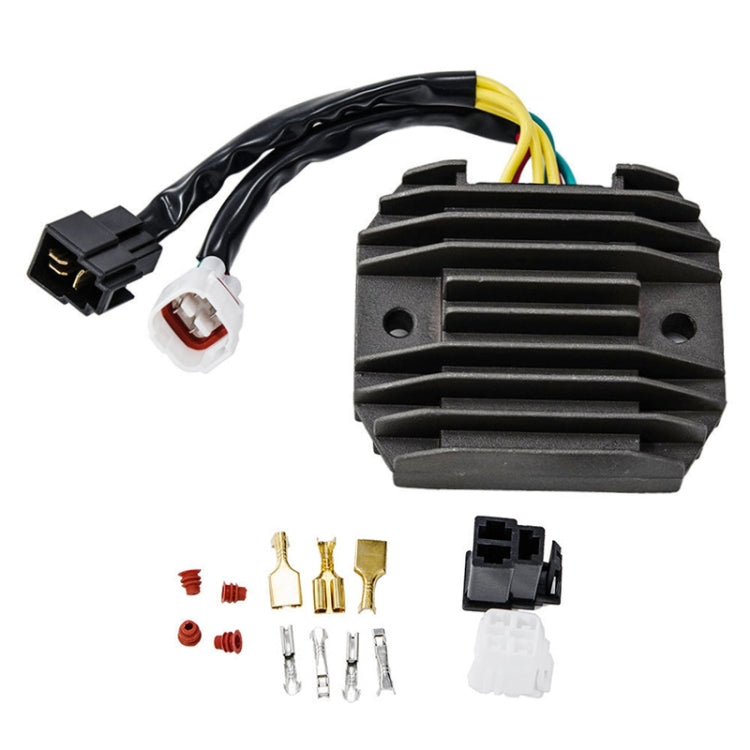

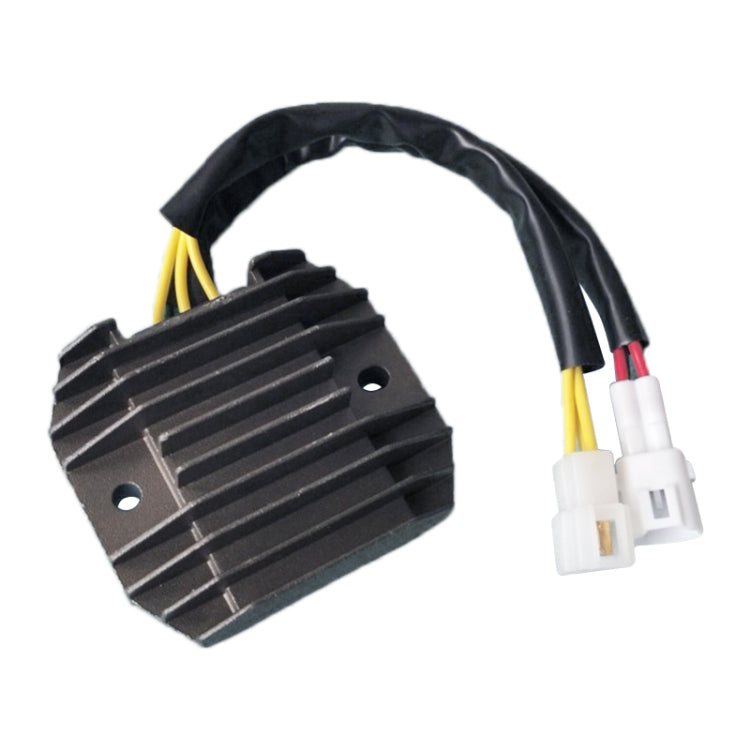

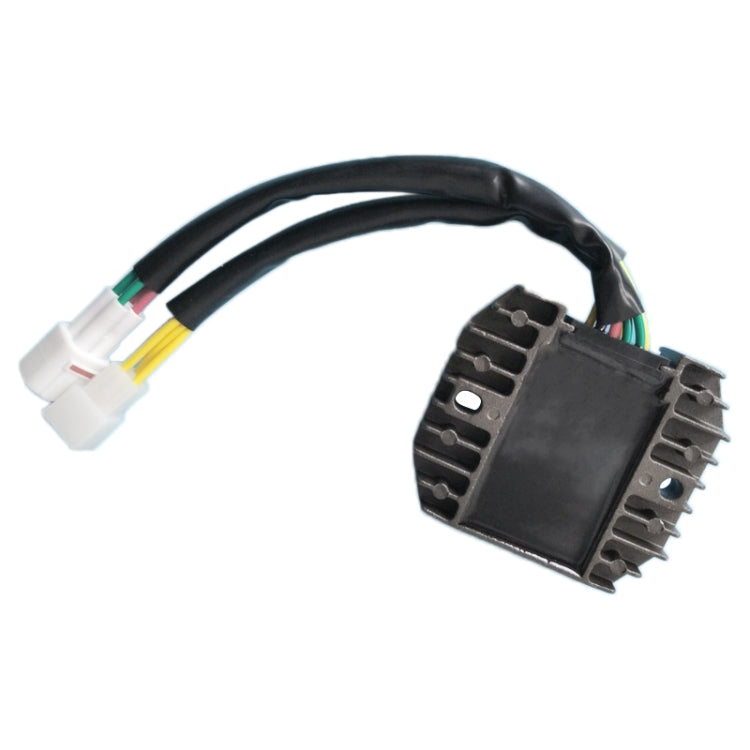

2005.10 Motorcycle Rectifier For Suzuki VZ 800 / GSX650F

• Product type: Voltage Stabilizer
• Compatibility: Suzuki VZ 800 / GSX650F
• Material: Not specified
• Key feature: Three-phase full-wave rectifier
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Replacement Parts

1. Weight: 260G
2. Output voltage: 14.5V
3. Category: Three-phase full-wave rectifier
4. Wire length: 25CM
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier.

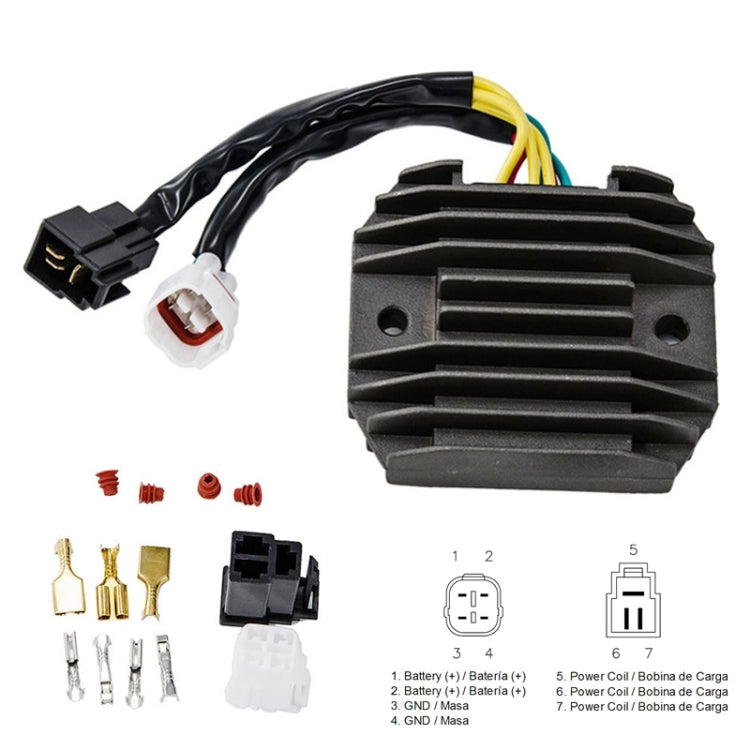

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier. If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame.
4. No other wires should be pressed between the rectifier and the frame.
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models: 2007-2008 for Suzuki Bandit 1250, 2007-2009 applicable to Suzuki Bandit 1250 ABS, 2009 for Suzuki Bandit 1250 S, 2008-2009 applicable to Suzuki B-King GSX1300, 2008 Applicable to Suzuki B-King GSX1300 ABS, 2005-2008 for Suzuki Boulevard C90, 2011 applies to Suzuki GSX 1250, 2008-2009 for Suzuki GSX650F, 2006-2011 for Suzuki GSXR 600, 2006-2011 for Suzuki GSXR750, 2007-2009 applicable to Suzuki GSXR 1000, 2008-2009 2011 for Suzuki Hayabusa GSX1300R, 2005-2006 for Suzuki LT-A 700X King Quad 4x4, 2005-2006 for Suzuki Marau r VZ800, 2005-2008 for Suzuki VL 800 C50/T, 2003-2004 for Suzuki VL800 Volusia, 2007-2009 for Suzuki VZ 800 M50
Suitable for Replacement # 10-203, 10-207, 32800-02h00, 32800-15h00, 32800-15h10, 32800-18h00, 32800-41f10, 32800-41f11, 32800-47H10, 32800-21H00, 32800-47H00
