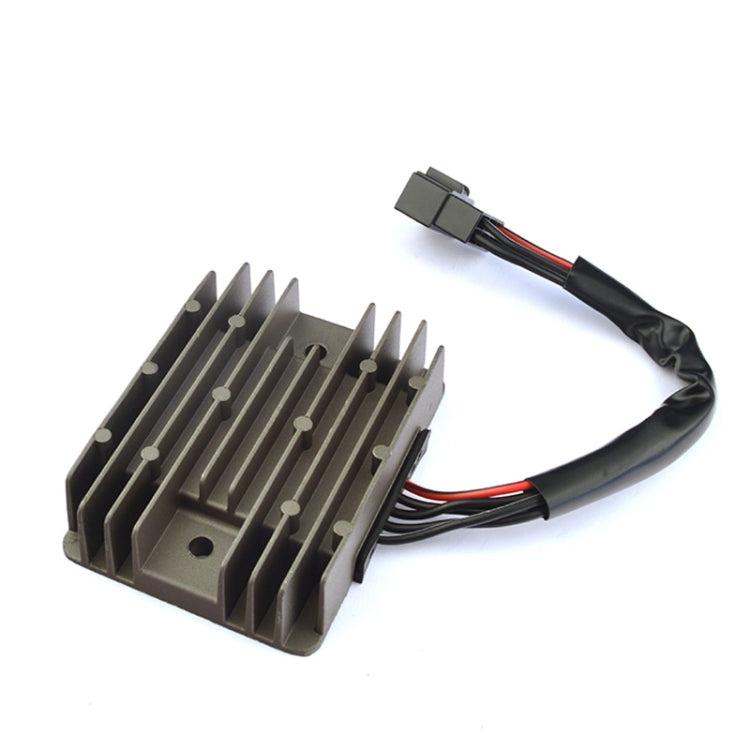

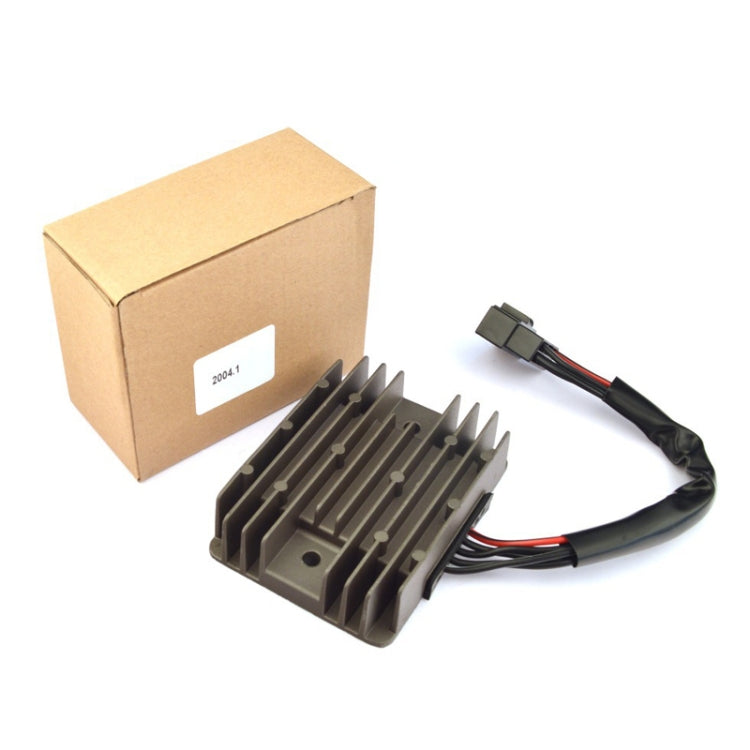

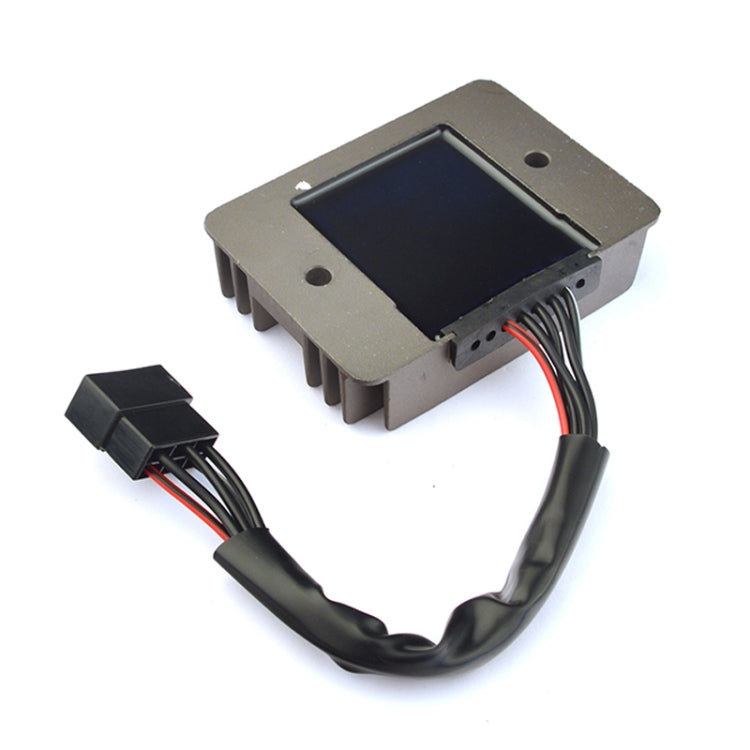

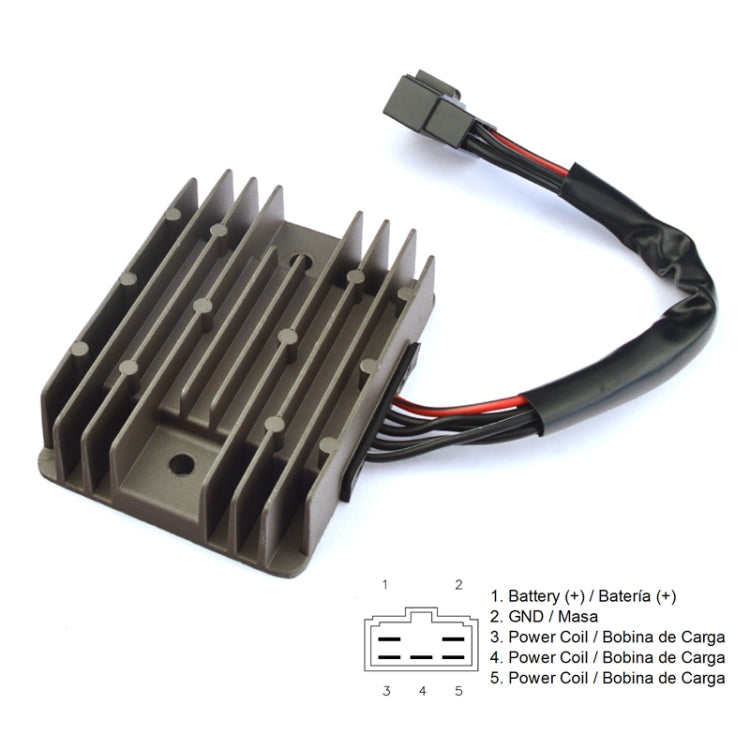

2004.1 Motorcycle Rectifier For Suzuki GSXRGSF / 600 / 650 / 750 / 1000 / 1250

• Product type: Voltage Stabilizer
• Compatibility: Suzuki GSXRGSF 600 650 750 1000 1250
• Material: Not specified
• Key feature: Voltage regulation
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Replacement Parts

1. Weight: 300G
2. Output voltage: 14.5V
3. Output current: 35A
4. Wire length: 1.5 square meters x 25CM
Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier.
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier. If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermal conductive glue between the rectifier and the frame.
4. No other wires should be pressed between the rectifier and the frame.
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models: For 2312, For Reemplazo Kokusan Nki RS41-29, For Suzuki-32800-33E21, For Suzuki GSX R 600 2001 2005 32800-33E20, For Suzuki GSX R 750 1998 2005 32800-33E20, For Suzuki GSX R 1000 2001 2004 32800-33E20, For Suzuki GSX R 600 1997 2000 32800-33E00, For Suzuki GSX R / RZ-Hayabusa 1300 1999 2003 32800-33E10, For Suzuki GSX R 1000 2001 2002 32800-33E10, For Suzuki GSX R-Hayabusa 1300 1999 2006 32800-33E20, For Suzuki GSX R 750 1996 1999 32800-33E00.
