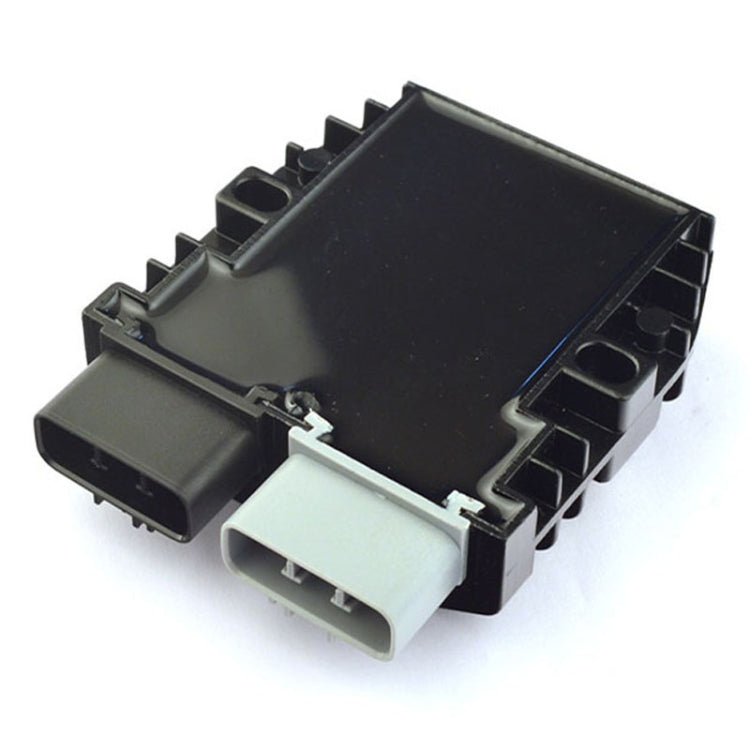

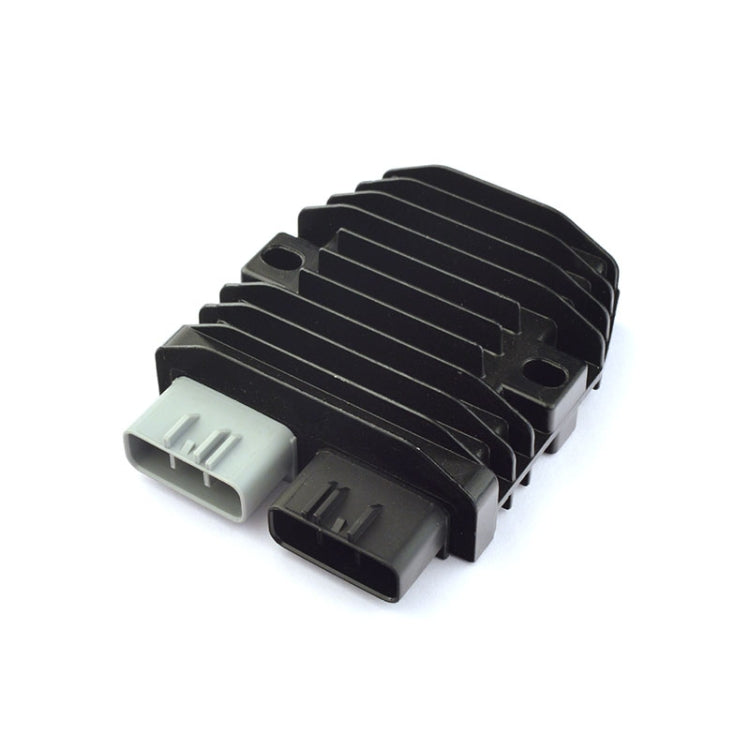

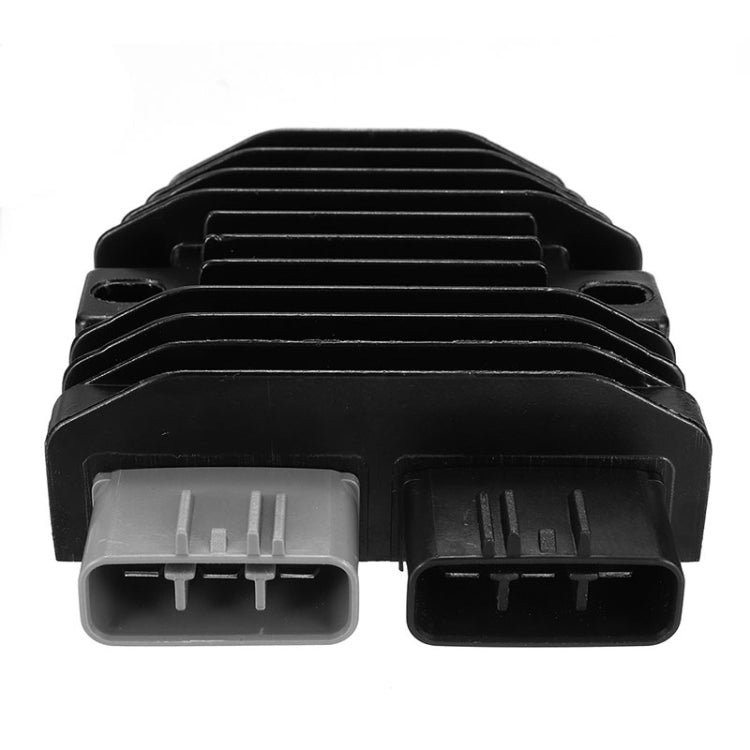

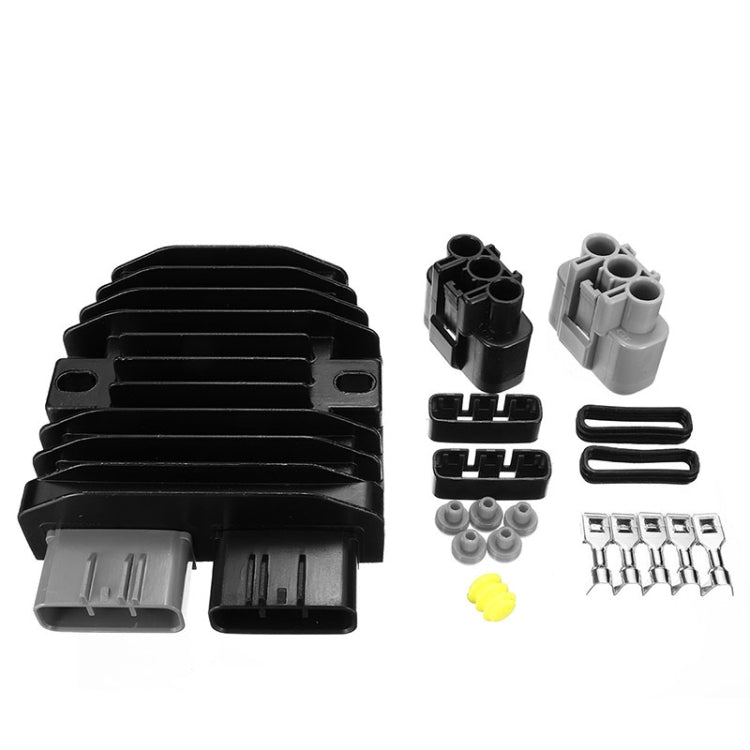

2001B.1 Motorcycle Rectifier For Can-Am Commander 1000 RHINO700/YXR700, Style:6-pin

SKU: TBD0544058802
Sale Sold out Pre-order
Regular price R 669.00
Regular price Sale price R 669.00
Pay in 3, 6, or 12 monthly instalments with

Duties & Import Tax Information

5-10 business days

In Stock

Processing time: 1-3 business days

Description

2001B.1 Motorcycle Rectifier is a voltage stabilizer designed for the Can-Am Commander 1000. It is used to ensure stable voltage output in motorcycle electrical systems.

  • Product Type: Voltage Stabilizer
  • Compatibility: Can-Am Commander 1000

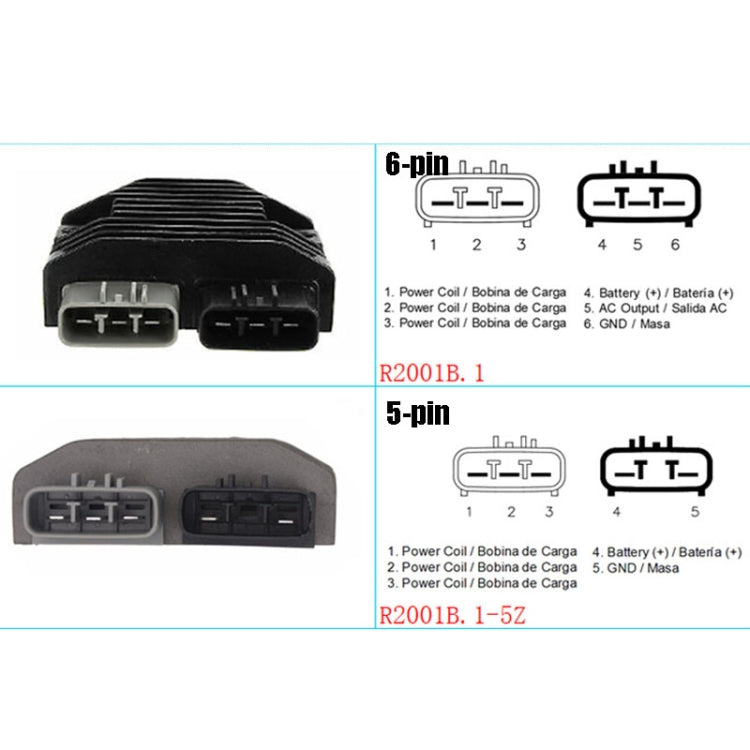

  • Design: 6-pin
  • Category: Replacement Parts
  • Weight: 350g
  • Type: Three-phase full-wave rectifier
  • Output Voltage: 14.5 +/- 0.5V
  • Size: 12 x 9.5 x 6 cm
  • Installation Precautions:
    • Install in a location with good ventilation and heat dissipation.
    • Connect AC input line; do not connect positive and negative output initially.
    • Measure output voltage before connecting positive and negative wires.
    • Attach rectifier closely to the frame for heat conduction.
    • Consider using thermally conductive glue between rectifier and frame.
    • Do not press other wires between rectifier and frame.
    • Include a fuse protection device between positive outlet and battery.
