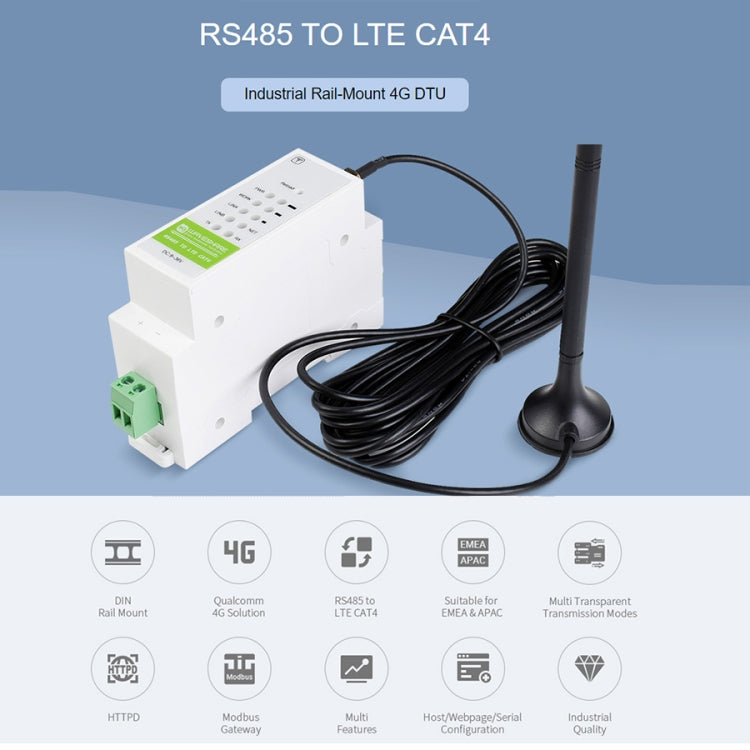

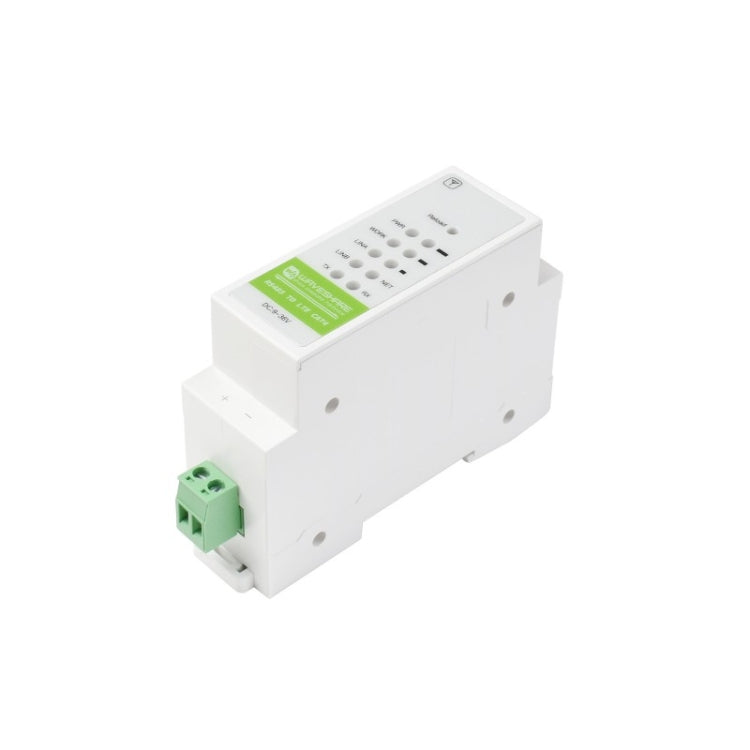

Waveshare Industrial 4G DTU Cellular Demodulator, RS485 to LTE CAT4, DIN Rail-Mount, for EMEA, Kor, Thailand, India, Southeast Asia

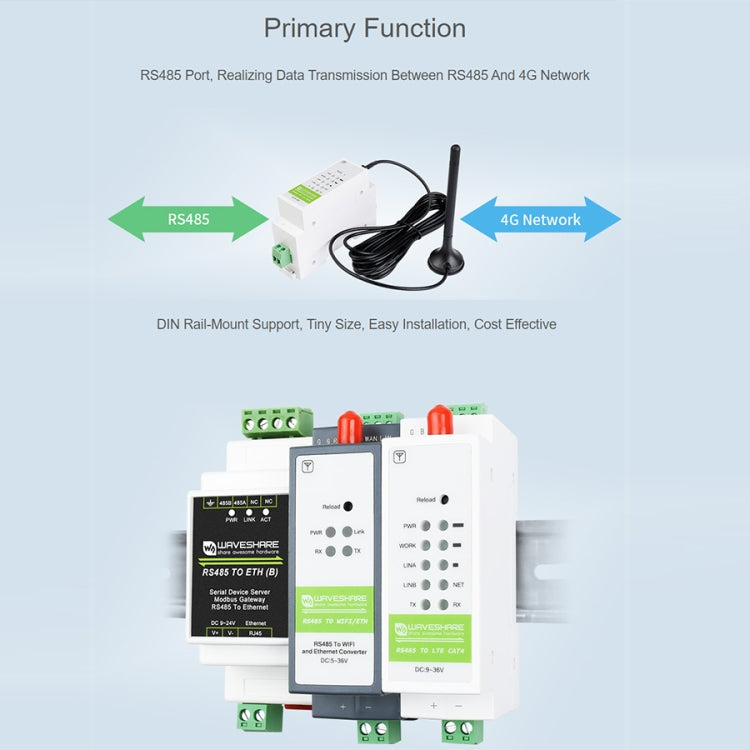

The Waveshare Industrial 4G DTU Cellular Demodulator is a DIN Rail mounted RS485 cellular modem designed for industrial use. It enables reliable data transmission between RS485 devices and a 4G network, facilitating remote control of industrial field sites.

• Product Type: Other Accessories
• Compatibility: RS485 to LTE CAT4
• Material: ABS Plastic
• Key Feature: DIN Rail mounted
• Applicable Regions: EMEA, Kor, Thailand, India, Southeast Asia
• LTE Category: LTE Cat.4
• Frequency Bands:
  • LTE FDD: B1/B3/B7/B8/B20/B28A
  • LTE TDD: B38/B40/B41
  • WCDMA: B1/B8
  • GSM: B3/B8
• Transmission Speed:
  • LTE-FDD: 150Mbps (DL) / 50Mbps (UL)
  • LTE-TDD: 130Mbps (DL) / 30Mbps (UL)
  • DC-HSDPA: 42Mbps (DL)
  • HSUPA: 5.76Mbps (UL)
  • WCDMA: 384Kbps (DL) / 384Kbps (UL)
  • GSM (EDGE): 296Kbps (DL) / 236.8Kbps (UL)
  • GSM (GPRS): 107Kbps (DL) / 85.6Kbps (UL)
• Serial Parameters:
  • Interface Form: RS485 (Terminal) x 1
  • Data Bits: 8
  • Stop Bits: 1, 2
  • Parity Bits: NONE, ODD, EVEN
  • Baud Rate: 2400~230400
• Physical Interfaces:
  • SIM/USIM Card: 1.8V/3V
  • Antenna: SMA Female
  • USB: USB 2.0
  • Indicators: POWER, WORK, NET, LINK, RSSI
  • Reload Button: Yes
• Hardware Characteristics:
  • Input Voltage: 9V~36V
  • Connector: Terminal
  • Housing Material: ABS Plastic
  • Dimensions (mm): 109.66 x 28 x 64.71
  • Operating Temperature: -30°C to +75°C
  • Storage Temperature: -40°C to +85°C
  • Operating Humidity: 5% to 95%
  • Storage Humidity: 5% to 95%
