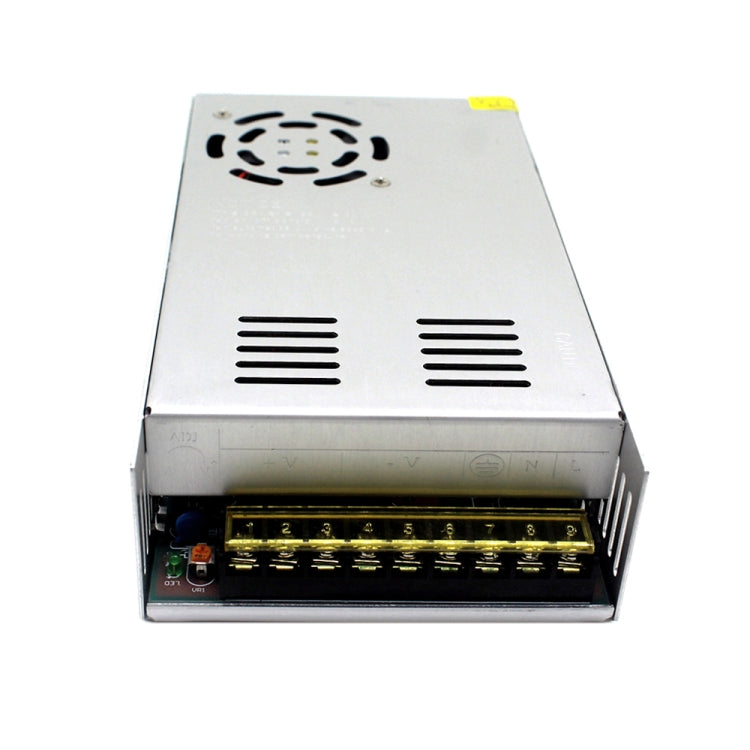

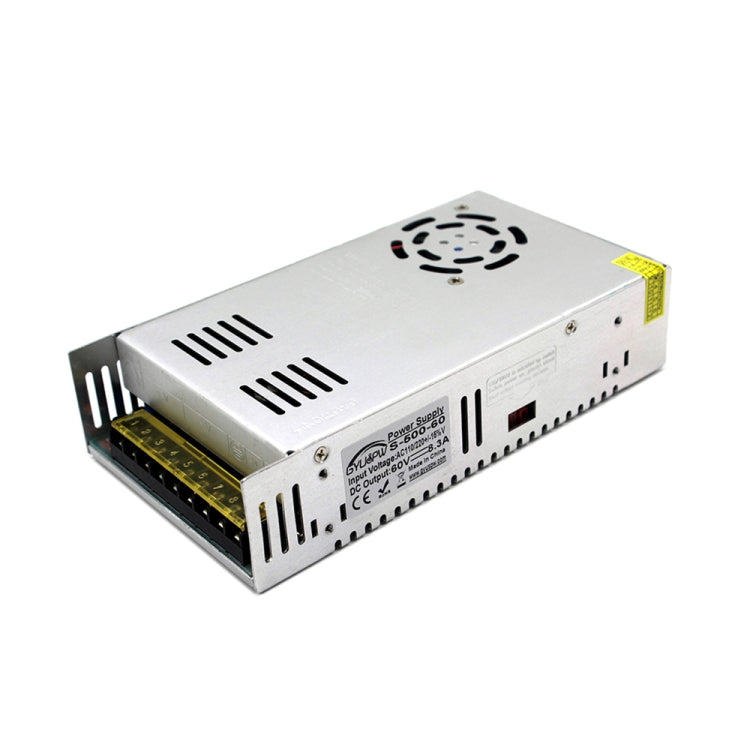

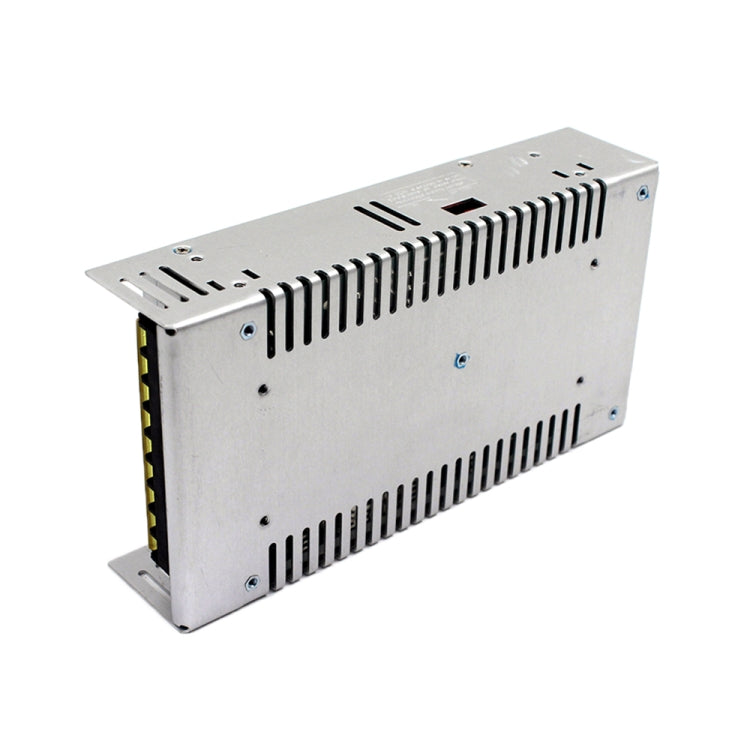

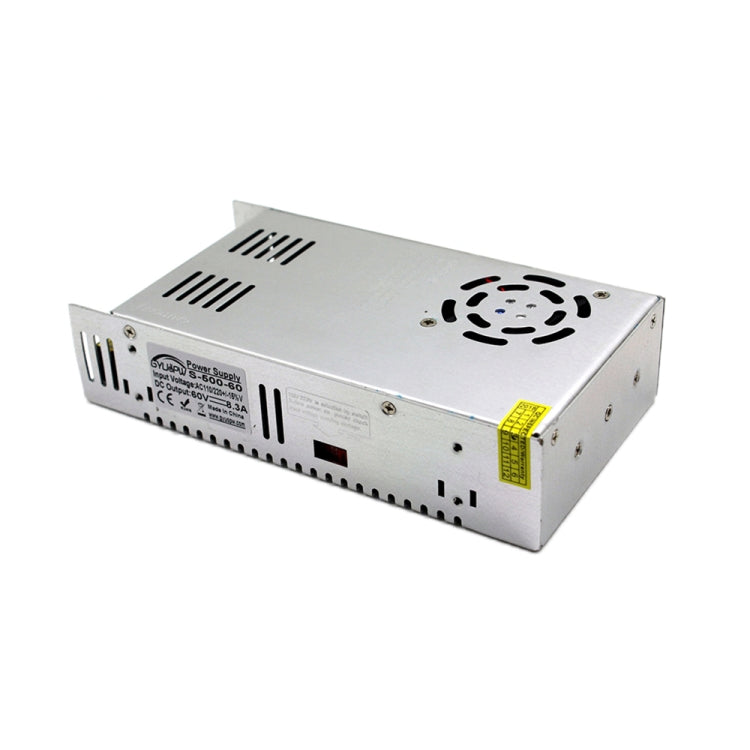

S-500-60 DC60V 8.3A 500W Light Bar Regulated Switching Power Supply LED Transformer, Size: 215 x 115 x 50mm

The S-500-60 DC60V 8.3A 500W Light Bar Regulated Switching Power Supply is designed to provide stable power for DC60V light bars. It is suitable for everyday use in various lighting applications, ensuring safety and stability through rigorous testing.

• Product Type: Power Supply
• Compatibility: DC60V light bars
• Material: Aluminum casing for enhanced heat dissipation
• Input Voltage: 110V/220V +/- 1% (100-140V, 180-260V)
• Output Voltage: DC60V, 8.3A
• Power: 500W
• Output Adjustable Voltage Range: +/- 5%
• Frequency: 50-60Hz
• Leakage Current: Less than 1mA at 230V
• Temperature Coefficient: +/- 0.03% per degree Celsius
• Start Time: 200ms
• Rise Time: 50ms
• Hold Time: 20ms
• Vibration Resistance: 10-500Hz, 2G for 10 minutes per cycle, 60 minutes total
• Protection Features: Overload, overvoltage, overcurrent, short circuit
• Pressure Resistance: 1.5kVAC input and shell, 1.5kVAC output and shell, 0.5kVAC
• Working Temperature: -10 to 60 degrees Celsius
• Working Humidity: 20-90% RH
• Storage Temperature: -20 to 85 degrees Celsius
• Storage Humidity: 10-95% RH

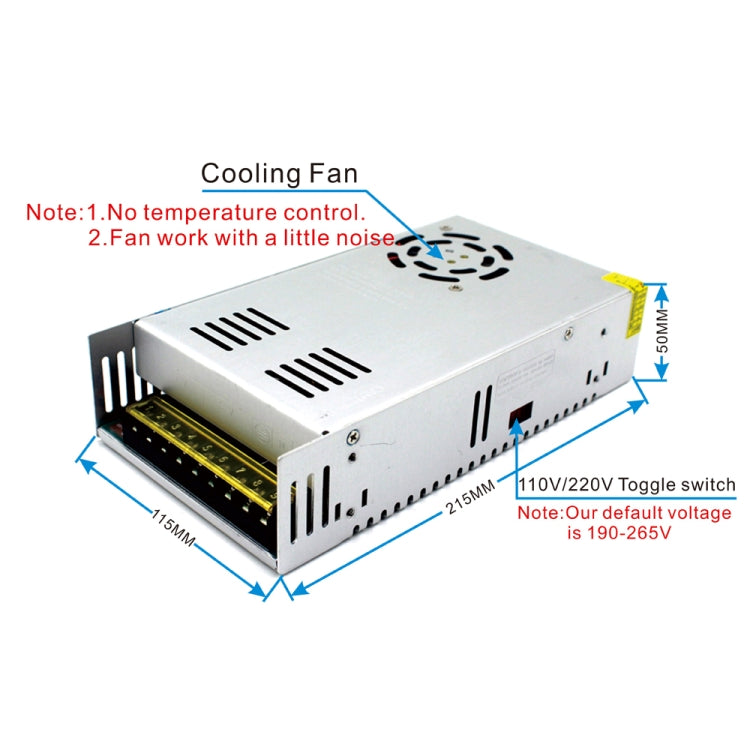

• Dimensions: 215 x 115 x 50 mm
