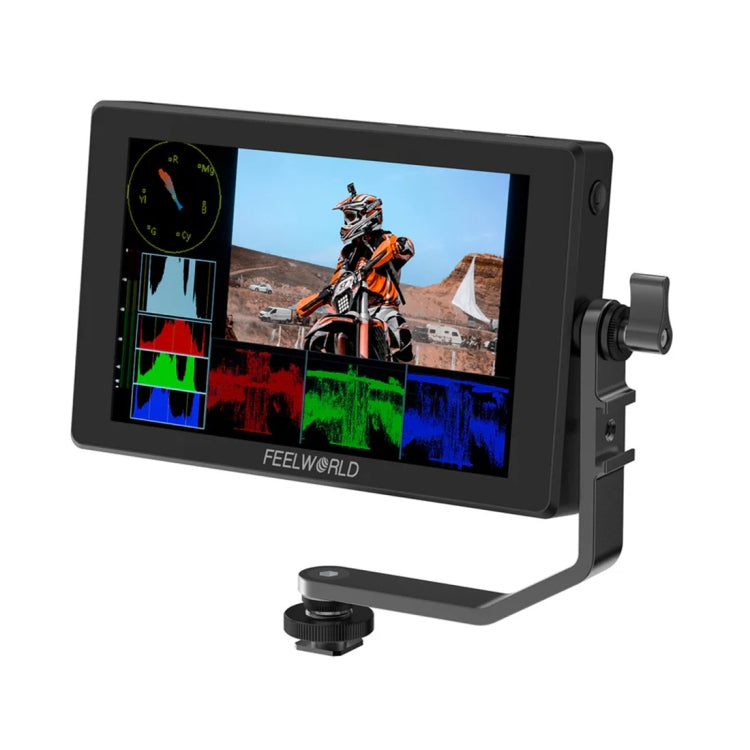

FEELWORLD SH7 7-inch Ultra Bright 2200nit On-camera Monitor SDI HDMI Cross Conversion (Black)

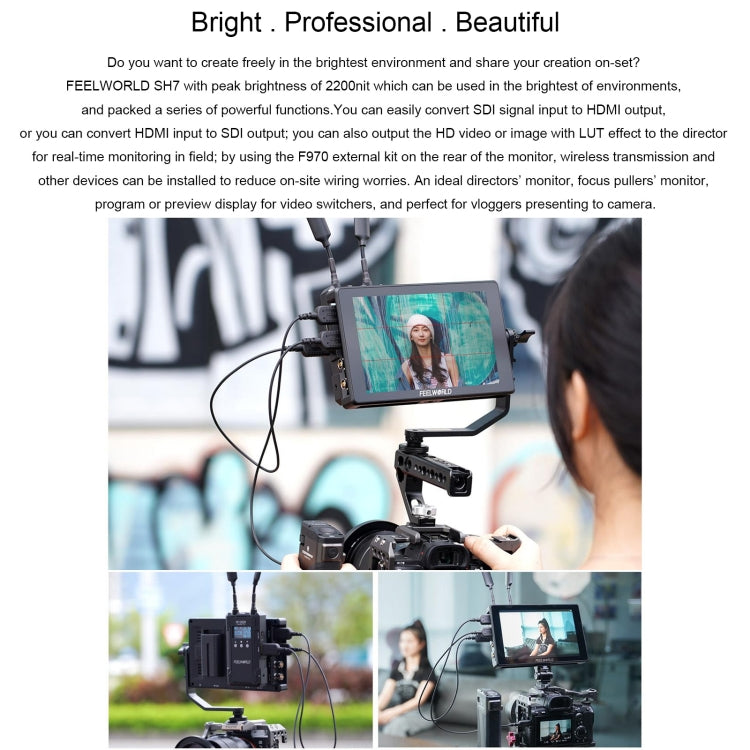

The FEELWORLD SH7 is a 7-inch on-camera monitor designed for video production. It provides high brightness and various monitoring features to enhance shooting accuracy and efficiency.

• Model: SH7
• Screen Size: 7 inches
• Display Type: IPS

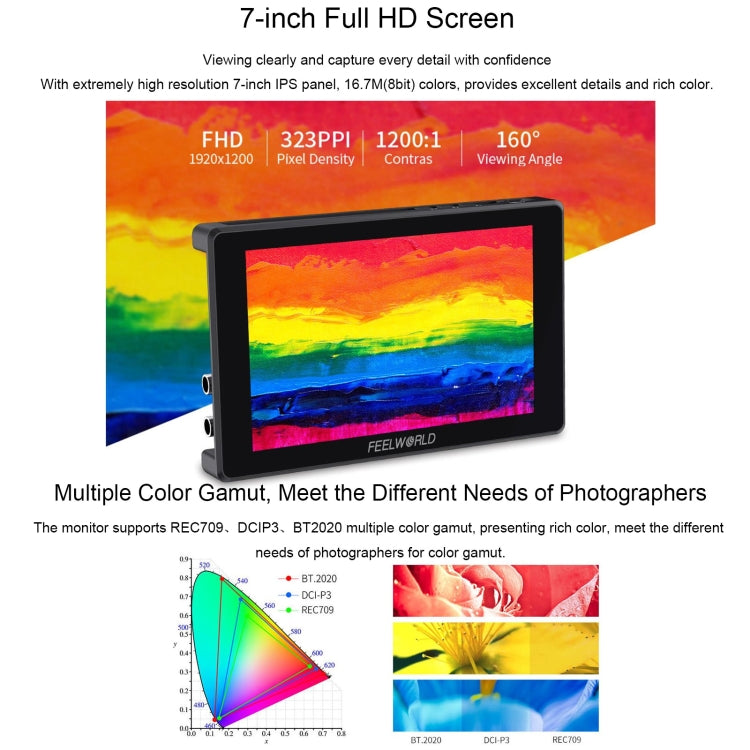

• Resolution: 1920x1200 pixels
• Pixel Pitch: 0.07875 (H) x 0.07875 (V) mm
• Aspect Ratio: 16:10

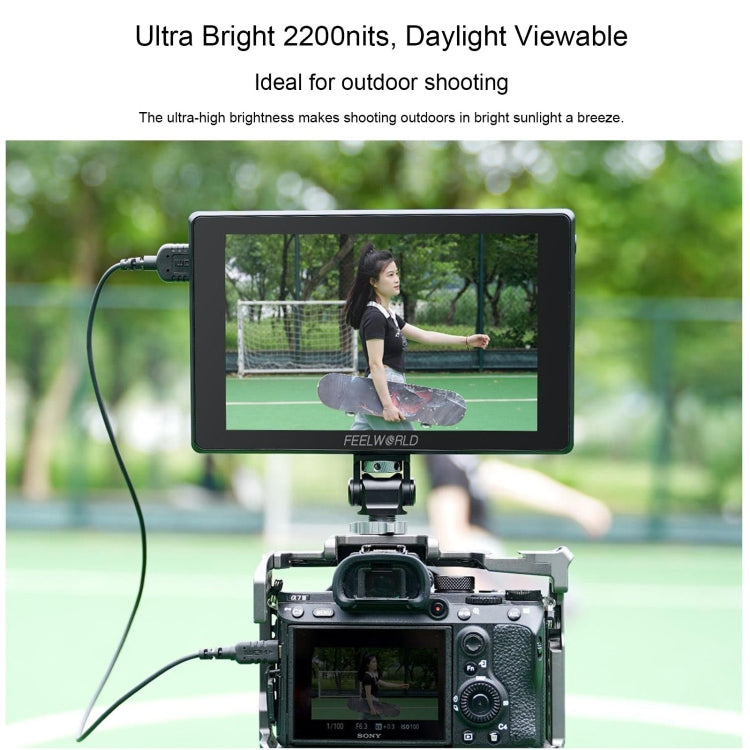

• Brightness: 2200 cd/m²
• Contrast Ratio: 1200:1
• Backlight: LED
• Viewing Angle: 80° (L/R), 80° (U/D)
• Input Voltage: DC 7~24V
• Power Consumption: ≤ 15W

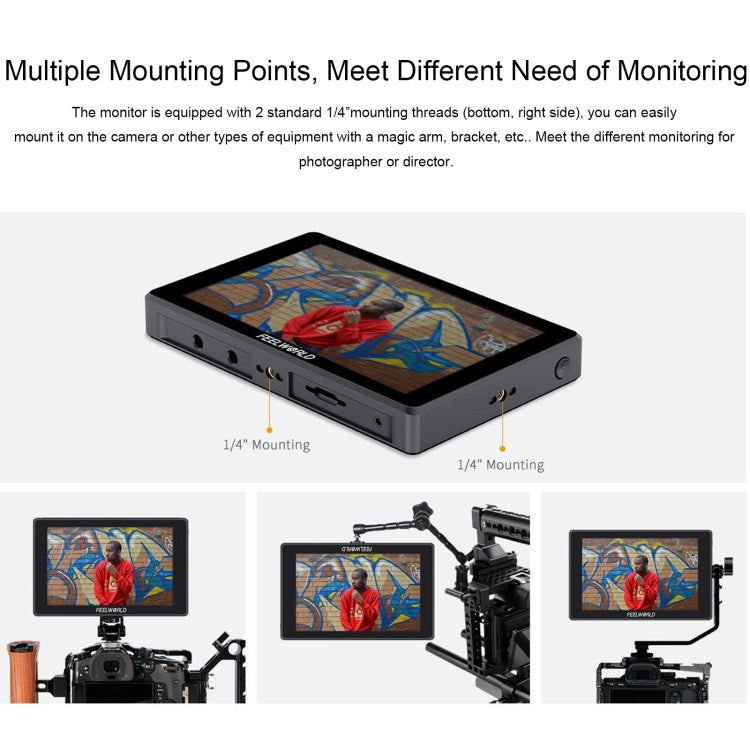

• Installation: 1/4 inch-20 Thread (Right, Bottom)
• Dimensions: 186.8 mm (L) x 118 mm (H) x 23 mm (D)
• Weight: 420 g

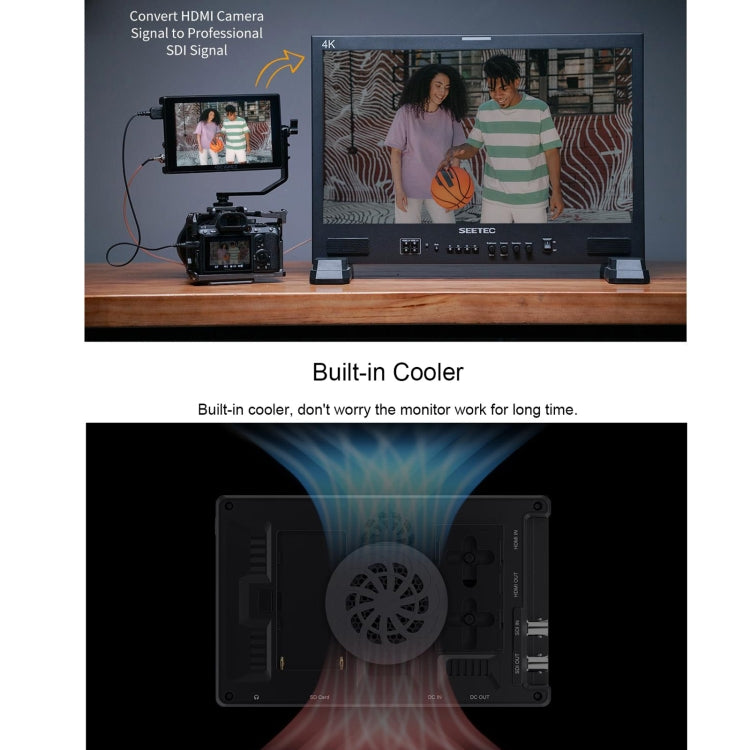

• Input: 1 x 3G-SDI, 1 x HDMI 2.0, 1 x SD Card Slot (for LUT files and firmware updates)
• Output: 1 x 3G-SDI, 1 x HDMI 1.3, 1 x DC barrel output (5.5mm outer, 2.1mm inner)
• Audio Output: 3.5mm Stereo Headphone
• SDI Support Formats: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98)
• HDMI Support Formats: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50)

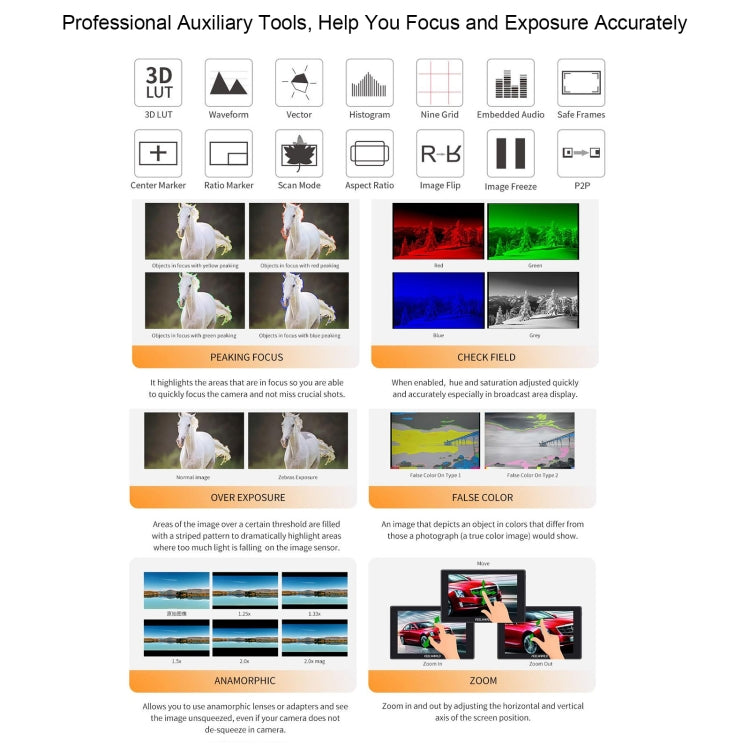

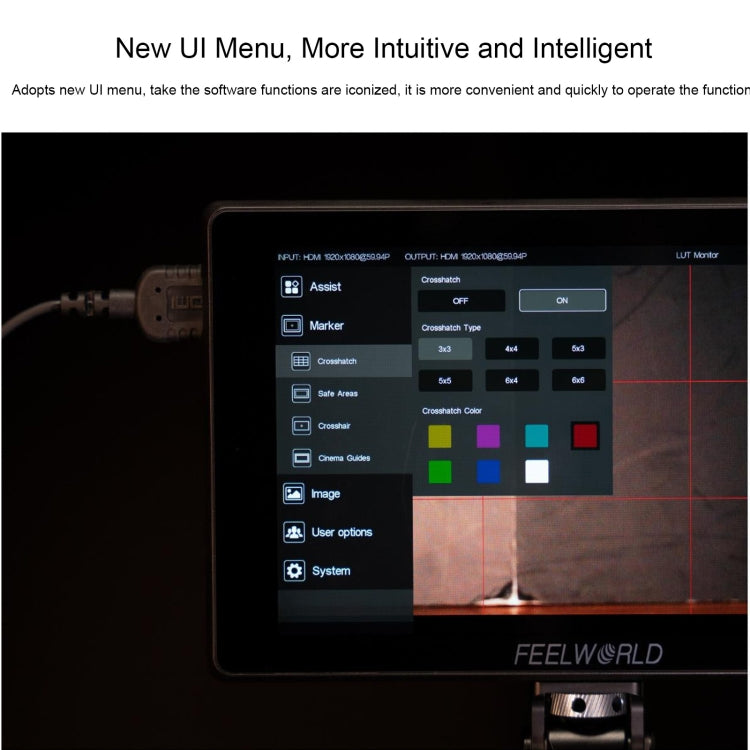

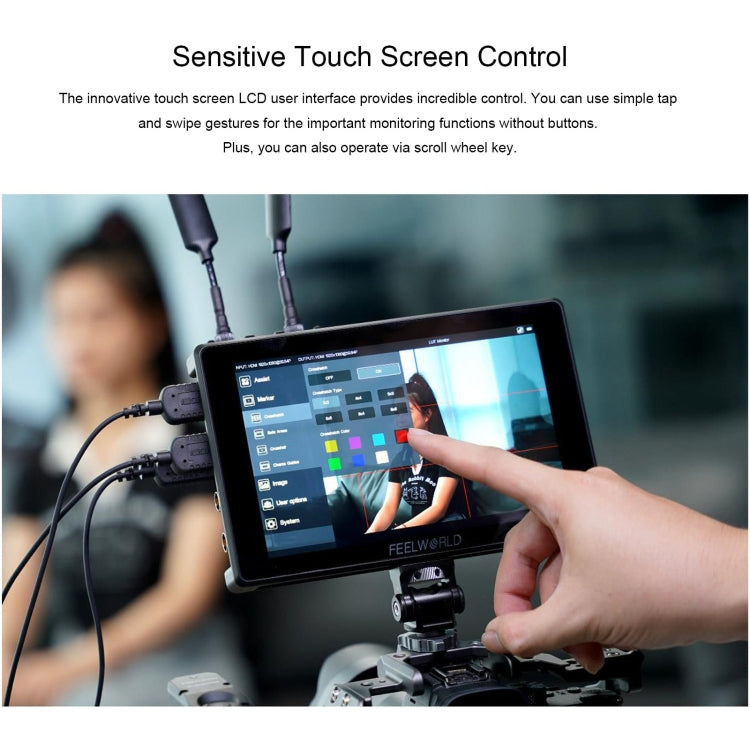

• Features: Touch screen menu operation, daylight viewable (2200 nits), LUT loop-out support, HDR monitoring, waveform, vectorscope, RGB histogram, focus assist, monochrome functions

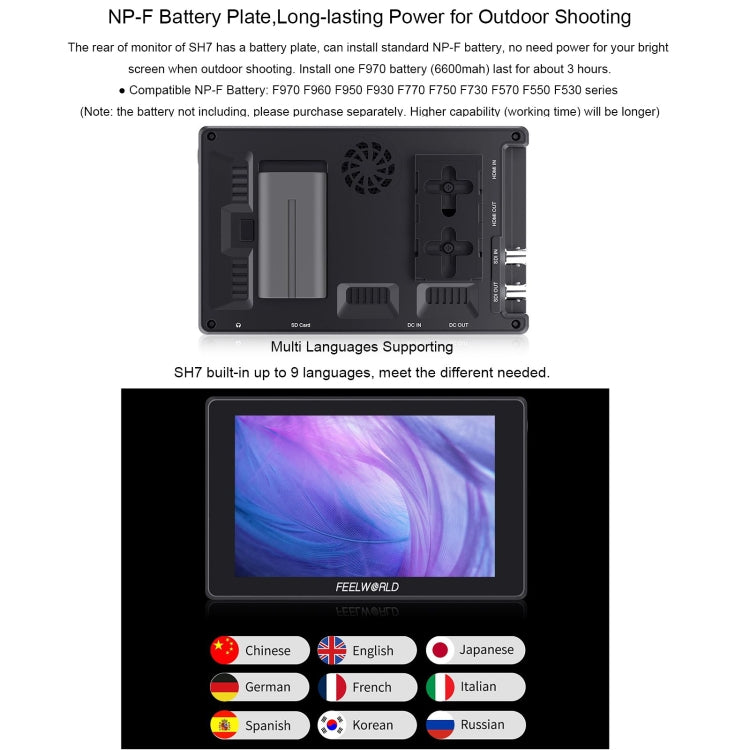

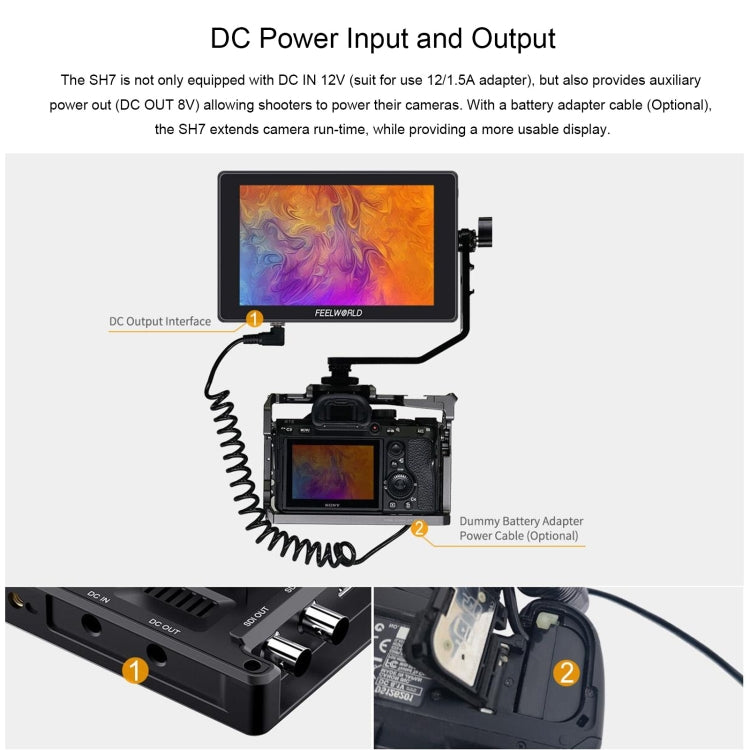

• Power Supply: Flexible options including DC IN 12V and NP-F battery slot

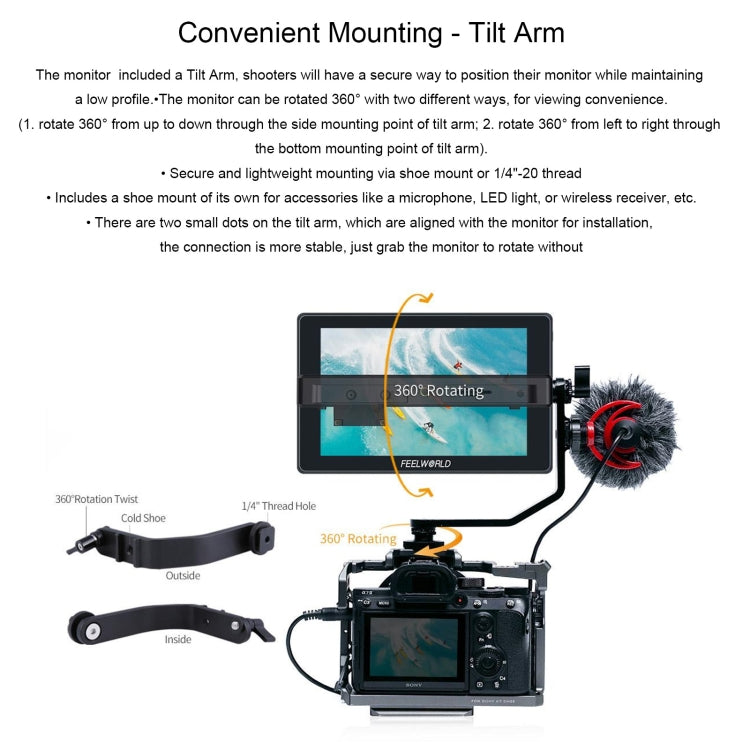

• Package Contents: Monitor, Mini/Micro HDMI to HDMI Cable, Tilt Arm, Disassemble Wrench, Manual
