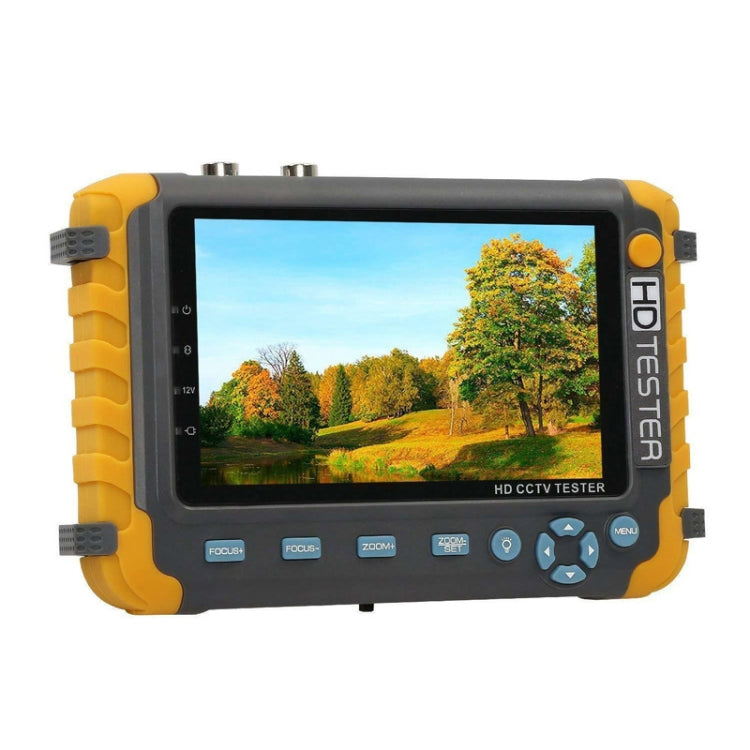

5800ACT-VH 5 Inch Large Screen Engineering Treasure Coaxial AHD / TVI / CVI 8MP Analog Video Surveillance Tester, US Plug

The 5800ACT-VH is a 5-inch video surveillance tester designed for multi-functional video signal testing. It is suitable for everyday use in CCTV installations and maintenance.

• Product Type: Video Surveillance Tester

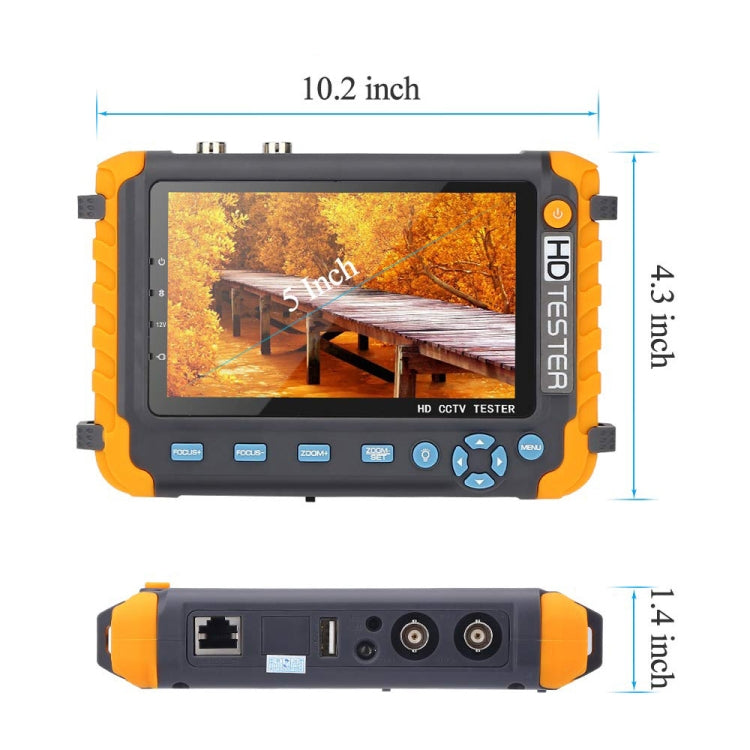

• Display: 5.0-inch, 800 (RGB) x 480 resolution, wide viewing angle

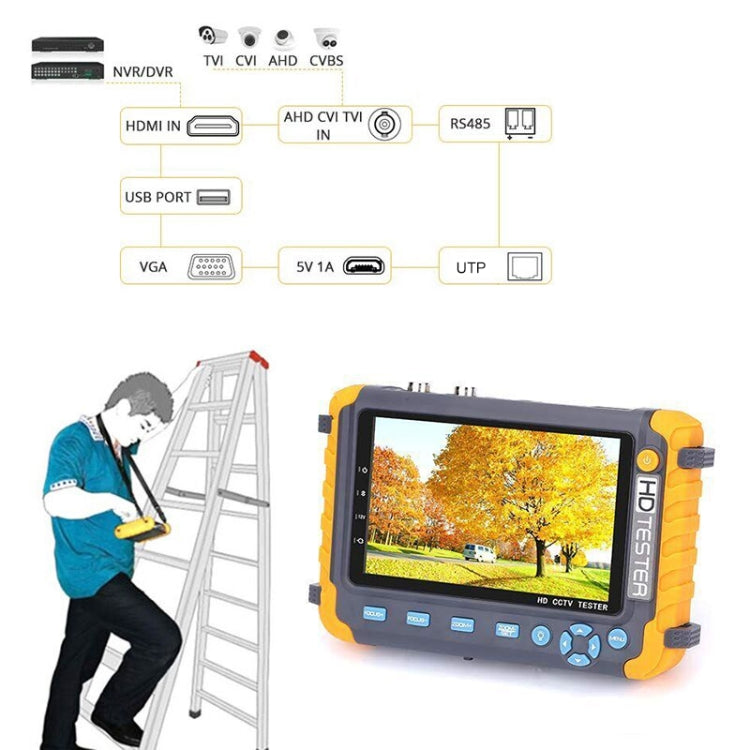

• Compatibility: Engineering Treasure Coaxial AHD/TVI/CVI Tester
• Video Signal Test: Supports PAL/NTSC image signals

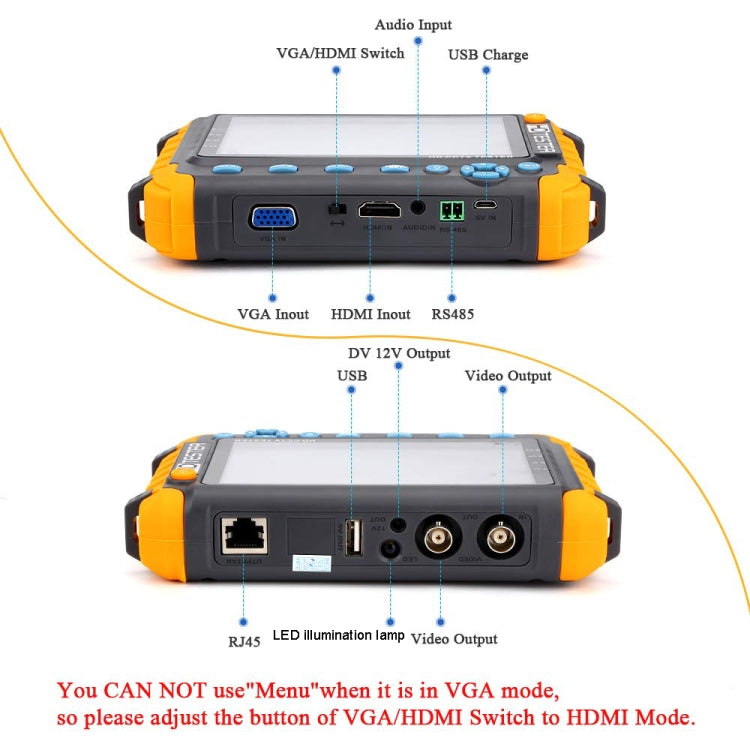

• PTZ Control: Built-in Pelco-D/P protocol, RS485 interface for PTZ control
• Power Output: DC12V 1A for temporary camera power supply
• Audio Test: Tests audio equipment such as pickups
• Network Cable Test: Enhanced UTP cable test function
• VGA Input: Supports 1024 x 768, 1280 x 1024 resolution
• HDMI Input: Automatically switches to HDMI mode, supports 480i/P, 576i/P, 720i/P, 1080i/P resolutions

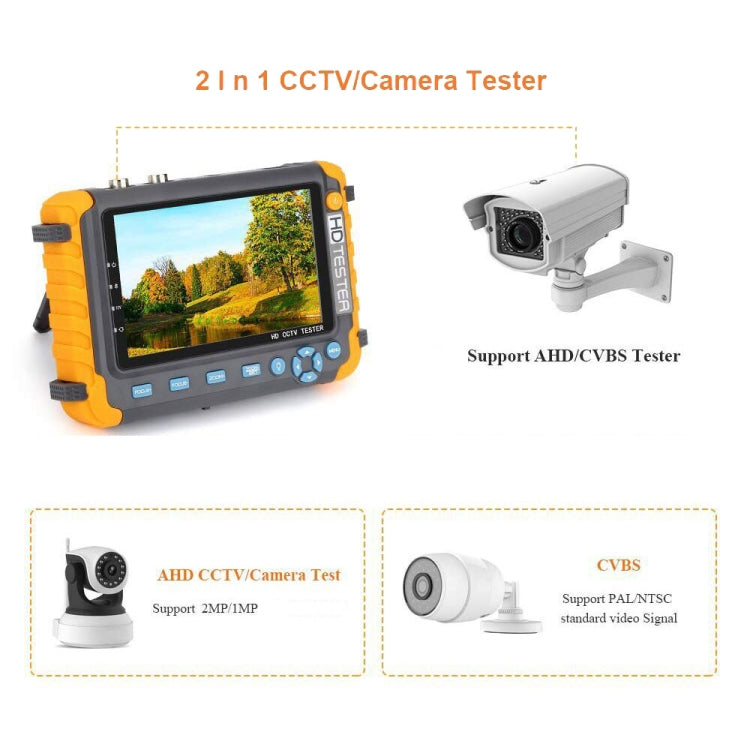

• Camera Test: Supports TVI, AHD, and CVI camera tests up to 8MP resolution
• Battery: Built-in 3.7V 3000mAh Li-polymer battery
• Charging Time: Approximately 2-3 hours
• Usage Time: Approximately 6 hours (without CCD power output)
• Packing List: Frequency monitoring tester, US plug adapter, BNC cable, RS485 connector, power output conversion cable, audio cable, lanyard, storage bag, instruction manual
