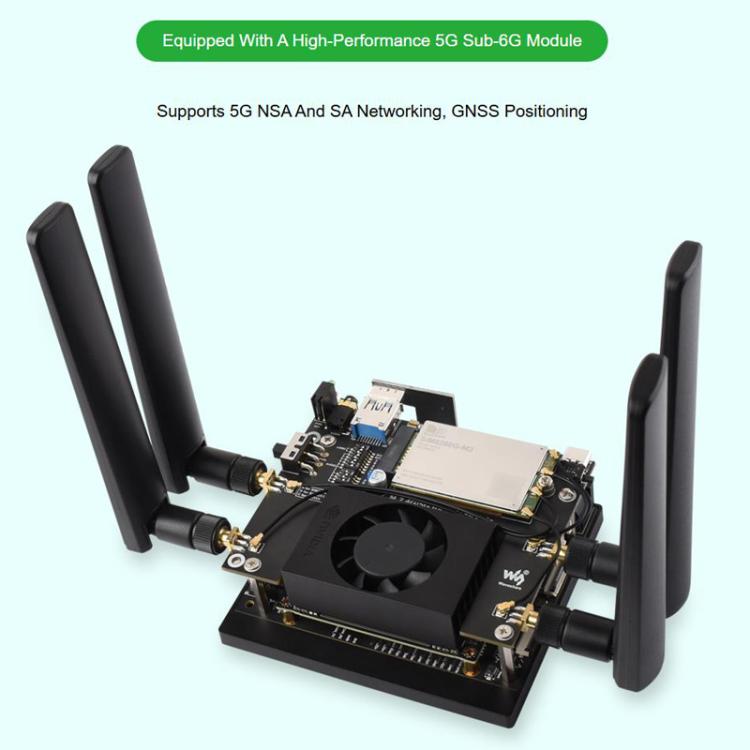

WAVESHARE SIM8260G-M2 5G For Jetson Orin Module, Supports 5G NSA And SA Networking, GNSS Positioning
WAVESHARE SIM8260G-M2 5G For Jetson Orin Module, Supports 5G NSA And SA Networking, GNSS Positioning
Sale
Sold out
Pre-order
Regular price
R 5,829.00
Regular price
Sale price
R 5,829.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Jetson Orin
• Material: Not specified
• Key feature: Supports 5G NSA and SA networking
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

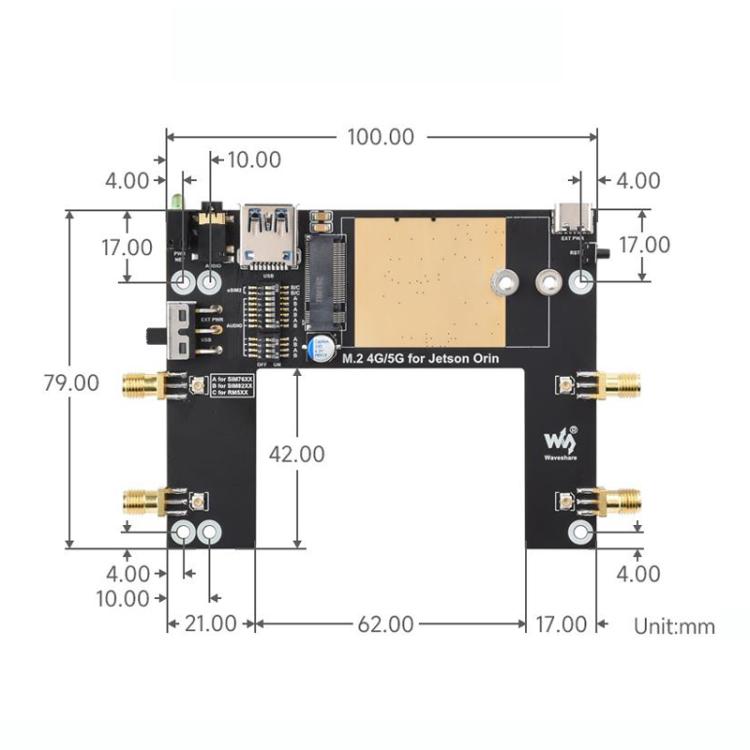

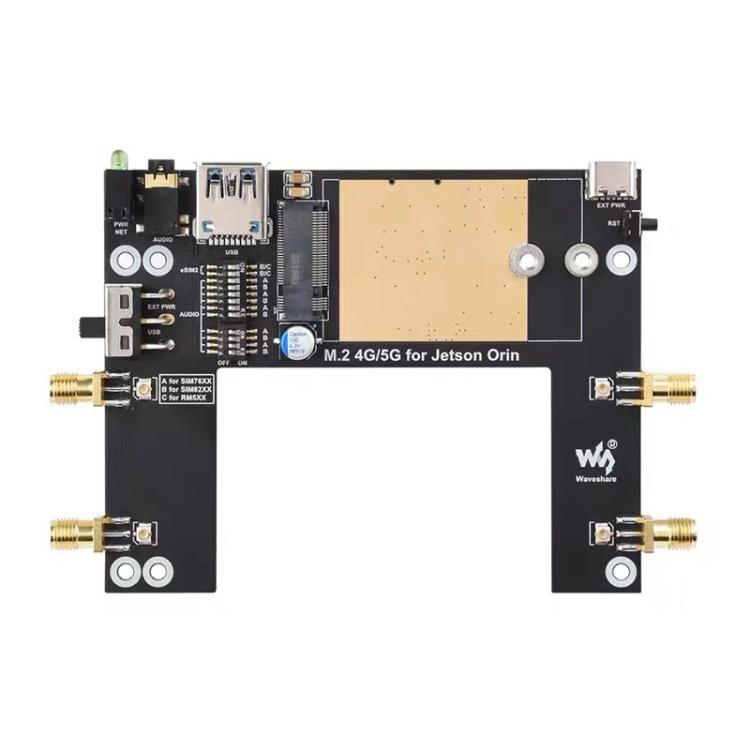

1. SIM8260G-M2 version is applicable to countries and regions covering 5G Sub-6G bands in the world. 2. SIM8262E-M2 version is applicable to countries and regions covering 5G Sub-6G band except Americas. 3. 5G standard: 3GPP R16. 4. Chip solution: Qualcomm Snapdragon X625. 5. LTE: 1.6Gbps (DL) / 200Mbps (UL). 6. HSPA+: 42Mbps (DL) / 5.76Mbps (UL). 7. Size: about 10 x 7.9cm. Features: 1. Based on Qualcomm platform, supports 5G NSA and SA networking, multi-mode and multi-frequency bands. 2. Integrates dual-frequency positioning with multiple constellation systems: GPS, GLONASS, BeiDou, Galileo and QZSS. 3. Onboard USB 3.1 interface, backward compatible with USB 2.0, can be used to access the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access. 4. On-board M.2B KEY standard interface and pin setting switch. 5. 4 SMA to IPEX antenna conversion interfaces on board, more convenient for antenna installation. 6. Reserved UART pad interface, convenient to realize data transmission with some modules through this interface. 7. 1 Nano SIM card slot and 1 QFN-8 (5×6) eSIM card slot on board, dual card single standby, can be switched to enable by AT command. 8. Onboard audio interface and audio decoder chip, can be used for SIMXXX series modules to make phone calls and other voice operations. 9. On-board power switch, reset button and LED indicator, convenient to control the module switch and check the operation status. 10. On-board high-efficiency power supply circuit, can output up to 3A current. Packing list: - Expansion board x 1 - Module x 1 - 5G antenna x 4 - SMA dust protection cap x 5 - 13cm IPEX1 to IPEX4 cable x 2 - 5cm IPEX1 to IPEX4 cable x 2 - Screw kit x 1 - GPS antenna x 1 - Dual USB cable x 1 - Cooler x 1 - USB converter x 1 - Screwdriver x 1
• Brand: WAVESHARE
• Compatibility: Jetson Orin
• Material: Not specified
• Key feature: Supports 5G NSA and SA networking
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module
1. SIM8260G-M2 version is applicable to countries and regions covering 5G Sub-6G bands in the world. 2. SIM8262E-M2 version is applicable to countries and regions covering 5G Sub-6G band except Americas. 3. 5G standard: 3GPP R16. 4. Chip solution: Qualcomm Snapdragon X625. 5. LTE: 1.6Gbps (DL) / 200Mbps (UL). 6. HSPA+: 42Mbps (DL) / 5.76Mbps (UL). 7. Size: about 10 x 7.9cm. Features: 1. Based on Qualcomm platform, supports 5G NSA and SA networking, multi-mode and multi-frequency bands. 2. Integrates dual-frequency positioning with multiple constellation systems: GPS, GLONASS, BeiDou, Galileo and QZSS. 3. Onboard USB 3.1 interface, backward compatible with USB 2.0, can be used to access the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access. 4. On-board M.2B KEY standard interface and pin setting switch. 5. 4 SMA to IPEX antenna conversion interfaces on board, more convenient for antenna installation. 6. Reserved UART pad interface, convenient to realize data transmission with some modules through this interface. 7. 1 Nano SIM card slot and 1 QFN-8 (5×6) eSIM card slot on board, dual card single standby, can be switched to enable by AT command. 8. Onboard audio interface and audio decoder chip, can be used for SIMXXX series modules to make phone calls and other voice operations. 9. On-board power switch, reset button and LED indicator, convenient to control the module switch and check the operation status. 10. On-board high-efficiency power supply circuit, can output up to 3A current. Packing list: - Expansion board x 1 - Module x 1 - 5G antenna x 4 - SMA dust protection cap x 5 - 13cm IPEX1 to IPEX4 cable x 2 - 5cm IPEX1 to IPEX4 cable x 2 - Screw kit x 1 - GPS antenna x 1 - Dual USB cable x 1 - Cooler x 1 - USB converter x 1 - Screwdriver x 1
