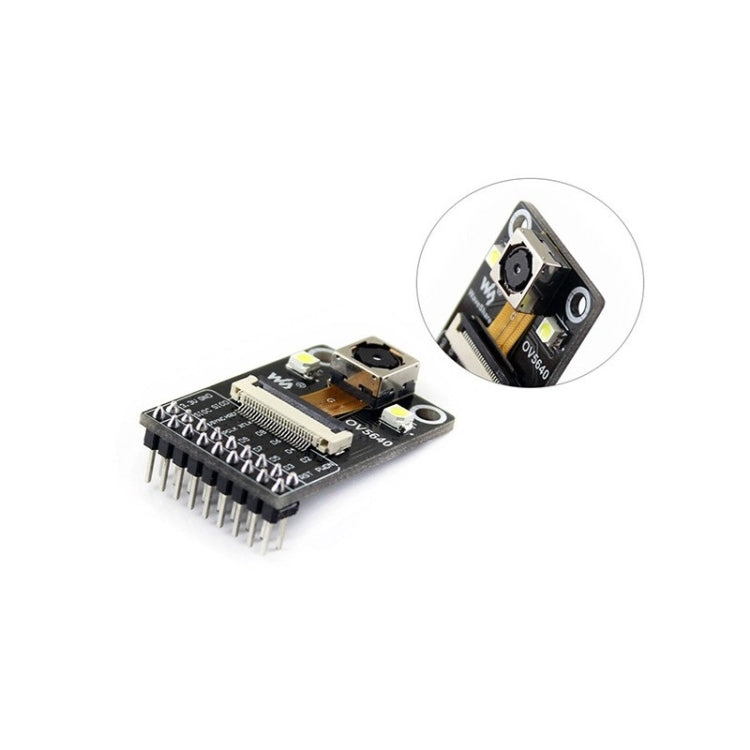

Waveshare OV5640 Camera Module Board (C), 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: OV5640 image sensor
• Material: Not specified
• Key feature: Auto focusing with onboard flash LED
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LEDFeatures1. Pixels: 5 megapixel2. Resolution: 2592x19443. Auto focusing by detecting the object distance4. Onboard flash LED, allowed to take pictures in the dark5. Sensor: OV5640- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.- Supports image scaling, panning, windowing, etc.6. Lens:- CCD size: 1/4inch- Aperture (F): 2.8- Focal Length: 3.37mm (adjustable)- Diagonal: 67.4 degree7. Output Formats:- YUV(422/420)/YCbCr422- RGB565/555/444- CCIR656- RAW RGB- Compressed Data8. Operating Voltage: 3.3V9. Control Interface: SCCB (I2C compatible)10. Data Interface: DVP 8-bit11. Dimension: 35.70mm x 23.90mm
