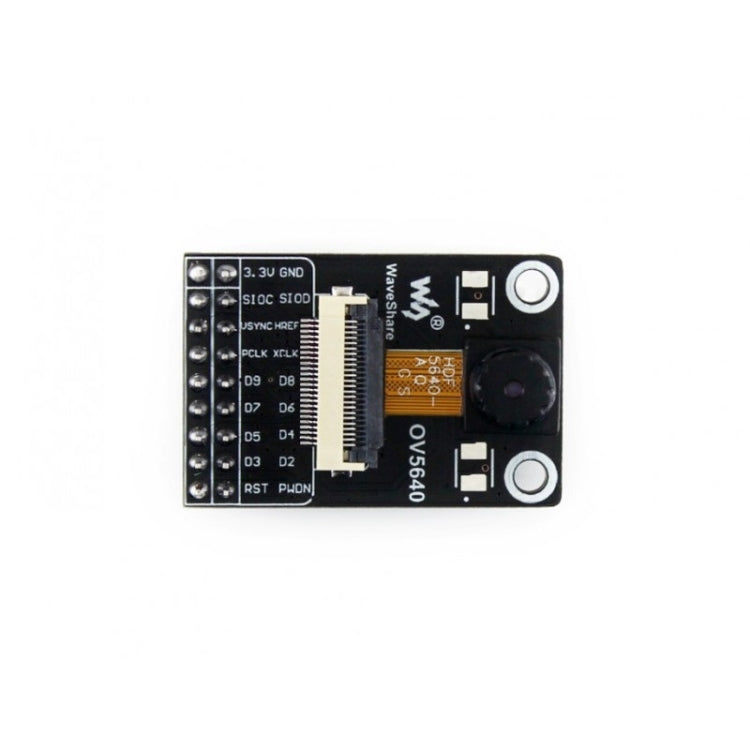

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: OV5640
• Material: Not specified
• Key feature: High sensitivity image sensor
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Sensor: OV5640 3.1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
4. Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
5. Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
6. Supports image scaling, panning, windowing, etc.
7. Lens: 4.1 CCD size: 1/4inch
8. Aperture (F): 2.8
9. Focal Length: 2.8mm
10. Diagonal: 63 degree
11. Output Formats: YUV(422/420)/YCbCr422, RGB565/555/444, CCIR656, RAW RGB, Compressed Data
12. Operating Voltage: 3.3V
13. Control Interface: SCCB (I2C compatible)
14. Data Interface: DVP 8-bit

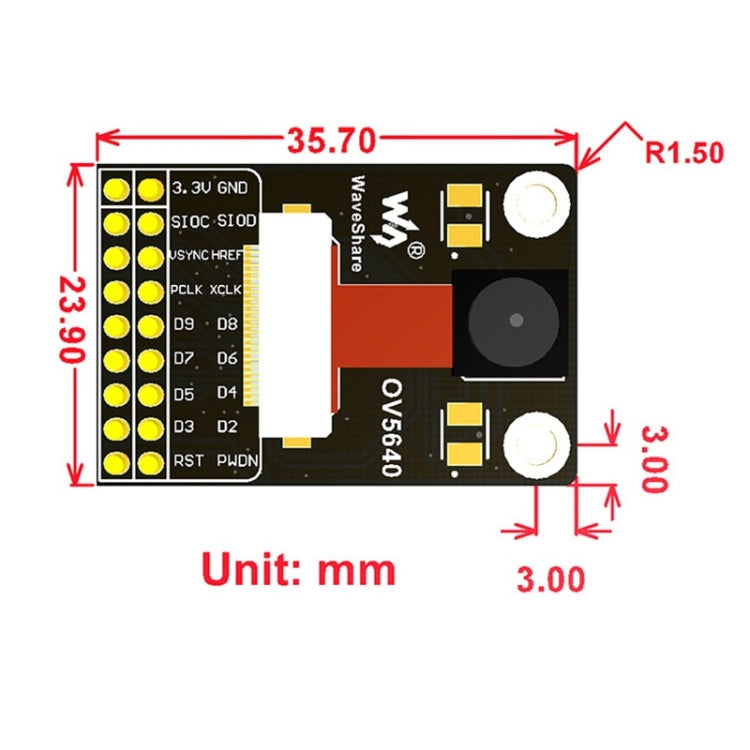

15. Dimension: 35.70mm × 23.90mm
