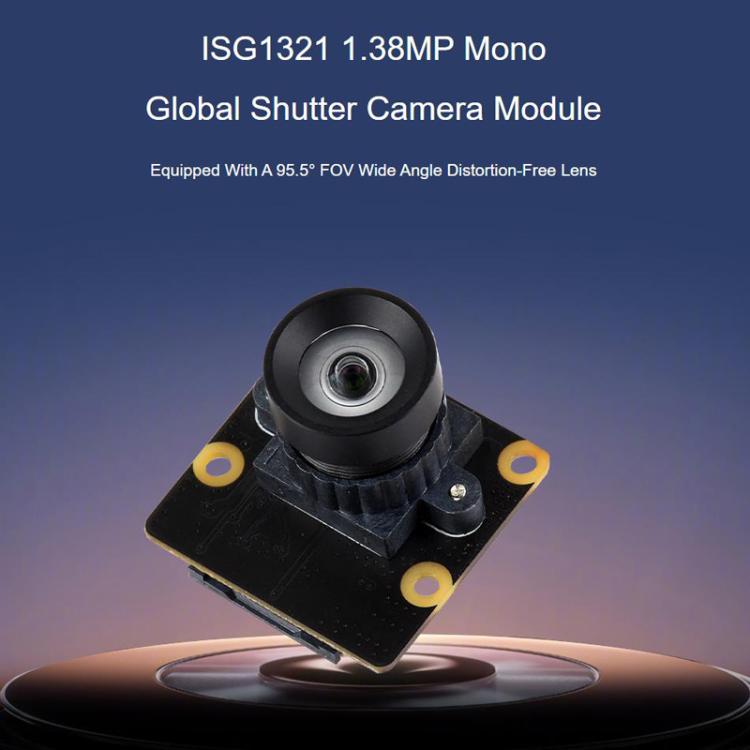

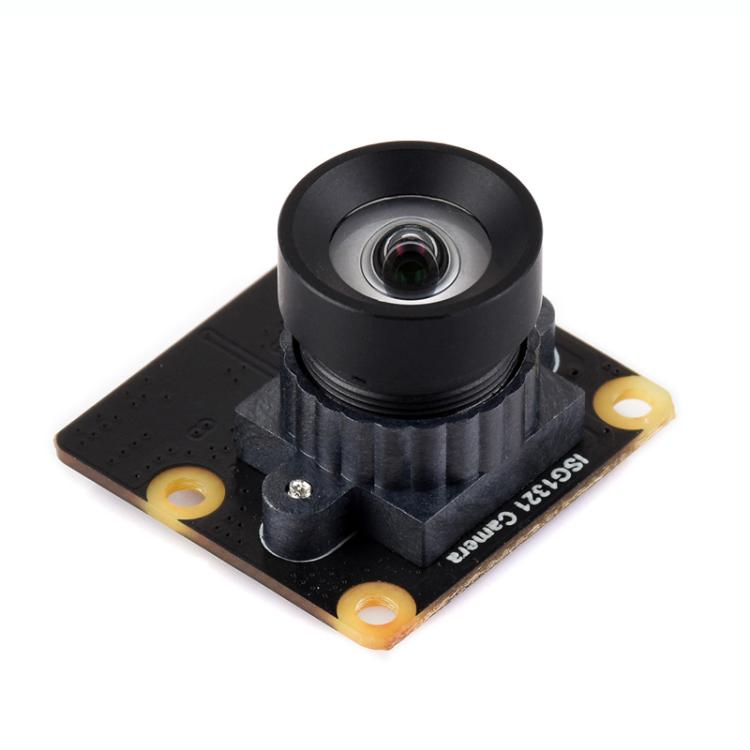

WAVESHARE ISG1321 1.38 MP B/W Global Shutter Camera Module 95.5 Degree Wide Angle Support 1280×1080 120fps

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: ISG1321
• Material: CMOS
• Key feature: Global shutter
• Color/Variant: Black and white
• Intended use: Machine vision, logistics reading, industrial inspection
• Category: Electronics Module

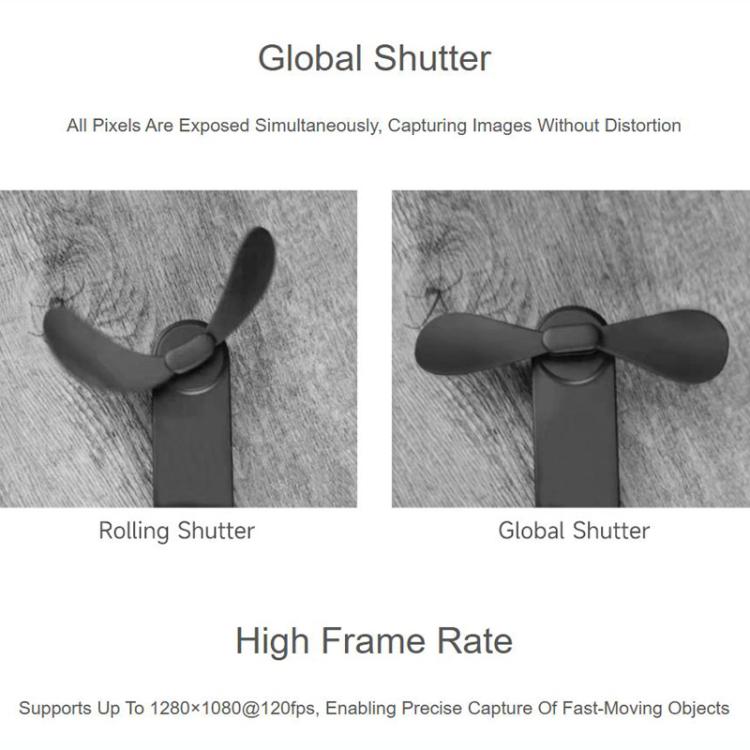

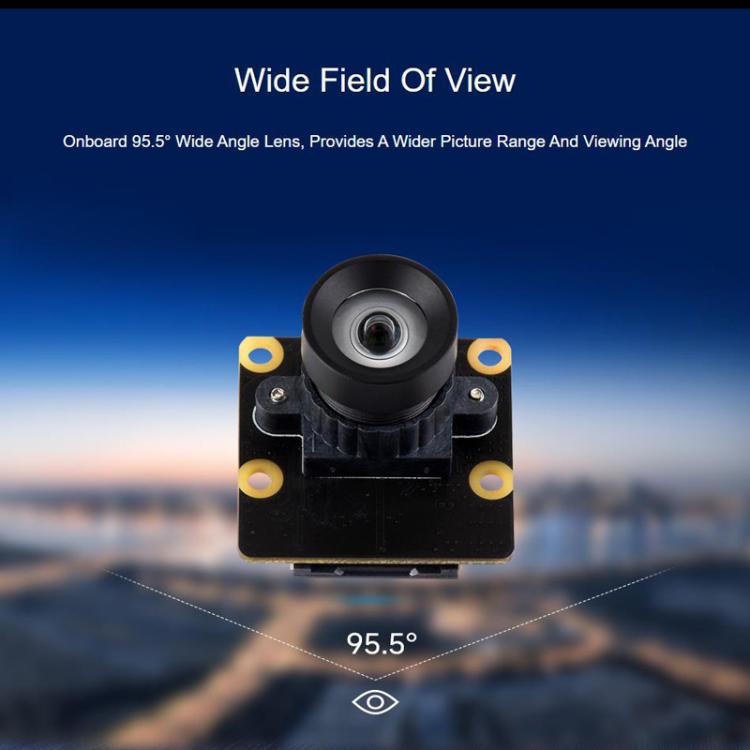

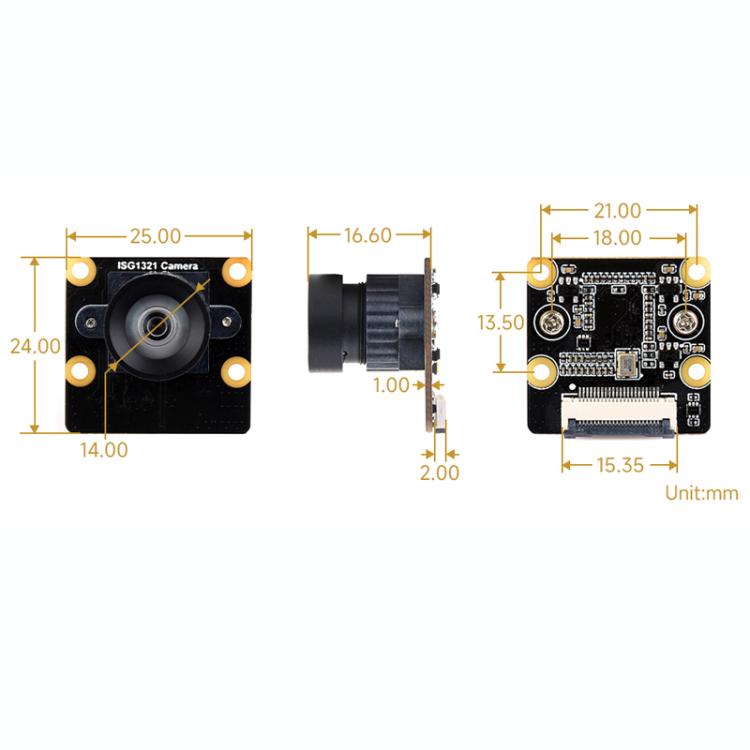

1. Photochip: ISG1321 2. CMOS size: 1/4 inch 3. Camera type: black and white 4. Pixel: 1.38 million (1280 x 1080) 5. Shutter mode: global shutter 6. Output frame rate: up to 120 FPS 7. Interface: MIPI-CSI (2-lane) 8. Aperture: F2.4 9. Aberration: less than 1% 10. Field of view: 95.5 degrees 11. Focal length: 2.88mm 12. Focus mode: manual focus 13. Application scenarios: machine vision, logistics reading and industrial inspection 14. Size: about 2.5 x 2.4 x 1.66cm 1:1. Equipped with 95.5 degree wide-angle lens, presenting a wider range of images, no longer limited to a narrow viewing angle 2. Global shutter, all pixels are exposed at the same time, the captured image is not easy to produce distortion. 3. Support up to 1280 x 1080 120fps, accurately capture fast-moving objects
