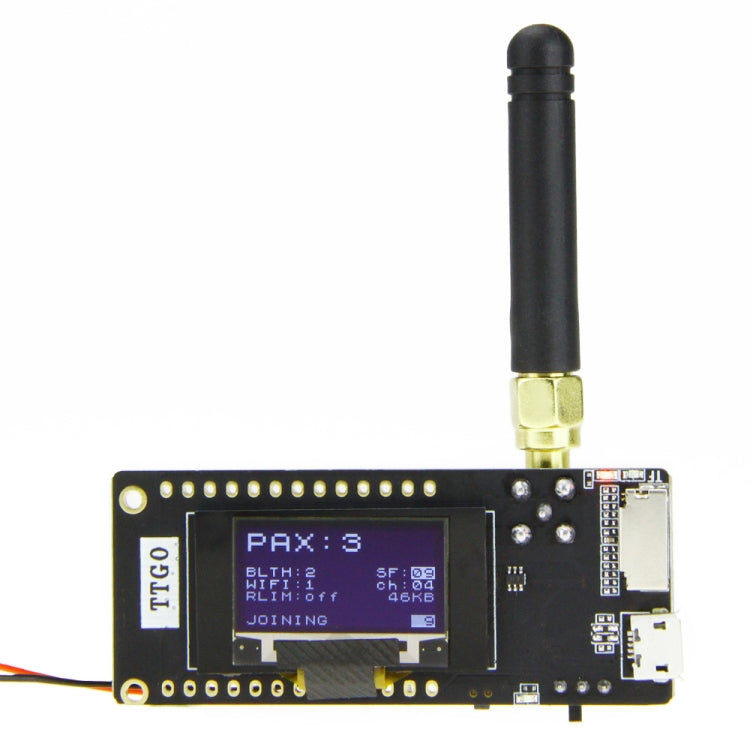

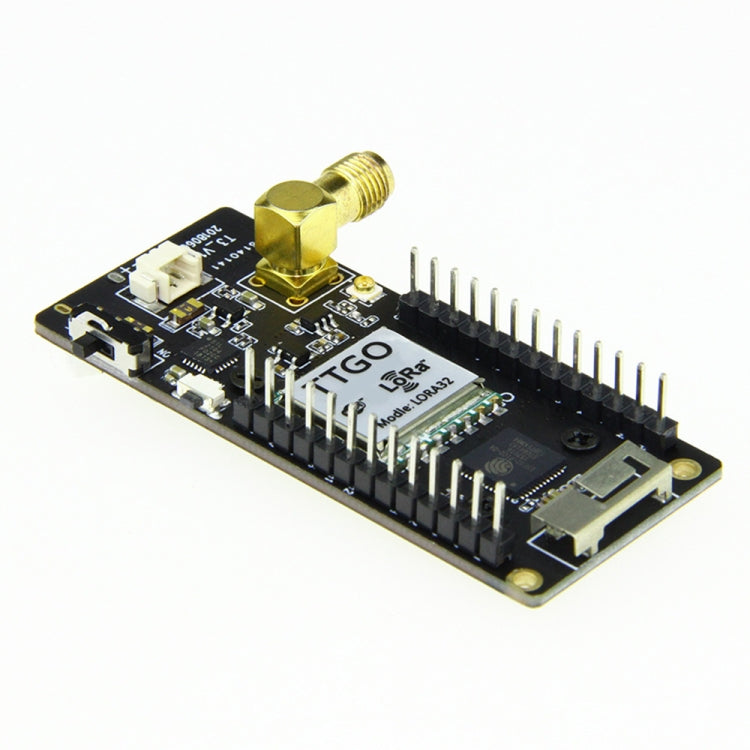

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 433MHz SMA IP5306 Module with Antenna

• Product type: Module
• Brand: TTGO
• Compatibility: ESP32
• Material: Not specified
• Key feature: Wireless communication
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

1. Working voltage: 1.8~13.7V 2. Acceptable current: 10~114mA 3. Emission current: - 120mA at + 20dBm - 90 mA lies at +17dBm - 29mA at +13dBm 4. Working frequency: 433MHz 5. Transmitting power: + 20dBm 6. Receiving sensitivity: - 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps - 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps - 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps - 123dBm lies at FSK & 5Khz & 1.2Kbps 7. Frequency error: +/- 15KHz 8. FIFO space: 64Byte 9. Data rate: -1.2K~1300Kbps at FSK -0.018K~37.5Kbps at LoRa 10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK 11. Interface form: SPI 12. Sleep current: - 0.2uA SLEEP - 1.5uA IDLE 13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius 14. Digital RSSI function 15. Automatic frequency correction 16. Automatic gain control 17. RF wake-up function 18. Low voltage detection and temperature sensor 19. Fast wake-up and frequency hopping 20. Highly configurable packet handler 21. SMA antenna IP5306 This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)
