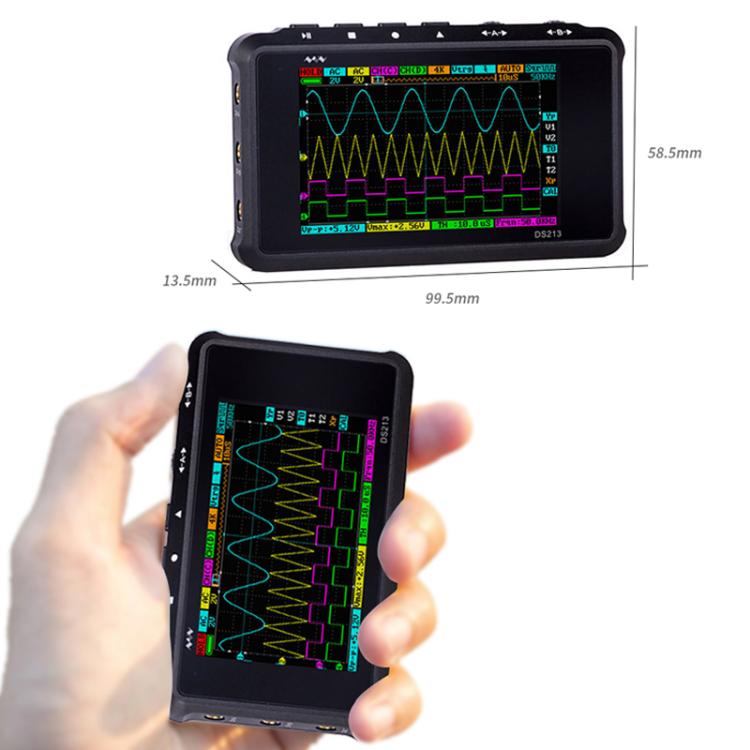

Mini Handheld Digital Storage Four-channel Automobile Maintenance Oscilloscope(DS213)

• Product type: Other Tester Tool
• Compatibility: Automobile Maintenance
• Material: Not specified
• Key feature: Handheld design
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Test Equipment

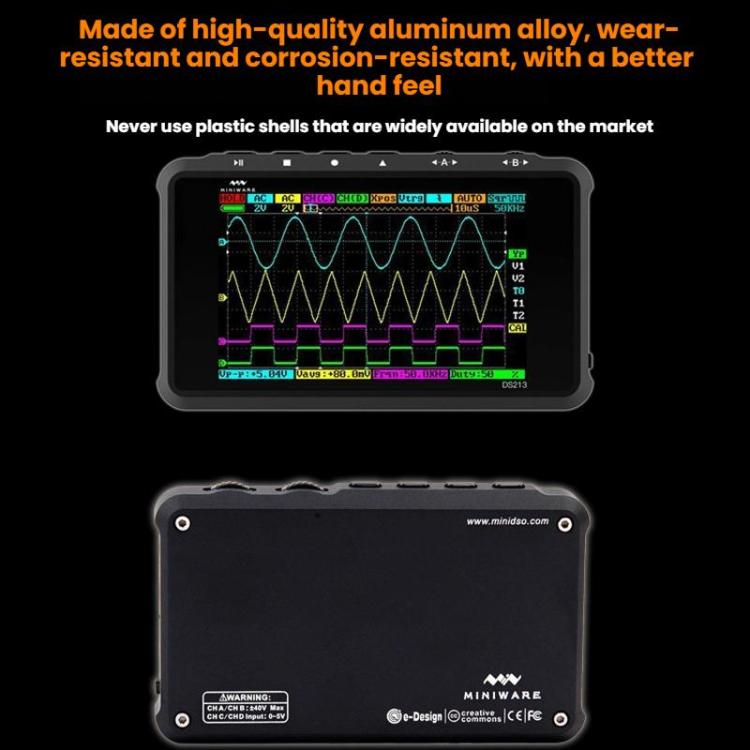

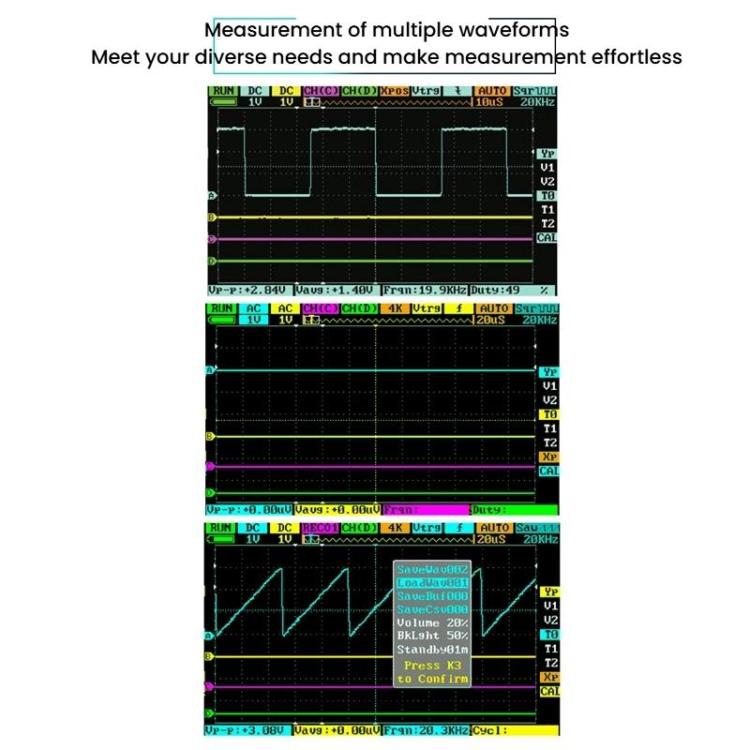

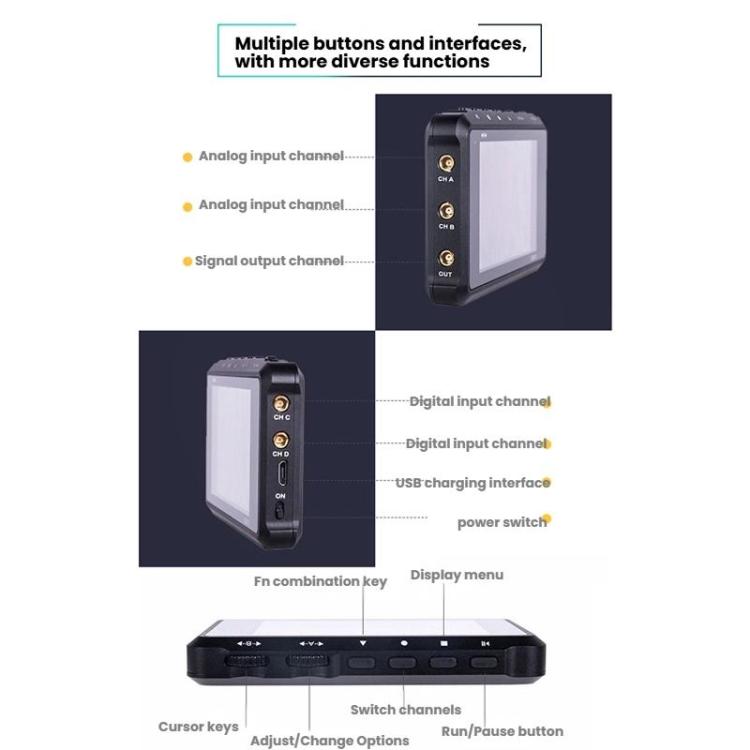

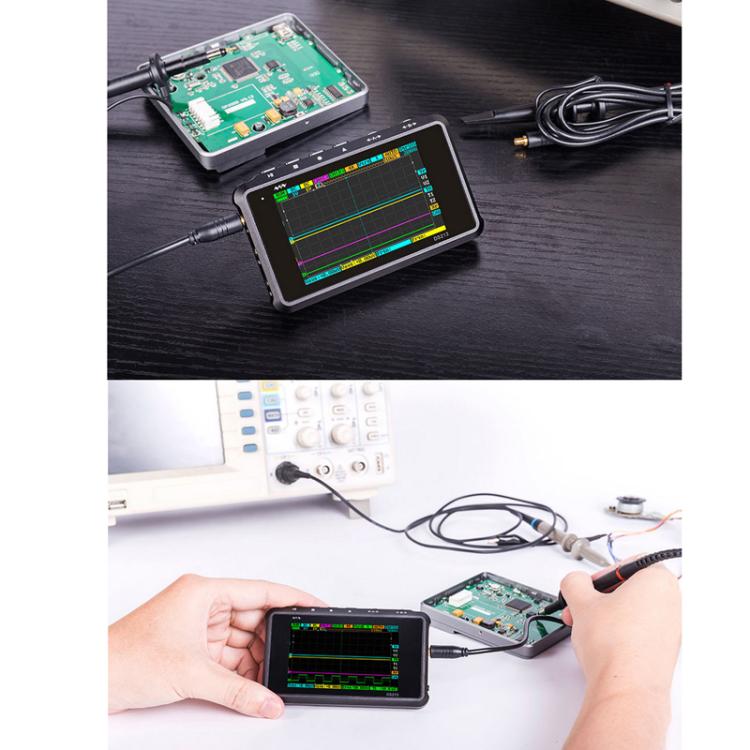

Technical parameters:1. Main control CPU: ARM Cortex M32. FIFO and control: FPGA3. ADC: HWD9288-1004. Number of analog channels: 2 ([CH_A] [CH_B])5. Number of digital channels: 2 ([CH_C] [CH_D])6. Number of calculation channels: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] [CH_D]7. Vertical sensitivity: 10mV-10V/div (1-2-5 STEP) (when using x1 probe); 100mV-100V/div (1-2-5 STEP) (when using x10 probe)8. Vertical resolution: 8 bits9. Memory depth: 4 channels 4*4K10. Input coupling mode: DC, AC11. Input voltage (MAX): 40Vpp when using x1 probe; 400Vpp when using x10 probe12. Soft trigger type: positive and negative edge trigger, pulse width trigger, logic trigger13. Trigger mode: automatic, standard, single, instant scan14. Trigger source: [CH_A] [CH_B] [CH_C] [CH_D]15. Signal source: square wave: 10Hz to 8MHz, 20 levels of 3Vpp signal source16. Sine wave, triangle wave, sawtooth wave: 10Hz to 20KHz, 11 levels of 3Vpp signal source17. File storage capacity: built-in 8M USB disk18. File storage format: BMP, BUF, CSV19. Automatic measurement type: peak-to-peak value, average value, effective value, frequency, period, pulse width, duty cycle20. Cursor measurement: time value, amplitude value21. 4-line display:- 1 line: [CH_A], HIDE- 2 lines: [CH_B], HIDE- 3 lines: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE- 4 lines: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] [CH_D], HIDE22. Sampling mode: real-time sampling23. Sampling rate: 100M Sa/s24. Battery power supply: 1000mAh25. Dimensions: 99.5x58.5x13.5mm26. Weight: 129gProduct features:1. 5-trace 4-line general-purpose electronic engineering task digital storage oscilloscope based on ARM Cortex M3 core2. Adopting FPGA to manage and control the external ADC and the working mode of data cache, it provides 4 application partitions, which can be used to load and upgrade up to 4 different application firmware3. Built-in 8MB USB flash drive, which can store waveforms and upgrade system firmware4. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware as needed5. Small size, light weight, easy to carry, and can be handheld6. Can store waveform data, waveform analysis and comparison are more efficient and intuitive7. Multiple triggering modes, support positive and negative edge triggering, logic triggering, pulse width triggering8. Powerful waveform processing capabilities, can automatically measure voltage, frequency, pulse width and other parametersPacking list:Oscilloscope host x 1(X1) Oscilloscope probe x 1(X10) Oscilloscope probe x 1L-type hexagonal screwdriver x 1micro-usb charging cable x 1
