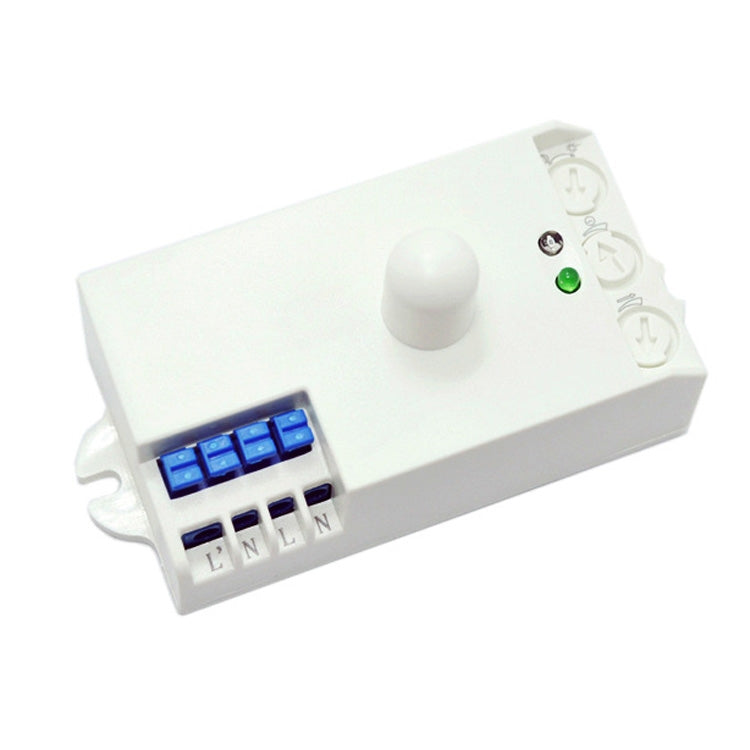

Microwave Radar Human Body Sensor 12/24V DC Body Car Mobile Sensing(807DC)

• Product type: Sensor Module
• Compatibility: Microwave Radar Human Body Sensor 12/24V DC
• Material: Not specified
• Key feature: 360-degree detection angle
• Color/Variant: Not specified
• Intended use: Indoor sensing
• Category: Arduino & SCM Supplies

1. Voltage: DC12-24V
2. Frequency: 50/60HZ
3. Installation method: indoor, ceiling installation
4. HF system: 5.8GHz CW radio wave, ISM band
5. Transmitting power: less than 10mW
6. Power: 70W (DC 12V)
7. Detection angle: 360 degrees
8. Distance: about 1-10m (radius) adjustable
9. Working delay: 10 seconds to 3 minutes
10. Light control illumination: about 2-2000 LUX
11. Power consumption: about 0.5W

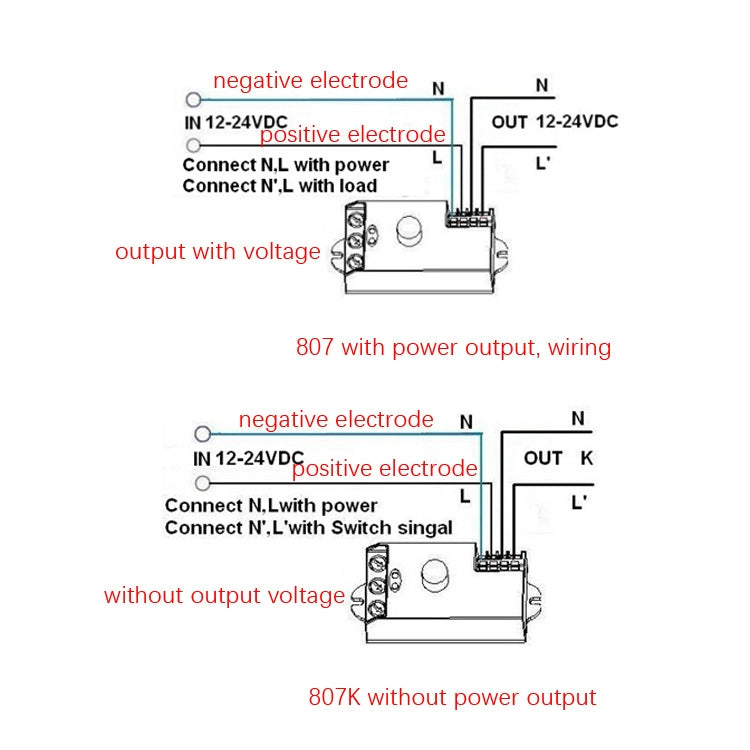

12. Description: 807 with power output, 807K without power output
13. Applicable environment: corridors, toilets, living rooms, corridors, warehouses, garages, etc.
14. Installation reminder: the induction switch has a transmission blind spot in the central area. If it is installed in a small indoor environment (such as bathroom, kitchen), try to install it on the side or in the corner, so that the induction area will be more effective on the side. otherwise, the vertical center activity may not be sensed

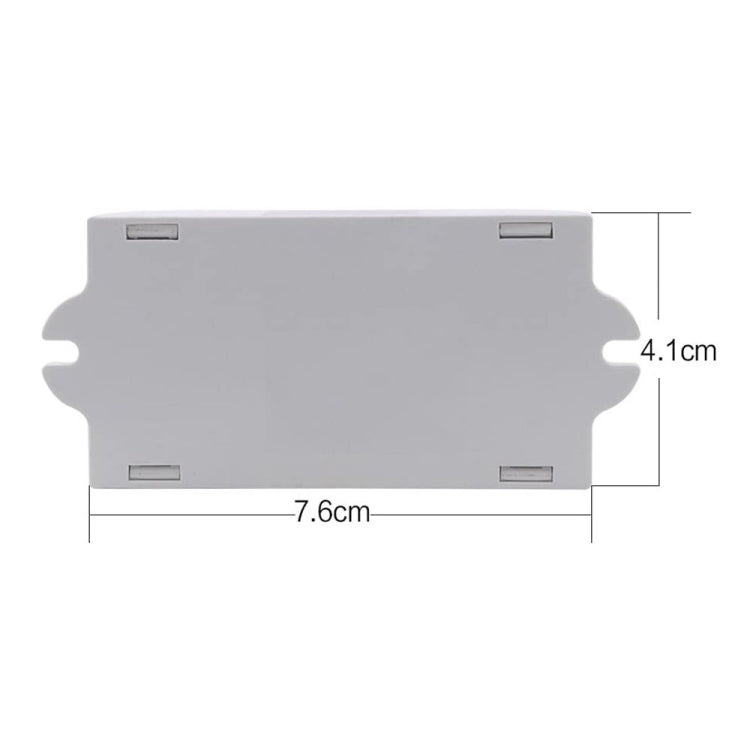

15. Size: about 7.6x4.1x3.9cm
