LT22 15W+30W 2.1 Channel TWS Bluetooth Audio Receiver Amplifier Module With Subwoofer
LT22 15W+30W 2.1 Channel TWS Bluetooth Audio Receiver Amplifier Module With Subwoofer
Sale
Sold out
Pre-order
Regular price
R 429.00
Regular price
Sale price
R 429.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Breadboard / Amplifier Board
• Compatibility: Bluetooth audio receivers
• Material: Not specified
• Key feature: TWS Bluetooth audio functionality
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
ZK-LT22:1. Bluetooth version: 5.1
2. Bluetooth transmission distance: 10m

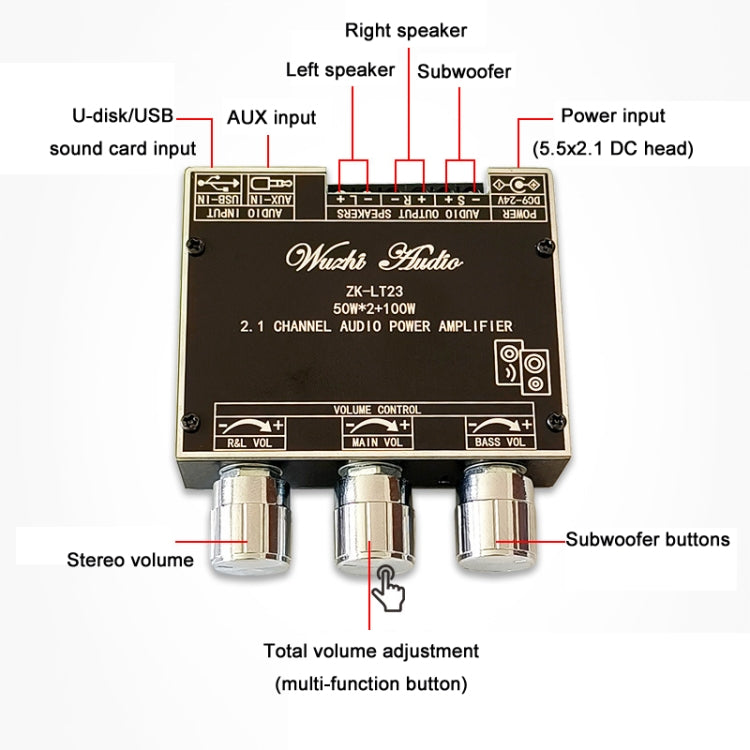

3. Audio input: Bluetooth + AUX + U disk + USB sound card
4. Audio output: 15W for left channel + 15W for right channel + 30W for subwoofer
5. Adaptable power supply: DC9-24V, 7A (not connectable to AC)
6. Speaker: left and right channel 10-30W, 4-8 ohms; subwoofer 10-30W, 4-8 ohms
7. Protection mechanism: over temperature, over current, short circuit, anti-static protection
8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning
9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function

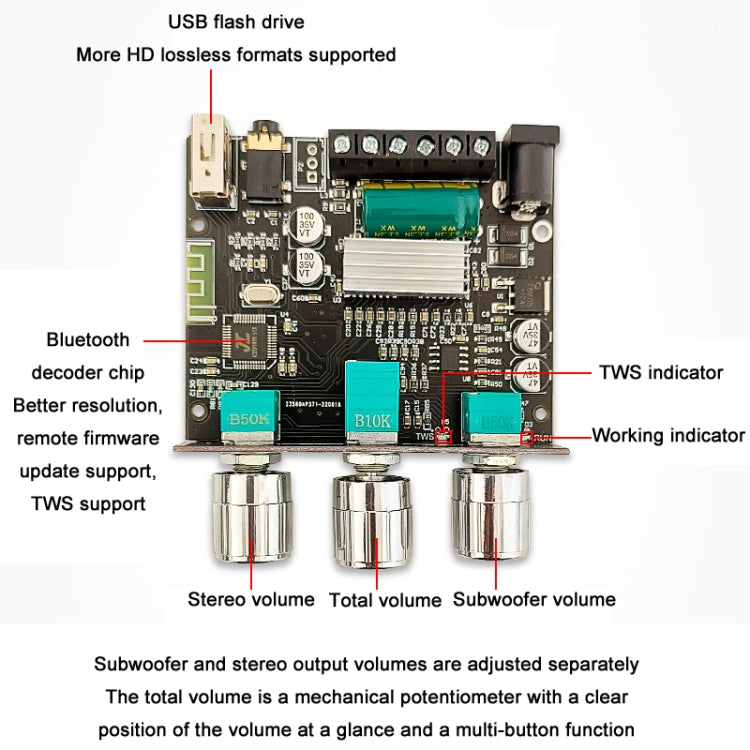

10. Separate volume adjustment for subwoofer and stereo output
11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is abundant
12. Dimensions: 75x70x20cm
13. Weight: 77g
ZK-LT23:1. Bluetooth version: 5.1
2. Bluetooth transmission distance: 10m
3. Audio input: Bluetooth + AUX + U disk + USB sound card
4. Audio output: 50W for left channel + 50W for right channel + 100W for subwoofer
5. Adaptable power supply: DC9-24V, 7A (not connectable to AC)
6. Speaker: left and right channel 10-50W, 4-8 ohms; subwoofer 20-50W, 4-8 ohms
7. Protection mechanism: over temperature, over current, short circuit, anti-static protection
8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning
9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function
10. Separate volume adjustment for subwoofer and stereo output
11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is rich
12. Dimensions: 75x70x20cm
13. Weight: 78g
• Compatibility: Bluetooth audio receivers
• Material: Not specified
• Key feature: TWS Bluetooth audio functionality
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
ZK-LT22:1. Bluetooth version: 5.1
2. Bluetooth transmission distance: 10m
3. Audio input: Bluetooth + AUX + U disk + USB sound card
4. Audio output: 15W for left channel + 15W for right channel + 30W for subwoofer
5. Adaptable power supply: DC9-24V, 7A (not connectable to AC)
6. Speaker: left and right channel 10-30W, 4-8 ohms; subwoofer 10-30W, 4-8 ohms
7. Protection mechanism: over temperature, over current, short circuit, anti-static protection
8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning
9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function
10. Separate volume adjustment for subwoofer and stereo output
11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is abundant
12. Dimensions: 75x70x20cm
13. Weight: 77g
ZK-LT23:1. Bluetooth version: 5.1
2. Bluetooth transmission distance: 10m
3. Audio input: Bluetooth + AUX + U disk + USB sound card
4. Audio output: 50W for left channel + 50W for right channel + 100W for subwoofer
5. Adaptable power supply: DC9-24V, 7A (not connectable to AC)
6. Speaker: left and right channel 10-50W, 4-8 ohms; subwoofer 20-50W, 4-8 ohms
7. Protection mechanism: over temperature, over current, short circuit, anti-static protection
8. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning
9. U-disk support for more HD lossless formats Bluetooth decoding chip, better resolution, support remote firmware update, support TWS function
10. Separate volume adjustment for subwoofer and stereo output
11. Total volume is mechanical potentiometer, volume position is clear at a glance, multi-button function is rich
12. Dimensions: 75x70x20cm
13. Weight: 78g
