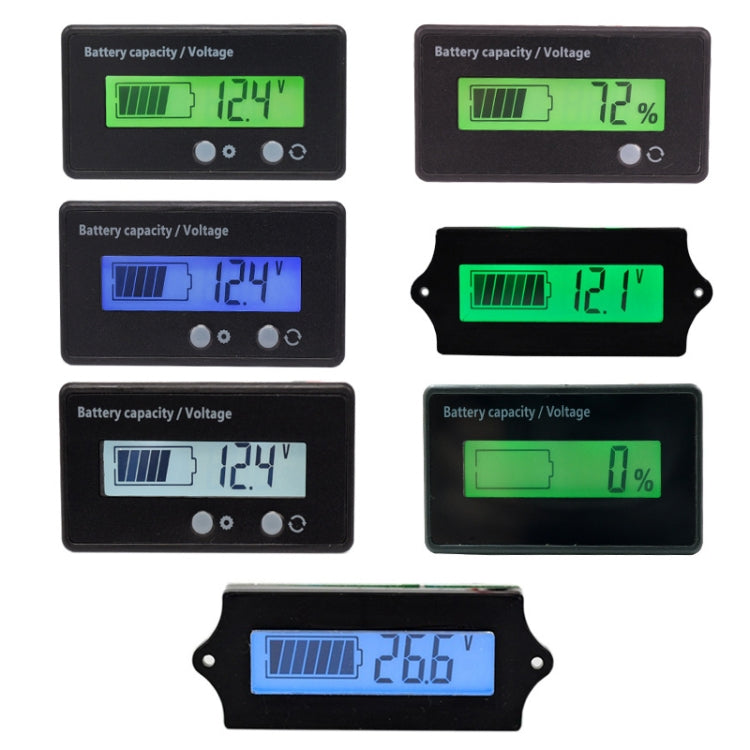

L6133 LCD Electric Motorcycle Power Display, Style: Single Button Green Backlight

• Product type: Electrical Instruments
• Compatibility: Various battery types
• Material: LCD
• Key feature: Dual display of battery percentage and voltage
• Color/Variant: Green Backlight
• Intended use: Everyday use
• Category: Motorcycle Accessories

1. The battery has its own button, which supports self-modification of parameters and is easy to set.
2. Dual display of battery percentage + voltage
3. Comes with a switch to turn off the display
4. Battery percentage/voltage/off
5. Working voltage: DC6-63V
6. Working current: less than 5mA
7. Sleep power consumption: 12uA (12V is for testing)

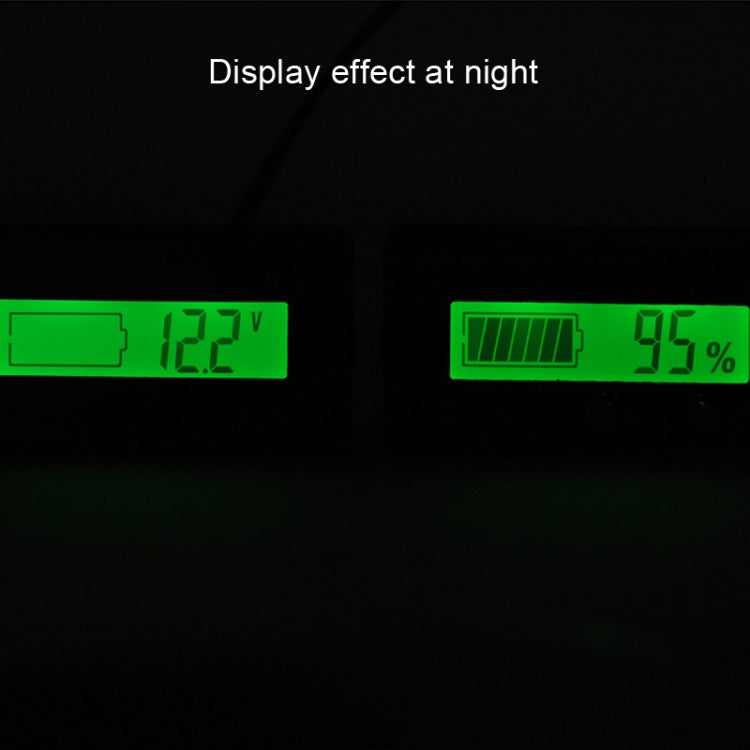

8. Display mode: LCD with backlight
9. Mounting opening: about 58.5 x 28.5mm
10. Dimensions: about 61.3 x 33.3 x 13.5mm
11. Weight: about 19g
Applicable battery specifications:
1. Lead acid: 12/24/36/48V
2. Lithium battery: 2/3/4/5/6/7/8/9/10/11/12/13/14/15 strings
