FNIRSI DSO510 Handheld Small Digital Portable Tablet Oscilloscope(Black Blue)

• Product type: Other Tester Tool
• Brand: FNIRSI
• Compatibility: DSO510
• Material: Durable
• Key feature: Lightweight design
• Color/Variant: Black Blue
• Intended use: Everyday use
• Category: Test Equipment

1. Sampling rate: 48MS/s
2. Bandwidth: 10M
3. Vertical sensitivity: 10mV/Div-10V/Div
4. Time base range: 50ns-20s
5. Voltage range: -+40V/-+400V
6. Trigger mode: automatic/normal/single
7. Frequency: 0-50KHz
8. Duty cycle: 0-100% (rectangular wave and sawtooth wave)
9. Amplitude: 0.1-3.0V
10. Display: 2.8 inches
11. Resolution: 320x240
12. USB charging: 5V/1A
13. Battery capacity: 1000mAh

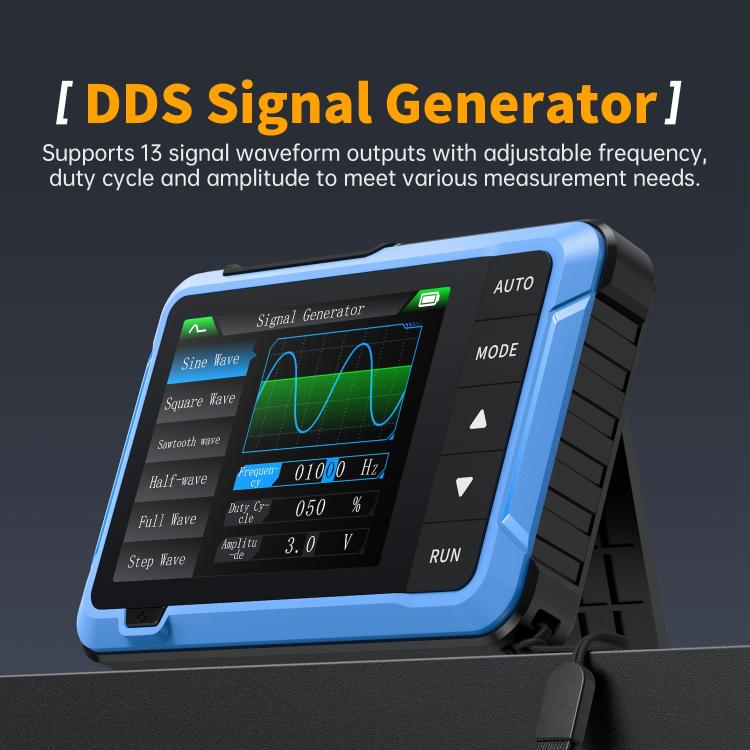

14. Built-in 13 adjustable waveforms, better assisting the use of oscilloscopes
15. High-definition storage of every important measurement moment, support USB sharing and export of pictures
16. Suitable for use in a variety of occasions, lightweight and space-saving, can be carried at any time for work, maintenance and DIY, etc.
