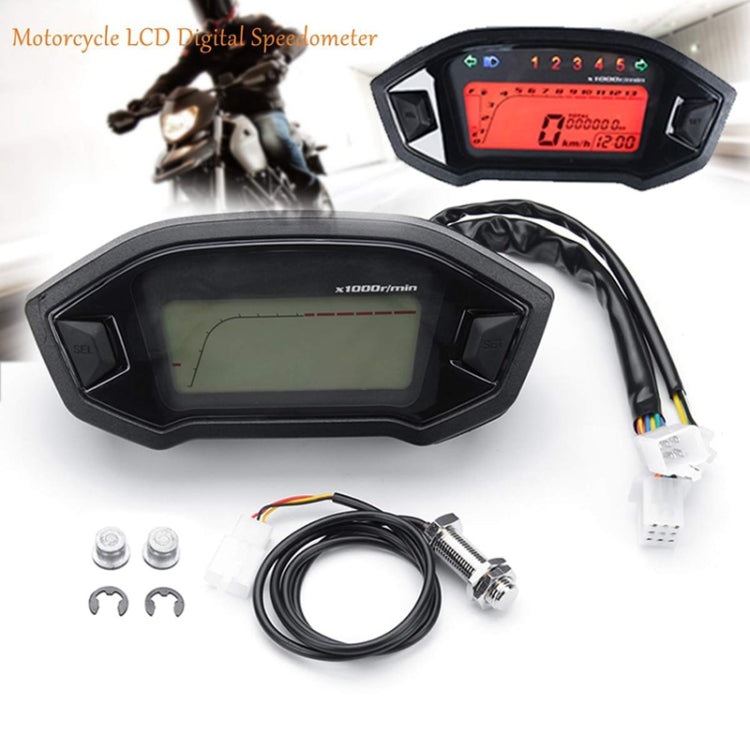

B2912 Motorcycle Modified Instrument Panel 12V LCD Display Odometer Mileage 2-4 Cylinder Speedometer
B2912 Motorcycle Modified Instrument Panel 12V LCD Display Odometer Mileage 2-4 Cylinder Speedometer
Sale
Sold out
Pre-order
Regular price
R 929.00
Regular price
Sale price
R 929.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Electrical Instruments
• Compatibility: Motorcycle
• Material: Not specified
• Key feature: LCD display with 7-color backlight
• Color/Variant: Light blue
• Intended use: Everyday use
• Category: Motorcycle Accessories

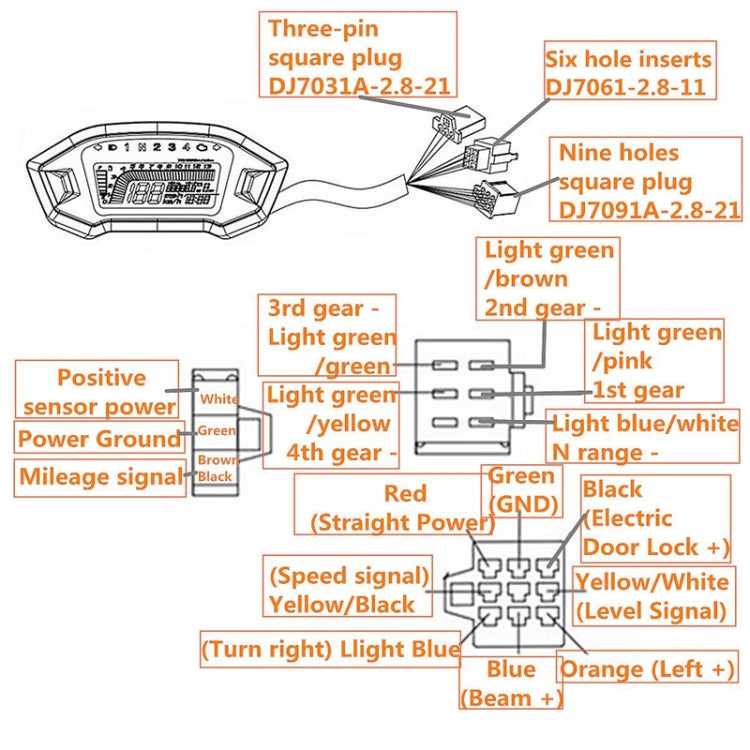

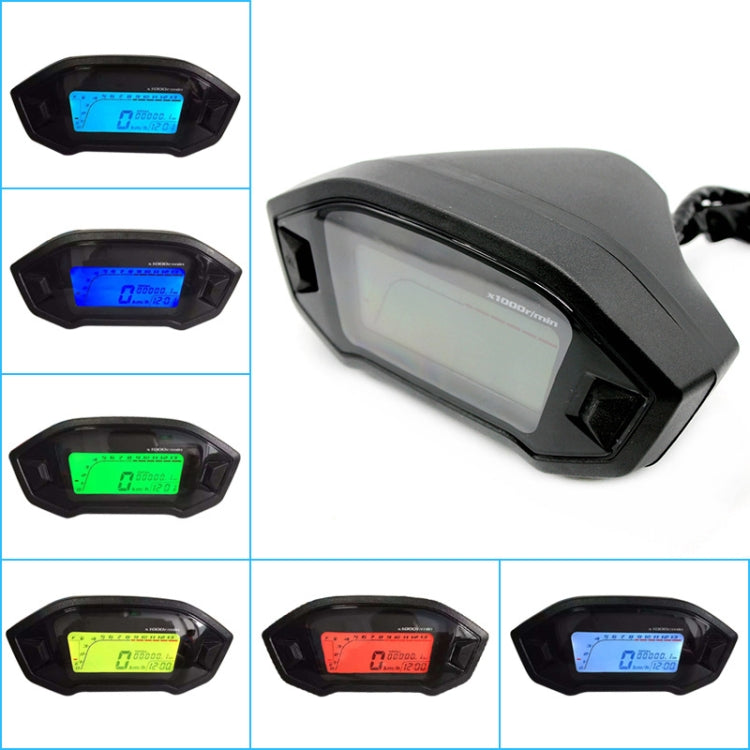

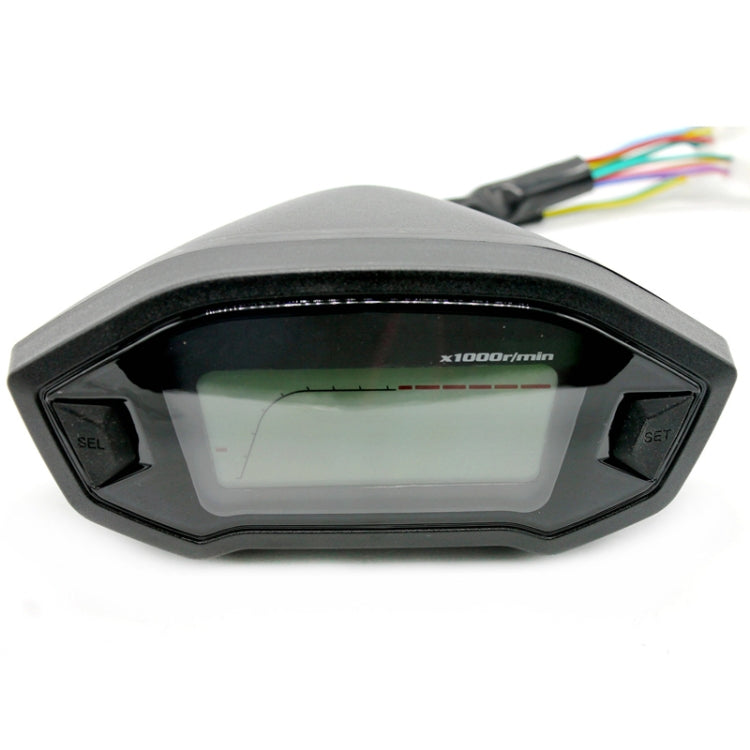

Light blue: turn right, 12V positive control Green/red: N gear Blue/Yellow: Speed signal line Pink: 1st gear Red: The battery is positive. Blue/Red: 2 gears Blue: high beam, 12V positive control Green/black: 3 gears Green: Negative Yellow/Red: 4 gears Orange: Left steering, 12V forward control. Yellow/White: 5 gears Blue and white: fuel signal line Black: Positive Yellow: Positive sensor Green: sensor negative Black/white: sensor signal 1. Working voltage: 10V-15V 2. Vehicle speed calibration: 42.5Hz corresponds to 60KM/H 3. Rotation speed calibration: 166Hz corresponds to 10*1000r/min 4. Fuel calibration: 98ohm at E point, 8ohm at F point 5. Voltage: below 11.3V, the undervoltage symbol flashes, higher than 11.7V, the undervoltage symbol is not displayed 6. LCD screen: 7-color backlight short press the right button to switch (the order is: red. purple. pink green. white. blue. green. sky blue.) The default is red 7. Button: Short press the left button to switch the total subtotal. In the subtotal state, long press the right button for 3 seconds to clear the subtotal. 8. Long press the left button and the vehicle speed flashes. Short press the right button to switch between metric and inch systems, then short press the left button to switch to the clock setting, the hour digit flashes, short press the left button to increase 1, and then short press the left button to flash the minutes, short press the right button Add 1, then short press the left button to save and exit.
• Compatibility: Motorcycle
• Material: Not specified
• Key feature: LCD display with 7-color backlight
• Color/Variant: Light blue
• Intended use: Everyday use
• Category: Motorcycle Accessories
Light blue: turn right, 12V positive control Green/red: N gear Blue/Yellow: Speed signal line Pink: 1st gear Red: The battery is positive. Blue/Red: 2 gears Blue: high beam, 12V positive control Green/black: 3 gears Green: Negative Yellow/Red: 4 gears Orange: Left steering, 12V forward control. Yellow/White: 5 gears Blue and white: fuel signal line Black: Positive Yellow: Positive sensor Green: sensor negative Black/white: sensor signal 1. Working voltage: 10V-15V 2. Vehicle speed calibration: 42.5Hz corresponds to 60KM/H 3. Rotation speed calibration: 166Hz corresponds to 10*1000r/min 4. Fuel calibration: 98ohm at E point, 8ohm at F point 5. Voltage: below 11.3V, the undervoltage symbol flashes, higher than 11.7V, the undervoltage symbol is not displayed 6. LCD screen: 7-color backlight short press the right button to switch (the order is: red. purple. pink green. white. blue. green. sky blue.) The default is red 7. Button: Short press the left button to switch the total subtotal. In the subtotal state, long press the right button for 3 seconds to clear the subtotal. 8. Long press the left button and the vehicle speed flashes. Short press the right button to switch between metric and inch systems, then short press the left button to switch to the clock setting, the hour digit flashes, short press the left button to increase 1, and then short press the left button to flash the minutes, short press the right button Add 1, then short press the left button to save and exit.
