ANENG 2 In 1 Handheld Color Screen Oscilloscope Digital Multimeter(AOS12)
ANENG 2 In 1 Handheld Color Screen Oscilloscope Digital Multimeter(AOS12)
Sale
Sold out
Pre-order
Regular price
R 1,499.00
Regular price
Sale price
R 1,499.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Digital Multimeter
• Brand: ANENG
• Compatibility: Oscilloscope
• Material: ABS+TPE
• Key feature: Color screen
• Intended use: Everyday use
• Category: Test Equipment
1. Material: ABS+TPE
2. Bandwidth: 5MHz
3. Sampling mode: real-time sampling
4. Real-time sampling rate: 48MSa/s
5. Input coupling: DC, AC
6. Input impedance: 10ΜΩ,@16pf
7. Sampling rate range: 1.5Sa/s-48MSa/s
8. Waveform interpolation: (sinx)x
9. Sweep speed range: 100ns/div-20s/div
10. Time base accuracy: 20ppm
11. Measurement information: frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle
12. Waveform storage: about 104 waveforms can be stored
13. DC voltage (V): 999.9mV-600.0V
14. DC voltage (mV): 9.999mV-99.99mV
15. AC voltage (V): 999.9mV-600.0V
16. AC voltage (mV): 9.999mV-99.99mV
17. Resistance: 99.99Ω-99.99ΜΩ
18. Capacitance: 9.999nF-99.99m
19. Language options: Chinese/English
20. Count: 9999
21. Range: Auto/Manual
22. Sampling rate: 3 times/second
23. Battery type: 3.7V 1500mAh lithium battery
24. Frequency (can only measure up to 100kz in AC voltage mode): 99.99Hz-999.9kHz

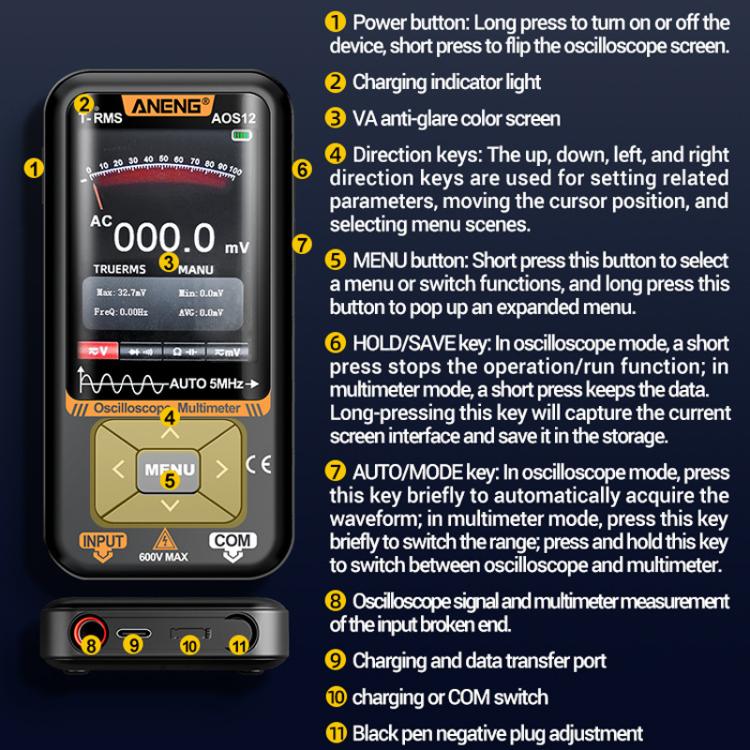

25. In oscilloscope mode, long press the MENU button to pop up the extended menu, press the left and right buttons to select the third page, press up and down to adjust the screen brightness, and set the brightness level to 30%-50%-80%-100%

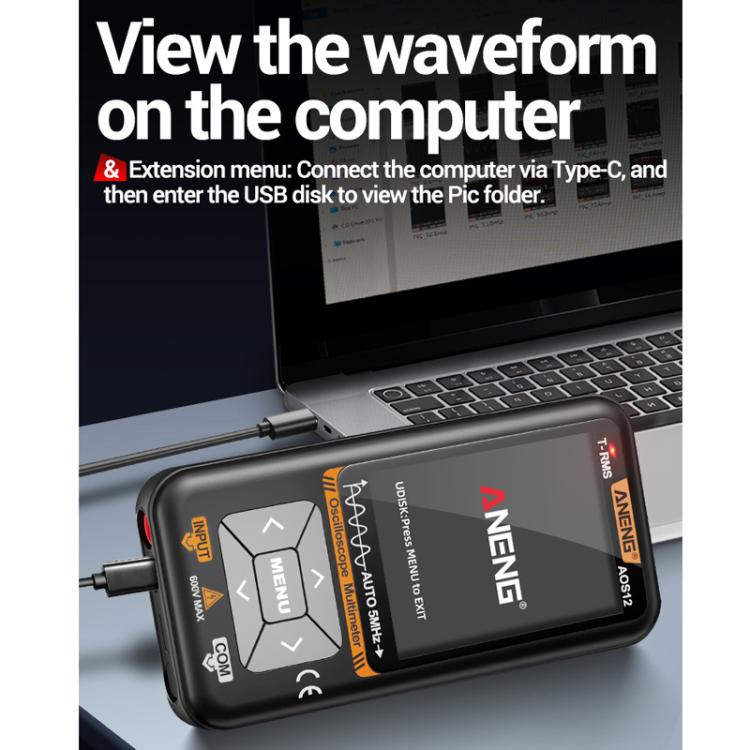

26. Enter the third page extended menu to enter the storage mode, connect the oscilloscope to the computer with the Type-c data cable, click the USB disk, and open the Pic folder to view
27. The test pen can also measure the waveform. When measuring the waveform of an unknown signal, you can short press the AUTO button to automatically obtain the waveform, or manually set the predicted waveform voltage time base, cursor position and other parameters
28. 3.7V 1500mAh lithium battery charging, equipped with a Type-c data cable, the charging indicator light is red, and the full indicator light is not on
29. Weight: 157 grams
30. Dimensions: 14.3x7.05x2.16 cm
• Brand: ANENG
• Compatibility: Oscilloscope
• Material: ABS+TPE
• Key feature: Color screen
• Intended use: Everyday use
• Category: Test Equipment
1. Material: ABS+TPE
2. Bandwidth: 5MHz
3. Sampling mode: real-time sampling
4. Real-time sampling rate: 48MSa/s
5. Input coupling: DC, AC
6. Input impedance: 10ΜΩ,@16pf
7. Sampling rate range: 1.5Sa/s-48MSa/s
8. Waveform interpolation: (sinx)x
9. Sweep speed range: 100ns/div-20s/div
10. Time base accuracy: 20ppm
11. Measurement information: frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle
12. Waveform storage: about 104 waveforms can be stored
13. DC voltage (V): 999.9mV-600.0V
14. DC voltage (mV): 9.999mV-99.99mV
15. AC voltage (V): 999.9mV-600.0V
16. AC voltage (mV): 9.999mV-99.99mV
17. Resistance: 99.99Ω-99.99ΜΩ
18. Capacitance: 9.999nF-99.99m
19. Language options: Chinese/English
20. Count: 9999
21. Range: Auto/Manual
22. Sampling rate: 3 times/second
23. Battery type: 3.7V 1500mAh lithium battery
24. Frequency (can only measure up to 100kz in AC voltage mode): 99.99Hz-999.9kHz
25. In oscilloscope mode, long press the MENU button to pop up the extended menu, press the left and right buttons to select the third page, press up and down to adjust the screen brightness, and set the brightness level to 30%-50%-80%-100%
26. Enter the third page extended menu to enter the storage mode, connect the oscilloscope to the computer with the Type-c data cable, click the USB disk, and open the Pic folder to view
27. The test pen can also measure the waveform. When measuring the waveform of an unknown signal, you can short press the AUTO button to automatically obtain the waveform, or manually set the predicted waveform voltage time base, cursor position and other parameters
28. 3.7V 1500mAh lithium battery charging, equipped with a Type-c data cable, the charging indicator light is red, and the full indicator light is not on
29. Weight: 157 grams
30. Dimensions: 14.3x7.05x2.16 cm
