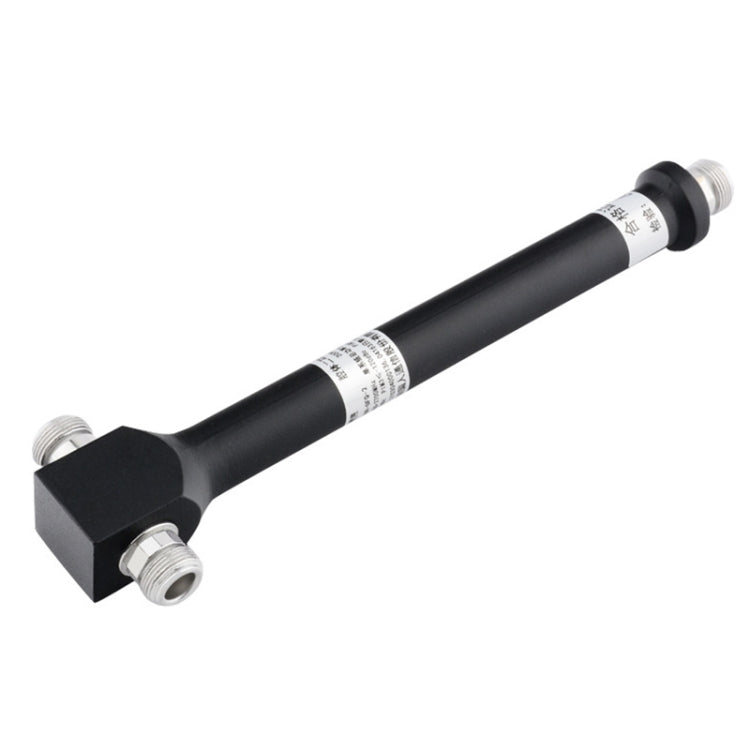

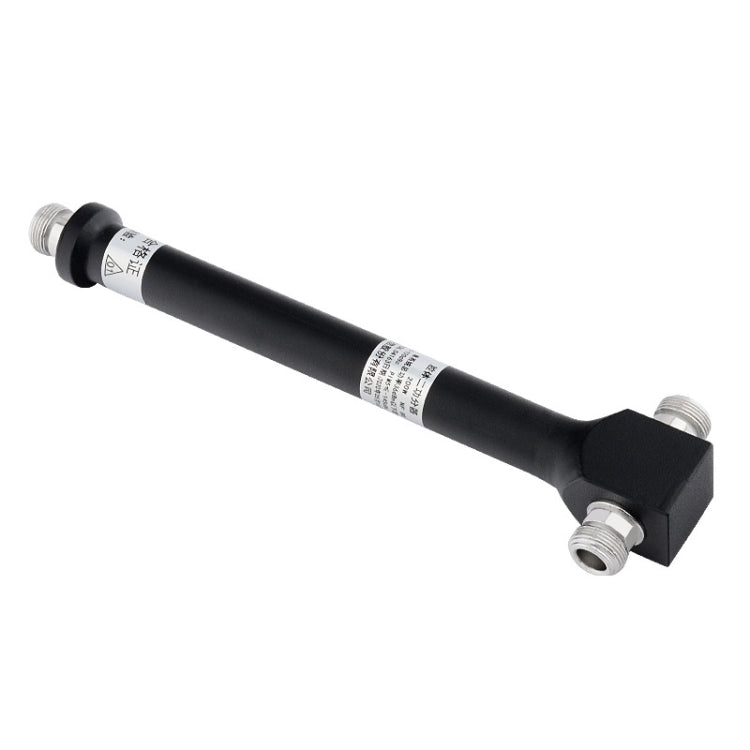

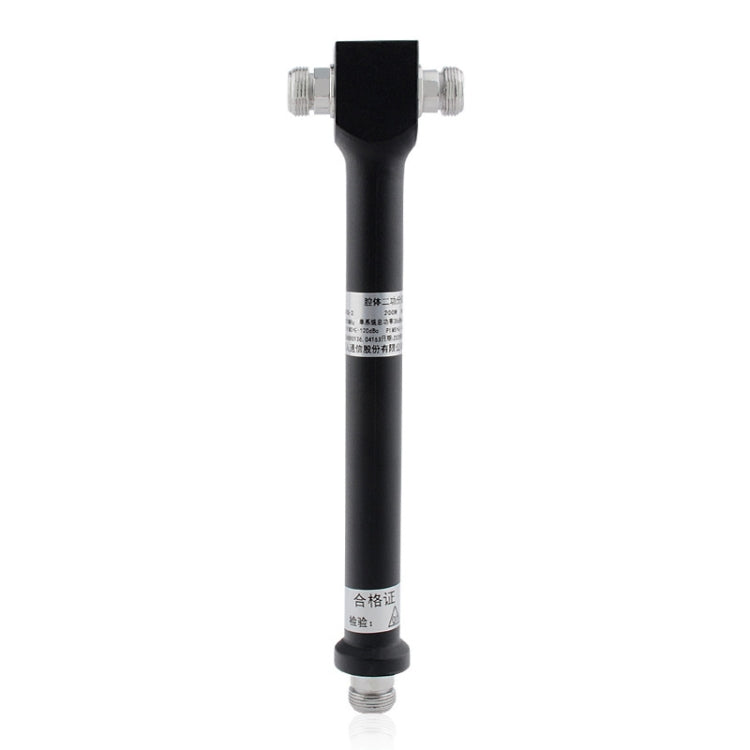

800-2500MHz 2 Way Cavity RF Power Splitter/Power Divider
800-2500MHz 2 Way Cavity RF Power Splitter/Power Divider
Sale
Sold out
Pre-order
Regular price
R 309.00
Regular price
Sale price
R 309.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Power Splitter
• Compatibility: 800-2500MHz
• Material: Micro strip
• Key feature: High isolation
• Color/Variant: N/A
• Intended use: Cellular mobile communications
• Category: Signal Boosters
1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system. * Electrical Specifications: 1) Type: 2-way Cavity Power Divider 2) Frequency: 800 ~ 2500MHz 3) Insertion loss(distribution ratio)-db:<=3.1DB 4) Isolation (dB): <=27 5) Nominal Impedance: 50 Ohm 6) VSWR: 1:1.2 7) Max. Power(MAX)(W) :50 8) Connector: N female * Mechanical Characteristics: 1) Environment temperature:-25~+55 Degree C 2) Relative humidity: 5~95% 3) Size: 210mm X 58mm x 24mm 4) Weight: 129g
• Compatibility: 800-2500MHz
• Material: Micro strip
• Key feature: High isolation
• Color/Variant: N/A
• Intended use: Cellular mobile communications
• Category: Signal Boosters
1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system. * Electrical Specifications: 1) Type: 2-way Cavity Power Divider 2) Frequency: 800 ~ 2500MHz 3) Insertion loss(distribution ratio)-db:<=3.1DB 4) Isolation (dB): <=27 5) Nominal Impedance: 50 Ohm 6) VSWR: 1:1.2 7) Max. Power(MAX)(W) :50 8) Connector: N female * Mechanical Characteristics: 1) Environment temperature:-25~+55 Degree C 2) Relative humidity: 5~95% 3) Size: 210mm X 58mm x 24mm 4) Weight: 129g
