6 PCS / Set 35mm Hinge Open Hole Cabinet Door Plate Hinge Packed Locator

• Product type: Others
• Compatibility: 35mm hinges
• Material: Aluminum alloy
• Key feature: Accurate positioning
• Color/Variant: N/A
• Intended use: Woodworking tool
• Category: Tools & Industrial & Scientific

1. Aluminum alloy material, sperm manufacturing, beautiful and durable
2. Accurate positioning, easy to operate

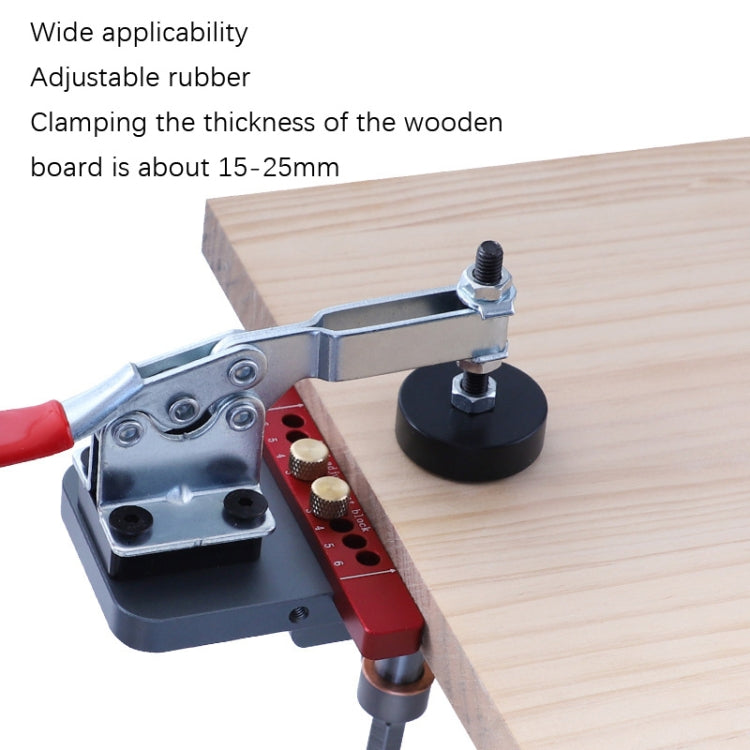

3. Applicability, adjustable rubber presses, clamping wood plate thickness ranges about 15-25mm

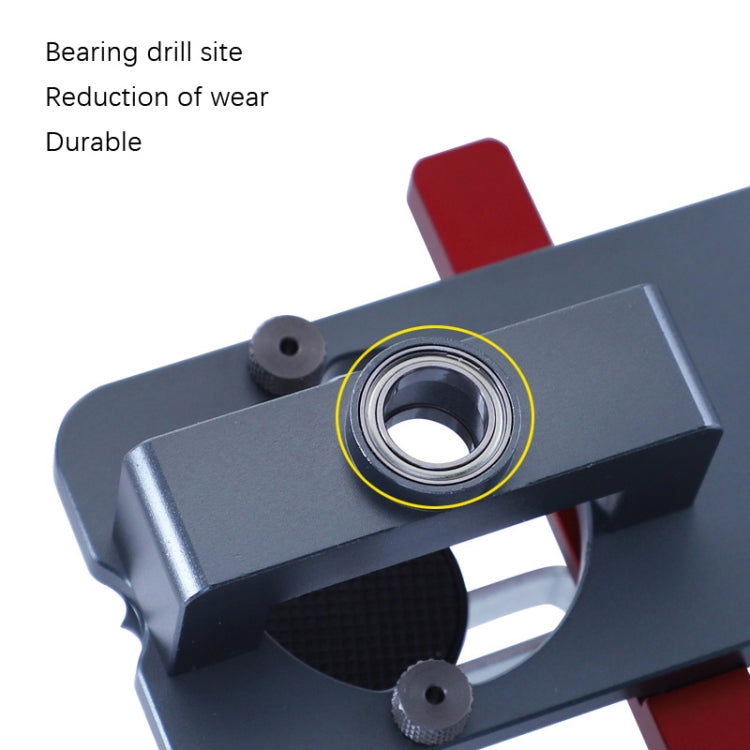

4. Bearing drilling sites, reduce wear, durable
5. Adjustable in the hole margin, adapt to the actual needs of 35mm hinges of different specifications
6. Uses: 35mm hinge open hole installation, door panel hinge piping positioning, woodworking open auxiliary tool

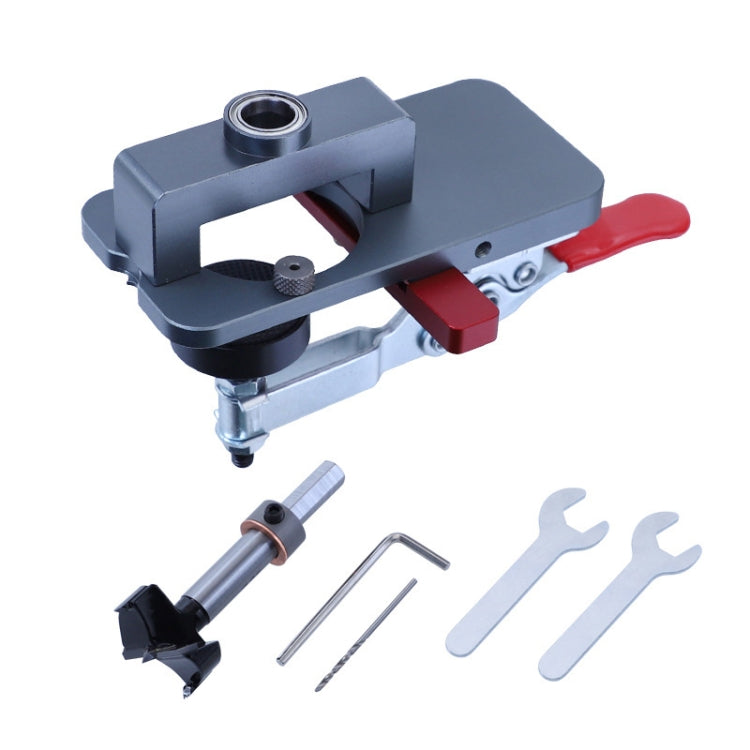

7. Packing list: hinge punch locator body X1, 35mm open cell X1, wrench x2, 2mm drill bit X1, hex wrench x1
8. Operating size: about 35mm

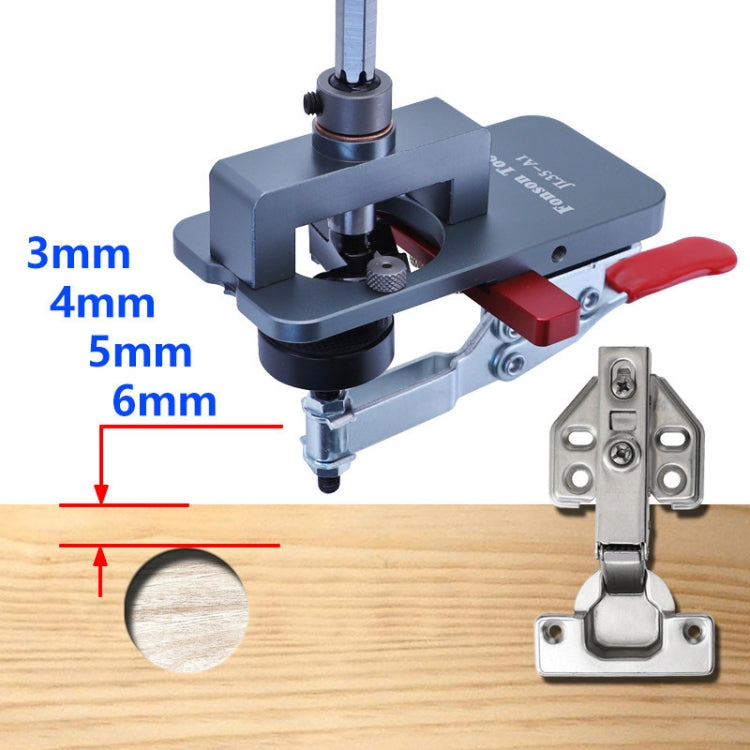

9. Operating margins: about 3/4/5/6mm adjustable
10. Plate thickness: about 15-25mm adjustable
11. Size: about 12x5.8 cm
12. Weight: about 634 grams
Installation method: 1. Install a 35mm opener, adjust the perforation depth, normal 12-13mm, then lock the limit ring 2. Adjust the quick clip Black Block Fixed Size (Note: Tool adjustable fixed wooden board size is 15-25mm) 3. The punch is moved to the wooden planx, lock the quick clip 4. Electric drill holds the opening of the open hole, uniformly press the hole to 12-13mm depth, then hit the left and right side 2mm screw hole 5. 35mm hole to the edge can be adjusted to 3, 4, 5, 6mm 6. Install 35mm hinge
