4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
4 Channel Passive Video BNC to UTP RJ45 Balun Transceiver
Sale
Sold out
Pre-order
Regular price
R 369.00
Regular price
Sale price
R 369.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Video Balun
• Compatibility: 4 Channel Systems
• Material: Metal
• Key feature: Passive design, no power required
• Intended use: Video signal transmission
• Category: Video Accessories

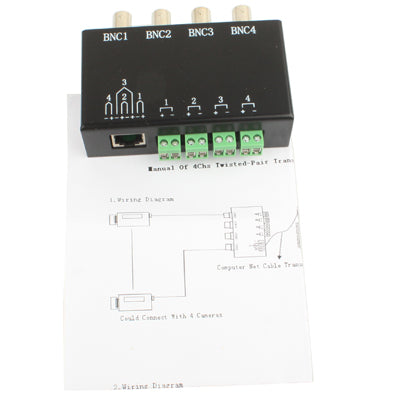

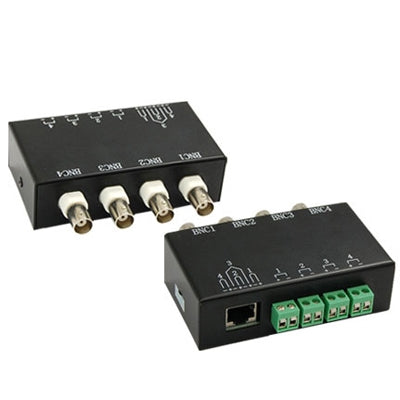

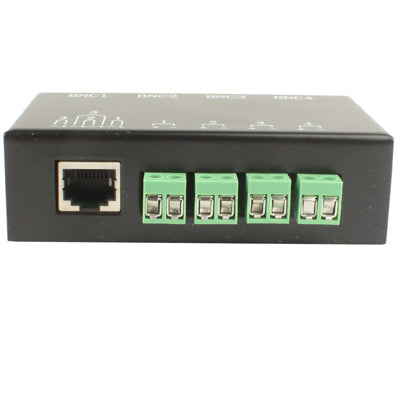

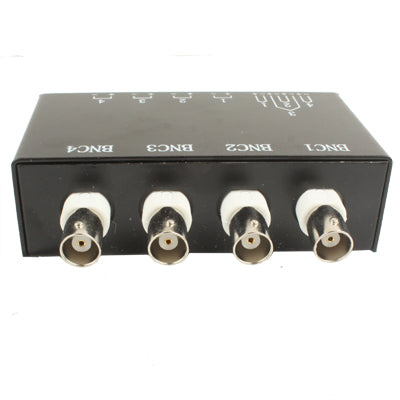

Description: 1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable. 2) Input: BNC-video 3) Output 1 of 4ch box - One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4). 4) Output 2 of 4ch box - Four screw output for 4 channels. 5) Passive design (no power required). 6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching. 7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission. 8) Maximum 300m color video working distance (much better than coaxial cable 100m). 9) Casing Material: Metal 10) Dimension: 96x80x30mm 11) Weight: 257g
• Compatibility: 4 Channel Systems
• Material: Metal
• Key feature: Passive design, no power required
• Intended use: Video signal transmission
• Category: Video Accessories
Description: 1) This BNC to UTP RJ45 Balun transmits video signal via UTP Lan cable. 2) Input: BNC-video 3) Output 1 of 4ch box - One RJ45, each for 4 channels (Pin 1-2 ch1, Pin 4-5 ch2, pin 3-6 ch3, pin 7-8 ch4). 4) Output 2 of 4ch box - Four screw output for 4 channels. 5) Passive design (no power required). 6) This Video BNC UTP RJ45 Balun using standard LAN cable, patching. 7) This 4 Channel BNC UTP RJ45 Balun does not support 12V power transmission. 8) Maximum 300m color video working distance (much better than coaxial cable 100m). 9) Casing Material: Metal 10) Dimension: 96x80x30mm 11) Weight: 257g
