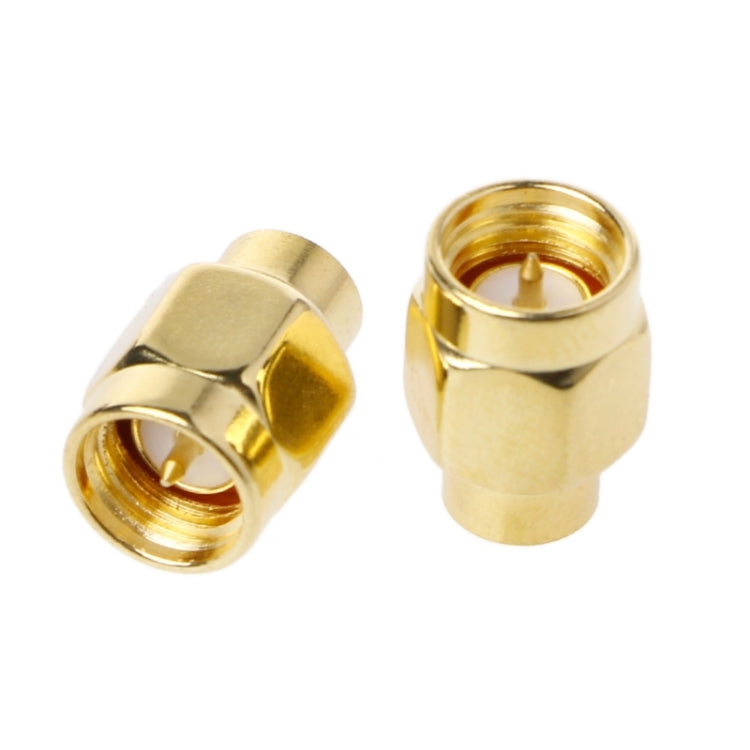

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector
2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector
Sale
Sold out
Pre-order
Regular price
R 189.00
Regular price
Sale price
R 189.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: DVB-T & Simulation Antenna
• Compatibility: SMA Male Termination Load
• Material: Not specified
• Key feature: 50 Ohm impedance
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius) 2. Vibration: Vibration MIL-STD-202, Method 213 3. Characteristic Impedance: Impedance 50ohm 4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz) 5. Operating voltage: Working Voltage 335V max (RMS) 6. Pressure: Withstand Voltage 1000V rms (sea level minimum) 7. Contact resistance: Contact resistance 8. Between the inner conductors: Center Contact <= 3M ohm 9. Outside conductor: Outer Contact <= 2M ohm 10. Insulation resistance: Insulation resistance >= 5000M ohm 11. Insertion loss: <=0.15 dB / 6 GHz 12. Voltage Standing Wave Ratio: - Straight: Straight Soft Cable <=1.10 + 0.002f Semi-Rigid Cable <=1.05 + 0.001f - Curved: Right angle soft cable <=1.20 + 0.003f semi-rigid cable <=1.10 + 0.001f 13. Durability (Dating (mating): >= 500 times (cycles) 14. Size:12x8mm/0.47x0.31
• Compatibility: SMA Male Termination Load
• Material: Not specified
• Key feature: 50 Ohm impedance
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius) 2. Vibration: Vibration MIL-STD-202, Method 213 3. Characteristic Impedance: Impedance 50ohm 4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz) 5. Operating voltage: Working Voltage 335V max (RMS) 6. Pressure: Withstand Voltage 1000V rms (sea level minimum) 7. Contact resistance: Contact resistance 8. Between the inner conductors: Center Contact <= 3M ohm 9. Outside conductor: Outer Contact <= 2M ohm 10. Insulation resistance: Insulation resistance >= 5000M ohm 11. Insertion loss: <=0.15 dB / 6 GHz 12. Voltage Standing Wave Ratio: - Straight: Straight Soft Cable <=1.10 + 0.002f Semi-Rigid Cable <=1.05 + 0.001f - Curved: Right angle soft cable <=1.20 + 0.003f semi-rigid cable <=1.10 + 0.001f 13. Durability (Dating (mating): >= 500 times (cycles) 14. Size:12x8mm/0.47x0.31
